2. Main Features

SWM-Series Monitors contain the following features:
Compatible with various SDI signal
●
formats
- This product is compatible with various SDI
signals - 480i, 576i, 1080i, 1080p, 1080psf
All-in-one type system
●
- Slim and all-in-one type monitor that
requires no additional accessories, for
optimized space utilization.
- This product is specially designed for studio
wall.
Wide Screen support
●
- This product supports native 16:9 aspect
ratio.
Remote control function
●
- This product can simply be Remote-
controlled by cable connection without
additional peripheral equipment attached to
unit.
UMD feature support
●
- This product supports protocols provided by
TVLogic or TSL protocol.
Ethernet & USB support
●
- Supports Ethernet and USB connection for
program download and monitor control.
DVI/HDMI(HDCP) Input support
●
- DVI(Digital) and HDMI(w/ HDCP) inputs
are available without the need of extra
accessories.
6 Multi Format LCD Monitor
Dual Link support
●
- Supports Dual link YCbCr/RGB 4:4:4 and
YCbCr 4:2:2 formats.
3G support
●
- Supports 3G A/B formats.
Auto Color Calibration support
●
- Supports Auto Color Calibration by directly
connecting the color probes to the product.
Optical support (Option)
●
- Optical fiber interface is supported so that
SDI input is available without the need of
extra accessories.
Additional features
●
- Wide Viewing Angle, Loop Through (SDI and
Ethernet) and OSD user interface.
3. Controls & Functions

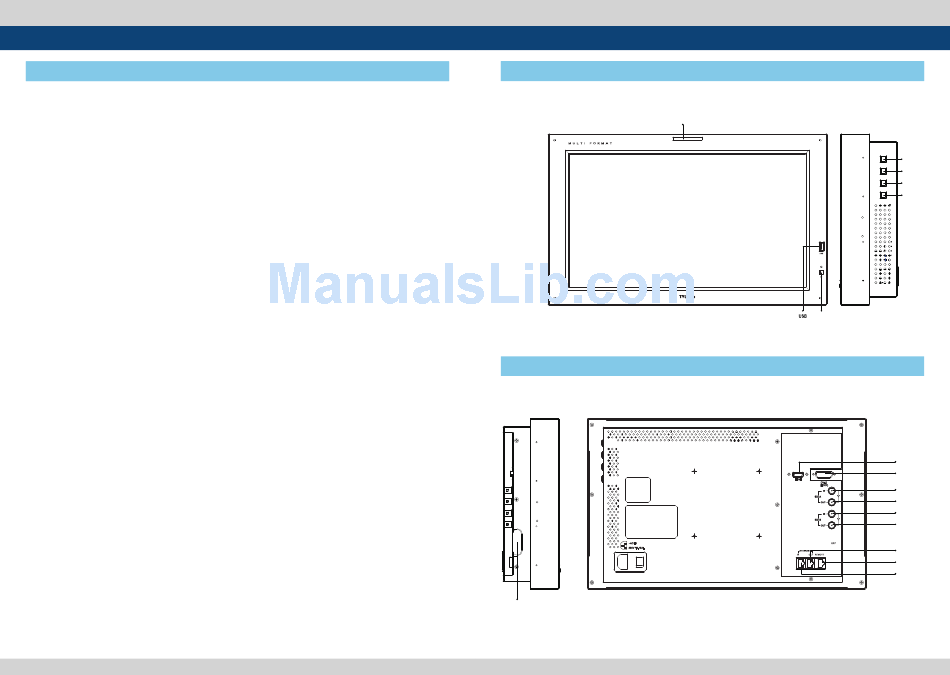

SWM-171A : FRONT / RIGHT
SWM-171A : REAR / LEFT
OPTIC CONNECTOR (Option)
OPTIC CONNECTOR (Option)
TALLY
TALLY
POWER
HDMI
DVI
SDI-A IN
SDI-A OUT
SDI-B IN
SDI-B OUT
ETHERNET OUT
REMOTE
ETHERNET IN
Multi Format LCD Monitor 7
MENU
UP
DOWN
ENTER
POWER
HDMI
DVI
SDI-A IN
SDI-A OUT
SDI-B IN
SDI-B OUT
ETHERNET OUT
REMOTE
ETHERNET IN
