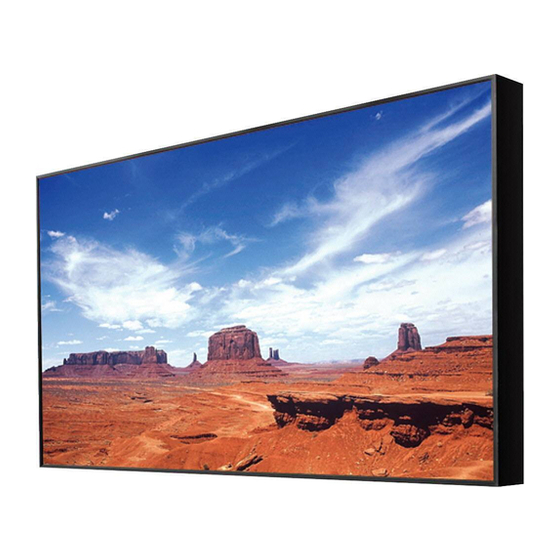

- Page 1 HDMI User’s Manual LCD Flat Cube Display Monitor DVI / HDMI LCD Monitor FCM-400W FCM-460W LHM-400W LHM-460W LHM-570W...
-
Page 2: Table Of Contents
Contents Warnings ................... 2 Features .................... 5 Name & Function of Each Part ............6 Remote Controller ................8 OSD Menu Organization & Adjustment ..........9 Remote Control Box ................ 16 DVI/HDMI Input Signal Format ............17 VGA Input Signal Format ..............18 Product Specification .............. -
Page 3: Warnings
Warning · Always use set voltage. - AC 100~240V · All operating instructions must be read and understood before the product is operated. · These safety and operating instructions must be kept in safe place for future reference. · All warnings on the product and in the instructions must be observed closely. ·... - Page 4 d. When the product does not operate properly as described in the operating instructions. Do not touch the controls other than those described in the operating instructions. Improper adjustment of controls not described in the instructions can cause damage, which often requires extensive adjustment work by a qualified technician.
- Page 5 · The vents and other openings in the cabinet are designed for ventilation. Do not cover or block these vents and openings since insufficient ventilation can cause overheating and/or shorten the life of the product. Do not place the product on a bed, sofa, rug or other similar surface, since they can block ventilation openings.
-
Page 6: Features
- Certified for horizontal and vertical mount, 24/7 LHM series units have the following features: TVLogic LHM series monitor is designed for broadcast multi-viewer system large-screen LCD display and digital signage solutions. The screen performance of LHM series brings high picture quality and capturing the attention of viewers. -
Page 7: Name & Function Of Each Part
Name & Function of Each Part <FCM> STANDBY ENTER HDMI RS-485 IN DOWN RS-485 OUT MENU ~AC IN & S/W <LHM - FRONT> STANDBY DOWN MENU ENTER <LHM - REAR> ~AC IN & S/W SDI(option) RS-485 OUT HDMI RS-485 IN... - Page 8 · PGM (DB-9) Input connector for FACTORY PGM allowing for firmware updates. · VGA (DB-15) Input connection for Analog VGA · DVI (DVI-D) Input connection for DVI · HDMI (HDMI) Input connection for HDMI · RS-485 IN (RJ-45) Input connection for RS-485 ·...
-
Page 9: Remote Controller
Remote Controller · [POWER] button STANDBY On/Off · [1]~[0] button ID(1~99) select button on remote control box. · [ID] button This button is to select certain monitor ID, when use remote control box. (Remote control box LED : ON) <Example> If you want to select a monitor (ID number is 3), press [ID] button + [3] button. -
Page 10: Osd Menu Organization & Adjustment
· [DVI] button [DVI] input select button · [HDMI] button [HDMI] input select button · [VGA] button [VGA] input select button OSD Menu Organization & Adjustment Image Settings (DVI, HDMI) · Brightness This Item controls the degree of brightness. · Contrast This item controls the contrast ratio. - Page 11 Image Settings (VGA) · Brightness This Item controls the degree of brightness. · Contrast This item controls the contrast ratio. · Image Position This item controls the position (H/V) of the image. · Phase This item controls Phase value. · Clocks/Line This item adjust signal sync timing.
- Page 12 Image Settings (VGA) – Image Position · Control the position (H/V) of the image. Press the [ENTER] button to select the H/V Mode, then use [UP]/[DOWN] button to change the position of the image. Image Settings – Color Temp. · This menu controls the Color Temperature. ·...
-
Page 13: Display Settings
Display Settings · Aspect Ratio This item controls the aspect ratio. Full Screen/One To One mode. · Back Light This item controls the LCD backlight setting. The value should be within range MIN(0) and MAX(40). · Select Matrix Used for multi-display. ·... - Page 14 Setup · Input Select Used to select the input mode. · Input Scan If the signal disconnected or unsupported, the monitor automatically finds and moves to the next available mode. #Automatically detects in the order of DVI -> HDMI -> VGA. ·...
- Page 15 Information · Source Input Shows the current input source (DVI, HDMI, VGA). · Input Resolution Shows the resolution of current input (H,V Resolution, V Frequency). · Aspect Ratio Shows the aspect ratio of current input (Full Screen, One To One). ·...
- Page 16 Input Select OSD (LHM Option) · Press [ENTER] button to toggle through the input modes when OSD menu is inactive. · Press [ENTER] button once to see the current input mode. Press again to change the input mode. # Mode changes in the order of DVI -> HDMI -> VGA -> SDI(Option) -> DVI INFORMATION ·...
-
Page 17: Remote Control Box
Remote Control Box Block diagram [ID] 1 [ID] 2 [ID] 3 [ID] n Remote control · Remote control box is to control the monitors with one remote control device. [Setting and Connection] 1. Set the monitor ID of each monitor. ([SetUP]->[SetID] setting of OSD menu) 2. -
Page 18: Dvi/Hdmi Input Signal Format
DVI/HDMI Input Signal Format 1) Graphic Mode Resolution f H(kHz) f V(Hz) Resolution f H(kHz) f V(Hz) 640 x 350 60Hz 31.469 59.941 1152 x 900 65Hz 61.795 65.950 640 x 350 70Hz 31.469 70.086 1152 x 900 76Hz 71.713 76.048 640 x 350 85Hz 31.469... -
Page 19: Vga Input Signal Format
VGA Input Signal Format 1) Graphic Mode Resolution f H(kHz) f V(Hz) Resolution f H(kHz) f V(Hz) 1280 x 960 60Hz 60.000 60.000 640 x 350 70Hz 31.469 70.086 1280 x 1024 60Hz 63.337 59.978 640 x 350 85Hz 31.469 85.081 1280 x 1024 70Hz 74.405... -
Page 20: Product Specification
Product Specification (FCM) FCM-400W FCM-460W 1 x DVI-I DVI IN 1 x HDMI HDMI IN Input 1 x D-Sub RGBHV ( VGA ) IN 1 x HD-SDI HD-SDI IN (Option) 1 x 9Pin D-Sub 232 Port 2 x RJ45 ( RS485) - Page 21 Product Specification (LHM) LHM-400W LHM-460W LHM-570W 1 x DVI-I DVI IN 1 x HDMI HDMI IN Input 1 x D-Sub RGBHV ( VGA ) IN HD-SDI IN (Option) 1 x HD-SDI 232 Port 1 x 9Pin D-Sub RS485 Port 2 x RJ45 ( RS485) 640x480 / 800x600 / 1024x768 / 1280 x 768 / 1280 x 1024 / 1360 x 768 / 1920 x 1080 Input 640x480 / 800x600 / 1024x768 / 1280 x 768 / 1280 x 1024 / 1360 x 768 / 1920 x 1080...
- Page 22 TVLogic Video Walls Developed by For more information please visit : www.tvlogic.co.kr Suite 914 ACE TECHNO TOWER-9, 345-30 Gasan-Dong, GuemChun-Gu, Seoul, Korea TEL : +82-2-2026-1333 FAX : +82-2-2026-1339 E-mail : support@tvlogic.co.kr...
