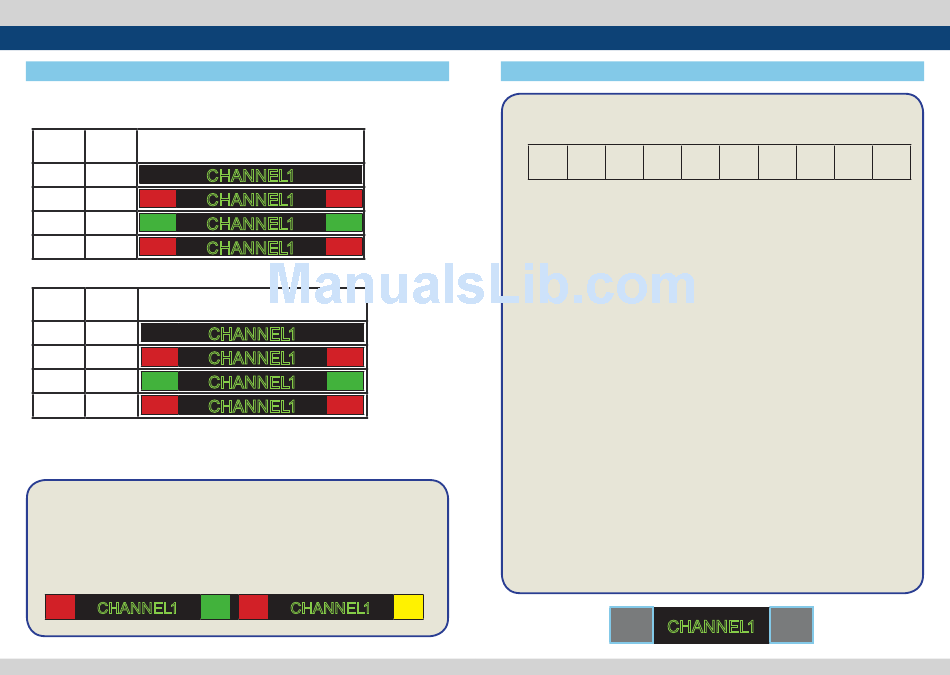

5. Menu Operations
[5] GPI
Tally Type - Default
●
- S-8C(Single 8 Character) & S-16C(Single 16 Character)
Bit 1 Bit 1
(Tally2) (Tally1)
0 0
0 1
1 0
1 1
- D-8C(Dual 8 Character)
Bit 1 Bit 1
(Tally4) (Tally3)
0 0
0 1
1 0
1 1
D-UMD TALLY TPYE – USER COLOR
●
- Color selections between TALLY1 ~ TALLY4.
The following appearance of UMD DISPLAY is set as D-UMD(D-8C), D-UMD TALLY TYPE
and TALLY1 ~ TALLY4 COLOR.
D-UMD TALLY TYPE
TALLY1 COLOR
TALLY2 COLOR
TALLY3 COLOR
TALLY4 COLOR
CHANNEL1
22 Multi Format LCD Monitor
Operation
CHANNEL1
CHANNEL1
CHANNEL1
CHANNEL1
Operation
CHANNEL1
CHANNEL1
CHANNEL1
CHANNEL1
USER COLOR
RED
GREEN
RED
YELLOW
CHANNEL1
5. Menu Operations
[5] GPI
<Dynamic UMD Protocol (TSL V5.0)>
* Transmission (Ethernet) (Maximum packet length 2048 Byte) (PC or Device or Monitor)
DLE STX PBC VER
(1 BYTE) (1 BYTE) (2 BYTE) (1 BYTE)
* [DLE] : 0xFE
* [STX] : 0x02
* [PBC] : Total byte count of following packet.
* [VER] : Minor version number (e.g. V5.00, VER = 0).
* [FLAGS]
bit 0 : Clear for ASCII based strings in packet, set for Unicode UTF-16LE.
bit 1 : If set, data after SCREEN is screen control data (SCONTROL) – otherwise
it's display message data (DMSG).
bit 2-7 : Reserved (clear to 0). (Not used)
* [SCREEN] : Primary index for use where each screen.
Index 0xFFFF is reserved as a "Broadcast" to all screens.
If not used, set to 0.
* [INDEX] : The 0 based address of the display, up to 65534 (0xFFFE).
Address 0xFFFF is reserved as a "Broadcast" address to all displays.
* [CONTROL]
bit 0-1 : RH Tally Lamp state
bit 2-3 : Text Tally state
bit 4-5 : LH Tally Lamp state
bit 6-7 : Brightness value (range 0-3)
bit 8-14 : Reserved (clear to 0)
bit 15 : Control Data (clear to 0)
2 Bit Tally values are:
0 = OFF, 1 = RED, 2 = GREEN, 3 = AMBER.
* [LENGTH] : Byte count of following text.
* [TEXT] : UMD text, format defined by FLAGS byte.
CHANNEL1
Tally1
FLAGS SCREEN INDEX CONTROL LENGTH
(1 BYTE) (2 BYTE) (2 BYTE) (2 BYTE) (2 BYTE)
(Not used)
(Not used)
Tally2
Multi Format LCD Monitor 23
TEXT
(String)
