Marker - TVLogic SWM-171A Operation Manual

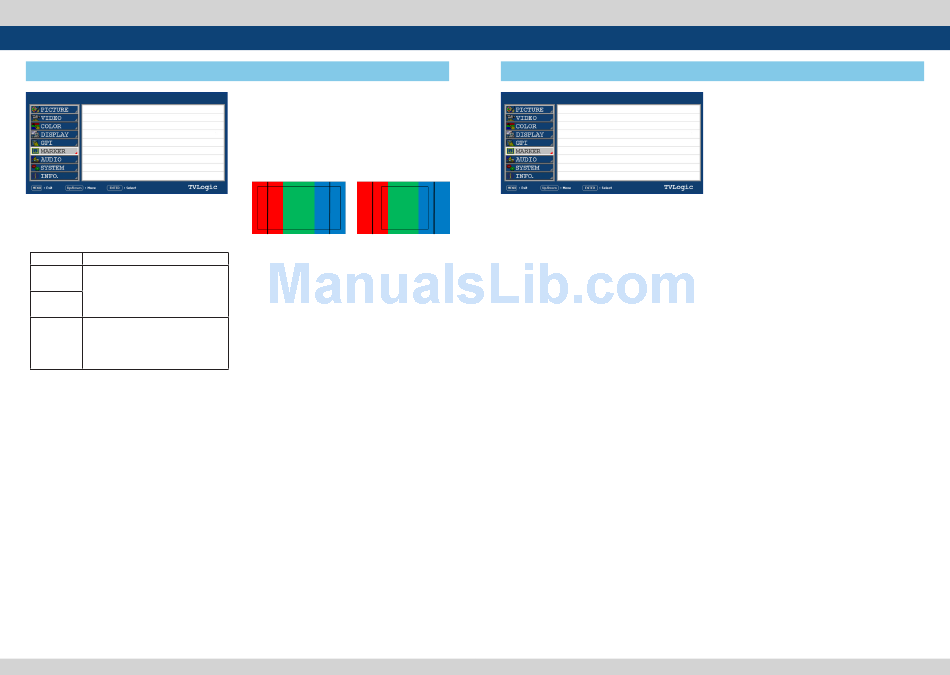

5. Menu Operations

[6] MARKER

SDI A SWM-171A 1080/60i
PAGE I >> PAGE II
MARKER
MARKER DISPLAY
CENTER MARKER
SAFETY AREA
FIT MARKER
MARKER MAT
MARKER COLOR
MARKER THICKNESS
MARKER
●
- Used to select the marker type when the
MARKER is displayed on the screen.
- Compatible MARKER types are as follows:
MODE MARKER CLASS
16:9, 4:3, 4:3 ON AIR, 15:9, 14:9,
HD
13:9, 1.85:1, 2.35:1, 1.85:1 & 4:3,
4:3 ALT 16:9, 16:9 ALT 14:9, 16:9 ALT
SD 16:9
4:3, AFD, USER
16:9, 4:3, 4:3 ON AIR, 15:9, 14:9,
13:9, 1.85:1, 2.35:1, 1.85:1 & 4:3,
SD 4:3
4:3 ALT 16:9, 16:9 ALT 14:9, 16:9 ALT
4:3, AFD, USER
* If AFD(Active Format Description) is selected,
the embedded Aspect ratio signal in the
video signal will be extracted and displayed
as a marker.
MARKER DISPLAY
●
- Used to activate/inactivate the MARKER.
CENTER MARKER
●
- Used to display the CENTER MARKER on
the screen. This function operates only
after activating the MARKER function.
SAFETY AREA
●
- Used to select to display and control the size
of the SAFETY AREA.
- Available types are 80%, 88%, 90%, 93%,
100%, EBU ACTION 16:9, EBU GRAPHIC 16:9,
EBU ACTION 14:9, EBU GRAPHIC 14:9, EBU
ACTION 4:3 and EBU GRAPHIC 4:3.
- This function operates only after activating
the MARKER function.
26 Multi Format LCD Monitor
FIT MARKER
●
- Used to activate the FIT MARKER function.
- With FIT MARKER "ON", the safety area is
OFF
OFF
displayed relative to the marker in use.
OFF
With FIT MARKER "OFF", the safety area is
OFF
displayed relative to the incoming source.
OFF
- FIT MARKER ON/OFF displays as shown
OFF
WHITE
below.
4
MARKER : 4:3 MARKER
● ●
SAFETY AREA : 90% SAFETY AREA : 90%
● ●
FIT MARKER : OFF FIT MARKER
● ●
MARKER MAT
●
- This item darkens the area of the outside
of MARKER setting area. The degree of
darkness is between OFF(Transparency) and
7(Black). The higher the number, the darker
MARKER border becomes.
MARKER COLOR
●
- Used to control the color of MARKER lines.
- Available colors are white, gray, black, red,
green and blue.
MARKER THICKNESS
●
- This item controls the thickness of the
MARKER lines. The degrees of thickness are
between 1 and 7.
5. Menu Operations
[6] MARKER
SDI A SWM-171A
PAGE II >> PAGE I
USER MARKER H1
USER MARKER H2
USER MARKER V1
USER MARKER V1
USER MARKER H1
●
- Used to control the position of the first user
defined horizontal marker line.
: 4:3
- Marker option USER needs to be selected.
: ON
USER MARKER H2
●
- Used to control the position of the second
user defined horizontal marker line.
- Marker option USER needs to be selected.
USER MARKER V1
●
- Used to control the position of the first user
defined vertical marker line.
- Marker option USER needs to be selected.
USER MARKER V2
●
- Used to control the position of the second
user defined vertical marker line.
- Marker option USER needs to be selected.
1080/60i
MIN
MIN
MIN
MIN
Multi Format LCD Monitor 27
