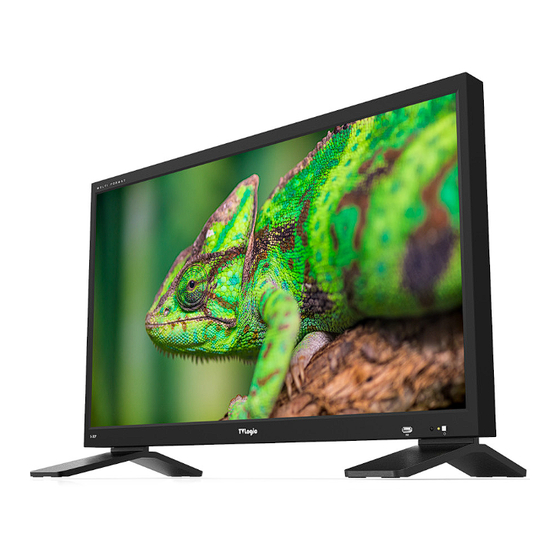

TVLogic S-32P Operation Manual

Studio wall lcd monitor
Hide thumbs

Advertisement

Quick Links

Download this manual
S-32P
S-42P
S-46P
S-55P
STUDIO WALL
LCD MONITOR
Operation Manual_V1.1

Advertisement

loading
Need help?

Need help?

Do you have a question about the S-32P and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for TVLogic S-32P

Summary of Contents for TVLogic S-32P

  • Page 1 S-32P S-42P S-46P S-55P STUDIO WALL LCD MONITOR Operation Manual_V1.1...
  • Page 2 FCC (Federal Communications Commission) This equipment has been tested and found to comply with the limits for class A digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interface when the equipment is operated in a commercial environment. This equipment generates, uses and can radiate radio frequency energy and if not installed and used in accordance with the instruction manual, may cause harmful interference to radio communications.
  • Page 3 Contents Caution Main Features Controls & Functions Menu Tree & Adjustment Menu Operations [1] PICTURE [2] VIDEO [3] COLOR [4] GPI [5] MARKER [6] MISC FEATURES [7] WAVEFORM & FOCUS [8] AUDIO [9] SYSTEM Key Functions Video Support Resolution Product Specifications...
  • Page 4 01 CAUTION Studio Wall Monitor • Always use set voltage. • If any of the following conditions occur, unplug the power cord from the AC outlet, and request • Apply waterproof measures when using the a qualified service person to perform repairs. monitor outdoors.
  • Page 5 01 CAUTION Studio Wall Monitor • Unplug the power cord from the AC outlet • The vents and other openings in the cabinet are before cleaning the product. Use a damp cloth designed for ventilation. Do not cover or block to clean the product.
  • Page 6 • RS422/UMD Protocol Support - This product is compatible with various HDMI (HDCP 1.4) signals. - This product supports protocols provided by TVLogic or a TSL protocol. • All-in-one Type System • Power - Slim and all-in-one type monitor as it requires - This product is powered by normal AC source.
  • Page 7 Studio Wall Monitor 03 CONTROLS & FUNCTIONS S-32P / S-42P / S-46P / S-55P ALL PART (FRONT / REAR) POWER INDECATE LED IR SENSOR ENTER DOWN UP MENU AC IN AUDIO REMOTE RS-422 SDI-B SDI-A DVI-I HDMI SFP-B SFP-A IN/OUT...
  • Page 8 USB Thumb Drive or calibrate the <Tip> color using the calibration software made by If you push [UP] button and [DOWN] button at TVLogic. the same time, the input selection menu appears on the screen. [IR] Sensor •...
  • Page 9 - Optical interface for SDI input signal. - Used to control the monitor with protocol The SFP module for HD/SD SDI signal can provided by TVLogic or to support TSL protocol. be connected. • AUDIO IN (Phone Jack) • [SPF-B] IN (SFP Optical Interface) - Inputs the external audio.
  • Page 10 Studio Wall Monitor 04 MENU TREE & ADJUSTMENT MENU CONSTRUCTION & MENU CONTROL & MENU CONTROL SEQUENCE & MENU TREE [1] Menu Construction [3] Menu Control Sequence • This product can be controlled and set system- • Menu control sequence follows the order below: wise through OSD displayed on the screen.
  • Page 11 Studio Wall Monitor 04 MENU TREE & ADJUSTMENT MENU CONSTRUCTION & MENU CONTROL & MENU CONTROL SEQUENCE & MENU TREE [4] Menu Tree BRIGHTNESS STANDARD CONTRAST VIDEO RANGE CHROMA PEAK LUMINANCE PICTURE SHARPNESS BLACK LEVEL USER ASPECT H COLOR GAMUT USER ASPECT V COLOR TEMP EHS(DE-INT) MODE...
  • Page 12 Studio Wall Monitor 04 MENU TREE & ADJUSTMENT MENU CONSTRUCTION & MENU CONTROL & MENU CONTROL SEQUENCE & MENU TREE [4] Menu Tree GPI PIN 1 ~ GPI PIN 8 MARKER DHCP CENTER MARKER ID ADDRESS SAFETY AREA SUBNET MASK FIT MARKER GATEWAY MARKER MAT...
  • Page 13 Studio Wall Monitor 04 MENU TREE & ADJUSTMENT MENU CONSTRUCTION & MENU CONTROL & MENU CONTROL SEQUENCE & MENU TREE [4] Menu Tree WAVEFORM DISPLAY LEVEL METER SELECT WAVEFORM INTENSITY LEVEL METER DISPLAY WAVEFORM TRANS. LEVEL METER REFERENCE WAVEFORM COLOR LEVEL METER DECAY TIME AUDIO LINE WAVEFORM...
  • Page 14 Studio Wall Monitor 05 MENU OPERATIONS [1] PICTURE • USER ASPECT H Picture S-46P - Used to adjust the horizontal size of the screen. - The setting range is from 0 to 1920. BRIGHTNESS - Activated only when the [SCAN] mode is set to CONTRAST [USER ASPECT].
  • Page 15 Studio Wall Monitor 05 MENU OPERATIONS [2] VIDEO • 3G FORMAT Video & Display S-46P - Used to select input format of SDI 3G A/B support. EHS(DE-INT) MODE - The available modes are as follows. FAST MODE NORMAL MODE A 444 10BIT_YCbCr 3G FORMAT NORMAL A 444 10BIT_RGB...
  • Page 16 Studio Wall Monitor 05 MENU OPERATIONS [2] VIDEO • CC INFO (CLOSED CAPTION INFO) Video & Display S-46P - Displays the CC(Closed Caption) information which the monitor currently receives. EHS(DE-INT) MODE FAST MODE • DECODE CHANNEL (608) - Sets the channel of Closed Caption 608. NORMAL 3G FORMAT - Available modes are [CC1] to [CC4].
  • Page 17 Studio Wall Monitor 05 MENU OPERATIONS [3] COLOR • BLACK LEVEL - The minimum black level of the video signal can be set differently depending on the performance of the monitor or the lighting environment. - This menu is activated only in the USER1/2/3 mode. - Available modes are from [0.000] to [0.010] with 0.001 increment, from [0.010] to [0.100] with 0.010 increment, from [0.100] to [0.900] with...
  • Page 18 Studio Wall Monitor 05 MENU OPERATIONS [3] COLOR • HLG SG Color S-46P - Used to set the System Gamma of the HLG STANDARD mode. - In [ON] mode, the value of the System Gamma VIDEO RANGE NARROW changes automatically according to the PEAK LUMINANCE previously set peak luminance.
  • Page 19 Studio Wall Monitor 05 MENU OPERATIONS [3] COLOR • COLOR COPY Color S-46P - Used to copy the R/G/B Gain value of pre-stored color temperature settings. COLOR Temp. 6500K - In User mode, find and select the color GAIN RED temperature to be used with the Knob and press the knob button to copy and apply the GAIN GREEN...
  • Page 20 Studio Wall Monitor 05 MENU OPERATIONS [4] GPI • DHCP S-46P - Used to set DHCP. PIN 1 NONE • IP ADDRESS / SUBNET MASK / GATEWAY - Used to set the Network address. PIN 2 SDI CHANNEL HDMI CHANNEL •...
  • Page 21 8C)] is activated at the bottom right of the • MONITOR ID screen, and both can be set individually. - Used to set the ID of each monitor when you control monitors with TVLogic control protocol • UMD BG. TRANS. using RS-422/485 communication or Network (UMD Background Transparency)
  • Page 22 UMD is set in [UMD DISPLAY] menu. COLOR], [CHARACTER], [BG. COLOR], [USER - Available characters are lowercase and TALLY], [USER CHAR], • DEFAULT: Existing TVLogic operating uppercase alphabet letters, numbers, and special symbols. system(VRT). • USER COLOR: The user is allowed to adjust the •...
  • Page 23 Studio Wall Monitor 05 MENU OPERATIONS [5] MARKER • SAFETY AREA Marker S-46P - Used to display the safety area which doesn’t cut the closed caption by Over Scan. MARKER - Available sizes are [80%], [85%], [88%], [90%], CENTER MARKER [93%], [100%], [EBU ACTION 16:9], [EBU GRAPHIC 16:9], [EBU ACTION 14:9], [EBU EBU GRAPHIC 14:9...
  • Page 24 Studio Wall Monitor 05 MENU OPERATIONS [5] MARKER • USER MARKER V1 Marker S-46P - Used to set the position of the first vertical MARKER marker line. - Adjustment rage is from [0] to [1080]. CENTER MARKER SAFETY AREA EBU GRAPHIC 14:9 •...
  • Page 25 Studio Wall Monitor 05 MENU OPERATIONS [6] MISC FEATURES Misc Features S-46P SDI OUTPUT-A INPUT CHANNEL - A SDI OUTPUT-A INPUT CHANNEL - A • SDI OUTPUT A/B - Used to select the input signal which is output to SDI OUTPUT port. - SDI signal only can be output, and the selectable inputs are [SDI IN A], [SDI IN B], [SFP IN A], [SFP IN B].
  • Page 26 Studio Wall Monitor 05 MENU OPERATIONS [7] WAVEFORM & FOCUS • WAVEFORM TRANS. (Waveform Transparency) Waveform & Focus S-46P - Controls the transparency level of the WAVE FORM DISPLAY Waveform/Vector. - Available options are [OPAQUE] and [BLEND]. WAVE FORM INTENSITY •...
  • Page 27 Studio Wall Monitor 05 MENU OPERATIONS [7] WAVEFORM & FOCUS - In the [Zebra Pattern] mode, ±5% of the Waveform & Focus S-46P selected Y’ Level will be displayed as diagonal lines. WAVE FORM DISPLAY WAVE FORM INTENSITY • LUMA(Y’) ZONE ADJUST WAVE FORM TRANS.
  • Page 28 Studio Wall Monitor 05 MENU OPERATIONS [7] WAVEFORM & FOCUS • Y MAX Waveform & Focus S-46P - Used to set the maximum luma(Y’) level. WAVE FORM DISPLAY - Available range is from [0] to [254]. WAVE FORM INTENSITY - Pixels with values exceeding the maximum Y’ level blink in the screen and are displayed in red WAVE FORM TRANS.
  • Page 29 Studio Wall Monitor 05 MENU OPERATIONS [8] AUDIO • LEVEL METER SIZE - Used to set the size of the Audio Level Meters. - Available modes are [SMALL], [SMALL TRANSLUCENT], [NORMAL], [NORMAL TRANSLUCENT], [LARGE] and [LARGE TRANSLUCENT]. - In [SMALL], [NORMAL] and [LARGE] modes, the Audio Level Meter appears opaque.
  • Page 30 Studio Wall Monitor 05 MENU OPERATIONS [9] SYSTEM • ECO MODE TIMER System S-46P - Used to decrease the brightness of the screen automatically to reduce the power consumption KEY LOCK NUMBER * * * * when there is no signal. KEY LOCK ENABLE - When the monitor receives the signal, the brightness of the screen maintains the adjusted...
  • Page 31 Studio Wall Monitor 06 KEY FUNCTIONS [1] PBP(Picture-by-Picture) / PIP(Picture-in-Picture) • PBP(PIP) Mode Select - The user can select four modes of PBP function by pushing [INPUT SET] key on the remote control as follows. In order to avoid the confusion of terms, the PIP mode on the screen is collectively referred to as PBP. •...
  • Page 32 Studio Wall Monitor 06 KEY FUNCTIONS [2] USER ASPECT • This function allows the user to adjust the width/height display ratio as the user wants. 1. Access the [USER ASPECT] menu to activate the User Aspect mode. 2. Press [ENTER] button in the [USER ASPECT] mode and adjust the Width and the Height of the image using [UP] and [DOWN] button.
  • Page 33 Studio Wall Monitor 06 KEY FUNCTIONS [3] WAVEFORM / VECTOR SCOPE • WAVEFORM Y • Vector Scope - Displays the Luma(Y’) component of the input - Displays the color components ‘B-Y’ and ‘R-Y’ of the input signals onto the X-Y axis. signal into waveform.
  • Page 34 Studio Wall Monitor 06 KEY FUNCTIONS [4] LINE SELECT (WAVEFORM / VECTOR SCOPE) • Used to select a specific vertical line for WAVEFORM and VECTOR SCOPE. - This function works when the [LINE WAVEFORM] is activated. - To activate this function, go to [Waveform & Focus] > [WAVE FORM DISPLAY] and select [WAVEFORM] or other modes.
  • Page 35 Studio Wall Monitor 06 KEY FUNCTIONS [5] LUMA (Y") ZONE CHECK • COLOR PATTERN TYPE - Displays the pixels with the designated Luma(Y’) levels of the input image in colors. Pixels whose Y’ level is over 100% are displayed as Red. Pixels whose Y’ level is below 0% are displayed as Green. - Pixels with Y’...
  • Page 36 Studio Wall Monitor 06 KEY FUNCTIONS [6] FOCUS ASSIST • Focus Assist function assigns a color on the pixels of the shape or boundary of the image, which helps the user easily see which part of the image is in focus or out of focus. - With this function, the user can easily differentiate the focused area from the out-focused area especially when shooting with a shallow depth of field.
  • Page 37 Studio Wall Monitor 06 KEY FUNCTIONS [7] RANGE ERROR • Pixels with Y’ or C’ levels exceeding the designated levels adjusted in Y MAX, Y MIN, C MAX and C MIN menu shall blink. - After the input signal’s Luma(Y’) and chroma information(C’) are analyzed, if the input signal exceeds the designated maximum value or it is below the minimum value, the pixels shall blink.
  • Page 38 Studio Wall Monitor 06 KEY FUNCTIONS [8] FIRMWARE UPGRADE • The USB thumb drive which contains the F/W file is necessary for Firmware Upgrade. • Select the S/W UPGRADE in the SYSTEM menu. 1. Connect the USB thumb drive to the USB Slot on the front of the monitor. 2.
  • Page 39 Studio Wall Monitor 07 VIDEO SUPPORT RESOLUTION [7] FOCUS ASSIST [8] RANGE ERROR INPUT SIGNAL INTERFACES SIGNAL FORMAT (SD SDI) SD SDI 720x487 (59.94i) YCbCr 4:2:2 10bit single link 720x576 (50i) INPUT SIGNAL INTERFACES SIGNAL FORMAT (HD SDI) 1280x720 (23.98/24/25/29.97/30p) HD SDI (50/59.94/60i) (24/25/29.97/30psf) YCbCr 4:2:2 10bit...
  • Page 40 Studio Wall Monitor 07 VIDEO SUPPORT RESOLUTION [1] DVI-ANALOG Resolution Frequency 640 X 480 60Hz, 75Hz 720 X 400 70Hz 800 X 600 60Hz, 72Hz, 75Hz 1024 X 768 60Hz, 70Hz, 75Hz 1366 X 768 60Hz / 75Hz [2] DVI-DIGITAL GRAPHIC Resolution Frequency 640 X 480...
  • Page 41 Studio Wall Monitor 08 PRODUCT SPECIFICATIONS S-32P ” 5 Resolution 1920 x 1080 (16:9) Pixel Pitch 0.121(H) x 0.363(W) mm Color Depth 16.7M Colors (True 8bit) Viewing Angle (Typ.) 178°(H) / 178°(V) Luminance (Max.) 400cd/m2 Contrast Ratio 1200 : 1 Display Area 698.40(H) X 392.85(V) mm...
  • Page 42 Studio Wall Monitor 08 PRODUCT SPECIFICATIONS S-42P ” 2 Resolution 1920 x 1080 (16:9) Pixel Pitch 0.4845(H) x 0.4845(W) mm Color Depth 1.073B Colors (10bit) Viewing Angle (Typ.) 178°(H) / 178°(V) Luminance (Max.) 500cd/m2 (Center) Contrast Ratio 4000 : 1 Display Area 930.24(H) x 523.26(V) mm 2 x BNC...
  • Page 43 Studio Wall Monitor 08 PRODUCT SPECIFICATIONS S-46P ” 6 Resolution 1920 x 1080 (16:9) Pixel Pitch 0.530(H) X 0.530(W) mm Color Depth 1.073B Colors (10bit) Viewing Angle (Typ.) 178°(H) / 178°(V) Luminance (Max.) 500 cd/m2 (Max) Contrast Ratio 4000 : 1 Display Area 1018.08(H) X 572.67(V) mm 2 x BNC...
  • Page 44 Studio Wall Monitor 08 PRODUCT SPECIFICATIONS S-55P " 5 Resolution 1920 x 1080 (16:9) Pixel Pitch 0.63(H) x 0.63(W) mm Color Depth 1.073B (10bit) Viewing Angle (Typ.) 178°(H) / 178°(V) Luminance (Max.) 450 cd/m2 (Max) Contrast Ratio 4000 : 1 Display Area 1209.6(H) X 680.4(V) mm 2 x BNC...
