  • Page 1: Lcd Monitor

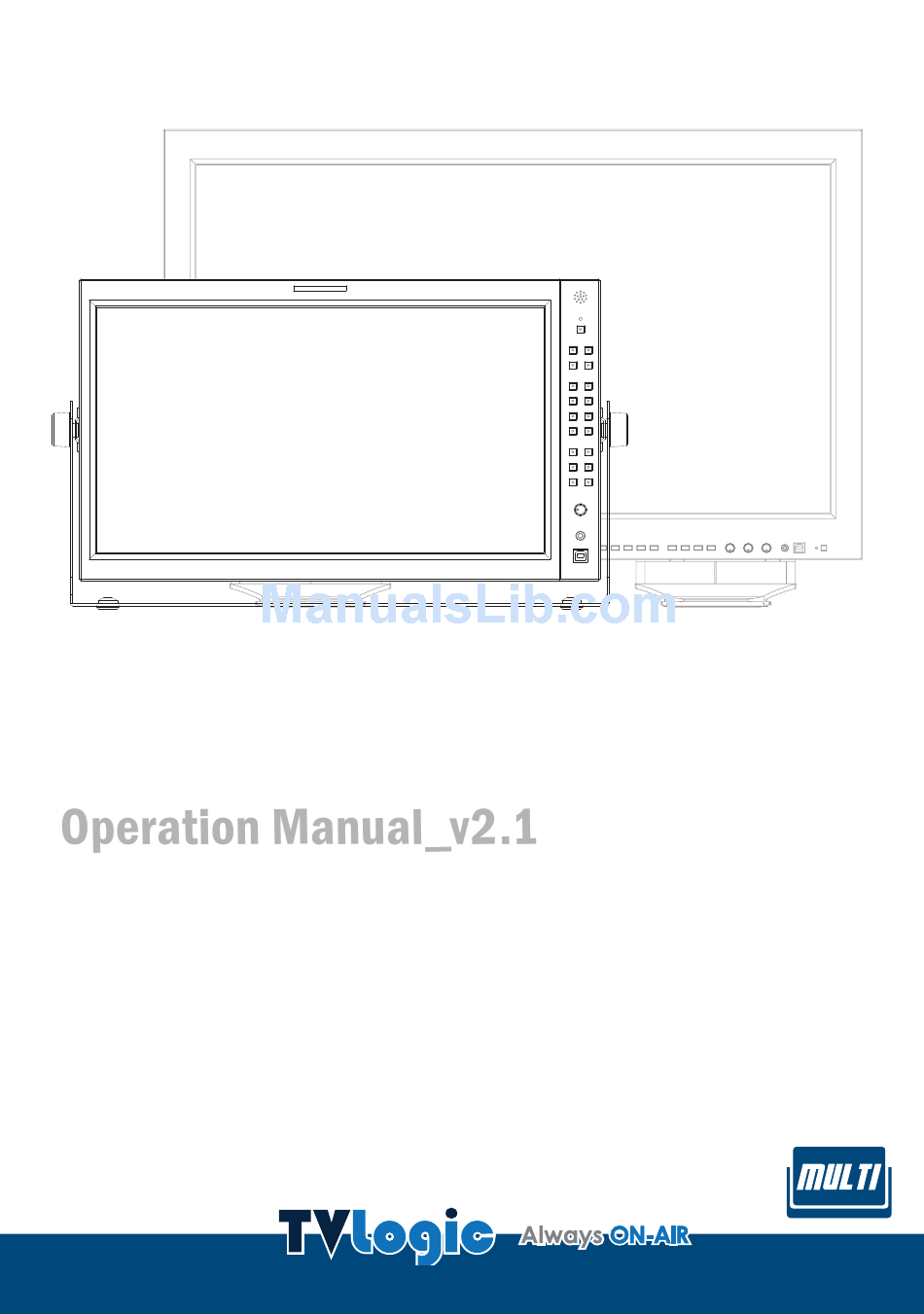

    Multi Format Broadcast LCD Monitor Full HD LCD Grade 1 Monitor XVM-175W XVM-325W...

  • Page 3: Table Of Contents

    Contents 1. Caution 2. Main Features 3. Controls & Functions 4. Menu Tree & Adjustment 5. Menu Operations [1] PICTURE [2] VIDEO [3] COLOR [4] DISPLAY [5] GPI [6] MARKER [7] WAVEFORM [8] AUDIO [9] SYSTEM 6. Other Functions 7. DVI Support Resolution 9.

  • Page 4: Caution

    If any of the following conditions occurs, AC 100 ~ 240V (1.6A/50~60Hz) unplug the power cord from the AC outlet, XVM-175W : DC 12V (MAX 3.5A) and request a qualified service person to perform repairs. All operating instructions must be read and a.
  • Page 5 1. Caution When mounting the product on a wall or When relocating the product placed on a cart, ceiling, be sure to install the product it must be moved with the utmost care. according to the method recommended by Sudden stops, excessive force and uneven the manufacturer.

  • Page 6: Main Features

    - Wide Viewing Angle, Passice Loop Through Inputs are available without any other (SDI), VESA Mounting Standard and User accessory. Interface. - XVM-175W : 800:1 contrast ratio, 300cd/m - XVM-325W : 1300:1 contrast ratio, 500cd/m 6 Multi Format LCD Monitor...

  • Page 7: Controls & Functions

    3. Controls & Functions XVM-175W : FRONT XVM-175W : REAR REMOTE RS 232 RS422 IN RS-422 OUT CVBS1/Y/G/S-Y CVBS2/Pb/B CVBS3/Pr/R-S-C DVI-I HDMI SDI-A SDI-B EXT.SYNC AUDIO IN ~AC IN DC 12V IN Multi Format LCD Monitor 7...
  • Page 8 3. Controls & Functions FRONT : XVM-175W [STANDBY] lamp [SCAN] button/lamp - It affords power supply, which may be - Used to change the Scan mode. The mode is indicated by indication lamp. The lamp is changed as the following sequence.
  • Page 9 3. Controls & Functions FRONT : XVM-175W [F1] (In Single Mode) button/lamp [MENU/EXIT] button - This Functions button is used to activate the - Used to activate the OSD menu. feature selected in “System- KEY FUNCTION - When the OSD menu is activated, press this 1 ”...
  • Page 10 3. Controls & Functions XVM-325W : FRONT MARKER SCAN MENU DOWN ENTER LED INDICATOR POWER ANALOG SDI A PHONE JACK SDI B CONTRAST BRIGHT APERTURE XVM-325W : REAR RS422 IN RS422 OUT ANDIO IN REMOTE HDMI AC/IN RS-232 EXT.SYNC IN/OUT CVBS1/Y/G/S-Y SDI-B IN/OUT CVBS2/Pb/B...
  • Page 11 3. Controls & Functions FRONT : XVM-325W [VIDEO] lamp [F1] (In Single Mode) button/lamp - Used when COMPOSITE INPUT is selected. - This Functions button is used to activate the feature selected in “System- KEY FUNCTION 1 ” menu. [S-VID] lamp - Used when S-VIDEO INPUT is selected.
  • Page 12 3. Controls & Functions FRONT : XVM-325W [SCAN] button/lamp [STANDBY] lamp - Used to change the Scan mode. The mode is - It affords power supply, which may be changed as the following sequence. indicated by indication lamp. The lamp is OVER SCAN ->...
  • Page 13 REAR [RS422 IN/OUT] (RJ-45) [AC IN] - Used to control the monitor with protocol - Used to supply AC power; 100V~240V input provided by TVLogic or to support TSL range. protocol. [EXT.SYNC IN/OUT] [REMOTE] (RJ-45) - External sync signal input/output terminal - Provides connection to control equipment for external sync.

  • Page 14: Menu Tree & Adjustment

    PAGE I >> PAGE II BRIGHT CONTRAST CHROMA PHASE APERTURE NTSC SETUP 7.5IRE VGA H POSITION VGA V POSITION A. MENU, UP/DOWN, ENTER Button Status. B. Model name(XVM-175W). C. Current input signal. D. Current input signal resolution. 14 Multi Format LCD Monitor...

  • Page 15: Menu Operations

    5. Menu Operations [1] PICTURE SDI A XVM-175WD SDI A XVM-175WD PAGE I >> PAGE II PAGE II >> PAGE I BRIGHT FOCUS ASSIST LEVEL CONTRAST FOCUS ASSIST COLOR CHROMA PHASE GREEN APERTURE BLUE NTSC SETUP 7.5IRE USER ASPECT H VGA H POSITION USER ASPECT V VGA V POSITION...

  • Page 16: Video

    5. Menu Operations [2] VIDEO 3G FORMAT SDI A XVM-175WD - Used to select input format of SDI 3G A/B DITHERING support(NORMAL MODE, A 444 10BIT_YCbCr, FILTER FAST MODE A 444 10BIT_RGB, A 444 12BIT_YCbCr, A FORCE psf 444 12BIT_RGB, A 422 12BIT_YCbCr, B 444 FILM MODE DETECTION AUTO 10/12BIT_YCbCr, B 444 10/12BIT_RGB, B 422...

  • Page 17: Color

    5. Menu Operations [3] COLOR BIAS GREEN SDI A XVM-175WD - Used to adjust black level to control green PAGE I >> PAGE II color. COLOR TEMP 6500K GAIN RED - The value is selectable between Min(-50) and GAIN GREEN MAX(50).
  • Page 18 5. Menu Operations [3] COLOR SD COLOR SPACE SDI A XVM-175WD - Auto Color Space selection mode for SD PAGE II >> PAGE I signal input. BACKLIGHT COLOR SPACE REC-709(sRGB) HD COLOR SPACE REC-709(sRGB) GAMMA CURVE SD COLOR SPACE REC-709(sRGB) - Used to change the Gamma Curve from 1.0 GAMMA CURVE to 3.0.

  • Page 19: Display

    5. Menu Operations [4] DISPLAY CLOSED CAPTION SDI A XVM-175WD - Used to select Closed Caption. HD DIPLAY MODE 16:9 - Available modes are OFF, 708, 608(LINE21) TIME CODE ENABLE ORBITER CIRCUIT , 608(ANC), OP47 and OP42. SCREEN SELECT ALL SCREEN * 608 : CEA-608-B, 708 : CEA-708-C standard BORDER COLOR WHITE...

  • Page 20: Gpi

    5. Menu Operations [5] GPI SDI A XVM-175WD Menu PAGE I >> PAGE II GPI 1 ANALOG CHNNEL Classifi- Settable Values GPI 2 SDI-A CHANNEL cation GPI 3 SDI-B CHANNEL GPI 4 PBP CHANNEL GPI 5 TALLY R NONE, ANALOG CHANNEL, SDI-A GPI 6 TALY G CHANNEL, SDI-B CHANNEL, PBP...
  • Page 21 - Available colors are RED, GREEN and - Used to set the ID of each monitor for the YELLOW. TVLogic control protocol or DYNAMIC UMD - B0:0 B1:0 / B0:1 B1:0 / B0:0 B1:1 / B0:1 B1:1 using RS-422/485 communication.
  • Page 22 5. Menu Operations [5] GPI <Dynamic UMD Protocol (TSL V3.1)> * Transmission (18 Byte) (PC or Device -> Monitor) HEADER CONTROL DISPLAY DATA (1 BYTE) BYTE(1 BYTE) (16 BYTE) * [HEADER] : Display address (0~126) + 80 hex. * [CONTROL BYTE] bit 0 : Tally 1 (1=on, 0=off) bit 1 : Tally 2 (1=on, 0=off) bit 2 : Tally 3 (1=on, 0=off)
  • Page 23 5. Menu Operations [5] GPI Tally Type - Default - S-8C(Single 8 Character) & S-16C(Single 16 Character) Bit 1 Bit 1 Operation (Tally2) (Tally1) - D-8C(Dual 8 Character) Bit 1 Bit 1 Operation (Tally4) (Tally3) D-UMD TALLY TPYE – USER COLOR - Color selections between TALLY1 ~ TALLY4.
  • Page 24 5. Menu Operations [5] GPI SDI A XVM-175WD SDI A XVM-175WD PAGE III >> PAGE IV PAGE IV >> PAGE I PASSWORD UMD FONT SIZE NORMAL IP ADDRESS 192.168.123. UMD FONT TYPE FONT 1 SUBNET MASK 255.255.128. GATEWAY PORT NO 10262 REMOTE CONTROL ETHERNET...

  • Page 25: Marker

    5. Menu Operations [6] MARKER FIT MARKER SDI A XVM-175WD - Used to activate the FIT MARKER function. PAGE I >> PAGE II MARKER - With FIT MARKER “ON”, the safety area is CENTER MARKER displayed relative to the marker in use. SAFETY AREA With FIT MARKER “OFF”, the safety area is FIT MARKER...

  • Page 26: Waveform

    5. Menu Operations [6] MARKER [7] WAVEFORM SDI A XVM-175WD PAGE II >> PAGE I PAGE I >> PAGE II USER MARKER H1 WAVEFORM/VECTOR USER MARKER H2 WAVEFORM INTENSITY USER MARKER V1 WAVEFORM TRANS OPAQUE USER MARKER V1 WAVEFORM SIZE NORMAL LINE WAVEFORM ENABLE LINE POSITION SELECT...
  • Page 27 5. Menu Operations [7] WAVEFORM LINE SELECT POSITION - In WAVEFORM/VECTOR, use the Up/Down PAGE I >> PAGE II WAVEFORM/VECTOR button to select User’s desired line. WAVEFORM INTENSITY WAVEFORM TRANS OPAQUE LINE SELECT DRAW WAVEFORM SIZE NORMAL - ON/OFF the line indication for line select LINE WAVEFORM ENABLE LINE POSITION SELECT feature.
  • Page 28 5. Menu Operations [7] WAVEFORM Y PICTURE BLINK - Used to set selections of image that exceeds PAGE II >> PAGE I RANGE EROR Y MAX and Y MIN to blink. Y MAX Y MIN C PICTURE BLINK C MAX - T Used to set selections of image that C MIN Y PICTURE BLINK...

  • Page 29: Audio

    5. Menu Operations [8] AUDIO LEVEL METER POSITION SDI A XVM-175WD - Used to control the position of the Audio LEVEL METER SELECT LEVEL METER DISPLAY PAIR Level Meters. LEVEL METER REFERENCE -20dB - Available values are HOR, VER and BOT. LEVEL METER DECAY TIME *16 CH(HOR.): Displays each 8 channel audio LEVEL METER SIZE...

  • Page 30: System

    5. Menu Operations [9] SYSTEM INTERNAL PATTERN SDI A XVM-175WD - This item generates internal white pattern. PAGE I >> PAGE II USER CONFIG SET USER 1 - The white level select between 0% and 100% LOCK NUMBER XVM000000 (Per 5% increase or decrease) LOCK ENABLE -------- OSD DISPLAY...
  • Page 31 5. Menu Operations [9] SYSTEM KEY FUNCTION 5 (XVM-175W only) SDI A XVM-175WD - User can select the function for [F4] button. PAGE II >> PAGE I KEY LED - Selectable Items : ASPECT, H/V DELAY, KEY FUNCTION 1 ASPECT...
  • Page 32 5. Menu Operations [9] SYSTEM SDI A XVM-175WD PAGE III >> PAGE I BOARD VERSION 0101 1306 4.00 9 MAIN PBP1 PBP2 BRIG KEYPAD VERSION CONT COLOR : 6500K 6500K 6500K MCU VERSION SCAN ZERO OVER OVER FPGA VERSION GPU VERSION INFOMATION - Displays board version and current status information.

  • Page 33: Other Functions

    6. Other Functions [1] ANALOG This product is capable of processing all 2. Use the UP/DOWN button to select desired input source and press the ENTER button to input signals usable in ANALOG mode. confirm. The ANALOG input settings are as follows: 3.
  • Page 34 6. Other Functions [2] ASPECT [3] SCAN 1. Four different aspect modes are available. This product supports various scan modes. When input signal is SDI -A/B, Composite Press [SCAN] button on the front of the 1/2/3 and Input Signal Format is SD : monitor to activate different scan modes.
  • Page 35 6. Other Functions [3] SCAN 3. The following represents the different types - 1:1 SCAN : 1:1 pixel mapping of original of scan mode. When a scan mode is selected, image. This feature is available only when display skips the next mode if its required the size of the original image is bigger than condition is not met.
  • Page 36 6. Other Functions [4] PBP(Picture-by-Picture) 1. Press PBP button to activate the PBP function. 2. To control the individual image in multi Then the two images will be displayed in the screen, use the Screen F1 key to select monitor. In Normal Screen(when an individual the desired display then control the desired screen is not selected in PBP mode), key function.
  • Page 37 6. Other Functions [5] INPUT LIMIT FOR ANALOG (PBP MODE) 1. There is a limitation for Analog input in PBP 3. For example, if a COMPOSITE1 is selected Mode. (No limitation for SDI signals) on SCREEN 2, and if you wish to display COMPOSITE 2 on SCREEN 1, then the COMPOSITE 2.

  • Page 38: Dvi Support Resolution

    7. DVI Support Resolution DVI ANALOG / DIGITAL SUPPORT RESOLUTION DVI-ANALOG mode supports the following modes : Resolution Frequency 640 X 480 60Hz, 75Hz 720 X 400 70Hz 800 X 600 60Hz, 72Hz, 75Hz 1024 X 768 60Hz, 70Hz, 75Hz 1366 X 768 60Hz / 75Hz 60Hz / 75Hz...
  • Page 39 8. Product Specifications : XVM-175W Size 17” Resolution 1920 X 1080 Pixel Pitch 0.199(H) X 0.199(W) mm Color Depth 10-bit 1.07B color Viewing Angle R/L, U/D 178degrees Luminance of white 300 cd/ m Contrast Ratio 800 : 1 Display Area 381.9(H) X 214.8(V) mm...
  • Page 40 8. Product Specifications : XVM-325W Size 32” Resolution 1920 X 1080 Pixel Pitch 0.36375(H) X 0.36375(W) mm Color Depth 1.07B color (10bit) Viewing Angle R/L, U/D 178degrees Luminance of white 500 cd/ m Contrast Ratio 1300 : 1 Display Area 698.4(H) X 392.85(V) mm Input Connector 2 X BNC...

  • Page 41: Optional Accessories

    9. Optional Accessories RACK MOUNT ANY DISPLAY UP TO 24” 8.4 inch 9 inc h 7 inch 15 inch 17 inch 21 inch 24 inch Multi Format LCD Monitor 41...
  • Page 42 MEMO 42 Multi Format LCD Monitor...
  • Page 44 FOR MORE INFORMATION PLEASE VISIT : http://www.tvlogic.tv 12F, ACE HIGH-END 8, 345-4 Gasan-dong, Geumcheon-gu, Seoul, 153-802, KOREA TEL : +82-70-8668-6611, FAX : 82-2-6123-3201, E-mail : sales@ t vlogic.co.kr...
