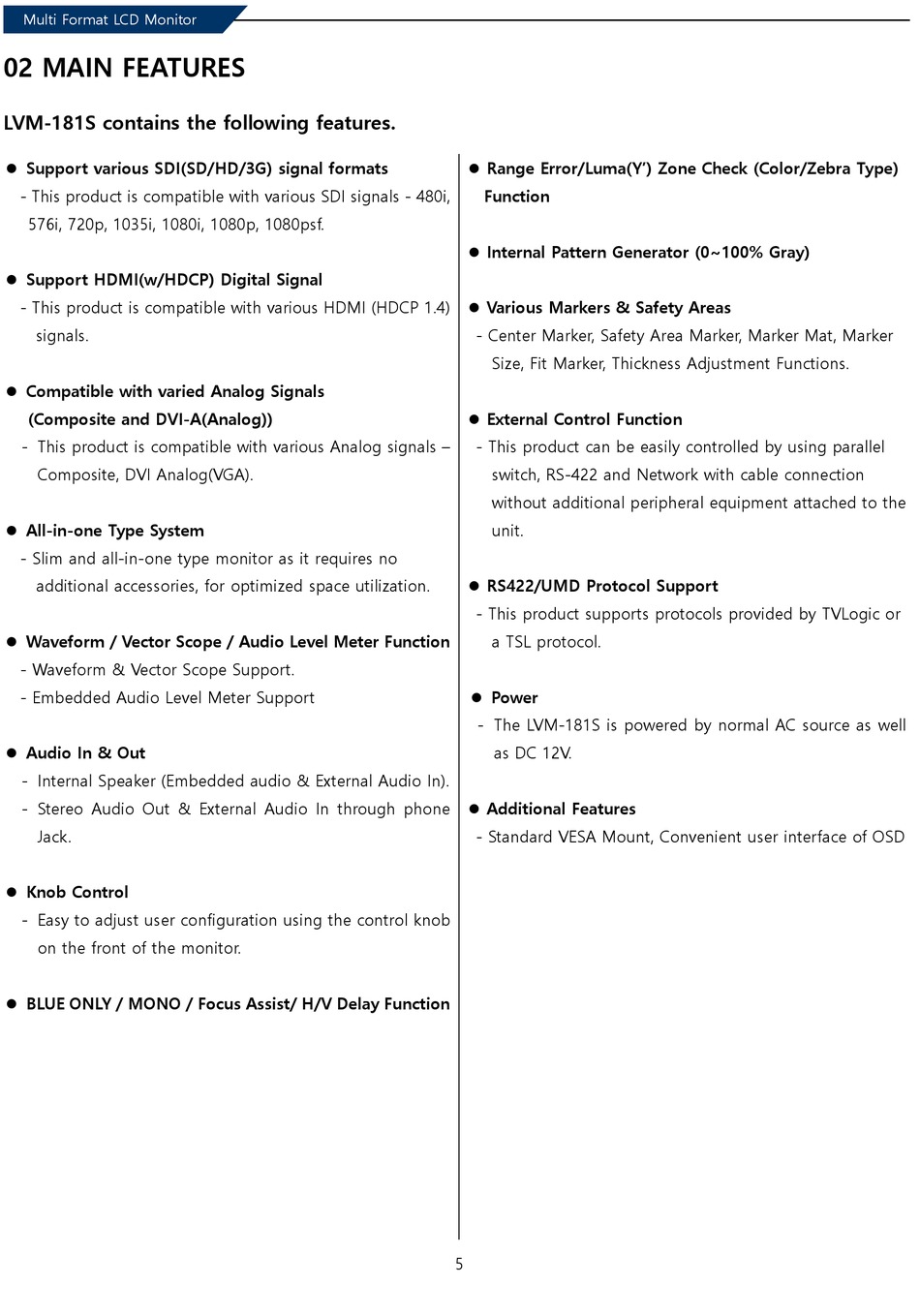

02 MAIN FEATURES

LVM-181S contains the following features.
 Support various SDI(SD/HD/3G) signal formats
- This product is compatible with various SDI signals - 480i,
576i, 720p, 1035i, 1080i, 1080p, 1080psf.
 Support HDMI(w/HDCP) Digital Signal
- This product is compatible with various HDMI (HDCP 1.4)
signals.
 Compatible with varied Analog Signals
(Composite and DVI-A(Analog))
- This product is compatible with various Analog signals –
Composite, DVI Analog(VGA).
 All-in-one Type System
- Slim and all-in-one type monitor as it requires no
additional accessories, for optimized space utilization.
 Waveform / Vector Scope / Audio Level Meter Function
- Waveform & Vector Scope Support.
- Embedded Audio Level Meter Support
 Audio In & Out
- Internal Speaker (Embedded audio & External Audio In).
- Stereo Audio Out & External Audio In through phone
Jack.
 Knob Control
- Easy to adjust user configuration using the control knob
on the front of the monitor.
 BLUE ONLY / MONO / Focus Assist/ H/V Delay Function
 Range Error/Luma(Y') Zone Check (Color/Zebra Type)
Function
 Internal Pattern Generator (0~100% Gray)
 Various Markers & Safety Areas
- Center Marker, Safety Area Marker, Marker Mat, Marker
Size, Fit Marker, Thickness Adjustment Functions.
 External Control Function
- This product can be easily controlled by using parallel
switch, RS-422 and Network with cable connection
without additional peripheral equipment attached to the
unit.
 RS422/UMD Protocol Support
- This product supports protocols provided by TVLogic or
a TSL protocol.
 Power
- The LVM-181S is powered by normal AC source as well
as DC 12V.
 Additional Features
- Standard VESA Mount, Convenient user interface of OSD
5
