5. Menu Operations
[5] GPI
TSL V5.0 D-UMD TALLY TPYE – USER COLOR
●
- Color selections between TALLY1 ~ TALLY2.
- UMD DISPLAY should be set in D-UMD(D-8C).
- D-UMD TALLY TYPE should be set in the USER COLOR.

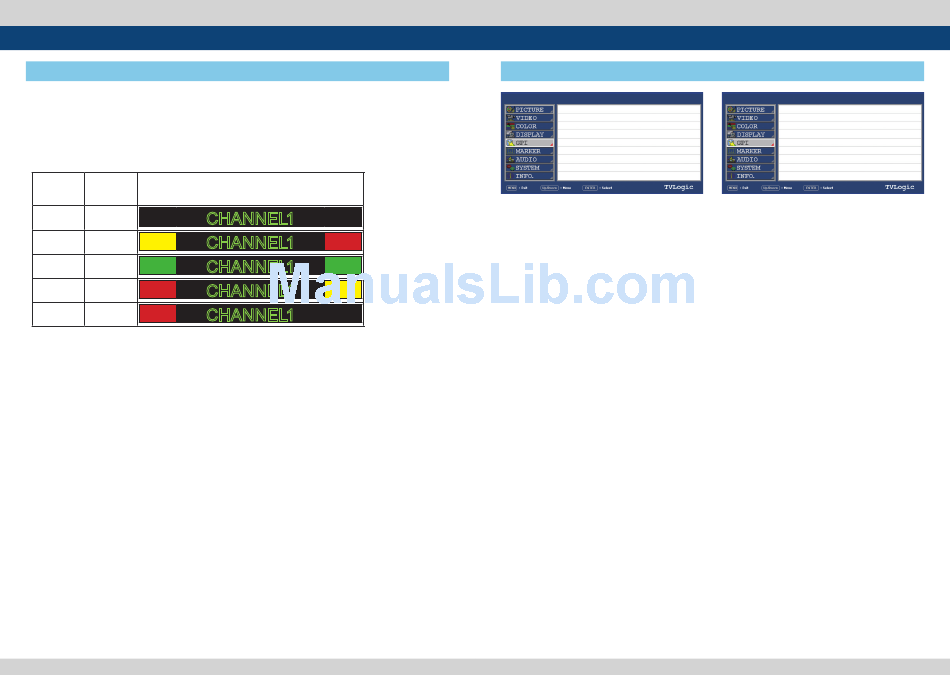

- The following appearance of UMD DISPLAY is set as D-UMD(D-8C), D-UMD TALLY TYPE
and TALLY COLOR.
Bit 1 Bit 1
(Tally2) (Tally1)
0 0
0 3
2 2
3 1
0 1
24 Multi Format LCD Monitor
Operation
CHANNEL1
CHANNEL1
CHANNEL1
CHANNEL1
CHANNEL1
5. Menu Operations
[5] GPI
SDI A SWM-171A 1080/60i
PAGE III >> PAGE IV
DHCP
IP ADDRESS 192.168.123.
SUBNET MASK 255.255.128.
GATEWAY 0. 0. 0.
PORT NO 10262
NETWORK SETTING APPLY
DHCP
●
- Used to control DHCP function.
IP ADDRESS
●
- Used to set the IP address connected to a
Monitor.
SUBNET MASK
●
- Used to set the SUBNET MASK connected to
a Monitor.
GATEWAY
●
- Used to set the GATEWAY connected to a
Monitor.
PORT NO
●
- Used to set the port number. Default port
number is 10262.
NETWORK SETTING APPLY
●
- When the value of IP address, Subnet mask,
Gateway or Port no. is changed, set the
Network settings apply as [on] to apply the
setting normally.
SDI A SWM-171A
PAGE IV >> PAGE I
OFF UMD CHARACTER
0 UMD CHARACTER COLOR
0 UMD BG. TRANS
0
OFF
UMD CHARACTER
●
- Customizes the characters for Under Monitor
Display.
- Alphabets, numbers and special symbols are
available.
- Maximum of 8 characters can be used.
UMD CHARACTER COLOR
●
- Used to set the color of UMD character.
- Available colors are WHITE, RED, GREEN,
BLUE, YELLOW, CYAN and MAGENTA.
UMD BG. TRANS
●
- Used to set the transparency of the UMD
background.
- Available values are SCALE DOWN, OPAQUE,
50%, 90% and 100%.
Multi Format LCD Monitor 25
1080/60i
CHANNEL1
GREEN
50%
