5. Menu Operations
[5] GPI
SDI A
SWM-171A
1080/60i
PAGE II >> PAGE III
UMD DISPLAY
D-UMD TALLY TYPE
DEFAULT
TALLY 1 COLOR
TALLY 2 COLOR
TALLY 3 COLOR
TALLY 4 COLOR
UMD DISPLAY (Under Monitor Display)
- Used to set input source ID mode.
- Available modes are UMD, ANC, D-UMD(S-
8C), D-UMD(S-16C), D-UMD(D-8C) and OFF.
- If UMD menu is selected, characters or tally
data in the black bar displays on the bottom
of the screen. The vertical aspect ratio of the
image changes on the screen as the bar on
the bottom of screen appears.
- In the USER ASPECT mode, the UMD bar
displays semi-transparently and the screen
keeps its USER ASPECT ratio.
* UMD : Displays user customized 8 characters
on screen.
* ANC : Displays characters embedded in SDI
signal.
* D-UMD(S-8C) : Displays incoming data of 8
characters and tally signal from TSL protocol
(V5.0).
* D-UMD(S-16C) : Displays incoming data of 16
characters and tally signal from TSL protocol
(V5.0).
* D-UMD(D-8C) : Displays incoming data
of two pairs of 8 character strings and tally
signals from TSL protocol (V5.0).
20 Multi Format LCD Monitor
D-UMD TALLY TYPE
- Used to set Tally type configuration in
D-UMD(D-8C) and UMD DISPLAY.
OFF
- Configuration values are DEFAULT and USER
OFF
COLOR.
OFF
* DEFAULT : Existing TVLogic operating
OFF
system (VRT)
OFF
* USER COLOR : User configuration settings on
each TALLY color type.
- TALLY1 COLOR ~ TALLY4 COLOR are activated
when USER COLOR is selected
CHARACTER : Tally displays with the
character color. Activates the same as Default
model.
- BG. COLOR : Tally is displayed as the
background of character. Activate the same
as Default mode.
- USER TALLY : The bit0 & bit 1 of TSL Protocol
Control Byte receives the input signal and
displays Tally by user's set(OFF, WHITE, RED,
GREEN, BLUE, YELLOW CYAN, MAGENTA).
- USER CHAR : This function activates in
the same way as USER TALLY and TALLY is
displays by the character color.
- USER BG. : This function activates in the same
way as USER TALLY and Tally is displays in the
background of the character.
TALLY1 COLOR / TALLY2 COLOR / TALLY3
COLOR / TALLY4 COLOR
- Used to set the color of each TALLY 1, TALLY
2, TALLY 3 and TALLY 4.
- Available colors are RED, GREEN and
YELLOW.
- B0:0 B1:0 / B0:1 B1:0 / B0:0 B1:1 / B0:1 B1:1
(OFF, WHITE,RED,GREEN,BLUE,YELLOW,CYAN,
MAGENTA)
- Activates only when the D-UMD TALLY TYPE
is set to USER TALLY, USER CHAR or USER BG.
- Available values are OFF, WHITE, RED, GREEN,
BLUE, YELLOW, CYAN and MAGENTA.
5. Menu Operations
[5] GPI

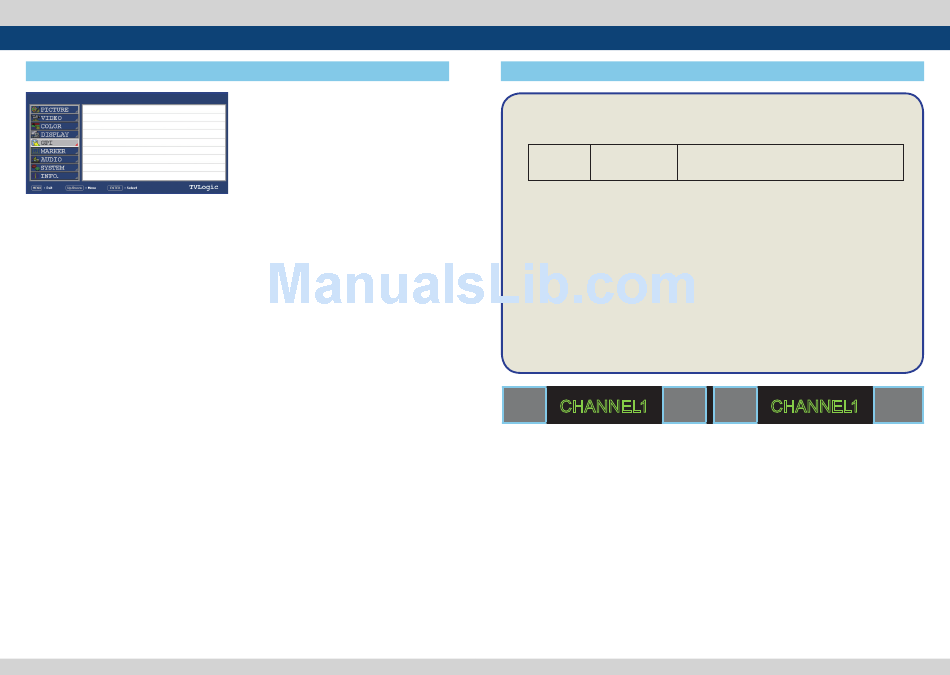

<Dynamic UMD Protocol (TSL V5.0)>
* Transmission (18 Byte) (PC or Device -> Monitor)
HEADER
CONTROL
(1 BYTE)
BYTE(1 BYTE)
* [HEADER] : Display address (0~126) + 80 hex.
* [CONTROL BYTE]
bit 0 : Tally 1 (1=on, 0=off)
bit 1 : Tally 2 (1=on, 0=off)
bit 2 : Tally 3 (1=on, 0=off)
bit 3 : Tally 4 (1=on, 0=off)
bit 4 : bright data
(Not used)
bit 5 : bright data
(Not used)
bit 6 : reserved
(Not used)
bit 7 : cleared to 0
(Not used)
* [DISPLAY DATA] : 16 displayable ASCII characters.
CHANNEL1
Tally1
Tally2
DISPLAY DATA
(16 BYTE)
CHANNEL1
Tally3
Tally4
Multi Format LCD Monitor 21
