5. Menu Operations

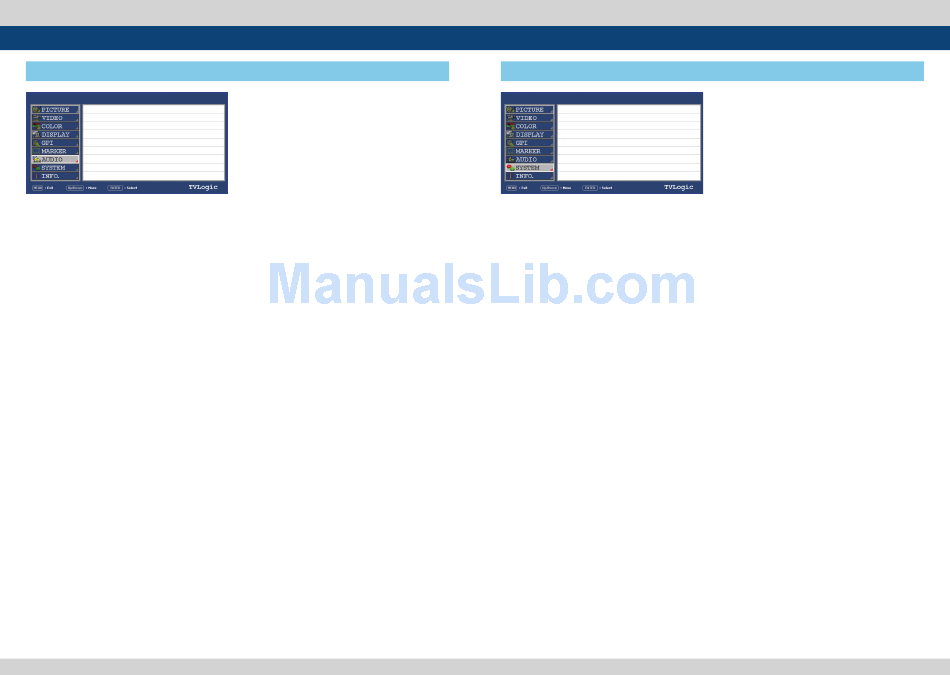

[8] AUDIO

SDI A SWM-171A 1080/60i
LEVEL METER SELECT
LEVEL METER DISPLAY
LEVEL METER REFERENCE
LEVEL METER DECAY TIME
LEVEL METER SIZE
LEVEL METER POSITION
LEVEL METER SELECT
●
- Used to control the Embedded Audio Level
Meters.
- Available modes are OFF, G1+G2, G2+G3,
G3+G4, G1+G3, G1+G4,G2+G4 and 16CH.
- If Main Menu window activates, the level
meter displays semi-transparent even if
[LEVEL METER SIZE] menu is set to Normal.
It returns to normal when the Main Menu
window is deactivated.
LEVEL METER DISPLAY
●
- Used to control display method of Audio
Level Meters.
- Available modes are Pair and Group.
LEVEL METER REFERENCE
●
- Used to set audio level default.
- Available values are -18dB and -20dB.
- Audio within selected value is displayed in
green and exceeded audio level is displayed
in yellow.
- Audio exceeding -4dB is displayed in red.
LEVEL METER DECAY TIME
●
- Used to set the reduction time of the
maximum indication of audio signals.
- Available values are form 0 to 31. Larger
values indicate a longer time to display.
LEVEL METER SIZE
●
- Used to control the size of the Audio Level
Meters.
- Available modes are SMALL, SMALL TRANS,
NORMAL, NORMAL TRANS, LARGE and
LARGE TRANS.
- In SMALL, NORMAL and LARGE modes, the
Audio Level Meter appears opaque.
- In SMALL TRANS., NORMAL TRANS and
LARGE TRANS modes, the Audio Level Meter
appears semitransparent.
28 Multi Format LCD Monitor
LEVEL METER POSITION
●
- Used to control the position of the Audio
OFF
Level Meters.
PAIR
-20dB
- Available values are HOR, VER and BOT.
O
SMALL
HOR.
5. Menu Operations

[9] SYSTEM

SDI A SWM-171A 1080/60i
PAGE I >> PAGE II
USER CONFIG SET USER 1
SERIAL NUMBER XXXXXXXXXXXXX
OSD DISPLAY CONTINUE
OSD POSITION CENTER
INTERNAL PATTERN
SET DEFAULT
SIGNAL LOCK ENABLE
USER CONFIG SET
●
- Used to save and apply three kinds of user
configuration.
- Available modes are USER1, USER2 and
USER3.
- Effective items for each USER1, USER2
and USER3 settings are [MARKER] menu of
MARKER, CENTER MARKER, SAFETY AREA,
MARKER MAT and MARKER COLOR
and [PICTURE] menu of , BRIGHT, CONTRAST,
CHROMA, PHASE and APERTURE.
SERIAL NUMBER
●
- Displays the serial number of the monitor.
LOCK ENABLE
●
- Factory use only.
OSD DISPLAY
●
- Used to control the OSD display time.
- Available values are 3 SEC, 20 SEC and
CONTINUE.
OSD POSITION
●
- Controls the OSD position.
- Available positions are CENTER, Top-
Right(R-T), Bottom-Right(R-B), Bottom-
Left(L-B) and Top-Left(L-T).
INTERNAL PATTERN
●
- This item generates internal white pattern.
- The white level select between 0% and 100%
(Per 5% increase or decrease)
SET DEFAULT
OFF
●
- User can use SET DEFAULT menu to initialize
to factory setting.
SIGNAL LOCK
●
- Used to enable/ disable the synchronization
of input signal.
- ENABLE : Displays the video by using the
synchronization of input signal.
- DISABLE : Displays the video by locally
generated synchronization. The monitor
responses rapidly when the input signal or
format is changed. (The video may loss or
cut.)
Multi Format LCD Monitor 29
