5. Menu Operations

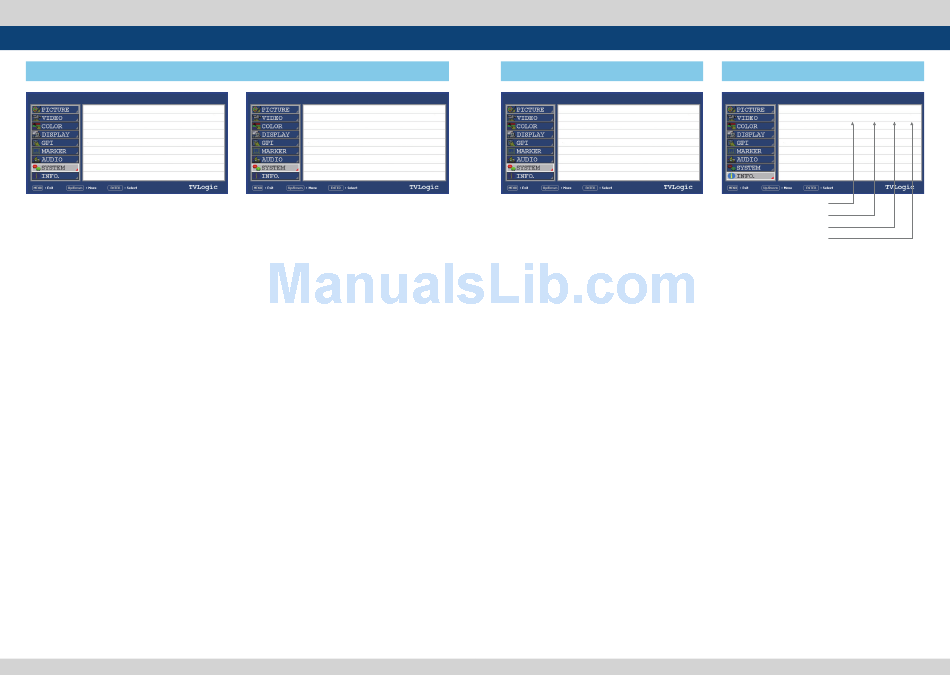

[9] SYSTEM
SDI A SWM-171A 1080/60i
PAGE II >> PAGE III
KEY LED
F1/DOWN MAPPING FREEZE
F2/UP MAPPING
KEY LED
●
- This item controls KEY LED ON/OFF.
- If the button with LED is pressed with the
KEY LED Off, LED comes on but goes off after
5 seconds later.
F1/DOWN MAPPING
●
- User can select the function for the F1
button.
- Selectable functions: SCAN, ASPECT,
TIMECODE, CC SEL., ALM SEL., VIDEO RANGE,
FAST MODE, DITHERING, FILTER, FORCE Psf,
UMD, COLOR TEMP, PAGE 801, PAGE 888,
PAGE 889, MARKER DISPLAY and FREEZE.
F2/UP MAPPING
●
- User can select the function for the F2
button.
- Selectable functions: SCAN, ASPECT,
TIMECODE, CC SEL., ALM SEL., VIDEO RANGE,
FAST MODE, DITHERING, FILTER, FORCE Psf,
UMD, COLOR TEMP, PAGE 801, PAGE 888,
PAGE 889, MARKER DISPLAY and FREEZE.
30 Multi Format LCD Monitor
SDI A SWM-171A
PAGE III >> PAGE VI
ON DEVICE
COLOR CALIBRATION
SCAN TARGET LUMINANCE
K-10 CHANNEL 00:
COLORSPACE
CALIBRATION START
MEASUREMENT
DEVICE
●
- Used to select the device for color
calibration.
- Available Device : K-10, Eyeone Display Pro,
Specbos 1211.
COLOR CALIBRATION
●
- Connect the COLOR PROBE(e.g. K-10) to the
USB port to calibrate the monitor without a
PC.
* Refer to the section "Firmware Upgrade &
Color Calibration" for more information.
TARGET LUMINANCE
●
- Used to set the luminance.
K-10 CHANNEL
●
- Used to select the channel of COLOR
PROBE(K-10)
- Available only when the Color Probe is K-10.
COLORSPACE
●
- This function is not supported.
CALIBRATION START
●
- Used to start the calibration.
- Set the Calibration as [On]. The Color
calibration start menu will activate after the
Color Probe connection is completed.
MEASUREMENT
●
- Used to start the calibration.
Set the Color Calibration as [On]. The Color
calibration start menu will activate after
the USB connection is completed.
5. Menu Operations
[9] SYSTEM
1080/60i SDI A SWM-171A
K-10 COPY DATA
OFF CAL. LOG COPY START
100cd/m 2 S/W UPGRADE
S/W UPGRADE START
COPY DATA
●
- Used to copy the files related to the
calibration.
CAL. LOG COPY START
●
- Used to save the CALIBRATION LOG file on a
USB drive.
* Set the COPY DATA as [On]. Activates
only when the USB drive(Thumb drive) is
connected.
S/W UPGRADE
●
- Used to upgrade the firmware using the USB
(Thumb drive).
* See section "6. Firmware Upgrade & Color
Calibration" for more information.
S/W UPGRADE START
●
- Used to start S/W upgrade. If the USB drive
is detected, the firmware upgrade becomes
activated.

[10] INFO.

1080/60i SDI A
PAGE VI >> PAGE I
KEYPAD VERSION
MCU VERSION
FPGA VERSION
GPU VERSION
INFO.
●
- Displays the Board version and current status
information.
- BOARD VERSION : 0001(GPU)
0.01(MCU)
- SUB VERSION : 00.00.00.00(NETWORK)
- BRIG. : Brightness
- CONT. : Contrast
- COLOR : Color Temp
- SCAN : Scan Mode
- ALM : Audio level meter
- C.C : Closed caption
- T.C : Timecode
SWM-171A 1080/60i
BOARD VERSION 0001 01 0.01 9
SUB VERSION 00.00.00.00
BRIG : 0
CONT : 0
COLOR : CUSTOM1
SCAN : ZERO
ALM : 16 CH
C.C : OFF
T.C : OFF
01(FPGA)
7(KEYPAD)
