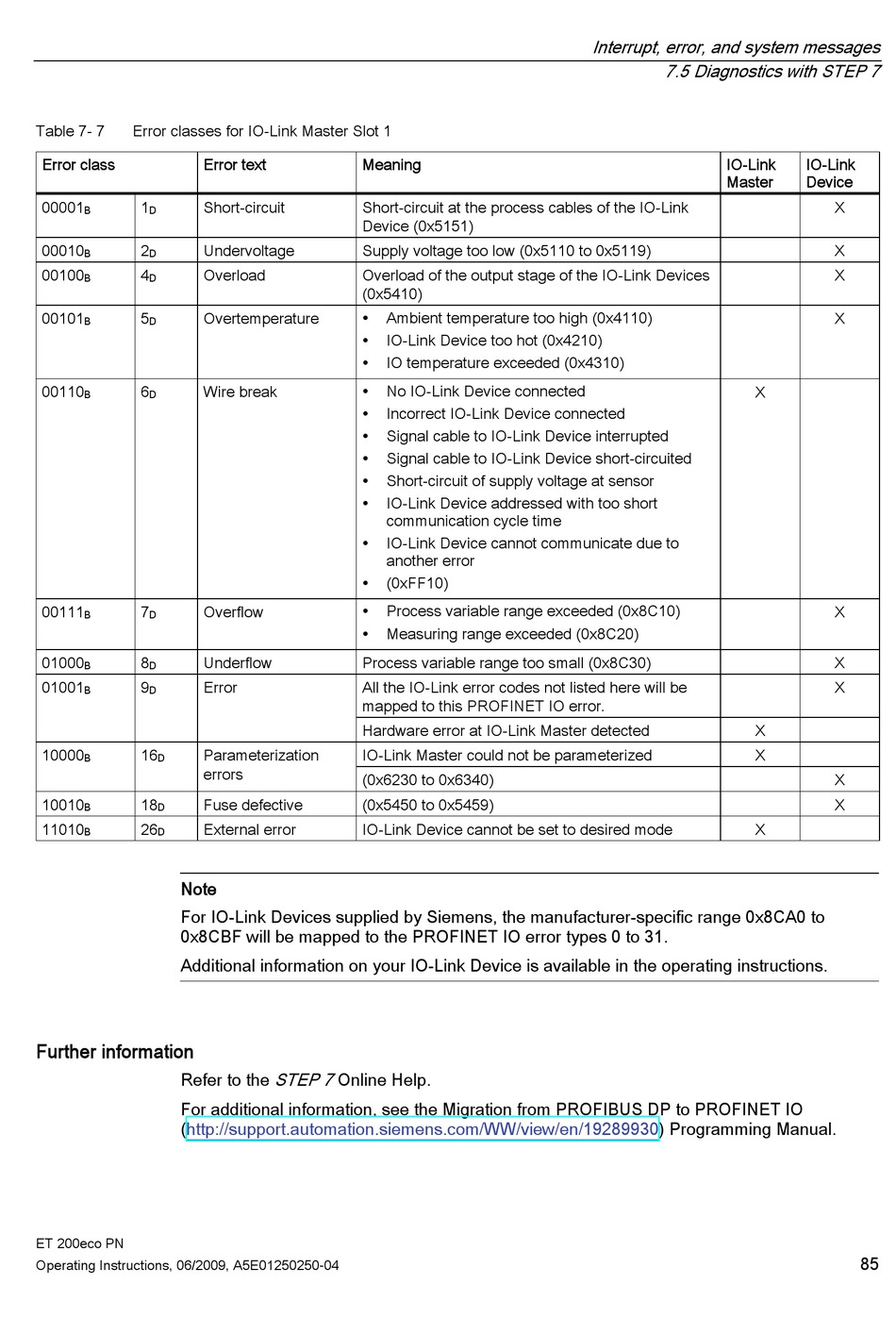

Table 7- 7 Error classes for IO-Link Master Slot 1
Error class Error text
00001 1 Short-circuit
B D
00010 2 Undervoltage
B D
00100 4 Overload
B D
00101 5 Overtemperature
B D
00110 6 Wire break
B D
00111 7 Overflow
B D
01000 8 Underflow
B D
01001 9 Error
B D
10000 16 Parameterization
B D
errors
10010 18 Fuse defective
B D
11010 26 External error
B D
Note
For IO-Link Devices supplied by Siemens, the manufacturer-specific range 0x8CA0 to
0x8CBF will be mapped to the PROFINET IO error types 0 to 31.
Additional information on your IO-Link Device is available in the operating instructions.
Further information
Refer to the
For additional information, see the Migration from PROFIBUS DP to PROFINET IO
(http://support.automation.siemens.com/WW/view/en/19289930) Programming Manual.
ET 200eco PN
Operating Instructions, 06/2009, A5E01250250-04
Meaning
Short-circuit at the process cables of the IO-Link
Device (0x5151)
Supply voltage too low (0x5110 to 0x5119)
Overload of the output stage of the IO-Link Devices
(0x5410)
Ambient temperature too high (0x4110)

IO-Link Device too hot (0x4210)

IO temperature exceeded (0x4310)

No IO-Link Device connected

Incorrect IO-Link Device connected

Signal cable to IO-Link Device interrupted

Signal cable to IO-Link Device short-circuited

Short-circuit of supply voltage at sensor

IO-Link Device addressed with too short

communication cycle time
IO-Link Device cannot communicate due to

another error
(0xFF10)

Process variable range exceeded (0x8C10)

Measuring range exceeded (0x8C20)

Process variable range too small (0x8C30)
All the IO-Link error codes not listed here will be
mapped to this PROFINET IO error.
Hardware error at IO-Link Master detected
IO-Link Master could not be parameterized
(0x6230 to 0x6340)
(0x5450 to 0x5459)
IO-Link Device cannot be set to desired mode
STEP 7
Online Help.
Interrupt, error, and system messages
7.5 Diagnostics with STEP 7
IO-Link
Master
X
X
X
X
IO-Link
Device
X
X
X
X
X
X
X
X
X
