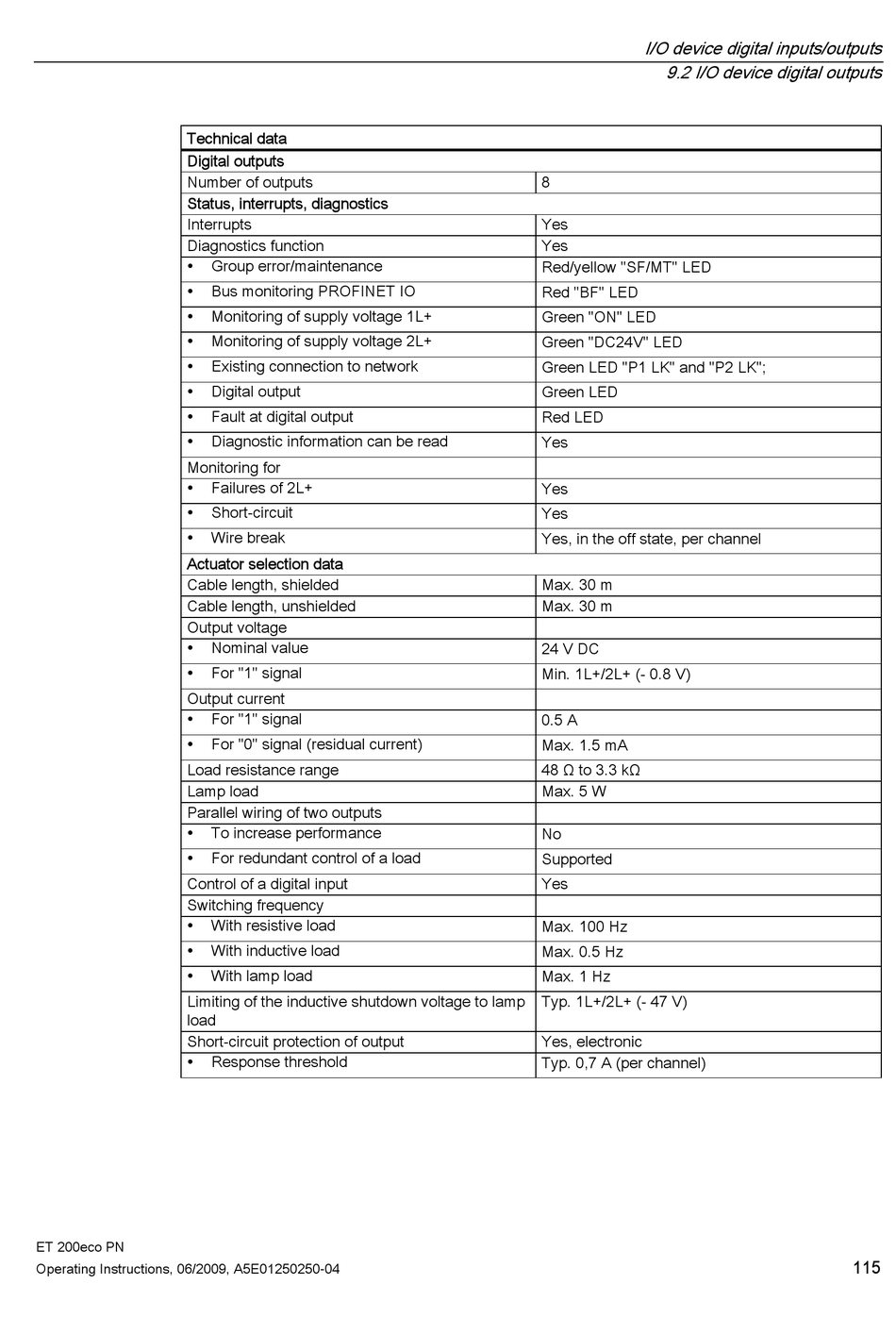

Siemens SIMATIC ET 200eco PN Operating Instructions Manual page 115

Technical data
Digital outputs
Number of outputs
Status, interrupts, diagnostics
Interrupts
Diagnostics function








Monitoring for



Actuator selection data
Cable length, shielded
Cable length, unshielded
Output voltage


Output current


Load resistance range
Lamp load
Parallel wiring of two outputs


Control of a digital input
Switching frequency



Limiting of the inductive shutdown voltage to lamp
load
Short-circuit protection of output

ET 200eco PN
Operating Instructions, 06/2009, A5E01250250-04
Group error/maintenance
Bus monitoring PROFINET IO
Monitoring of supply voltage 1L+
Monitoring of supply voltage 2L+
Existing connection to network
Digital output
Fault at digital output
Diagnostic information can be read
Failures of 2L+
Short-circuit
Wire break
Nominal value
For "1" signal
For "1" signal
For "0" signal (residual current)
To increase performance
For redundant control of a load
With resistive load
With inductive load
With lamp load
Response threshold
I/O device digital inputs/outputs
9.2 I/O device digital outputs
8
Yes
Yes
Red/yellow "SF/MT" LED
Red "BF" LED
Green "ON" LED
Green "DC24V" LED
Green LED "P1 LK" and "P2 LK";
Green LED
Red LED
Yes
Yes
Yes
Yes, in the off state, per channel
Max. 30 m
Max. 30 m
24 V DC
Min. 1L+/2L+ (- 0.8 V)
0.5 A
Max. 1.5 mA
48 Ω to 3.3 kΩ
Max. 5 W
No
Supported
Yes
Max. 100 Hz
Max. 0.5 Hz
Max. 1 Hz
Typ. 1L+/2L+ (- 47 V)
Yes, electronic
Typ. 0,7 A (per channel)
