Wiring
3.6 Pin assignment of connectors
3.6.8

Pin assignment for analog output

I/O device 4 AO U/I 4xM12 (6ES7145-6HD00-0AB0)
You will find the pin assignment for the 4 AO U/I 4xM12 I/O device in the table below.

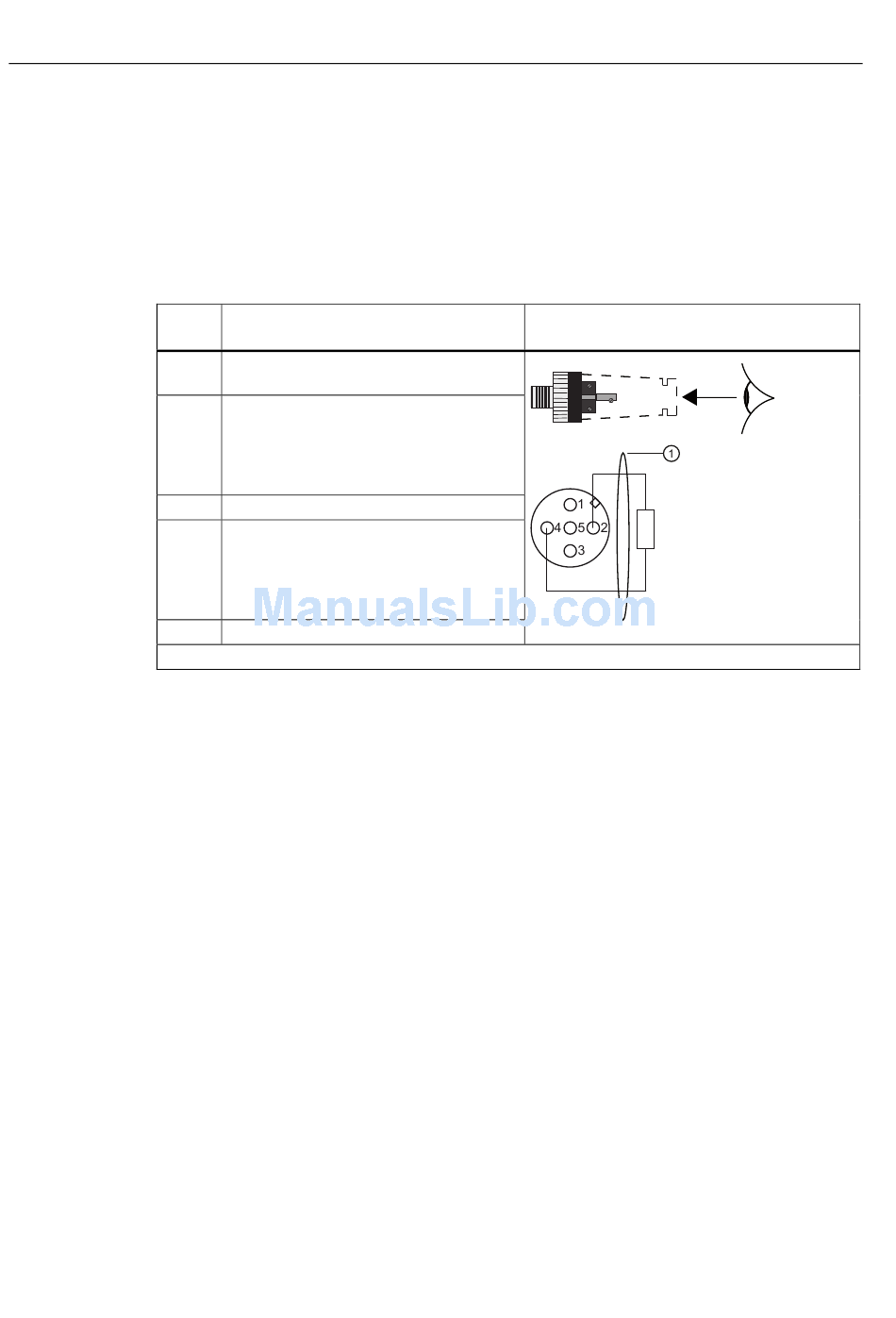

Table 3- 18
Pin
1
2
3
4
5
① 3-, 4-, or 5-core shielded copper cable
52
Pin assignment for voltage and current for the 4 AO U/I 4xM12 I/O device
Assignment of X1 to X4
24 V sensor supply
(derived from 1L+ non-switched)
Output signal +
Connector X1: Output signal 0
Connector X2: Output signal 1
Connector X3: Output signal 2
Connector X4: Output signal 3
Sensor supply ground (1M)
Output signal -
Connector X1: Output signal 0
Connector X2: Output signal 1
Connector X3: Output signal 2
Connector X4: Output signal 3
FE
View of the cable connector
(wiring side)
Operating Instructions, 06/2009, A5E01250250-04
ET 200eco PN
