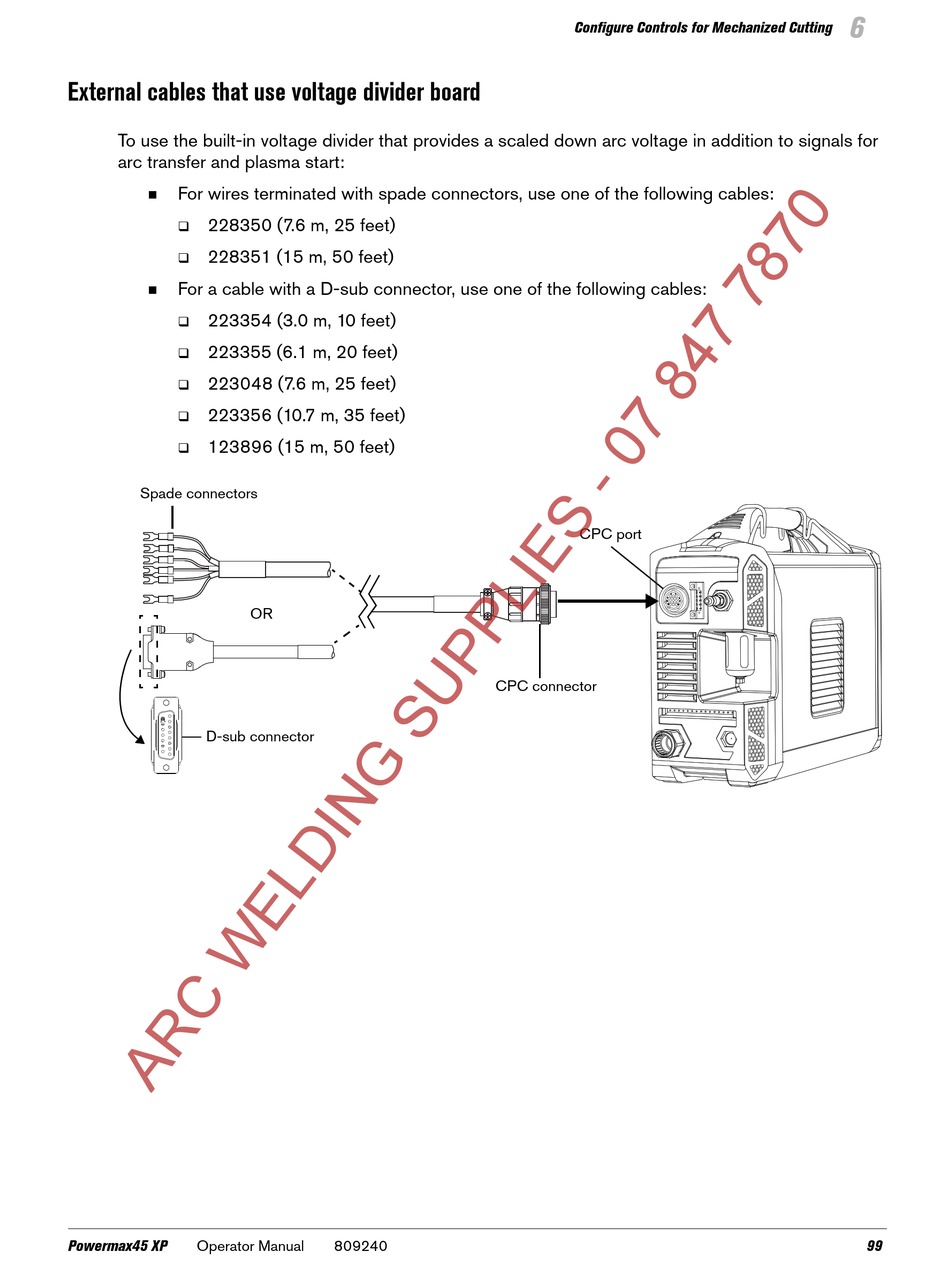

External cables that use voltage divider board

To use the built-in voltage divider that provides a scaled down arc voltage in addition to signals for
arc transfer and plasma start:
For wires terminated with spade connectors, use one of the following cables:

228350 (7.6 m, 25 feet)

228351 (15 m, 50 feet)

For a cable with a D-sub connector, use one of the following cables:

223354 (3.0 m, 10 feet)

223355 (6.1 m, 20 feet)

223048 (7.6 m, 25 feet)

223356 (10.7 m, 35 feet)

123896 (15 m, 50 feet)

Spade connectors
D-sub connector
