4
Gouge with the Hand Torch and Machine Torch

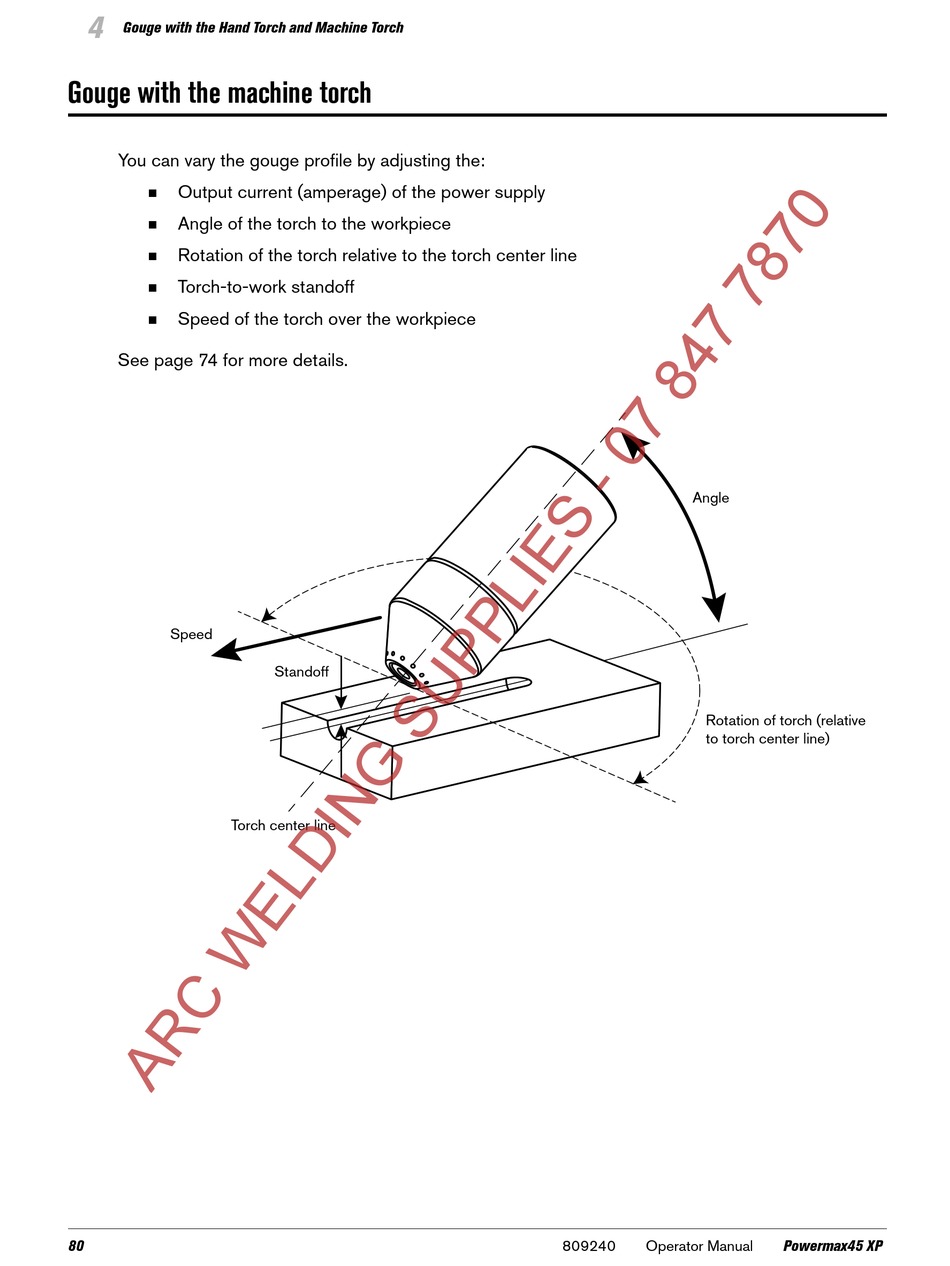

Gouge with the machine torch

You can vary the gouge profile by adjusting the:
Output current (amperage) of the power supply

Angle of the torch to the workpiece

Rotation of the torch relative to the torch center line

Torch-to-work standoff

Speed of the torch over the workpiece

See page 74 for more details.
Speed
Torch center line
80
Standoff
Angle
Rotation of torch (relative
to torch center line)
809240 Operator Manual Powermax45 XP
