6
Configure Controls for Mechanized Cutting

External serial port cables

The following external serial cables are available with the specified lengths and connectors:
223236 – RS-485 cable, unterminated, 7.6 m (25 feet)

223237 – RS-485 cable, unterminated, 15 m (50 feet)

223239 – RS-485 cable, 9-pin D-sub connector for Hypertherm controls, 7.6 m (25 feet)

223240 – RS-485 cable, 9-pin D-sub connector for Hypertherm controls, 15 m (50 feet)


Remote mode

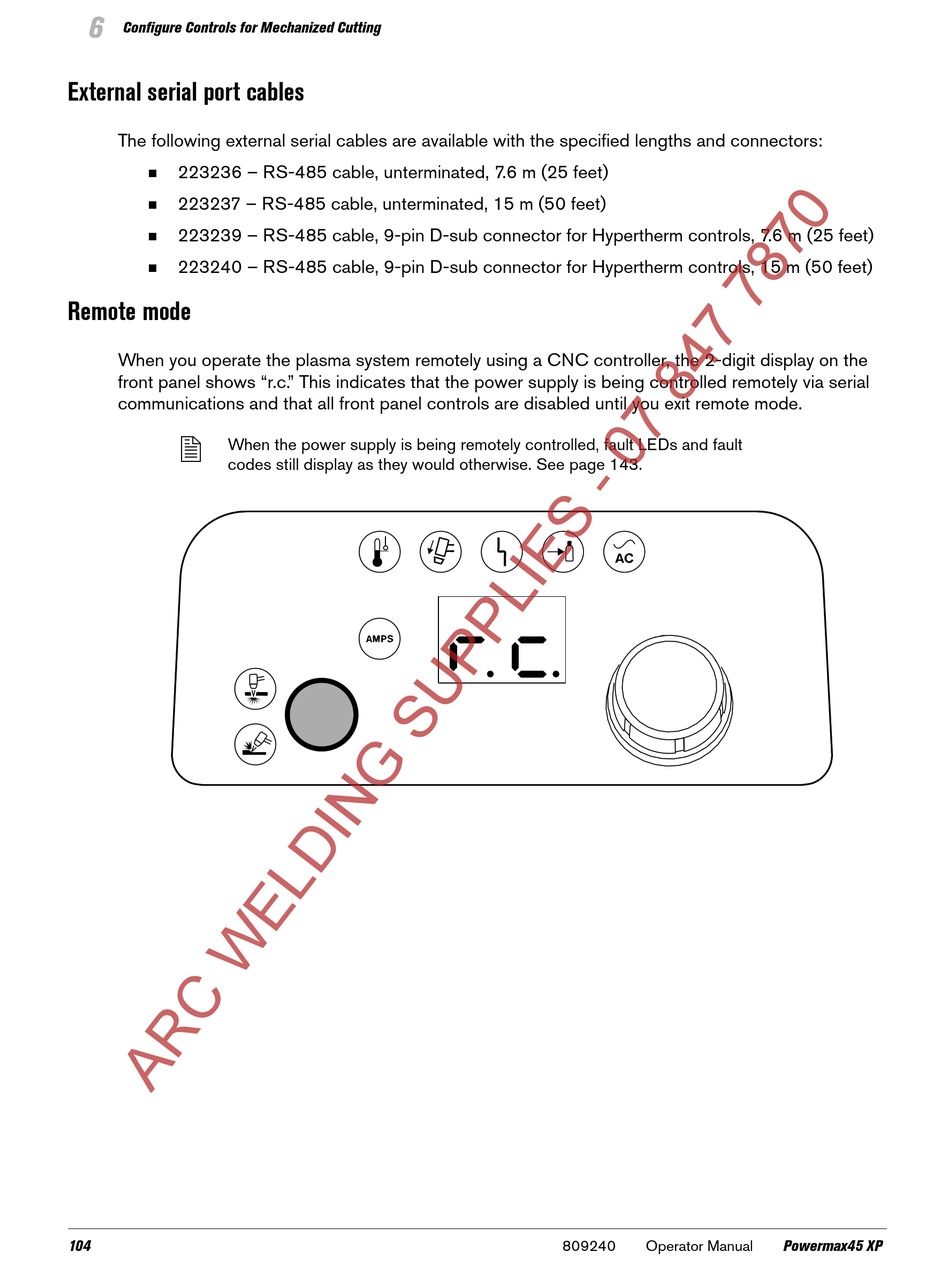

When you operate the plasma system remotely using a CNC controller, the 2-digit display on the
front panel shows "r.c. " This indicates that the power supply is being controlled remotely via serial
communications and that all front panel controls are disabled until you exit remote mode.

When the power supply is being remotely controlled, fault LEDs and fault
codes still display as they would otherwise. See page 143.
104 809240 Operator Manual Powermax45 XP
