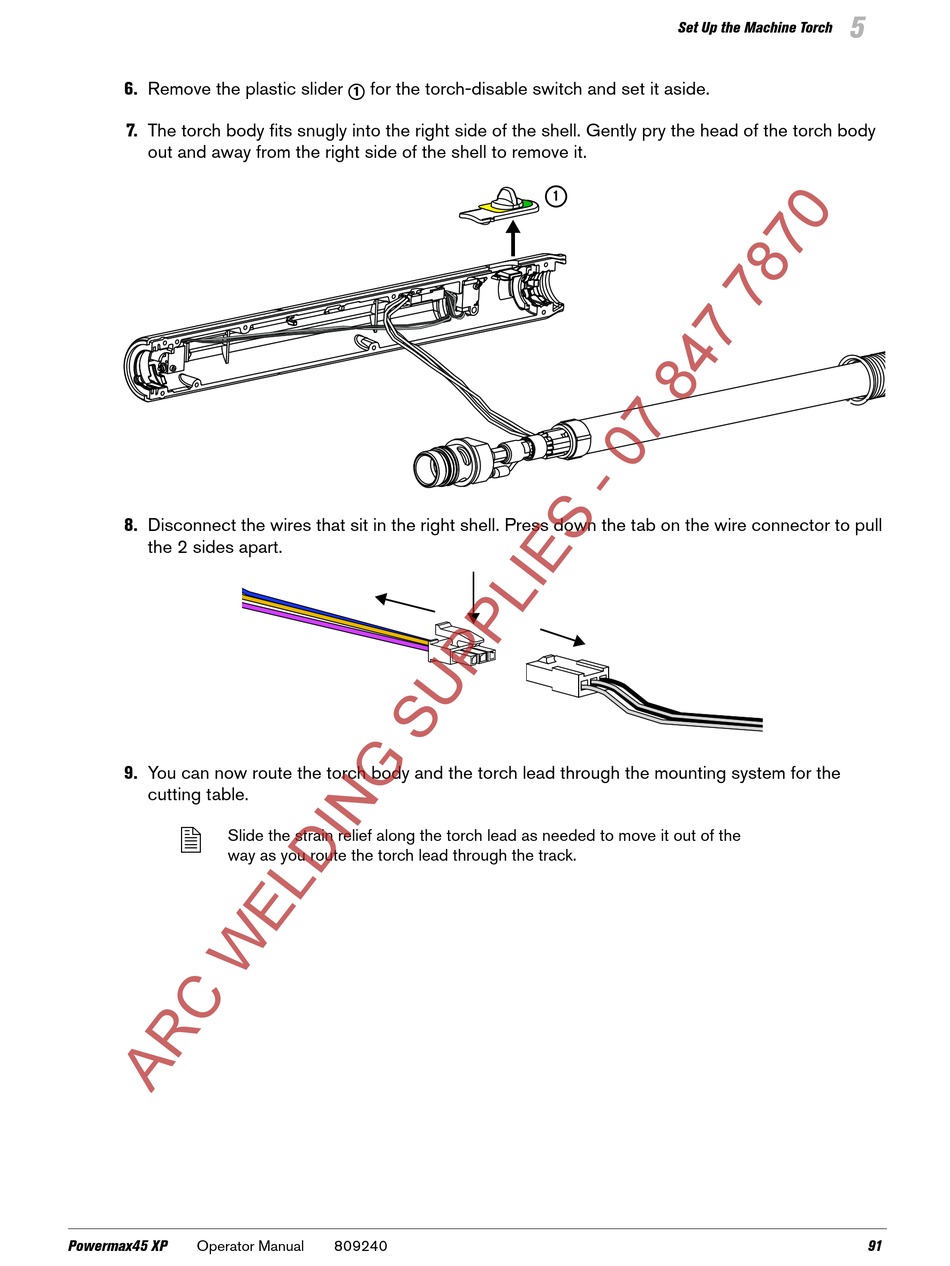

6. Remove the plastic slider
7. The torch body fits snugly into the right side of the shell. Gently pry the head of the torch body
out and away from the right side of the shell to remove it.
8. Disconnect the wires that sit in the right shell. Press down the tab on the wire connector to pull
the 2 sides apart.
9. You can now route the torch body and the torch lead through the mounting system for the
cutting table.

Slide the strain relief along the torch lead as needed to move it out of the
way as you route the torch lead through the track.
Powermax45 XP Operator Manual
for the torch-disable switch and set it aside.
