Replacement Parts and Accessories

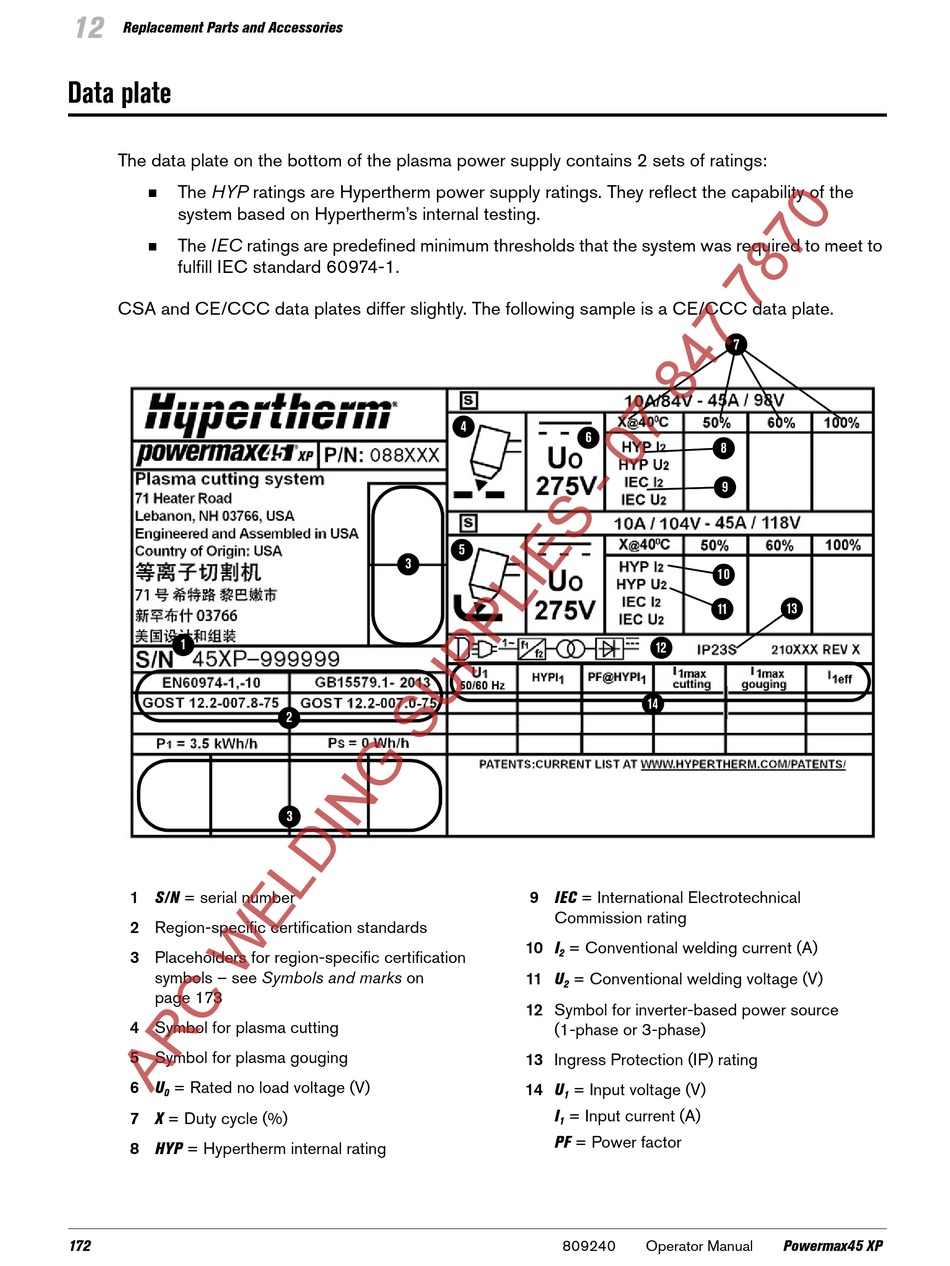

Data plate

The data plate on the bottom of the plasma power supply contains 2 sets of ratings:
The HYP ratings are Hypertherm power supply ratings. They reflect the capability of the

system based on Hypertherm's internal testing.
The IEC ratings are predefined minimum thresholds that the system was required to meet to

fulfill IEC standard 60974-1.
CSA and CE/CCC data plates differ slightly. The following sample is a CE/CCC data plate.
1
1 S/N = serial number
2 Region-specific certification standards
3 Placeholders for region-specific certification
symbols – see Symbols and marks on
page 173
4 Symbol for plasma cutting
5 Symbol for plasma gouging
6 U = Rated no load voltage (V)
0
7 X = Duty cycle (%)
8 HYP = Hypertherm internal rating
172
4
5
3
2
3
6
12
14
9 IEC = International Electrotechnical
Commission rating
10 I = Conventional welding current (A)
2
11 U = Conventional welding voltage (V)
2
12 Symbol for inverter-based power source
(1-phase or 3-phase)
13 Ingress Protection (IP) rating
14 U = Input voltage (V)
1
I = Input current (A)
1
PF = Power factor
