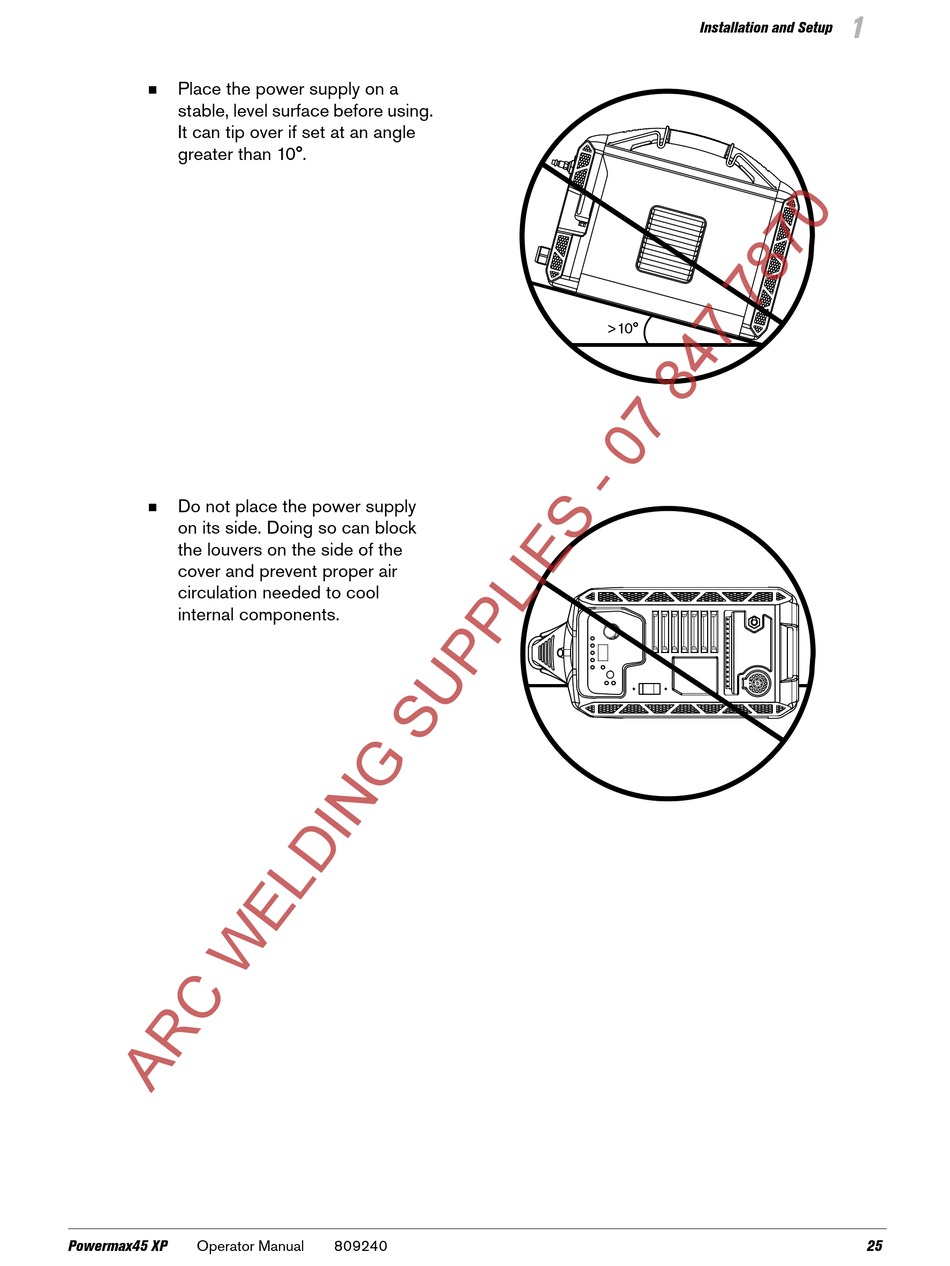

Place the power supply on a
stable, level surface before using.
It can tip over if set at an angle
greater than 10°.
Do not place the power supply
on its side. Doing so can block
the louvers on the side of the
cover and prevent proper air
circulation needed to cool
internal components.
Powermax45 XP
Operator Manual
809240
Installation and Setup
>10°
1
25
