Volts Dc Test (Vdc) - SimTech ProFlame 1 Troubleshooting Manual

SUREFIRE ELECTRONIC IGNITION SYSTEM
S.I.T. PROFLAME 1 TROUBLESHOOTING
Diagram 4

VOLTS DC TEST (VDC)

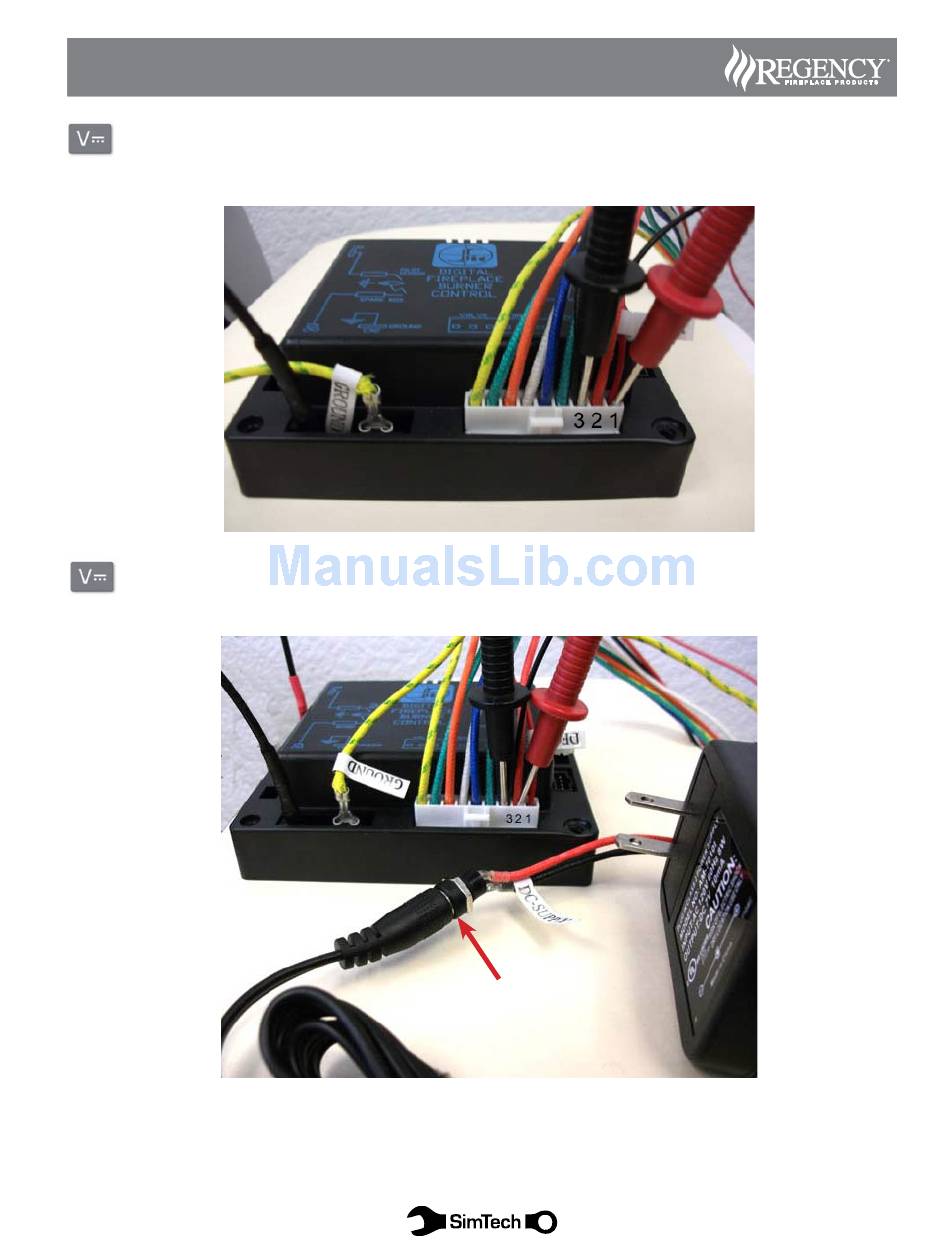

Check the battery voltage at the DFC wire harness connection at the #1 and #3 positions.
If the reading is 4.4 vdc or less replace the batteries
VOLTS DC TEST (VDC)
If the A/C adapter is connected check the #2 red and #3 black positions. The reading should be approximately
7 vdc. If the correct voltage is present replace the DFC.
NOTE: Ensure the A/C adapter has good contact with the DC supply connector
SimTech Proflame I
.
A/C Adapter Connection
