MAXITROL GV60 IGNITION SYSTEM
TROUBLESHOOTING

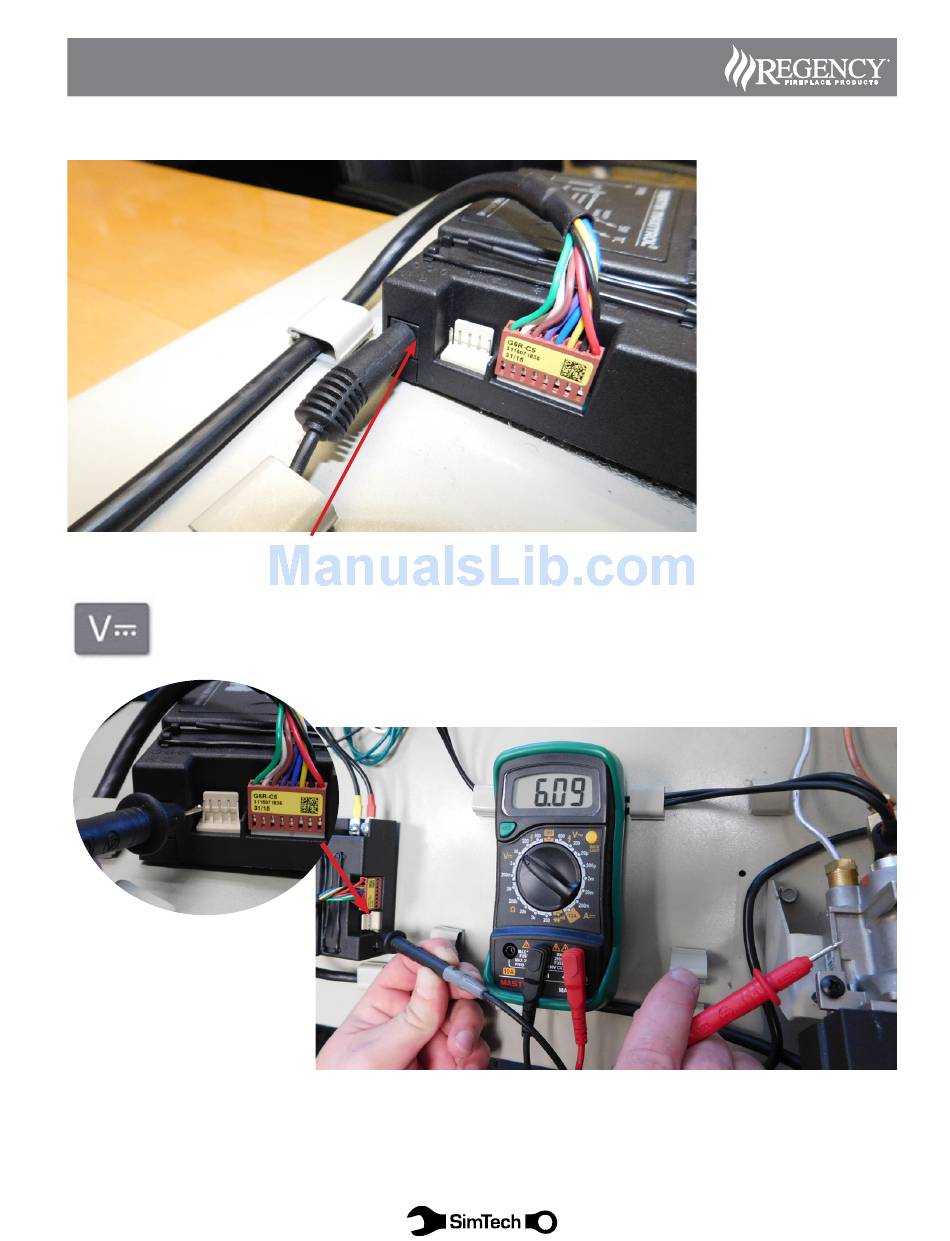

Diagram 1: Ensure AC adaptor is connected to Receiver.
Verify AC adaptor is connected to receiver. If not, connect and
test again.
Volts DC (vdc) Set meter to voltage DC, in the lowest possible range above 10VDC.
Place (+) positive probe on the left most pin of the 5 pin connector at the Receiver.
Place (-) negative probe to ground (valve body, ground lug or bare metal of chassis).
The meter should read between 5-6 VDC. If lower, change batteries or install AC adaptor and test.
Maxitrol GV60
Diagram 1
Diagram 1a
