MAXITROL GV60 IGNITION SYSTEM
TROUBLESHOOTING

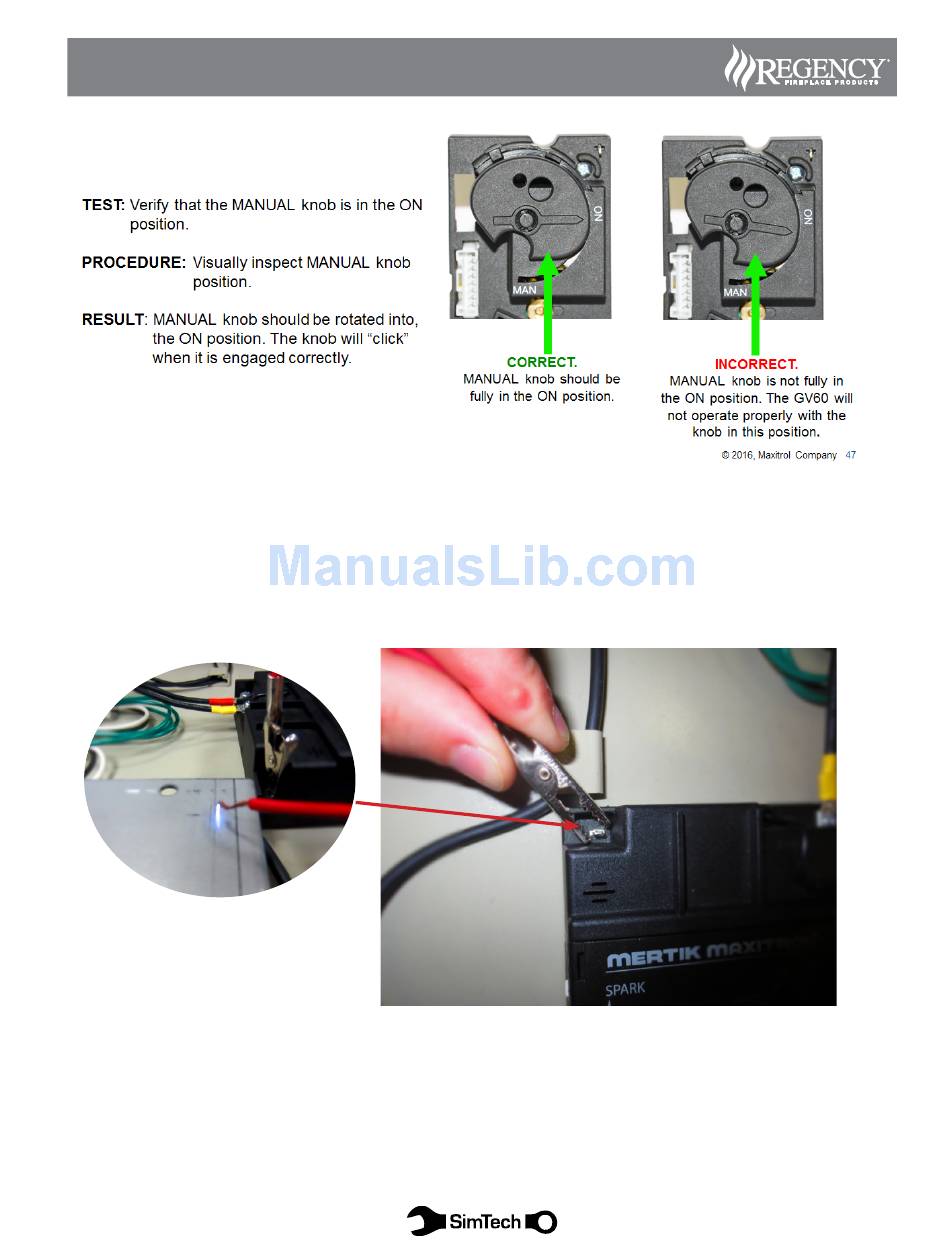

Diagram 12: Test Receiver spark generator.
a.) Remove Spark Electrode from Receiver.
b.) Attach a jumper to the Spark terminal on Receiver.
c.) Hold the other end of the jumper 1/8" away from ground ( Bare metal of chassis)
d.) Turn unit on. Receiver should beep several times and begin to spark to ground.
e.) If no spark and power is available to the receiver (See Diagram 1b) replace the receiver.
Maxitrol GV60
Diagram 11
Diagram 12
