IFC Extended Antenna

If there are cases where environmental interference from wireless devices, i.e. routers, cordless phones, smart TV's or similar
devices affects your remote control reception or transmission there is an antenna extension available. The 911-210 IFC antenna
can be used to improve reception and range.

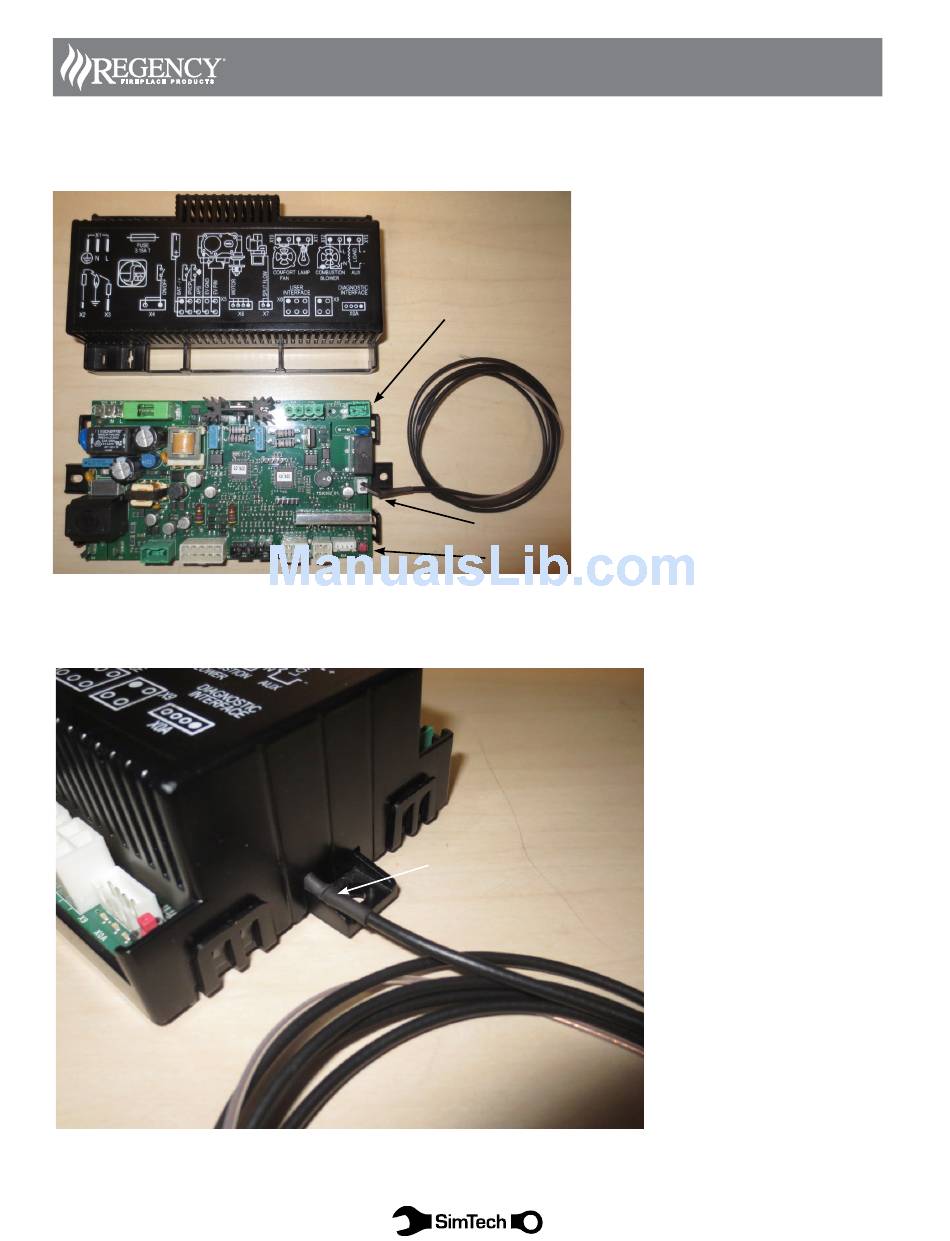

To install antenna remove power from IFC—use a flat head screw driver to release the 4 x clips located at the bottom of the IFCs
short sides. The plastic cover can now be removed, allowing access to the board. Plug the antenna into the X14 terminal, located
on the right side of the board between the SW1 switch and the X13 terminal.
Run the wire through the opening in the plastic cover beside X14 and to the outside of the appliance. The clear end of the antenna
extension should be located out of sight, and outside of the unit enclosure.
