SimTech ProFlame 1 Troubleshooting Manual page 16

Surefire & electronic ignition systems
Table of Contents

Advertisement

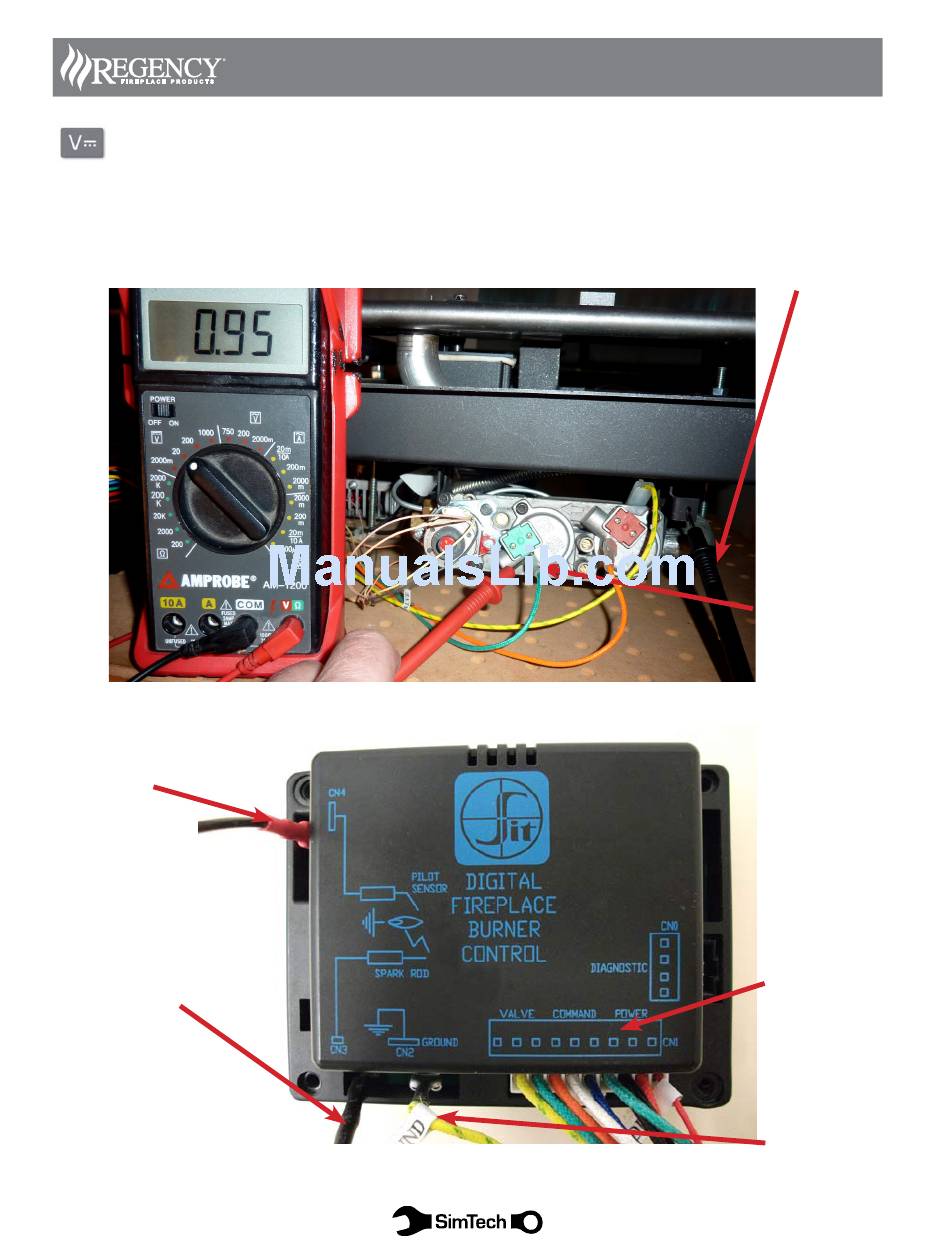

Diagram 15
DC VOLTS TEST (VDC)
With system complete conduct the following test:
Check voltage at EV2 main burner coil with the green wire connected to the valve. With the leads in place
switch the unit on. For approximately 2 seconds the voltage should read 4-6 vdc then drops to .5-1 vdc. If there
is voltage replace the valve. If there is not voltage replace the DFC.
Diagram 16
CN4 Flame Sensor
(Red Sleeve)
CN3 Spark Electrode
(Black Sleeve)
16
16
SUREFIRE ELECTRONIC IGNITION SYSTEM
S.I.T. PROFLAME 1 TROUBLESHOOTING
9 8 7 6 5 4 3 2 1
Second lead goes
to valve body
(or Ground)
E V 2 ( G r e e n
Tab) This wire
must stay con-
nected for this
test.
CN1 Nine Pin
Molex connector
locations num-
bered right to left
CN 2 Ground
SimTech Proflame I
