SimTech ProFlame 1 Troubleshooting Manual page 10

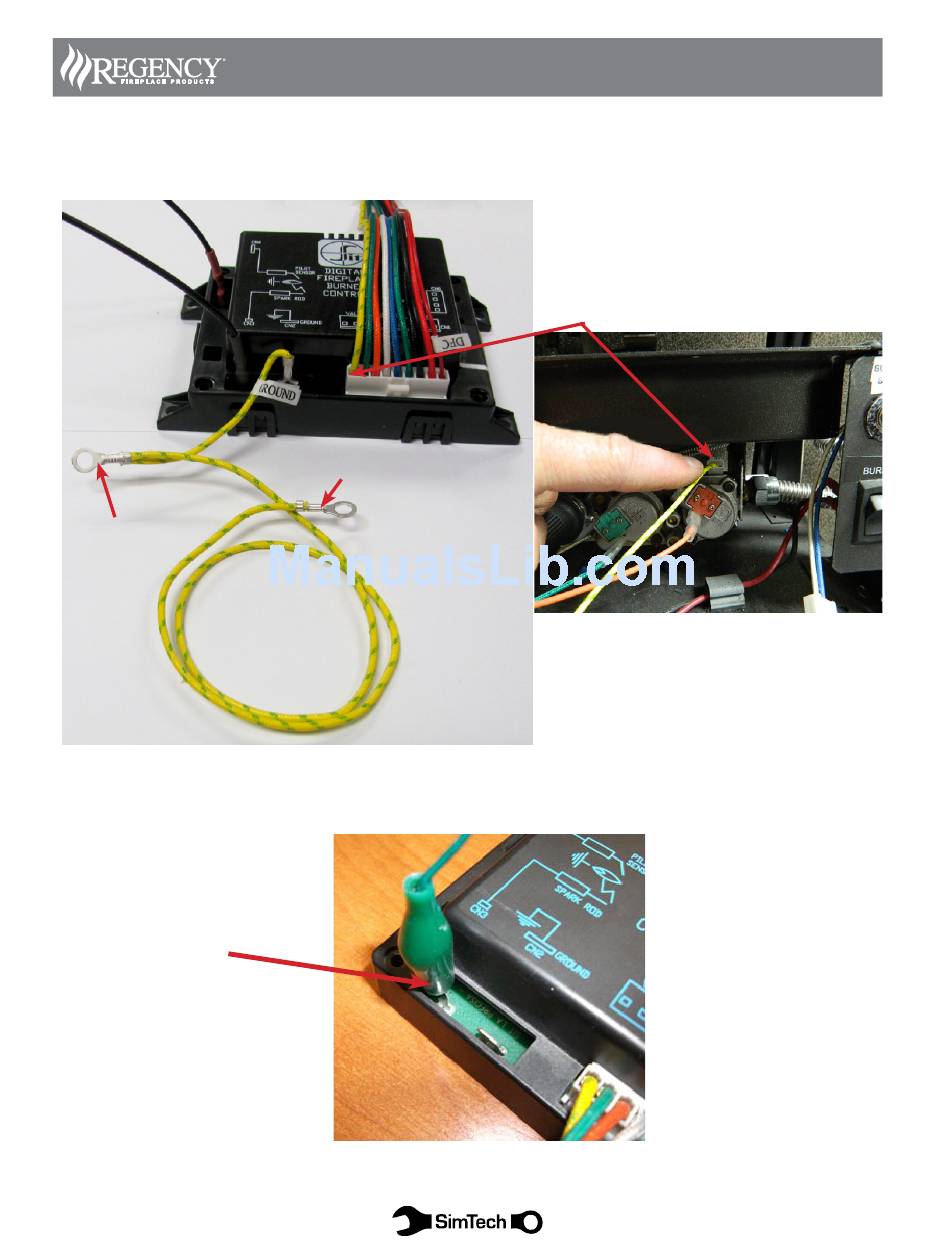

Diagram 5
Check the ground connection to the DFC module, the valve and the closest point to the pilot assembly. Do not alter
any ground wires as installed by the manufacturer.
Chassis Ground
(Attached to the
ground lug)
Diagram 6
Remove the spark electrode wire from CN3. Connect a jumper wire to the exposed spade terminal. Hold the opposite
end of the jumper 1/8" away from ground and turn the unit on. If there is a spark replace the electrode, if not replace
the DFC.
Spark Electrode
Connection CN3
10 10
Ground to the pilot area or
closest point to pilot
SUREFIRE ELECTRONIC IGNITION SYSTEM
S.I.T. PROFLAME 1 TROUBLESHOOTING
Ground from DFC wire harness to
valve
SimTech Proflame I
