Continuity Test - SimTech ProFlame 1 Troubleshooting Manual

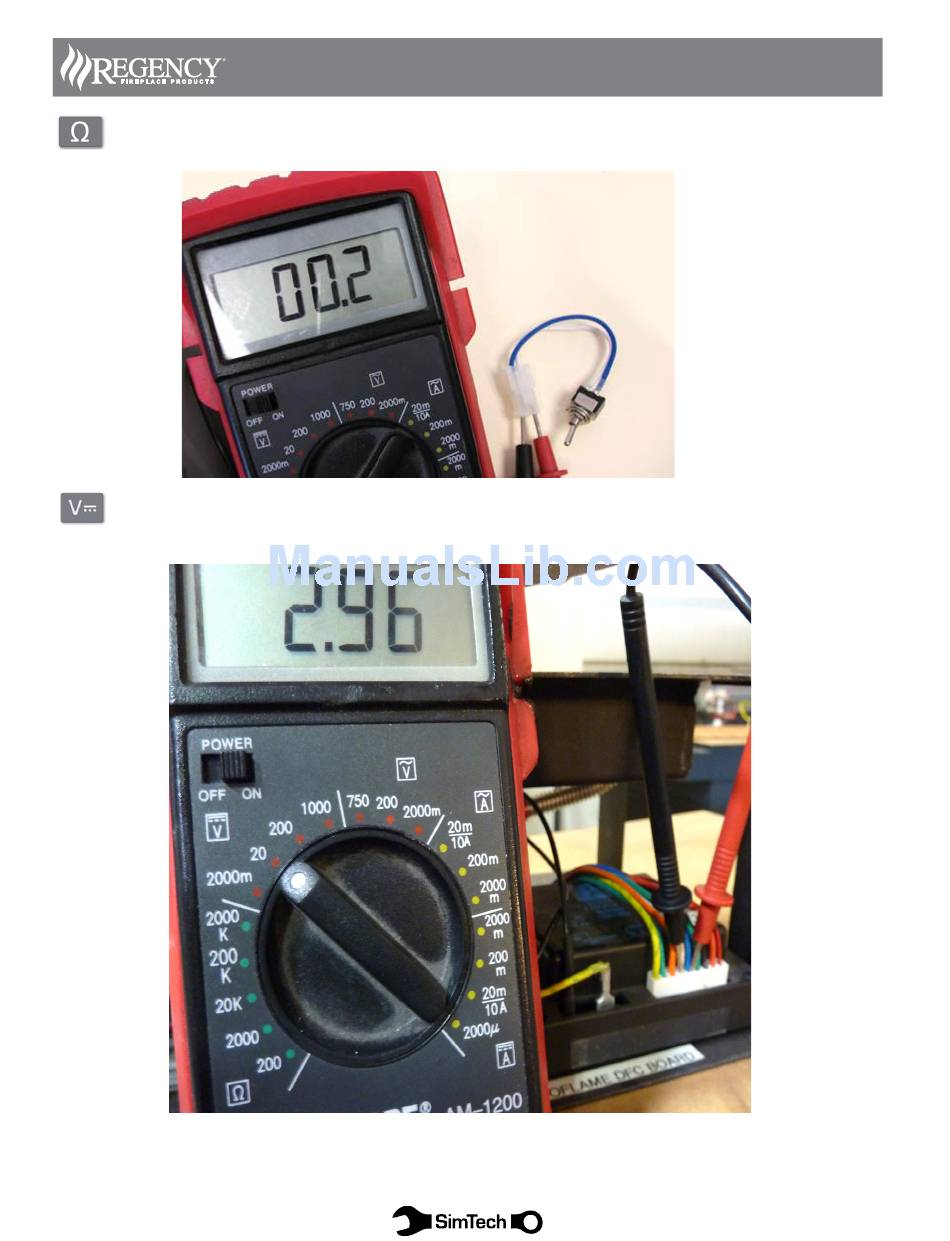

Diagram 9 CONTINUITY TEST (Ohms)
Put the switch in the CPI (constant pilot/closed) position. Disconnect the switch and check for continuity.
Diagram 10 VOLTS DC TEST (VDC)
Check the blue and white CPI/IPI wires for approximately 3 vdc. The switch must be in the IPI (intermittent
pilot/open) position to check.
12 12
SUREFIRE ELECTRONIC IGNITION SYSTEM
S.I.T. PROFLAME 1 TROUBLESHOOTING
SimTech Proflame I
