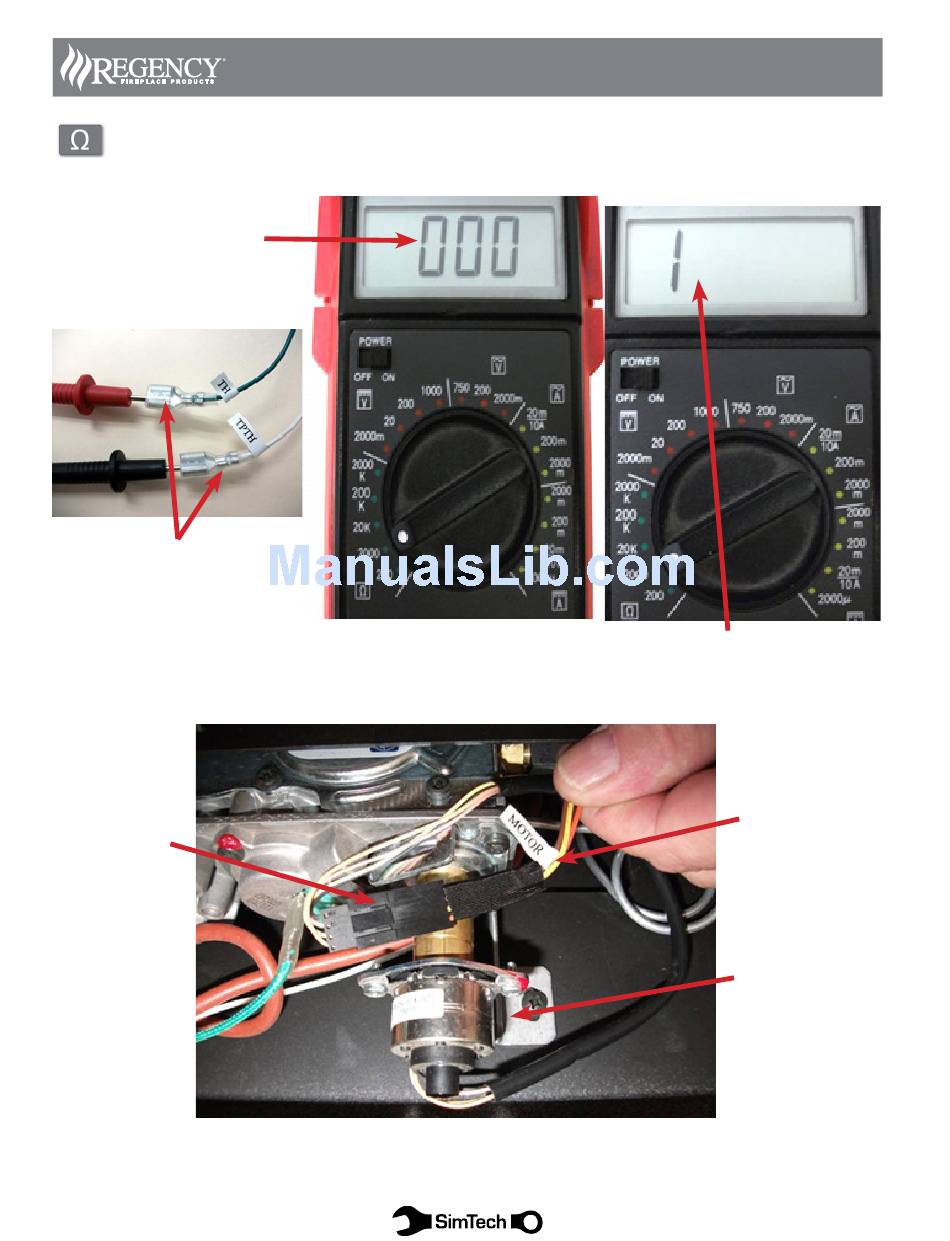

Diagram 26
Continuity Test (Ohms)
Place leads on the green and whites wires. When burner is signaled to come on you should see continuity. If
not, follow the previous troubleshooting flowchart to check the DFC and the valve.
Meter shows Continuity
One lead to Green Wire and One lead
to White Wire
Diagram 27
Check the flame modulator and connection
Connect Harness
26
26
SUREFIRE ELECTRONIC IGNITION SYSTEM
S.I.T. PROFLAME 1 TROUBLESHOOTING
Meter shows no continuity or "Open Circuit"
Wires Marked "Motor"
Flame Modulator
SimTech Proflame I
