SUREFIRE ELECTRONIC IGNITION SYSTEM
S.I.T. PROFLAME 2 TROUBLESHOOTING

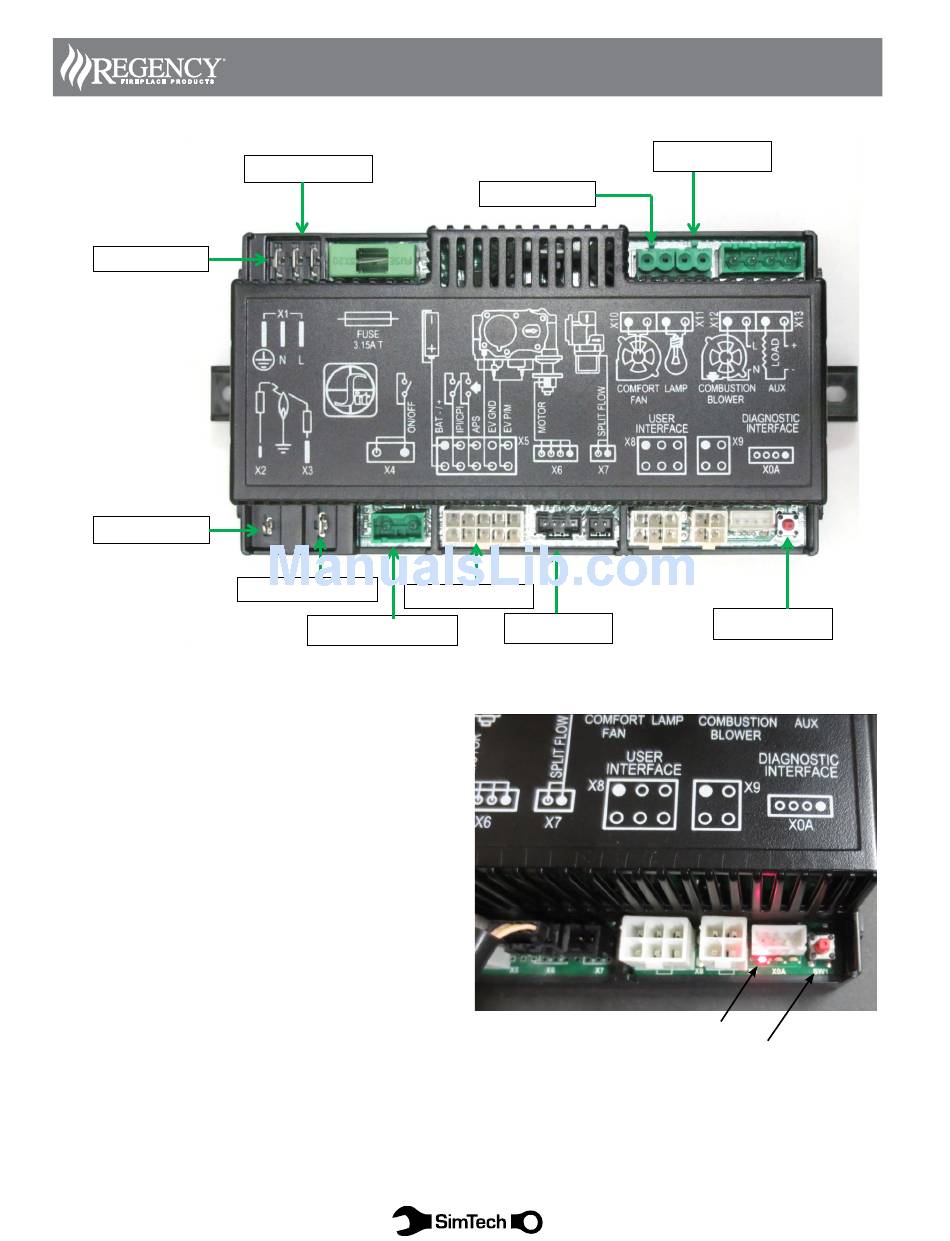

INTEGRATED FIREPLACE CONTROL (IFC)

Light Kit "X11"
Power Supply "X1"
Fan Kit "X10"
Ground "X1"
Ignitor "X2"
Flame Sensor "X3"
8 Pin Harness "X5"
SW1 Button
ON/OFF Switch "X4" Step Motor "X6"
Error codes - All error codes are displayed on one a set of
three LEDs located beside the SW1 switch.
-Low battery: When backup battery is under 4V the RED LED
light (located beside the SW1 switch) will pulse steadily. A double
beep will be made by the IFC whenever a command is made
when backup batteries are below 4V.
-Flame sense problem: If the pilot flame is not detected or
the flame sense system is not satisfied the RED LED light will
pulse with 2 flashes until corrected.
-Lockout: If three trials for ignition fail the RED LED indicator
will pulse three times in intervals. To clear lockout power cycle
the IFC.
Error code LED
SW1
SimTech Proflame II
32
