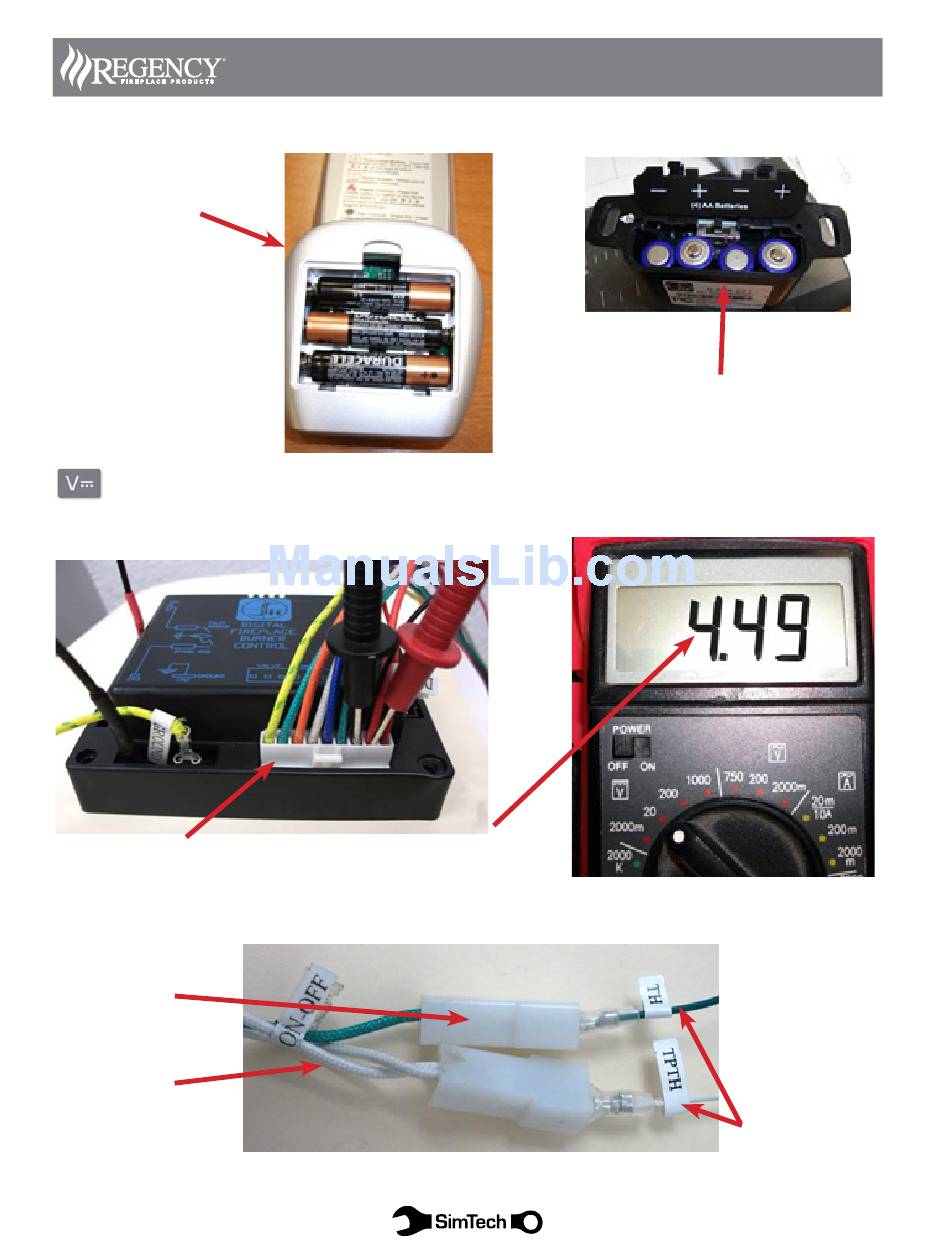

SimTech ProFlame 1 Troubleshooting Manual page 24

Diagram 21
Check the batteries are installed correctly in the handheld transmitter (3 x AAA) and the receiver (4 x AA).
Remote Handheld
Diagram 22 Volts DC Test (VDC)
Check the battery voltage at #2 and #3 positions. While 4.4 vdc is the minimum voltage to operate it is recom-
mended to change the batteries at 5 vdc or lower.
Plastic Harness (CN1)
Diagram 23
Check the remote wiring harness green and white wires marked TH -TH/TP are properly connected to the unit's main
wiring harness marked ON/OFF.
Good Connections
Unit Wires
24 24
Higher than 4.4 vdc. If reading is 5 vdc
or lower replace the batteries
SUREFIRE ELECTRONIC IGNITION SYSTEM
S.I.T. PROFLAME 1 TROUBLESHOOTING
Receiver Batteries
Receiver Wires
SimTech Proflame I
