SUREFIRE ELECTRONIC IGNITION SYSTEM
S.I.T. PROFLAME 1 TROUBLESHOOTING

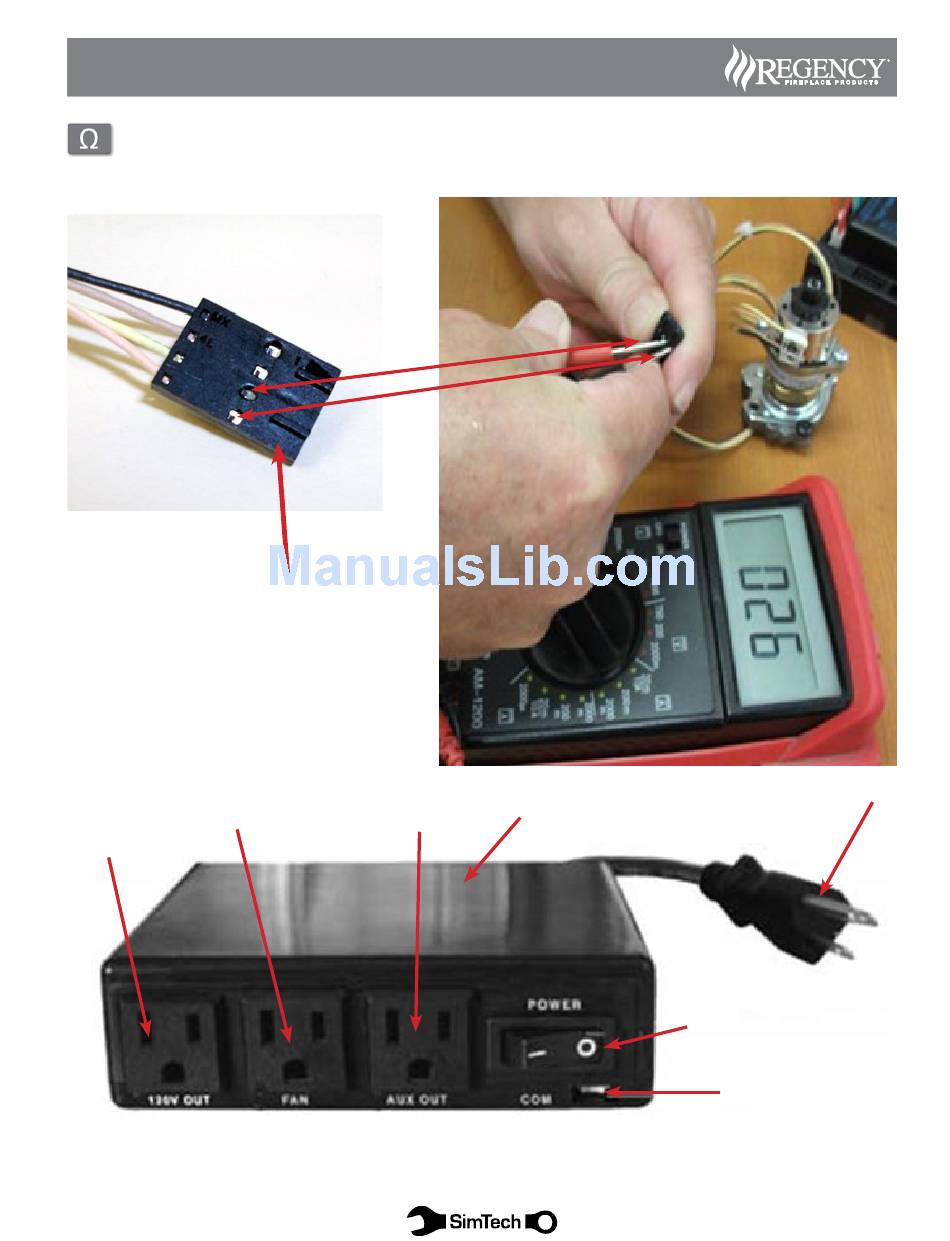

Diagram 28 Continuity Test (Ohms)
Check the modulator for continuity. First test the orange and yellow wires at the contact points. Second, check
the black and brown wires. The reading should be approximately 26 ohms for each test
Black Plug for Modulator
Fan Outlet Only
120 vac outlet
SimTech Proflame I
Only GTMF and GTMFS
Systems have this Module
Auxiliary Outlet
.
To Main Power Supply
Module On/Off Switch.
(This is in the Off position)
COM Port
