SimTech ProFlame 1 Troubleshooting Manual page 38

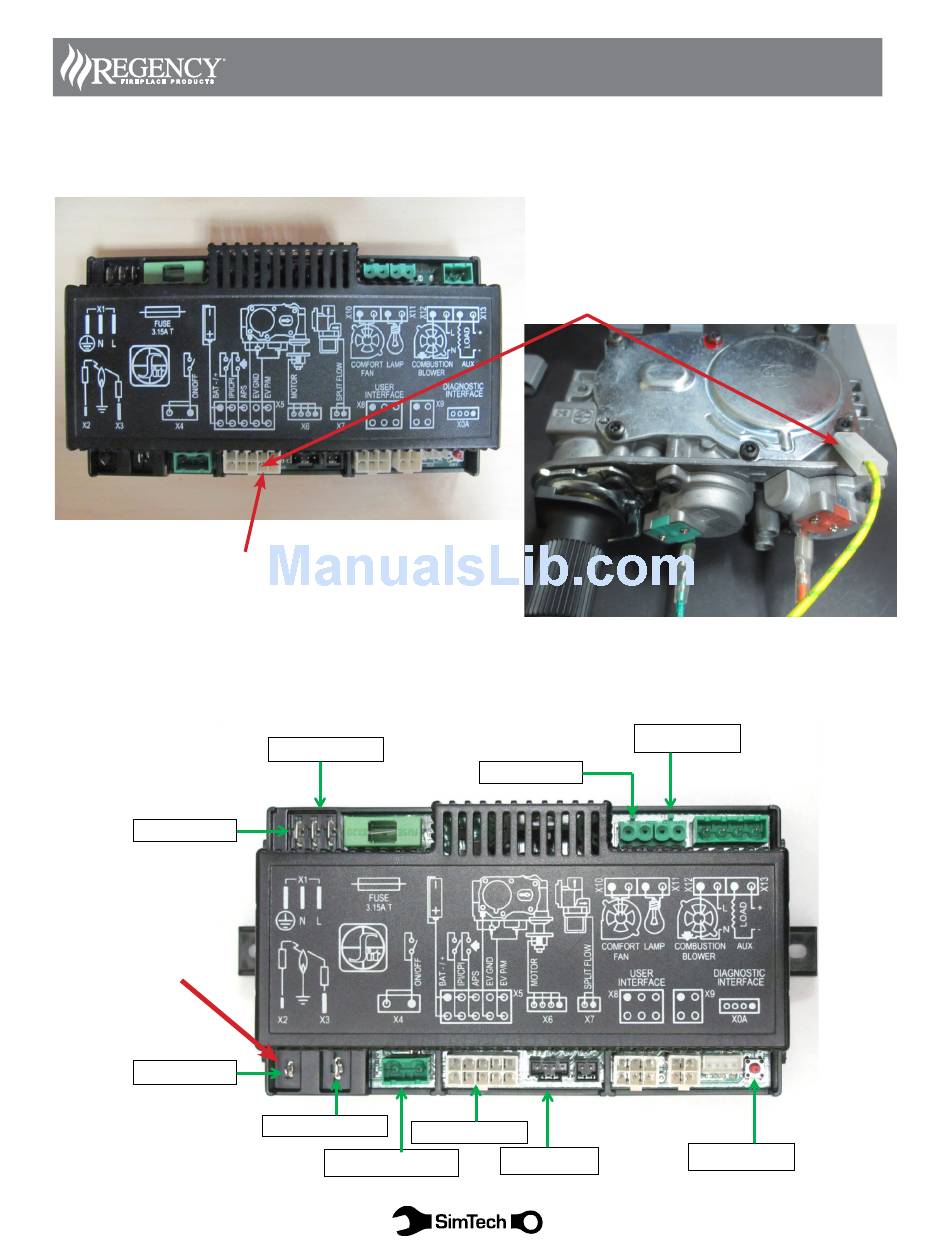

Diagram 5a
Verify the ground connection to the IFC module at terminal X5 and the valve.
Do not alter any ground wires as installed by the manufacturer.
IFC to Valve Ground
Connection
Diagram 5b
Remove the spark electrode wire from X2. Connect a jumper wire to the exposed spade terminal. Hold the opposite end of the
jumper 1/8" away from ground and turn the unit on. If there is a spark replace the electrode, if not replace the IFC.
Ground "X1"
Spark Electrode
Connection "X2"
Ignitor "X2"
38
Power Supply "X1"
Flame Sensor "X3"
8 Pin Harness "X5"
ON/OFF Switch "X4"
SUREFIRE ELECTRONIC IGNITION SYSTEM
S.I.T. PROFLAME 2 TROUBLESHOOTING
Ground from DFC wire harness to
valve
Light Kit "X11"
Fan Kit "X10"
Step Motor "X6"
SW1 Button
SimTech Proflame II
