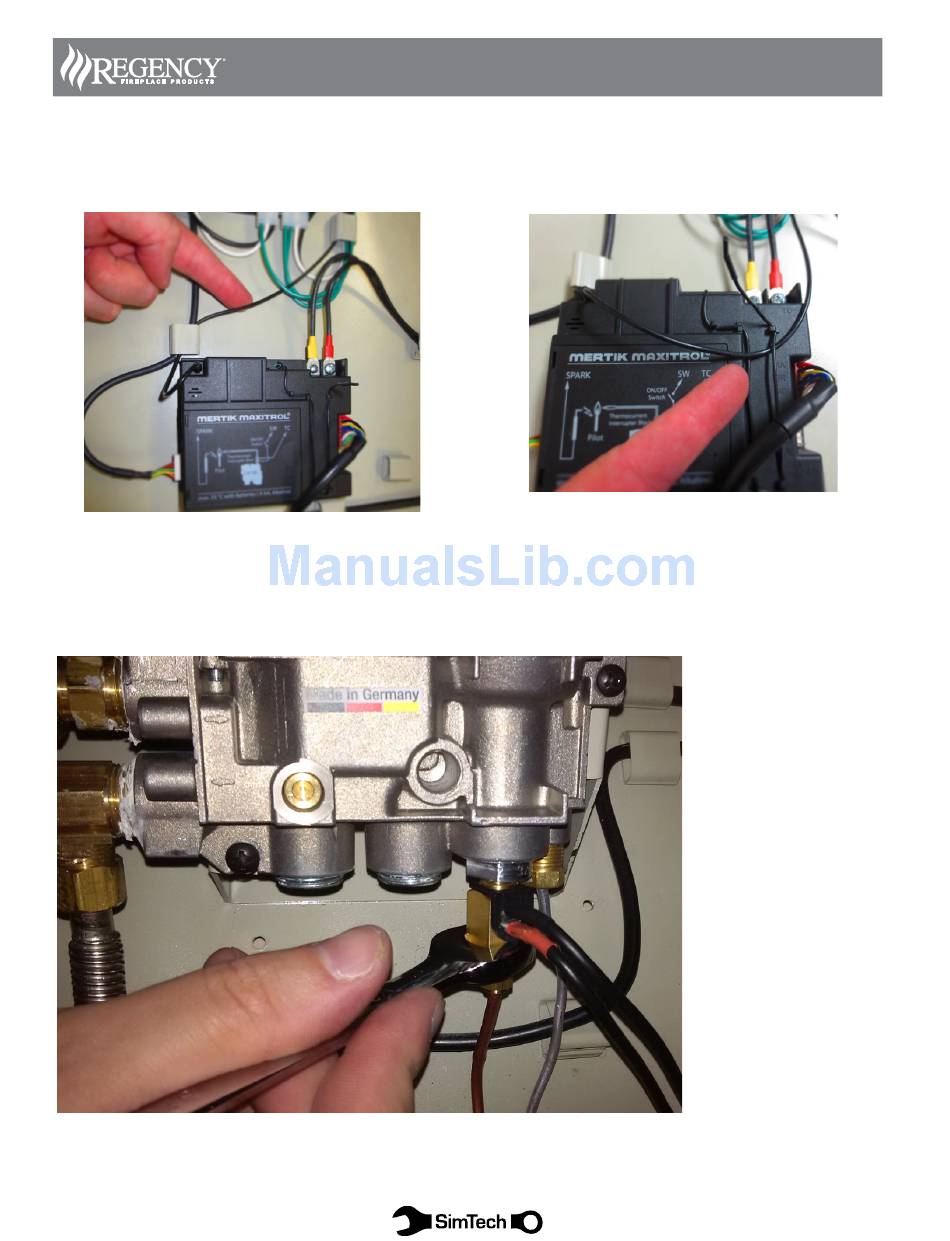

Diagram 3 & 3a:
Verify spark electrode wire and the Receiver Antenna are separated and not crossed or in contact. Receiver contains a self-re-
setting "fuse" that can be tripped when started with spark electrode and Receiver Antenna crossed. Separate wires, wait 5 minutes
for fuse to re-set and test again.
Diagram 4:
Upon a call for heat, a three second tone will be heard if the interrupter block, switch wire, and/or thermocouple are loose, dam-
aged, making poor contact or overtightened.
If loose, tighten by hand, then ¼ turn by wrench only and test again.
60
Diagram 3
MAXITROL GV60 IGNITION SYSTEM
TROUBLESHOOTING
Diagram 3a
Diagram 4
Maxitrol GV60
