Performing Voltage Readings on Lights and Fan Kits

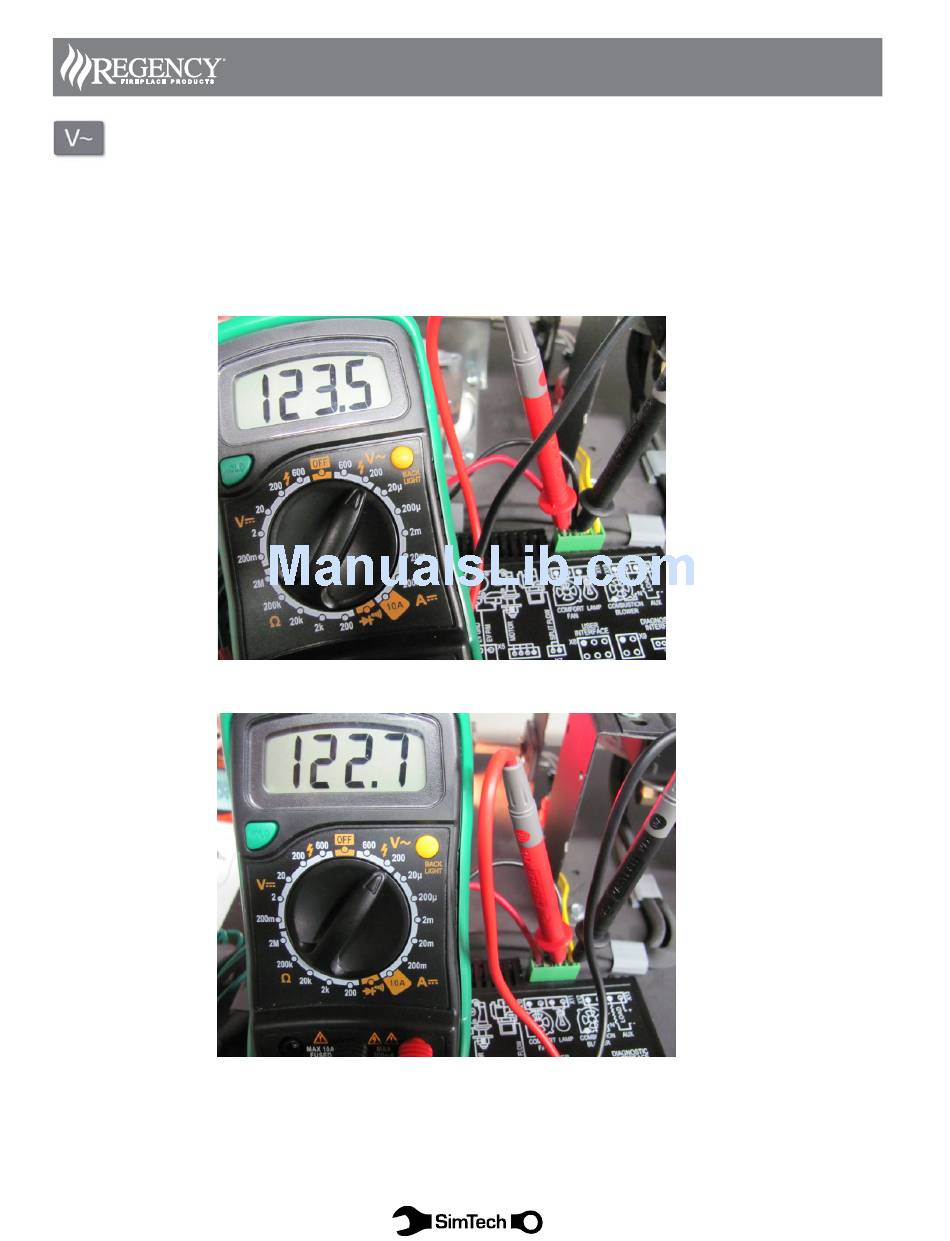

When testing the comfort fan at X10, place one multi meter probe on the red wire and the other on the black lead, your
reading should be approximately 120 VAC on HI.
When testing the lights at X11, set meter to VAC and test between the 2 yellow wires at X11. Should be approximately
120 VAC on high.
Diagram 17a
NOTE: Use care when conducting tests—shock can occur.
50
SUREFIRE ELECTRONIC IGNITION SYSTEM
Testing the Fan
Testing the Lights
