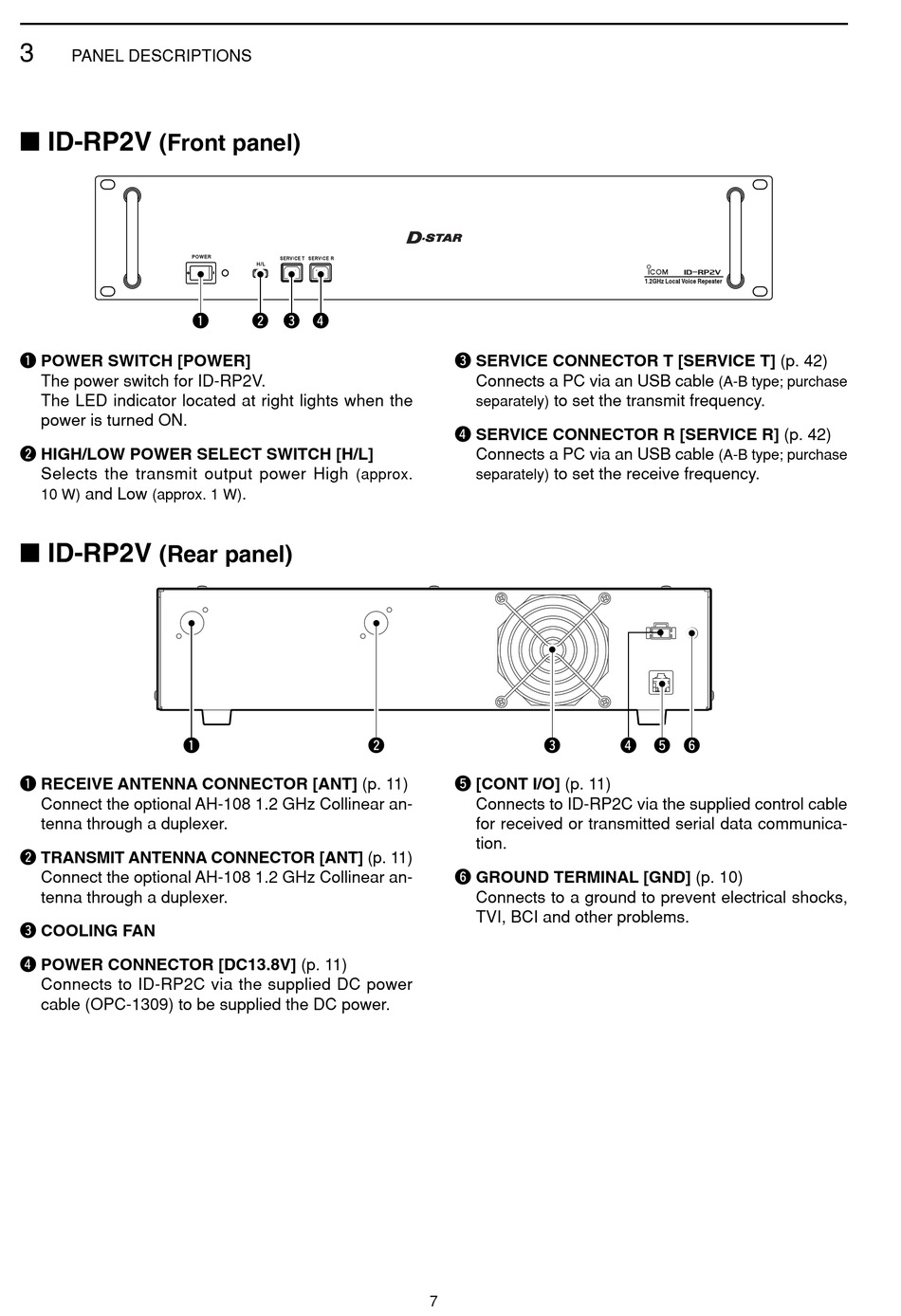

PANEL DESCRIPTIONS
I ID-RP2V
(Front panel)
q POWER SWITCH [POWER]
The power switch for ID-RP2V.
The LED indicator located at right lights when the
power is turned ON.
w HIGH/LOW POWER SELECT SWITCH [H/L]
Selects the transmit output power High
and Low
10 W) (approx. 1 W)
I ID-RP2V
(Rear panel)
q
q RECEIVE ANTENNA CONNECTOR [ANT] (p. 11)
Connect the optional AH-108 1.2 GHz Collinear an-
tenna through a duplexer.
w TRANSMIT ANTENNA CONNECTOR [ANT] (p. 11)
Connect the optional AH-108 1.2 GHz Collinear an-
tenna through a duplexer.
e COOLING FAN
r POWER CONNECTOR [DC13.8V] (p. 11)
Connects to ID-RP2C via the supplied DC power
cable (OPC-1309) to be supplied the DC power.
q w e r
(approx.
.
e SERVICE CONNECTOR T [SERVICE T] (p. 42)
Connects a PC via an USB cable
separately)
r SERVICE CONNECTOR R [SERVICE R] (p. 42)
Connects a PC via an USB cable
separately)
w
t [CONT I/O] (p. 11)
Connects to ID-RP2C via the supplied control cable
for received or transmitted serial data communica-
tion.
y GROUND TERMINAL [GND] (p. 10)
Connects to a ground to prevent electrical shocks,
TVI, BCI and other problems.
7
to set the transmit frequency.
to set the receive frequency.
e r t y
(A-B type; purchase
(A-B type; purchase
