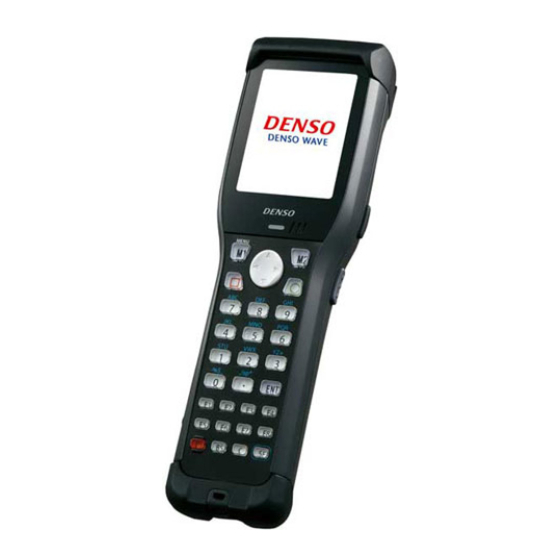

Denso BHT-604Q User Manual

2d code handy terminal
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
2D Code Handy Terminal
2D Code Handy Terminal
BHT-604Q
User's Manual

Advertisement

Table of Contents
loading

Related Manuals for Denso BHT-604Q

Summary of Contents for Denso BHT-604Q

  • Page 1 2D Code Handy Terminal 2D Code Handy Terminal BHT-604Q User’s Manual...
  • Page 2 3) The modification of DENSO WAVE's products by parties other than DENSO WAVE.  If it is judged by DENSO WAVE INCORPORATED that malfunction of the product is due to the product having been dropped or subjected to impact, repairs will be made at a reasonable charge even within the warranty...
  • Page 3 2D Code Handy Terminal Customer Registration and Inquiries Customer Registration To allow us to provide our customers with comprehensive service and support, we request that all customers complete a Member Registration Form. Registered members will be offered the following privileges. ...

  • Page 4: About This Manual

     Every attempt has been made to ensure that the content of this manual is thorough and up to date, however, we kindly ask that any questionable content, mistakes, or omissions be reported to DENSO WAVE.  The copyright for this User’s Manual belongs to DENSO WAVE INCORPORATED.
  • Page 5 2D Code Handy Terminal Viewing this Manual − About the Bookmark The PDF Bookmark function can be used to jump to the Contents page. <Procedure> Click the “Bookmark” tab. Click to search for the desired item. Click the item to be read. Click the “Bookmarks”...
  • Page 6 BHT-604Q − Searching by Word The PDF search function can be used to jump to the target page by entering words or characters related to the item being searched. (1) Click the Search icon. (Or select “Edit” – “Search”.) (2) Enter the word(s) or character(s) to be searched for.
  • Page 7 This is an instruction manual used to create handy terminal programs with BHT-BASIC. This manual can be found in the BHT-BASIC Compiler CD-ROM. This manual can also be downloaded from the DENSO WAVE member’s Web site (QBdirect).  BHT-BASIC 4.0 Transfer Utility User’s Guide This is an instruction manual for software relating to data transfer between the computer and BHT-604 and comes bundled with the BHT-BASIC 4.0 Transfer Utility.

  • Page 8: Safety Precautions

    BHT-604Q SAFETY PRECAUTIONS Be sure to observe all these safety precautions.  Please READ through this manual carefully. It will enable you to use the BHT and CU correctly.  Always keep this manual nearby for speedy reference. Strict observance of these warnings and cautions is a MUST for preventing accidents that could result in bodily injury and substantial property damage.
  • Page 9 2D Code Handy Terminal Handling the battery cartridge  Never disassemble or heat the battery cartridge, nor put it into fire or water; doing so could cause battery-rupture or leakage of battery fluid, resulting in a fire or bodily injury. ...
  • Page 10 BHT-604Q Handling the CU  If smoke, abnormal odors or noises come from the CU, immediately unplug the AC adapter from the wall socket or CU and contact your nearest dealer. Failure to do so could cause fire or electrical shock.
  • Page 11 2D Code Handy Terminal To System Designers:  When introducing BHTs in those systems that could affect human lives (e.g., medicines management system), develop applications carefully through redundancy and safety design which avoids the feasibility of affecting human lives even if a data error occurs. Handling the battery cartridge ...
  • Page 12 BHT-604Q Handling the CU  Never disassemble or modify the CU; doing so could result in an accident such as fire or malfunction.  Never put the CU in places where there are excessively high temperatures, such as inside closed-up automobiles, or in places exposed to direct sunlight.
  • Page 13 BHT-604Q Chapter 1 Outline This chapter describes the BHT system and provides an overall outline of the BHT. System Configuration･･････････････････････････････････････････････ 2 System Configuration･･･････････････････････････････････････････････ 2 1.1.1 Software Configuration ･････････････････････････････････････････････ 4 1.1.2 Component Names and Functions ･･････････････････････････････････ 7 BHT Front/Rear････････････････････････････････････････････････････ 7 1.2.1 Keypad ･･･････････････････････････････････････････････････････････...

  • Page 14: System Configuration

    BHT-604Q 1.1 System Configuration This section describes the hardware required for the barcode data collection system used by the BHT and the BHT software. 1.1.1 System Configuration In addition to the BHT, the following hardware and software are required for the barcode data collection system used by the BHT.
  • Page 15 2D Code Handy Terminal  Host computer Allows you to edit, manage and download user programs and data, as well as downloading system programs. Models : PC/AT Compatible Operating Systems and Optional Application Programs Windows NT Windows 2000 Operating Systems (OS) Windows 98 Windows XP 3.51/4.0...

  • Page 16: Software Configuration

    BHT-604Q 1.1.2 Software Configuration This section describes the software used for BHT Series application development and application in addition to the software used at the BHT unit. Please note that the above-mentioned software can be downloaded (Certain versions may be for trial use.) from the QBdirect service discussed at “Customer Registration”...
  • Page 17 2D Code Handy Terminal  BHT-PC Cable (RS-232C) This cable can be used to connect the BHT and computer using the BHT connector interface and computer RS-232C interface. (Note) The BHT connector interface has not been designed for frequent removal and insertion of the cable.
  • Page 18 BHT-604Q Software Used at the BHT Unit The BHT unit FLASH memory has a system area and user area, with the system program stored in the system area and font files and user programs stored in the user area. The BHT unit is shipped with the system program and font files stored in their respective areas.

  • Page 19: Component Names And Functions

    2D Code Handy Terminal 1.2 Component Names and Functions 1.2.1 BHT Front/Rear ① ② ④ ⑤ ⑥ ③ ⑧ ⑦ ⑪ ⑩ ⑨ Name Function and Description LCD (Liquid crystal display) Displays the characters and graphic patterns. Indicator LED Indicates the code read status. Illuminates in blue when the BHT has successfully read a code.

  • Page 20: Keypad

    BHT-604Q 1.2.2 Keypad The BHT key functions can be set at user programs. The diagram below shows an example of settings for each key function. ① ③ ② ④ ⑤ ⑥ ⑦ ⑧ ⑨ ⑩ ⑪ ⑭ ⑫ ⑬ Name...
  • Page 21 2D Code Handy Terminal Name Function and Description Enter key Press to finalize entered data or execute operations. (10) Function key Used to select functions. (11) Power key Turns ON or OFF. (12) Backspace key Removes the last character that you entered. (13) Clear key Cancels entry and returns the LCD display to the previous screen.

  • Page 22: Bht Screen

    BHT-604Q 1.2.3 BHT Screen If the system display is set to ON at the system settings or in the user program, icons display at the bottom of the screen (default) indicating the key shift status, alphabet entry status, and status of the link with the CU-611.

  • Page 23: Table Of Contents

    BHT-604Q Chapter 2 BHT Preparation This chapter describes inserting and charging the battery cartridge, turning the BHT power ON and OFF, and use of the hand strap. “BHT Preparation” Procedure ·····································································12 Loading and Charging the Battery Cartridge ··············································12 2.2.1 Battery Power Level Indicator ··························································18 Attaching the Hand Strap············································································19...

  • Page 24: Bht Preparation" Procedure

    BHT-604Q 2.1 “BHT Preparation” Procedure Follow the steps below to prepare the BHT for use. 2.2 Inserting and Charging the Battery First insert and charge the battery cartridge. Cartridge(Page 12) 2.3 Wearing the Hand Strap Wear the hand strap at your wrist to prevent the BHT from being dropped.
  • Page 25  Point  Do not use battery cartridges other than those specified by DENSO WAVE. Insert the battery cover tab (1), and then close the battery cover (2) to lock the cover in position.
  • Page 26 BHT-604Q  Note  Power for the CU-621 can be obtained from a USB connection port (host computer or hub), however, charging is not possible while the host computer is in suspend mode. Charging is resumed when suspend mode is exited. This can be avoided using a dedicated AC adapter to supply power.
  • Page 27 2D Code Handy Terminal Charging with the battery charger (CH-201A and CH-704) Check the battery cartridge terminals and insert the cartridge. Terminal Connect the power cable to the CH-201A and connect the plug to a commercial AC power source Red LED ON (230 V AC).
  • Page 28  Point  Do not use battery cartridges other than those specified by DENSO WAVE. Insert the battery cover tab (1), and then close the battery cover (2). tThe battery cover is now locked in position.
  • Page 29 2D Code Handy Terminal Mishandling of the charger may result in charger overheating, smoke generation, blowout or combustion. Please read the following items prior to use. Terminate charging if not completed even after the specified time has elapsed.   Note  The BHT is equipped with a back-up battery used to back-up the internal memory and calendar ...

  • Page 30: Battery Power Level Indicator

    BHT-604Q 2.2.1 Battery Power Level Indicator Confirming at the Power Level Icon The battery power level can be confirmed with the battery icon ( ) displayed at the bottom left of the LCD screen. The battery power is indicated in four levels.

  • Page 31: Attaching The Hand Strap

    2D Code Handy Terminal 2.3 Wearing the Hand Strap Wear the hand strap to prevent the BHT from being accidentally dropped during use. 2.3.1 Attaching the Hand Strap Attach the hand strap to the BHT as shown below. 2.3.2 Holding the BHT Wear the hand strap to your wrist and hold the BHT as shown below.

  • Page 32: Initial Setup

    BHT-604Q 2.4 Initial Setup Turn ON the power after inserting the fully charged battery cartridge into the BHT. The date and time are not set at the time of purchase. You are required to set the date and time when turning ON the power for the first time.

  • Page 33: Turning Off The Power

    2D Code Handy Terminal 2.5 Turning OFF the Power You can turn OFF the BHT in one of the following three methods. → Normal Power OFF Press the Power key ( ). → Turning the power OFF after data back-up Hold down the Power key ( ) for at least 3 seconds.

  • Page 34: If The Bht Is Shut Down Abnormally

    BHT-604Q 2.5.4 If the BHT Is Shut Down Abnormally If the BHT is shut down abnormally* and is left without a battery cartridge or with a discharged battery cartridge inserted, then unsaved data may be lost. (*"Normally shut down" refers to "2.5 Turning OFF the Power.") The right message will appear when you insert a charged battery cartridge and turn the BHT on.
  • Page 35 2D Code Handy Terminal If Scandisk finds an invalid file(s), the right screen will appear. (As long as an invalid file exits, the screen displays every time the BHT System is started up.) (Refer to “About “$$BRKLST.SYS” on the following page.) Press the ENT key to start up the BHT System.

  • Page 36: If Invalid Files Are Found

    BHT-604Q About “$$BRKLST.SYS” If Scandisk finds an invalid file(s), it will automatically create the “$$BRKLST.SYS” file. To check the contents of the file, upload the file in System Mode to the host computer. (Refer to “Chapter 4 System Operation” – “4.5.3 Uploading Files (UPLOAD MENU).”) Contents of the “$$BRKLST.SYS”...
  • Page 37 BHT-604Q Chapter 3 Basic Operation This chapter describes basic operations such as code reading, numerical data entry and item selection using the BHT, basic changes to settings, and BHT data transmission Reading Barcodes or 2D Codes ·································································26 Numeric Data Entry ····················································································28 Task Selection ····························································································28...

  • Page 38: Reading Barcodes Or 2D Codes

    BHT-604Q 3.1 Reading Barcodes or 2D Codes Follow the procedure below to read codes. Turn the BHT power ON. Power key Press the trigger switch. The BHT emits guide marker (laser light) and the light for reading ━ Point ━...
  • Page 39 2D Code Handy Terminal When unable to successfully read barcodes or 2D codes… Cause Countermeasure Change the BHT reading angle and try again. When the light is focused on the printed Specular surface of the code from directly above, reflection the BHT may not read the code due to specular reflection.

  • Page 40: Numeric Data Entry

    BHT-604Q 3.2 Numeric Data Entry Enter numeric data such as product volume with the numeric keys and Enter ( ) key. If numeric data is entered incorrectly, use the backspace key ( ) to delete the data and then reenter with the numeric keys.

  • Page 41: Changing The Default Settings

    2D Code Handy Terminal 3.4 Changing the Default Settings The buzzer volume, vibrator, LCD screen brightness, power save settings and key backlight can be changed at the MENU screen. Item Details Setting Used to set the volume of the buzzer that notifies the user when Mute →...
  • Page 42 BHT-604Q Use the [▲] and [▼] cursor keys to select the item to be changed. The selected item is highlighted. With BUZZER VOLUME highlighted, press [▲] or with POWER SAVE highlighted, press [▼] to change to the next screen. Use the [◄] and [►] cursor keys to select the setting.

  • Page 43: Transmitting Data

    2D Code Handy Terminal 3.5 Transmitting Data Data gathered by the BHT can be transmitted to the host computer by connector communication, IrDA communication and wireless communication. The data transmission method and BHT setting method will differ depending on the system used, and therefore the system administrator should be contacted for details of operation.

  • Page 44: Connector Communication

    BHT-604Q 3.5.1 Connector Communication Connect the host computer and BHT with a dedicated interface cable (Option, Type: CBBHT-RS1000/3-9-02) and perform data communication. The BHT-BASIC 4.0 Development Pack (Option) and BHT-BASIC 4.0 Transfer Utility (Option) software is required. Dedicated interface cable Requests ...

  • Page 45: Irda Communication

    2D Code Handy Terminal 3.5.2 IrDA Communication  WHEN PERFORMING DATA COMMUNICATION BETWEEN BHT UNITS Point the BHT IrDA communication ports toward each other and perform communication. Request  Make sure that the light path between the BHT and any target stations is not obstructed. ...
  • Page 46 BHT-604Q...
  • Page 47 BHT-604Q Chapter 4 System Operation This chapter describes how to initialize and update the system, start up a user program, and operate System Mode. Initializing the BHT System·········································································36 4.1.1 Selecting the Memory Area to be Initialized ····································37 4.1.2 Selecting the Message Version (English or Japanese) ···················38 4.1.3...

  • Page 48: Initializing The Bht System

    BHT-604Q 4.1 Initializing the BHT System By initializing the system, program files and data files downloaded to the BHT user area are deleted, and system settings are returned to the default status when shipped from the factory. The system must be initialized when: ・...

  • Page 49: Selecting The Memory Area To Be Initialized

    2D Code Handy Terminal 4.1.1 Selecting the Memory Area to be Initialized Press the Power key ( ) while holding down the SF, M1 and 0 keys together. The screen displays as shown on the right. Select the memory area to be initialized. (1) To exempt font files from deletion: Ensure that “1:USER AREA EXCEPT FONTS”...

  • Page 50: Selecting The Message Version (English Or Japanese)

    BHT-604Q 4.1.2 Selecting the Message Version (English or Japanese) When the screen displays as shown on the right, select the message display language with the numerical keys. “1: Japanese” Changes the message language to Japanese. “2: English” Changes the message language to English.

  • Page 51: Performing System Initialization

    2D Code Handy Terminal 4.1.4 Performing System Initialization The screen displays as shown on the right during system initialization. Upon completion of system initialization, the BHT displays the screen on the right for a second and then turns OFF automatically. ...

  • Page 52: Updating The System

    BHT-604Q 4.2 Updating the System 4.2.1 Updating the BHT System The BHT System Update procedure is as follows. BHT System Update File Download ↓ Bht System Update  BHT System Update File Download Refer to sections “4.5.2 Downloading Files (DOWNLOAD menu)” and “4.5.8 Downloading/Uploading Files by FTP (FTP MENU)”, and Download the BHT system update file to the BHT.

  • Page 53: System Update

    (F)” check box at the Transfer Utility Options screen and then download. The CU-611 system update file can be downloaded from the following Web site. - Note - http://www.denso-wave.com/  CU-611 System Update Refer to section “4.5.14 Updating the System (MODIFY MENU)” and update the CU-611 System.

  • Page 54: Executing User Programs

    BHT-604Q 4.3 Executing User Programs User programs (application programs) can be executed using the following methods. Select the most appropriate method to meet the objective. 4.3.1 Executing from the SYSTEM MENU “EXECUTE PROGRAM” Select the program to be executed at the SYSTEM MENU “EXECUTE PROGRAM” menu.
  • Page 55 2D Code Handy Terminal Several directory management program examples are given below. The names of the files used in these examples are as follows. MAIN.PD4 Program to be executed by pressing the Power key ( ) only SUBMAIN.PD4 Program chained from MAIN.PD4 using the BHT-BASIC CHAIN statement USER.PD4 New program...

  • Page 56: Executing By Wake

    BHT-604Q  (Example 3) Recommended download method After system initialization, first download the program to be executed simply by pressing the Power key ( ). In this case, this program is always registered at the beginning of the system directory management unless the program has been deleted and another file downloaded.

  • Page 57: System Mode

    2D Code Handy Terminal 4.4 System Mode By starting up the BHT in system Mode and selecting each menu, the following operations can be performed individually.  Executing user programs  File download/upload  System environment setting  BHT operation test ...

  • Page 58: System Mode Basic Operation

    BHT-604Q 4.4.2 System Mode Basic Operation Menu selection and Display Use the following procedure to select and display each menu.  Operation example Press the numerical key corresponding to the menu to be selected. Select [4: SET SYSTEM] Alternatively, press the cursor keys ([▲] with the [4] or [▲]/[▼]...
  • Page 59 2D Code Handy Terminal Setting Value Selection  Operation example Use the following procedure to select setting values. Press the numerical key corresponding to the item to be selected. Alternatively, press the cursor keys ([▲] [▼]) to select the item. The selected item will be highlighted.

  • Page 60: System Menu Configuration

    BHT-604Q 4.4.3 SYSTEM MENU Configuration Menu Configuration for Items Displayed at the SYSTEM MENU screen Select the item with the numerical keys or cursor keys ([▲] [▼]) and press the ENT key. SYSTEM MENU Exeucting Programs Refer to section “4.5.1 Executing User Programs”.
  • Page 61 2D Code Handy Terminal System Environment Setting Refer to section “4.5.5 System Environment Setting”. 4 and ENT keys Testing Refer to section “4.5.6 BHT Operation Test”. 5 and ENT keys C key System Information Display Refer to section “4.5.7 System Information”. 6 and ENT keys Downloading/Uploading by FTP Refer to section “4.5.8 Downloading/Uploading Files by...
  • Page 62 BHT-604Q Menu Configuration for Items Not Displayed at the SYSTEM MENU Screen Press the corresponding numerical key while holding down the SF key. SYSTEM MENU Deleting Program/Data Files Refer to section “4.5.9 Deleting Program/Data Files”. 0 with SF held down...
  • Page 63 2D Code Handy Terminal Setting Remote Wake-up Refer to section “4.5.12 Setting Remote Wake-up”. 4 with SF held down C key Downloading/Uploading the System Message File Refer to section “4.5.13 Downloading/Uploading System the Message File”. 6 with SF held down Updating the System Refer to section “4.5.14 Updating the System”.

  • Page 64: System Menu

    BHT-604Q 4.5 SYSTEM MENU 4.5.1 Executing User Programs (EXECUTE PROGRAM Menu) Individually select and execute user programs downloaded to the BHT. Use the following procedure to execute user programs. Select “1: EXECUTE PROGRAM” at the SYSTEM MENU and then press the ENT key.

  • Page 65: Downloading Files (Download Menu)

    2D Code Handy Terminal 4.5.2 Downloading Files (DOWNLOAD Menu) Download files to the BHT user area from other devices such as the host computer  If a file with the same name as one already used in the user area of the target memory in - Point - the BHT is downloaded, the newly downloaded file replaces the old one.
  • Page 66 BHT-604Q Select either “1: FILE” or “2: HT<-->HT COPY” and press the ENT key. The screen displays as shown on the right indicating that the BHT is waiting for the file to be downloaded. The screen displays as shown on the right only when “1: FILE” is selected.
  • Page 67 2D Code Handy Terminal When downloading is complete, the beeper sounds once and the screen displays as shown on the right. When the number of received records equals the total number of records, downloading is complete. (When using the Ymodem protocol, the received file size equals the total file size.) Press the C key to return to the DOWNLOAD menu.

  • Page 68: Uploading Files (Upload Menu)

    BHT-604Q 4.5.3 Uploading Files (UPLOAD Menu) Upload files stored in the BHT user area to another device. Use the following procedure to upload files. Select “3: UPLOAD” at the SYSTEM MENU and then press the ENT key. The screen displays as shown on the right.
  • Page 69 2D Code Handy Terminal Select “1: FILE”, “2: ALL FILES” or “3: HT<-->HT COPY” and press the ENT key. When “1: FILE” is selected: The screen displays as shown on the right. Select the file to be uploaded and press the ENT key. Next, proceed to step 3.
  • Page 70 BHT-604Q By executing the BHT-BASIC 4.0 Transfer Utility or similar program, the screen displays as shown on the right and file uploading is commenced. (Refer to the “BHT-BASIC4.0 Transfer Utility User’s Guide.”) The screen screen displays as shown on the right during uploading.

  • Page 71: Copying Files Between 2 Bht Units

    2D Code Handy Terminal 4.5.4 Copying Files between 2 BHT Units Copy “all files (excluding font files)”, “setting data”, and the “date and time” stored in the BHT user area to another BHT. Use the following procedure to copy files between 2 BHT units. Set the same interface at both BHT units.
  • Page 72 BHT-604Q The following setting data is copied when copying between BHT units. - Note - LCD contrast level Beeper volume Switching between beeper and vibrator Program to be executed automatically when the BHT is turned ON Message version (English or Japanese)
  • Page 73 2D Code Handy Terminal FTP option, Handling of line delimiters FTP option, Handling of trailing spaces in data fields FTP option, Upload mode FTP option, Verbose mode IP address of host computer for ping-test Data size of echo request Echo request intervals Timeout period for echo request No.

  • Page 74: System Environment Settings (Set System Menu)

    BHT-604Q 4.5.5 System Environment Settings (SET SYSTEM Menu) Use the following procedure to set the system environment. Select “4: SET SYSTEM” at the SYSTEM MENU and then press the ENT key. The SET SYSTEM menu screen screen displays as shown on the right.
  • Page 75 2D Code Handy Terminal [1] Setting the auto-start execution program Use the following procedure to set the auto-start execution program. Select “1: EXECUTE PROGRAM” at the SET SYSTEM menu and then press the ENT key. The SET EXECUTE PROGRAM menu screen screen displays as shown on the right.
  • Page 76 BHT-604Q Setting the message version, system status indication and screen display compatible mode Use the following procedure to set the display language, system status indication and screen display compatible mode. Select “2: DISPLAY” at the SET SYSTEM menu and then press the ENT key.
  • Page 77 Prohibits menu screen display. “2: COMPATIBLE MODE”: Sets compatible mode for screen display between the BHT-100 and BHT-7500. This allows BHT-100 Series and BHT-7500 Series application programs to be used at the BHT-604Q without changing or correcting the font size. BHT-604Q...
  • Page 78 BHT-604Q  System Status Indication Turning ON the system status indication displays the following icons at the bottom of the screen. Indication Icon Description Key Shift status Displays when the keys on the keypad are in shift mode. Alphabet Displays when the BHT is set to alphabet entry mode.
  • Page 79 2D Code Handy Terminal Setting the code reading conditions Use the following procedure to set the code reading conditions. Select “4: QRCODE” at the SET SYSTEM menu and then press the ENT key. The SET QRCODE menu screen displays as shown on the right. The highlighted display and displayed values will be the current settings.
  • Page 80 BHT-604Q “3: DECODE LEVEL” Set the decode level (code reading tolerance level). Press [ ] to decrease the setting value and [ ] to increase the setting value. Decode level entry range: 1 - 9 (default: 4) Setting a lower value improves the reading rate but increases the risk of incorrectly reading poor quality codes (split or dirty codes).
  • Page 81 2D Code Handy Terminal “5: ITF”: Minimum number of digits to be read for ITF “6: CODABAR”: Minimum number of digits to be read for Codabar Set minimum number of digits for the Code to be read. Press [ ] to decrease the setting value and [ ] to increase the setting value. ITF entry range: 2 - 20 (default: 4)
  • Page 82 BHT-604Q “3: LIGHT” Set whether the INDICATOR LED light illuminates or not when the trigger switch is depressed. “0”: Illuminates “1”: Illuminates “2”: “4: SENSOR OFF TIME” Set the sensor off time Press [ ] to decrease the setting value and [ ] to increase the setting value.
  • Page 83 2D Code Handy Terminal Use the following procedure if necessary to change the communication environment settings. Select “5: COMMUNICATION” at the SET SYSTEM menu and then press the ENT key. The SET COMMUNICATION menu screen displays as shown on the right. Use the cursor keys ([▲] [▼]) or numerical keys ([1] [2] [3] [4]) to highlight the item to be set and press the ENT key.
  • Page 84 BHT-604Q “2: PROTOCOL”: Communication protocol options setting screen Select “2: PROTOCOL” to display the screen shown on the right The highlighted settings will be the current settings. “1: SERIAL No.”: Selects whether or not to add serial numbers to data blocks.
  • Page 85 2D Code Handy Terminal  “2: CONNECTOR”: Connector communication environment settings Select “2: CONNECTOR” at the SET COMMUNICATION menu and then press the ENT key. The SET CONNECTOR menu screen displays as shown on the right. Use the cursor keys ([▲] [▼]) or numerical keys ([1] [2]) to highlight “1: PARAMETER”...
  • Page 86 BHT-604Q “2: PROTOCOL”: Communication protocol options setting screen Select “2: PROTOCOL” to display the screen shown on the right The highlighted settings will be the current settings. “1: SERIAL No.”: Selects whether or not to add serial numbers to data blocks.
  • Page 87 2D Code Handy Terminal  “3: COM PORT”: Setting the interface port Select “3: COM PORT” at the SET COMMUNICATION menu and then press the ENT key. The SET COM DEFAULT PORT menu screen displays as shown on the right. The highlighted settings will be the current settings.
  • Page 88 BHT-604Q  “4: PROTOCOL TYPE”: Setting the communication protocol type Select “4: PROTOCOL TYPE” at the SET COMMUNICATION menu and then press the ENT key. The PROTOCOL TYPE menu screen displays as shown on the right. The highlighted settings will be the current settings.
  • Page 89 2D Code Handy Terminal Select “1: Ymodem” at the PROTOCOL TYPE menu to display the screen on the right. The highlighted settings will be the current settings. “1: CR/LF”: Specifies line delimiters. “2: CR/LF CODE”: Specifies handling for line delimiters in records when data files are downloaded.
  • Page 90 BHT-604Q Select “3: BHT-IR protocol” at the PROTOCOL TYPE menu to display the screen on the right. Enter the ID number of the BHT using the numerical keys and then press the ENT key. If there is no need to edit the current setting, press the ENT key only.
  • Page 91 2D Code Handy Terminal [6] Defining the functions of the Shift key and Magic keys Use the following procedure to change the key settings. Select “6: KEY” at the SET SYSTEM menu and then press the ENT key. The SET KEY menu screen displays as shown on the right. Use the cursor keys ([▲] [▼]) or numerical keys ([1] [2] [3] [4] [5] [6] [7]) to highlight the item to be set, and then press the ENT key.
  • Page 92 BHT-604Q  “2: M1 KEY” - “7: M6 KEY”: Defining the Mx key functions Select “2: M1 KEY” to “7: M6 KEY” at the SET KEY menu and then press the ENT key. The SET Mx KEY menu screen displays as shown on the right.
  • Page 93 2D Code Handy Terminal Setting the resume function Use the following procedure to set the resume function. Select “7: RESUME” at the SET SYSTEM menu and then press the ENT key. The SET RESUME menu screen displays as shown on the right. The highlighted settings will be the current settings.
  • Page 94 BHT-604Q [9] Setting the TCP/IP, FTP and DHCP Use the following procedure to change the TCP/IP, FTP and DHCP settings. Select “9: TCP/IP” at the SET SYSTEM menu and then press the ENT key. The SET TCP/IP menu screen displays as shown on the right.
  • Page 95 2D Code Handy Terminal “2: IP ADDRESS”: Setting the IP address Select “2: IP ADDRESS” at the SET TCP/IP menu to display the screen on the right where the current settings are displayed. To change the setting: Use the cursor keys ([▲] [▼]) or numerical keys ([1] [2] [3]) to highlight the item to be set and press the ENT key.
  • Page 96 BHT-604Q  Setting the FTP Select “2: SET FTP” at the SET TCP/IP menu and then press the ENT key. The SET FTP menu screen displays as shown on the right. Use the cursor keys ([▲] [▼]) or numerical keys ([1] [2]) to highlight the item to be set, and then press the ENT key.
  • Page 97 2D Code Handy Terminal “2: OPTION”: Setting the FTP options Select “2: OPTION” at the SET FTP menu to display the screen on the right where the current settings are displayed. “1: CR/LF”: Specifies line delimiters that should match ones used in the server OPERATING SYSTEMS (OS).
  • Page 98 BHT-604Q  Setting the DHCP Select “3: SET DHCP” at the SET TCP/IP menu and then press the ENT key. The SET DHCP screen displays as shown on the right. Press the C key to return to the SET TCP/IP menu.

  • Page 99: Bht Operation Test (Test Menu)

    2D Code Handy Terminal 4.5.6 BHT Operation Test (TEST Menu) Use the following procedure to perform a BHT operation test. Select “5: TEST” at the SYSTEM MENU and then press the ENT key. The TEST menu screen displays as shown on the right. “1: QRCODE”: Selects the QRcode reading test.
  • Page 100 BHT-604Q [1] QR code reading test Use the following procedure to perform a QR code reading test. Select “1: QRCODE” at the TEST menu and then press the ENT key. The screen displays as shown on the right. Read a barcode or 2D code with the BHT.
  • Page 101 2D Code Handy Terminal QR Code has a function where data is coded after being split into a maximum of 16 - Point - segments and the segmented codes are read. Codes segmented using this function are called concatenated codes. When reading concatenated codes, the beeper works differently than with normal reading.
  • Page 102 BHT-604Q  Setting the QRcode Reading Test Options When performing the QR code reading test, press the F1 key to display the screen on the right, allowing QR code reading test options to be set. The highlighted settings will be the current settings.
  • Page 103 2D Code Handy Terminal If you press the [F2] key at the code reading test option setting screen, the screen displays as shown on the right and detailed settings can be specified for the code reading test. To change the setting, use the cursor keys ([▲] [▼]) or numerical keys ([1][2]) to highlight the item to be set, highlight the setting value using the cursor keys ([◄] [►]), and then press the ENT key.
  • Page 104 BHT-604Q “BATCH”: Batch edit mode The data is stored in memory when all segmented codes within the reading field of view have been read. “NONE”: Unedited mode The data is stored in memory each time a segmented code is read.
  • Page 105 2D Code Handy Terminal “3: PDF417”: Selecting enable/disable PDF417 reading “1: PDF417”: Enable/disable PDF417. “2: Micropdf417”: Enable/disable Micropdf417. To change the setting, use the cursor keys ([▲] [▼]) or numerical keys ([1][2]) to highlight the item to be set, highlight the setting value using the cursor keys ([◄] [►]), and then press the ENT key.
  • Page 106 BHT-604Q “5: BARCODE”: Selecting enable/disable BARCODE reading “1: EAN-13/UPC-A”: Enable/disable EAN-13/UPC-A. “2: EAN-8”: Enable/disable EAN-8. “3: UPC-E”: Enable/disable UPC-E. “4: ITF”: Enable/disable ITF. “5: CODABAR”: Enable/disable CODABAR. “6: CODE39”: Enable/disable CODE39. “7: CODE93”: Enable/disable CODE93. “8: CODE128”: Enable/disable CODE128. “9: RSS”: Enable/disable RSS.
  • Page 107 2D Code Handy Terminal [2] Memory test Use the following procedure to perform a memory test. Select “2: MEMORY” at the TEST menu and then press the ENT key. The screen displays as shown on the right, and the BHT reads and writes data to and from all areas of the RAM and performs an address check.
  • Page 108 BHT-604Q [3] Beeper scale test Use the following procedure to perform a beeper scale test Select “3: BEEPER” at the TEST menu and then press the ENT key. The screen displays as shown on the right, and the beeper sounds at the three octaves listed below.
  • Page 109 2D Code Handy Terminal [5] LCD and indicator LED tests Use the following procedure to perform an LCD and indicator LED test. Select “5: LCD” at the TEST menu and then press the ENT key. The TEST BEEPER screen displays as shown on the right. The indicator LED is OFF at this time.
  • Page 110 BHT-604Q Press the ENT key. The entire screen turns a lighter shade of gray. Press the BS key to return to the previous screen. Press the C key to return to the TEST menu. Press the ENT key. The entire screen turns an even lighter shade of gray.
  • Page 111 2D Code Handy Terminal Press the ENT key. The entire screen turns red, and at the same time, the indicator LED turns red. Press the BS key to return to the previous screen. Press the C key to return to the TEST menu. Press the ENT key.
  • Page 112 BHT-604Q Press the ENT key. A 1-dot thick frame displays around the screen. Press the BS key to return to the previous screen. Press the C key to return to the TEST menu. Press the ENT key. The beeper sounds once, and the display returns to the TEST menu.
  • Page 113 2D Code Handy Terminal [6] File test Use the following procedure to perform a file test. Select “6: FILE” at the TEST menu and then press the ENT key. The screen displays as shown on the right, and If any of the files stored in the memory is defective, an asterisk (*) or plus sign (+) is prefixed to the name of the defective file (s).
  • Page 114 BHT-604Q ommunication test se the following procedure to perform a communication test. Select “7: COMMUNICATION” at the TEST menu and then press the ENT key. The TEST BEEPER screen displays as shown on the right. “1: OPTICAL”: Performs an infrared communication test.
  • Page 115 2D Code Handy Terminal At the slave BHT to be tested, select “1: SLAVE”, and at the master BHT, select “2: MASTER”. Then press the ENT key. The screen displays as shown on the right during the test, and an infrared commu nication test is performed.
  • Page 116 BHT-604Q  Connector communication Test Wire the cable with JC-25-P-3 (2.5mm stereo mini- plug) as shown below and connect to the BHT connector communication port. Select “2: CONNECTOR” at the TEST COMMUNICATION menu and then ress the ENT key. he TEST COMMUNICATION screen displays as shown on the right.
  • Page 117 2D Code Handy Terminal [8] Key-entry, beeper and vibrator test Use the following procedure to perform a key entry, beeper and vibrator test. Select “8: KEY & VIBRATION” at the TEST menu and then press the ENT key. The screen displays as shown on the right, and the BHT waits for key entry. Press the ENT key.
  • Page 118 BHT-604Q [9] PING test Use the following procedure to run the PING test. Select “9: PING” at the TEST menu and then press the ENT key. The TE ST PING screen displays as shown on the right. “1: RUN PING”: Runs the PING test.
  • Page 119 2D Code Handy Terminal Upon completion of the PING test, the screen displays as shown on the right. The PING result may include the following: Displays the number of echo replies. XXXX]: Echo reply time in milliseconds Displays the number of erro rs found during the PING test.
  • Page 120 BHT-604Q  “2: SET PING” (PING Options Setting Screen) elect “2: SET PING” at the TEST PING menu and then press the NT key. The current settings are displayed. [1: DESTINATION IP]: Specifies the IP address of the host computer to be pinged.
  • Page 121 2D Code Handy Terminal PING Echo Request Transmission Timing (SEND TYPE) Two types of echo request send timings are available: TYPE 1 And TYPE 2. □TYPE1 After sending an echo request, PING waits for the period specified at INTERVAL and then sends an echo request again.
  • Page 122 BHT-604Q  “3: SET DEVICE” (PING Device Setting Screen) elect “3: SET DEVICE” at the TEST PING menu and then press the ENT key. The TCP/IP communication device, link layer, and transmission speed display. ress the C key to return to the TEST PING menu.

  • Page 123: System Information (System Information Menu)

    2D Code Handy Terminal 4.5.7 Sy stem Information (SYSTEM INFORMATION Menu) [1] Displaying the BHT system information Use the follo wing procedure to display the BHT system information. Select “6 : VERSION” at the SYSTEM MENU and then press the ENT key. he SYSTEM INFORMATION screen displays as shown on the right.
  • Page 124 BHT-604Q [1] Functions for which licenses have been registered ( ) Use the cursor keys ([▲] [▼]) to highlight the name of a function th at has been registered, and then press the ENT key to display a screen similar to that shown on the right containing the license registration details.
  • Page 125 2D Code Handy Terminal U-611 System Information Display Use the following procedure to display CU-611 System info rmation. Place the BHT on the CU-611. Select “6: VERSION” at the SYSTEM MENU and then press e ENT key. e SYSTEM INFORMATION screen d isplays as shown on the right.

  • Page 126: Downloading/Uploading Files By Ftp (Ftp Menu)

    BHT-604Q 4.5.8 Downloading/Uploading Files by FTP (FTP MENU) Use the following procedure to download and upload files by FTP. Select “7: FTP” at the SYSTEM MENU and then press the ENT key. The FTP MENU screen displays as shown on the right.
  • Page 127 2D Code Handy Terminal Use the cursor keys ([▲] [▼]) to highlight the item to be set, and then press the ENT key. The mode changes to entry mode and the cursor displays. Enter a setting value with the numerical keys and dot key. ress the SF and the BS key to change the entry mode (numerical entry (no guidance display) and alphabet entry).
  • Page 128 BHT-604Q Uploading by FTP Select “2: UPLOAD” at the FTP MENU and then press the ENT key. The screen displays as shown on the right If upload files exist. [1: DIR/FILE]: Entry Box for the directory and/or file name [2: SELECT FILE]:...
  • Page 129 2D Code Handy Terminal Enter the directory and file name, or select a file, and then press the ENT key. Press the C key to return to the FTP MENU screen. R/FILE entry box: The FTP client will interpret a character string entered into this box as a directory name at first, and will therefore send a Change Directory request to the FTP server.
  • Page 130 BHT-604Q FTP Download/Upload Messages When the BHT is uploading or downloading files by FTP, the following messages will appear at the bottom of the screen: Aborted. Uploading or downloadin g has been interrupted. onnection error The communication pathway is disconnected.
  • Page 131 2D Code Handy Terminal Response Messages from the FTP server The messages that FTP servers send during and after FTP operations vary, but servers all use the same reply codes as listed belo 110 : R estart marker re ly 120 : Service re ady in p a prox.

  • Page 132: Deleting Program/Data Files (Delete File Menu)

    BHT-604Q 4.5.9 D eleting Program/Data Files (DELETE FILE Menu) D lete program files or data fi les stored in the FLASH ROM. e the following procedure to delete files. ess the 0 key while holding down the SF key at the SYSTEM ENU.

  • Page 133: Deleting Font Files (Delete File Menu)

    2D Code Handy Terminal 4.5.10 Deleting Font Files (DELETE F ILE Menu) Delete font files stored in the FLAS H ROM. If there is insufficient user area, by deleting font files, a user a rea equal to the size of the deleted font files an be secured.
  • Page 134 BHT-604Q To delete font files: Use the cursor keys ([▲] [▼]) or numerical key ([1]) to highlight [1: Yes] and then press the ENT key. The selected file is deleted and the screen displays as shown on the right. Press the C key t o return to the DELETE FILE menu.

  • Page 135: Downloading/Uploading The Bht System Parameter File

    2D Code Handy Terminal 4.5.11 D ownloading/Uploading the BHT System Parame er File (SYSTEM PARAMETER Menu) The system parameter file (file name: “_BHT.SYS”) is a file containing s ings such as values, LCD contrast and beeper volume set at section “4.5.5 Settin g environment Settings”.
  • Page 136 BHT-604Q [1] Downloading the BHT system parameter file Use the cursor keys ([▲] [▼]) or numerical key ([1]) to highlight [1: DOWNLOAD] and then press the ENT key. The screen displays as shown on the right indicating that the BHT is waiting for the system parameter file to be downloaded.
  • Page 137 2D Code Handy Terminal [2] Uploading the BHT system parameter file Use the cursor keys ([▲] [▼]) or numerical key ([2]) to highlight [2: UPLOAD] and then press the ENT key. The screen displays as shown on the right indicating that the BHT is waiting for the system parameter file to be uploaded.

  • Page 138: Setting The Remote Wake-Up (Set Remote Wakeup Menu)

    BHT-604Q 4.5.12 Setting the Remote Wake-up (SET REMOTE WAKEUP Menu) Use the following procedure to perform remote wake-up settings. Press the 4 key while holding down the SF key at the SYSTEM MENU. The SET REMOTE WAKEUP menu displays as show n on the right.

  • Page 139: Downloading/Uploading The System Message File

    2D Code Handy Terminal 4.5.13 Downloading/Uploading the System Message File SYSTEM MESSAGE Menu) The system message file is a file (file name: “_B60MSG.FN4”) used by the system to display messages such as “shutdown in progress. Do not remove the battery.” or “Charge th e ba ttery!”.
  • Page 140 BHT-604Q [1] Downloading the system message file Use the cursor keys ([▲] [▼]) or nume rical key ([1]) to highlight [1: DOWNLOAD] and then press the ENT key. The screen displays as shown on the right indicating that the BHT is waiting r the system message file to be downloaded.
  • Page 141 2D Code Handy Terminal [2] Uploading the system message file Use the cursor keys ([▲] [▼]) or numerical key ([2]) to highlight [2: UPLOAD] and then press the ENT key. The screen displays as shown on the right indicating that the BHT is waiting for the system message file to be uploaded.

  • Page 142: Updating The System (Modify Menu)

    BHT-604Q 4.5.14 Updating the Sy stem (MODIFY MENU) Use the following procedure to update the system. Press the dot key while holding down the SF key at the SYSTEM MENU. The MODIFY MENU screen displays as shown on th e right.
  • Page 143 2D Code Handy Terminal  When the Displayed File Name Differs from the BHT Sys tem Update File If the name of the file displayed at [2: FILENAME] differs from the name of the BH T system update file to be used for updating the system, enter the correct f ile name.
  • Page 144 BHT-604Q [2] Updating the CU-611 System Update the CU-611 System after downloading the CU-611 system update file. (Refer to section “4.2.2 CU-611 System Update” for details.) Use the cursor keys ([▲] [▼]) or numerical key ([2]) to highlight [2: CU-F/W MODIFY] and then press the ENT key CU-611the MODIFY MENU screen displays as shown on th e right.
  • Page 145 2D Code Handy Terminal  If the System Update File Does not Exist when Updating the CU-611 System The screen displays as shown on the right if the system update file does not exist when updating the CU-611 system. Download the CU-611 system update file and update the CU-611 system again.
  • Page 146 BHT-604Q...
  • Page 147 BHT-604Q Chapter 5 Communication This chapter describes technical information relating to the connector communication (RS-232C interface), IrDA communication, and wireless communication functions with which the BHT is equipped. Connector Interface(RS-232C Interface) ･･････････････････････････ 136 Interface Connector and Pin Assignment･･･････････････････････････ 136 5.1.1 Interface Cable Connection ･･････････････････････････････････････...
  • Page 148 BHT-604Q 5.1 Connector Interface(RS-232C Interface) The BHT-604Q is equipped with a connector interface used to communicate with other devices. 5.1.1 Interface Connector and Pin Assignment Connector interface : JC-25-J-3A (ø2.5 mm stereo mini jack) Connector pin: JC-25-P3 (ø2.5 mm stereo mini plug)

  • Page 149: Interface Cable Connection

    2D Code Handy Terminal 5.1.2 Interface Cable Connection Connect the BHT directly to a host computer, a modem, or a printer with a connector interface cable as illustrated below. [Ex.1] Cable Connection between BHT and Host computer Host computer [Ex.2] Cable Connection between BHT and Modem [Ex.3] Cable Connection between BHT and Printer...
  • Page 150 BHT-604Q 5.2 IrDA Communication The BHT has a built-in IrDA communication device that enables wireless transfer of programs and data both between the BHT and the host computer and between BHTs without the need for a cable. IrDA communication offers the following benefits over other forms of communication.
  • Page 151 2D Code Handy Terminal 5.2.1 IrDA Communication Port Transmission Speed Communicating Device Transmission Speed BHT-600 Series 9.6、19.2、38.4、57.6、115.2、460.8kbps，4Mbps CU-601 9.6、19.2、38.4、57.6、115.2kbps CU-621 115.2、460.8kbps CU-611 4Mbps 5.2.2 BHT Hardware (Physical Layer) and Communication Protocols  BHT Hardware (Physical Layer) (Except Baud Rate: 460.8 kbps) The BHT complies with IrDA Ver1.3 Low Power physical layer compliant by IrDA (Infrared Data Association).
  • Page 152 Vertical parity None Even, odd, or none Note1: 460800 bps is only possible when communicating from one BHT-604Q unit to another or with the CU-621. Note2: 4 Mbps is only possible for communication with the dedicated CU-611 unit.  Synchronization For accurate data transaction, it is necessary to synchronize transmission between the sender and receiver.
  • Page 153 2D Code Handy Terminal  Transmission code and Transmission bit order  All characters should be coded to 7 or 8-bit code for data transmission.  The standard code at the BHT is ASCII 7-bit or 8-bit code.  The transmission bit order is LSB (Least significant bit) first. The example below is for the transmission of an ASCII 8-bit code A (41h or 01000001b, b: binary) with even vertical parity and a single bit each for the start and stop bits.

  • Page 154: Communications Parameters

    Stop bit length 1 bit 1 or 2 bits Note1: 460800 bps is only possible when communicating from one BHT-604Q unit to another or with the CU-621. Note2: 4 Mbps is only possible for communication with the dedicated CU-611 unit.
  • Page 155 BHT-604Q Chapter 6 Maintenance This chapter describes battery cartridge and daily procedures for taking care of the BHT and CU/CH. Replacing the Battery Cartridge································································144 6.1.1 Battery Cartridge Service Life ························································144 6.1.2 Battery Cartridge Replacement Method ·········································144 Using the BHT after Long Periods ····························································146 Daily Maintenance ····················································································147...

  • Page 156: Replacing The Battery Cartridge

    (Refer to “Chapter 2 BHT Preparation” – “2.2 Loading and Charging the Battery Cartridge”.)  Point  Do not use battery cartridges other than those specified by DENSO WAVE. nsert the battery cover tab (1), and then close the battery cover (2) to lock the cover in position.
  • Page 157 2D Code Handy Terminal Battery Cartridge Recycling Request ● This product uses a lithium-ion battery that contains scarce, recyclable resources. We kindly ask for your cooperation in recycling to make sure reuse of these resources. The crossed-out wheeled bin is applicable for EU member status only.

  • Page 158: Using The Bht After Long Periods

    BHT-604Q 6.2 Using the BHT after Long Periods Data stored in the BHT may be lost and the calendar clock may stop if the BHT is left unused for long periods of time. Take appropriate measures in accoRDance with the procedure below.

  • Page 159: Daily Maintenance

    2D Code Handy Terminal 6.3 Daily Maintenance 6.3.1 Proper Care of the BHT Wipe any dirt from the BHT housing, charge terminals, and BHT or battery cartridge terminals with a dry, soft cloth. Make sure to turn OFF the BHT before cleaning. Never use substances such as benzene or alcohol, as this may cause the housing to be marred or ...
  • Page 160 BHT-604Q...
  • Page 161 BHT-604Q Chapter 7 Error Messages This chapter describes causes and countermeasures for error messages that display during BHT use. About error messages during executing application program, refer to “Appendix A Error Codes and Error Messages of Programmer’s manual”. System Errors···························································································150...
  • Page 162 BHT-604Q 7.1 System Errors The error messages that display on the screen and the causes and countermeasures to be taken if an error occurs when the power is turned ON or while running a program are shown below. Message BHT Response...
  • Page 163 2D Code Handy Terminal Message BHT Response Cause Countermeasure The date and time settings The calendar clock integrated in Set the current date and screen displays, awaiting entry. the BHT has stopped because: time.(Refer to “Chapter 2 BHT - the battery cartridge had been Preparation”...
  • Page 164 BHT-604Q Message BHT Response Cause Countermeasure If this error occurs, the BHT During execution of System Unload and reload the battery beeps five times. Program, the System Program cartridge, then turn the BHT on. has received an invalid If this error occurs frequently, command code.
  • Page 165 2D Code Handy Terminal Message BHT Response Cause Countermeasure The BHT displays this error Operation was terminated If this error occurs frequently, message and automatically without turning OFF the power make a note of the displayed runs the execution program normally with the resume code and contact your system from the point of start-up.
  • Page 166 BHT-604Q 7.2 System Mode Errors When error messages display while running System Mode, refer to the following table and take appropriate measures. Message Cause Countermeasure You attempted to execute a user program in the Press the C key to return to the SYSTEM EXECUTE PROGRAM menu, but no user MENU, then download user programs.
  • Page 167 2D Code Handy Terminal Message Cause Countermeasure The current download will exceed the maximum Press the 2 key to return to the SYSTEM allowable number of files (420 files) in the MENU, then delete unnecessary files in the memory. memory (or decrease the number of files to be downloaded if you attempted to download more than one file in the DOWNLOAD menu.) Downloading has failed.
  • Page 168 BHT-604Q Message Cause Countermeasure The file you attempted to upload is damaged. To upload the damaged file as is, press the 1 key. The memory is insufficient for setting up the Press the C key to return to the SYSTEM BHT system parameter file or system message MENU and delete unnecessary files.
  • Page 169 BHT-604Q Chapter 8 Specifications This chapter describes the BHT-604Q specifications. BHT-604Q Specifications ·········································································158 8.1.1 Hardware Specifications·································································158 8.1.2 Supported Code Types ··································································159 8.1.3 Scanning Performance···································································161 8.1.4 Interface Specifications ··································································163...

  • Page 170: Bht-604Q Specifications

    BHT-604Q 8.1 BHT-604Q Specifications 8.1.1 Hardware Specifications Power supply (main power): Rechargeable lithium-ion battery cartridge (3.7 V DC) Dimensions (W) x (L) x (H): 63 x 209 x 46 mm Weight: Approx. 270 g (including battery cartridge) Ambient operating temperature -5 to 50°C...

  • Page 171: Supported Code Types

    2D Code Handy Terminal 8.1.2 Supported Code Types Reading Reference Position (See “8.1.3 Reading Performance”) values. QR code (Model 1, Model 2), Micro QR code Code size Cell pitch QR code 109 cells × 119 cells（360° Skew） 0.25 mm 81 cells × 81 cells（360° Skew） 0.33 mm 117 cells ×...
  • Page 172 BHT-604Q Barcodes Supported Barcode Types Bar Dimensions Scan Magnification Universal product codes EAN-13 (JAN-13) 0.26 to 0.50 mm 0.8 to 1.5 times EAN-8 (JAN-8) 0.26 to 0.66 mm 0.8 to 2.0 times UPC-A 0.26 to 0.50 mm 0.8 to 1.5 times UPC-E 0.26 to 0.66 mm...

  • Page 173: Scanning Performance

    2D Code Handy Terminal 8.1.3 Reading Performance Reading Reference Position As illustrated at left, align the reading window Label with the center of the label (code) to be scanned. Reading Performance Scanning reference position (105 mm) Field of view at each distance (W x H) QR code cell pitch dimensions and valid scanning range Barcode valid scanning range...
  • Page 174 BHT-604Q QR code cell pitch dimensions Valid reading distance 0.25 mm 45 to 140 mm *1 0.33 mm 35 to 190 mm *1 0.50 mm 35 to 265 mm *2 PCS value: 0.9 min., White reflection intensity: 85% min Under the following conditions:...

  • Page 175: Interface Specifications

    2D Code Handy Terminal 8.1.4 Interface Specifications IrDA Interface Specification: IrDA Ver1.3 Low Power physical layer compliant (Except transmission speed: 460,800 bps) Input signals: Output signals: Transmission speed: 9,600 / 19,200 / 38,400 / 57,600 / 115,200 / 460,800 /4M bps Note: 460,800 bps is only possible when communicating from one BHT-600 unit to another or with the CU-621.
  • Page 176 BHT-604Q...
  • Page 177 BHT-604Q Chapter 9 Appendices This chapter describes the CU-600 Series (option) specifications, and describes causes and countermeasures when unable to transfer files. CU-600 SPECIFICATIONS ······································································166 9.1.1 Hardware Specifications·································································166 9.1.2 Charging Requirements (CU-601/611/621) ····································166 9.1.3 Interface Specifications ··································································167 When File Transfer is Not Possible Using the Transfer Utility ··················169...
  • Page 178 BHT-604Q 9.1 CU-600 SPECIFICATIONS 9.1.1 Hardware Specifications CU-601 CU-611 CU-621 Power supply: 100/230 V AC 100/230 V AC Powered from the USB (Using dedicated AC (Using dedicated AC interface * adapter) adapter) Max. power 6.5 VA 7 VA 5V 500 mA...
  • Page 179 2D Code Handy Terminal 9.1.3 Interface Specifications CU-601 The CU-601 RS-232C interface connector uses Dsub-9P. Signal Direction Pin. No. Signal Name Function CU-601  External Device  Receipt data  Transmission data  Data terminal ready Signal ground — Data set ready —...
  • Page 180 BHT-604Q CU-611 The CU-611 has an IEEE802.3-compliant Ethernet interface port (10Base-T). Ethernet Interface Port (RJ45 jack) on the CU-611 Pin No. Signal Functions Send data Send data Receive data N.C. No connection N.C. No connection Receive data N.C. No connection N.C.
  • Page 181 2D Code Handy Terminal 9.2 When File Transfer is Not Possible Using the Transfer Utility This section describes the causes and remedies when file transfer is not possible using the Transfer Utility. Error No. Cause Details Remedy Illegal field information specification option Set a correct value for the field information option.
  • Page 182 BHT-604Q Error No. Cause Details Remedy The Transfer Utility “Communication port” Specify the communication port to which the BHT is option specification is illegal. connected for the “Communication port” option. The transmission speed at the BHT and PC Ensure that the transmission speed at the BHT and does not match.
  • Page 183 2D Code Handy Terminal Error No. Cause Details Remedy An attempt was made to download a Use BHT-BASIC 4.0 format program files (*.PD4). Other BHT-BASIC 3.6 format program file (*.PD3). Note 1: “Customer Registration” is required to use QBdirect (free of charge). When using for the first time, complete “Customer Registration”...
  • Page 184 2D Code Handy Terminal BHT-604Q User’s Manual First Edition Oct. 2008 Second Edition Mar. 2010...
