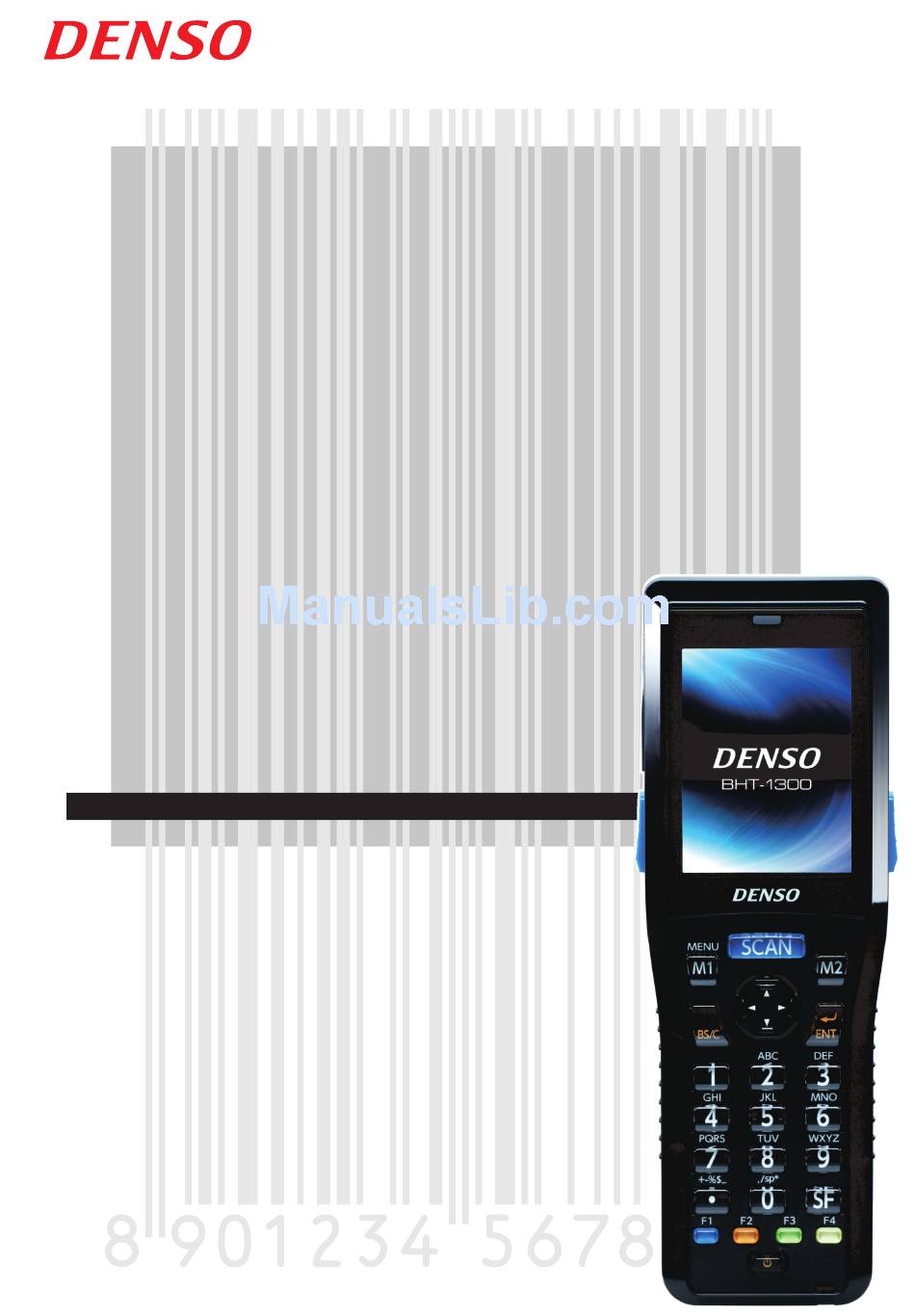

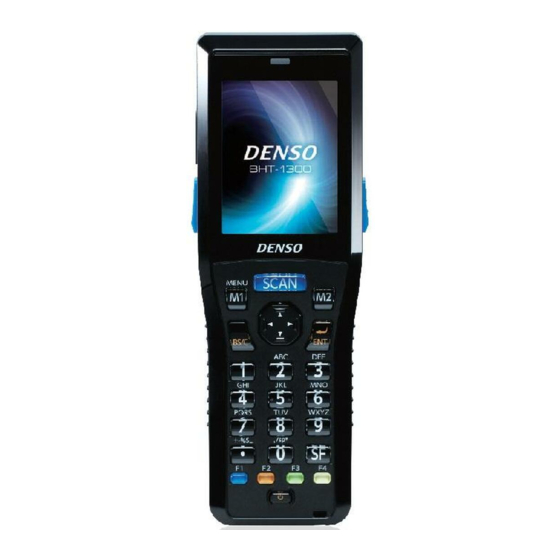

Barcode Handy Terminal
Barcode Handy Terminal
BHT-1306BWB
BHT-1306BWB
BHT-1306BW
BHT-1306BW
BHT-1306B
BHT-1306B
Userʼs Manual
Userʼs Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the BHT-1306BWB and is the answer not in the manual?

Questions and answers

Summary of Contents for Denso BHT-1306BWB

  • Page 1 Barcode Handy Terminal Barcode Handy Terminal BHT-1306BWB BHT-1306BWB BHT-1306BW BHT-1306BW BHT-1306B BHT-1306B Userʼs Manual Userʼs Manual...
  • Page 2 3) The modification of DENSO WAVE's products by parties other than DENSO WAVE.  If it is judged by DENSO WAVE INCORPORATED that malfunction of the product is due to the product having been dropped or subjected to impact, repairs will be made at a reasonable charge even within the warranty...
  • Page 3 Barcode Handy Terminal Customer Registration and Inquiries Customer Registration To allow us to provide our customers with comprehensive service and support, we request that all customers complete a Member Registration Form. Registered members will be offered the following privileges.  The latest upgrade information ...
  • Page 4: About This Manual

     Every attempt has been made to ensure that the content of this manual is thorough and up to date, however, we kindly ask that any questionable content, mistakes, or omissions be reported to DENSO WAVE.  The copyright of this User’s Manual belongs to DENSO WAVE INCORPORATED.
  • Page 5 Barcode Handy Terminal Viewing this Manual  About the Bookmark The PDF Bookmark function can be used to jump to the Contents page. <Procedure> (1) Click the “Bookmark” tab. (2) Click “ ” to search for the desired item. (3) Click the item to be read. (1) Click the “Bookmark”...
  • Page 6 BHT-1300B Series  Searching by Word The PDF search function can be used to jump to the target page by entering words or characters related to the item being searched. (1) Click the Search icon. (Or select “Edit” – “Search”.) (2) Enter the word(s) or character(s) to be searched for.
  • Page 7: Related Documentation

    This is an instruction manual used to create handy terminal programs with BHT-BASIC. This manual can be found in the BHT-BASIC Compiler CD-ROM. This manual can also be downloaded from the DENSO WAVE member’s Web site (QBdirect).  BHT-BASIC 4.0 Transfer Utility User’s Guide This is an instruction manual for software relating to data transfer between the computer and BHT-1300 and comes bundled with the BHT-BASIC 4.0 Transfer Utility.
  • Page 8: Safety Precautions

    BHT-1300B Series SAFETY PRECAUTIONS Be sure to observe all these safety precautions.  Please READ through this manual carefully. It will enable you to use the BHT and CU correctly.  Always keep this manual nearby for speedy reference. Strict observance of these warnings and cautions is a MUST for preventing accidents that could result in bodily injury and substantial property damage.
  • Page 9 Barcode Handy Terminal To system designers: When introducing BHTs in those systems that could affect human lives, develop applications carefully  through redundancy and safety design which avoids the feasibility of affecting human lives even if a data error occurs. Handling the battery cartridge Wrong handling of the battery cartridge may affect normal operation or result in a heat, smoke, or scanner failure.
  • Page 10 BHT-1300B Series Handling the battery cartridge Wrong handling of the battery cartridge may affect normal operation or result in a heat, smoke, or scanner failure. Be sure to observe the following. Never disassemble or modify the battery cartridge.  Do not connect the battery cartridge’s positive (+) and negative (-) terminals with metals such as wires. ...
  • Page 11: Declaration Of Conformity

    Gaeilge: Leis seo, dearbhaíonn DENSO WAVE INCORPORATED go bhfuil Modúl LAN gan sreang agus Bluetooth ® (cineál: DWWB001) sna gléasanna BHT-1306BWB agus BHT-1306QWB. Tá an modúl agus an clár i gcomhréir le bunriachtanais agus le forálacha ábhartha eile Threoir 1999/5/CE.
  • Page 12 BHT-1300B Series Magyar: Ezennel a DENSO WAVE INCORPORATED kijelenti, hogy a BHT-1306BWB és a BHT-1306QWB eszköz vezeték nélküli LAN és Bluetooth ® modult tartalmaz (típus: DWWB001). A modul és a lapka megfelel az 1999/5/EK irányelv alapvető követelményeinek és egyéb vonatkozó előírásainak.
  • Page 13 BHT-1300B Series Chapter 1 Outline This chapter describes the BHT system and provides an overall outline of the BHT. System Configuration ···································································· 2 1.1.1 Hardware Configuration······································································2 1.1.2 Software Configuration·······································································4 Components and Functions ···························································· 6 1.2.1 BHT Front/Rear ················································································6 1.2.2 Keypad ···························································································7 1.2.3 BHT Screen ·····················································································8...
  • Page 14: System Configuration

    BHT-1300B Series 1.1 System Configuration This section describes the hardware and software required for the code data collection system using the BHT. 1.1.1 Hardware Configuration In addition to the BHT, the following hardware and software are required for the code data collection system using the BHT.
  • Page 15 Barcode Handy Terminal  CU-1300 Series (Option) Used for communication between the BHT and the host computer. Communication with the host computer is performed with an RS-232C, Ethernet (10BASE-T) or USB interface. The following three types of CU are available depending on the interface used to communicate with the host computer.
  • Page 16 BHT-1300B Series 1.1.2 Software Configuration The BHT-1300 Series is composed of the following software products.  System programs: Provided with the BHT operating system optimized for the BHT-1300 Series.  Font files: Provided with a font file that displays the Japanese Kanji characters together with the traditional and simplified Chinese characters in the factory default settings.
  • Page 17 Barcode Handy Terminal Refer to Chapter 4.5.6 [2] “Setting the message versions, system status indication and screen display compatible mode” for how to set the screen display compatible mode and Chapter 4.5.6 [6] “Setting the key compatible mode” for how to set the key compatible mode. The BHT-BASIC4.0 converter can be downloaded from our QBdirect website (http://www.qbdirect.net/) for free of charge.
  • Page 18 BHT-1300B Series 1.2 Components and Functions 1.2.1 BHT Front/Rear (11) (10) (12) Name Function and Description LCD (Liquid crystal display) Displays the characters and graphic patterns. Indicator LED Indicates the code read status. Illuminates in blue when the BHT has successfully read a code. Press this when scanning a code.
  • Page 19 Barcode Handy Terminal 1.2.2 Keypad The BHT key functions can be set at user programs. The diagram below shows an example of settings for each key function. (10) (11) Name Function and Description Used to move the cursor and select menus. Cursor keys ...
  • Page 20 BHT-1300B Series Name Function and Description Used to enter data. Numerical keys Press to finalize entered data or execute operations. Enter key Used to select functions. *Function key functions are assigned at user programs. Function keys Refer to the “BHT-BASIC Programmer’s Manual” for further details Power key Turns the BHT power ON or OFF.
  • Page 21 Barcode Handy Terminal This is the battery icon. Shows battery level. Shows that the SF key is pressed when the keys are in the shift-mode. Shows that the “alphabet entry” mode is set. Press the SF key to change the “numeric entry” to the “alphabet entry” when the alphabet entry mode is set by the user program.
  • Page 22 BHT-1300B Series...
  • Page 23: Table Of Contents

    BHT-1300B series Chapter 2 BHT Preparation This chapter describes inserting and charging the battery cartridge, turning the BHT power ON and OFF, and use of the hand strap. “BHT Preparation” Procedure ························································12 Loading and Charging the Battery Cartridge ·····································12 2.2.1 Battery Power Level Indicator ···························································· 19 Attaching the Hand Strap ······························································20 2.3.1 Attaching the Hand Strap ··································································...
  • Page 24 High-temperatures may activate the charger’s protective device, preventing from charging, and lead to protective device damage, overheating, blowout or combustion.  Terminate charging if not completed even after the specified time has elapsed.  Do not use battery cartridges other than that specified by DENSO WAVE.
  • Page 25 Do not use battery cartridges other than  Point  that specified by DENSO WAVE. Terminals Insert the battery cartridge cover tab (1), and then close the battery cartridge cover (2) to lock...
  • Page 26 BHT-1300B Series Connect the dedicated AC adapter to the DC input connector on the charger and plug the adapter into the wall socket. Power for the CU-1321 can be obtained from a USB connection port (host computer or hub),  Note  however, charging is not possible while the host computer is in suspend mode.
  • Page 27 Barcode Handy Terminal The BHT indicator LED will change to green when charging is complete. LED green ON Charging takes approximately 3 hours to charge the BT-20LB and 2 hours to charge the  Point   BT-130LA. If the power is supplied via the CU-1321 from the device connected to the USB port, charging ...
  • Page 28 BHT-1300B Series Charging with the battery charger (CH-201A) Terminals Check the battery cartridge terminals and insert the cartridge. Connect the power cable to the CH-201A and LED red ON connect the plug to a commercial AC power source (230 V AC). The LED will turn red when charging is commenced.
  • Page 29  Point  Terminals that specified by DENSO WAVE. Insert the battery cartridge cover tab (1), and then close the battery cartridge cover (2) to lock the cover in position. Press the battery cover into place until a click is heard.
  • Page 30 BHT-1300B Series Incorrect handling of the battery cartridge could cause the batteries to generate heat or smoke, or to rupture or burn. This is DANGEROUS. Be sure to observe the following: Never disassemble or modify the battery cartridge.  Never connect the positive (+) and negative (-) terminals of the battery cartridge with a wire or ...
  • Page 31: Battery Power Level Indicator

    Barcode Handy Terminal 2.2.1 Battery Power Level Indicator Confirming at the Power Level Icon The battery power level can be confirmed at the battery icon ( ) that is displayed in the bottom left of the LCD display. The battery power is displayed in four levels. The battery power level indicator is a guideline to notify the operator to charge the battery promptly when discharged.
  • Page 32: Attaching The Hand Strap

    BHT-1300B Series 2.3 Attaching the Hand Strap Attach the hand strap to prevent the BHT from being accidentally dropped during use. 2.3.1 Attaching the Hand Strap Attach the hand strap as shown below. 2.3.2 Holding the BHT Attach the hand strap to your wrist and hold the BHT as shown below.
  • Page 33: Initial Setup

    Barcode Handy Terminal 2.4 Initial Setup Turn ON the power after inserting the fully charged battery cartridge into the BHT. The clock will not have been set at the time of purchase, and therefore it is necessary to set the date and time when turning ON the power for the first time.
  • Page 34 BHT-1300B Series Select either of the following with the numeric key 1 or 2, then press the ENT key. 1: Easy Pack Ad The simplified operating application Easy Pack Ad is initiated. For more information, refer to the manual on the operating application. 2: Code scanning demo A code scanning demo is started.
  • Page 35: Features

    Barcode Handy Terminal 2.5 About Easy Pack Ad for BHT-1300 The BHT-1300 is equipped with the simplified operating application “Easy Pack Ad for BHT-1300” for the BHT in the factory default setting. 2.5.1 Features This software can handle the following three tasks. Collect Repeatedly enters the data on the product number and its quantity and then saves that data in (data collection)
  • Page 36: Normal Power Off

    BHT-1300B Series 2.6 Turning OFF the Power Use one of the following three methods to turn OFF the BHT power. Methods Operation Data Backup Timing 1) Normal power OFF Press the Power key. After 20 minutes from turning off 2) Turning the power Hold down the Power key for at least 3 When the power turns off OFF after data backup...
  • Page 37: If The Bht Is Shut Down Abnormally

    Barcode Handy Terminal 2.6.4 If the BHT Is Shut Down Abnormally If the BHT is shut down abnormally and is left without a battery cartridge or with a discharged battery cartridge loaded, then unsaved data may be corrupted or lost. (The BHT properly shuts down only when it is turned off with the Power key ( ), Auto Power OFF mode or user program.) If unsaved data is corrupted or lost, the error message appears at the time...
  • Page 38 BHT-1300B Series If Scandisk finds a broken file(s), the right screen will appear. (As long as a broken file exits, the screen is displayed every time the BHT System is started up.) (Refer to “About “$$BRKLST.SYS” on the following page.) Scandisk when the resume function is enabled If Scandisk runs when the resume function is enabled, the screen given right may appear.
  • Page 39: If Broken Files Are Found

    Barcode Handy Terminal About “$$BRKLST.SYS” If Scandisk finds a broken file(s), it will automatically create the "$$BRKLST.SYS" file. To check the contents of the file, upload the file in System Mode to the host computer. (Refer to Chapter 4 “System Operation" – 4.5.3 “Uploading Files (UPLOAD MENU).") Contents of the “$$BRKLST.SYS”...
  • Page 40 BHT-1300B Series 2.7 Inserting and Removing the microSD Card How to insert the microSD card Insert the microSD (option) card in the following procedure. Remove the battery cartrige. Slide the microSD card cover in the OPEN direction (1) to unlock the cover and open the microSD card cover in the direction (2).
  • Page 41 Barcode Handy Terminal Close the microSD card cover in the direction (1) and slide it in the LOCK direciton (2) to lock the card cover. ① ② Make that the microSD card cover is securely locked.  Note  Otherwise, the system may not start or the data saved in the card may be broken or lost. Install the battery cartridge.
  • Page 42 BHT-1300B Series Remove the microSD card from its slot card cover. microSD card Remove the microSD card directly from the slot along its lines.  Point  Do not pull the card too hard when removing the card. The microSD card or its card cover may be broken if excessive strength is applied.
  • Page 43: This Chapter Describes Basic Operations Such As Barcode Scanning, Numerical

    BHT-1300B Series Chapter 3 Basic Operation This chapter describes basic operations such as barcode scanning, numerical data entry and item selection using the BHT, basic changes to settings, and BHT data transmission. Reading Barcodes ·······································································32 Numeric Data Entry ·····································································34 Task Selection ············································································34 Changing the Default Settings························································35 3.4.1 Procedure ·····················································································...
  • Page 44 BHT-1300B Series 3.1 Reading Barcodes Follow the procedure below to scan barcodes. Turn the BHT power ON. Power key Press the trigger switch. The BHT emits a guide marker (laser light) and the light for reading. Guide marker The trigger switch is assigned to magic ...
  • Page 45 Barcode Handy When unable to successfully read Barcodes… Cause Countermeasure Change the BHT reading angle and try again. When the light is focused on the printed surface of the code from Specular directly above, the BHT may not reflection read the code due to specular reflection.
  • Page 46 BHT-1300B Series 3.2 Numeric Data Entry Enter numeric data such as product volume with the numeric keys and Enter ( ) key. If numeric data is entered incorrectly, use the backspace/clear key ( ) to delete the data and then reenter with the numeric keys.
  • Page 47: Procedure

    Barcode Handy 3.4 Changing the Default Settings The volume, vibrator, LCD display brightness and power save settings can be changed at the MENU screen. Item Details Setting Used to set the volume of the speaker that notifies the user when barcode scanning is complete. VOLUME Mute →...
  • Page 48 BHT-1300B Series Use the [▲] and [▼] cursor keys to select the item to be changed. The selected item is highlighted. Use the [◄] and [►] cursor keys to select the setting. Press any of the following keys to exit the settings screen. ●...
  • Page 49: Infrared Communication

    Barcode Handy 3.5 Transmitting Data Data collected by the BHT can be transmitted to the host computer by infrared communication, wireless communication and Bluetooth® wireless communication. The data transmission method and BHT setting method will differ depending on the system used. For more information on the operation, contact your system administrator.
  • Page 50: Communication With The Host Computer

    BHT-1300B Series 3.5.2 Communication with the Host Computer  Communication via communication unit (CU) Data is transmitted from the BHT to the host computer via the communication unit (CU-1301, CU-1311 or CU-1321). Set the BHT in either of these CUs For the CU-1301 or CU-1321, the BHT-BASIC 4.0 Development Pack (Option) and BHT-BASIC 4.0 Transfer Utility (Option) are required for serial communication between the CU and the host computer.
  • Page 51: Wireless Communication

    Barcode Handy 3.5.3 Wireless Communication Data is transmitted to the host computer via the wireless LAN access point. To perform wireless communication, it is necessary to configure the wireless local area network (wireless LAN) at the BHT and access point. The BHT-BASIC 4.0 Development Pack (Option) and BHT-BASIC 4.0 Transfer Utility (Option) are required.
  • Page 52 BHT-1300B Series ® 3.5.4 Bluetooth Communication ® This interface permits wireless communications with other Bluetooth devices. ® Bluetooth ® PC equipped Bluetooth ® Bluetooth ® Bluetooth device (ex. Printer) Requests  Point the antenna on top of the BHT toward the access point to improve communication performance.
  • Page 53: Table Of Contents

    Chapter 4 System Operation BHT-1300Q series This chapter describes how to initialize and update the system, start up a user program, and operate System Mode. Initializing the BHT System····························································42 4.1.1 Selecting the Memory Area to be Initialized ·········································· 43 4.1.2 Selecting the Message Version (English, Japanese, Simplified Chinese, Traditonal Chinese, Korean or Thai)····················································...
  • Page 54 BHT-1300B series 4.1 Initializing the BHT System By initializing the system, program files and data files downloaded to the BHT user area are deleted, and system settings are returned to the default status when shipped from the factory. The system must be initialized when: ...
  • Page 55: Selecting The Memory Area To Be Initialized

    Barcode Handy Terminal 4.1.1 Selecting the Memory Area to be Initialized Press the Power key ( ) while holding down the SF, M1 and 0 keys together. The screen on the right is displayed. Select the memory area to be initialized. (1) To exempt font files from deletion: Ensure that “1:USER AREA EXCEPT FONTS”...
  • Page 56: Confirming The Memory Area Selected For Initialization

    BHT-1300B series 4.1.2 Selecting the Message Version (English, Japanese, Simplified Chinese, Traditonal Chinese, Korean or Thai) When the screen on the right is displayed, select the message display language with the numerical keys. SELECT MESSAGE 1:English “1: English” Changes the message language to English. 2:Japanese “2: Japanese”...
  • Page 57: Performing System Initialization

    Barcode Handy Terminal 4.1.4 Performing System Initialization The screen on the right is displayed during system initialization. Upon completion of system initialization, the screen on the right is displayed for a second and then turns OFF automatically.  Never turn OFF the BHT power during system initialization. Turning the power OFF too early - Point - will interrupt the process, requiring initialization to be performed again.
  • Page 58: Updating The Bht System

    BHT-1300B series 4.2 Updating the System 4.2.1 Updating the BHT System The BHT system update procedure is as follows. BHT System Update File Download (in the microSD card or flash ROM *)  BHT System Update * If the BHT system update files are present in both the microSD card and the flash ROM, higher priority is given to the microSD card.
  • Page 59: Cu-1311 System Update

    Barcode Handy Terminal 4.2.2 CU-1311 System Update The CU-1311 system update procedure is as follows. CU-1311 System Update File Download (in the microSD card or flash ROM *)  CU-1311 System Update * If the BHT system update files are present in both the microSD card and the flas ROM, higher priority is given to the microSD card.
  • Page 60: Executing From The System Menu "Execute Program

    BHT-1300B series 4.3 Executing User Programs User programs (application programs) can be executed using the following methods. Select the most appropriate method to meet the objective. 4.3.1 Executing from the SYSTEM MENU “EXECUTE PROGRAM” Select the program to be executed at the SYSTEM MENU “EXECUTE PROGRAM” menu. In such a case, the selected program will always be executed from the start.
  • Page 61 Barcode Handy Terminal Several directory management program examples are given below. The names of the files used in these examples are as follows. MAIN.PD4 Program to be executed by pressing the Power key ( ) only SUBMAIN.PD4 Program chained from MAIN.PD4 using the BHT-BASIC CHAIN statement USER.PD4 New program...
  • Page 62: Executing By Wake-Up

    BHT-1300B series  (Example 3) Recommended download method After system initialization, first download the program to be executed simply by pressing the Power key ( ). In this case, this program is always registered at the beginning of the system directory management unless the program has been deleted and another file downloaded.
  • Page 63: Starting Up System Mode

    Barcode Handy Terminal 4.4 System Mode By starting up the BHT in System Mode and selecting each menu, the following operations can be performed individually.  Setup initialization  Executing user programs  File download/upload  System environment setting  BHT operation test ...
  • Page 64: System Mode Basic Operation

    BHT-1300B series 4.4.2 System Mode Basic Operation Menu Selection and Display Use the following procedure to select and display each menu.  Operation example Press numerical corresponding to the menu to be selected. [4]キー、または[ ]キーか Select [4: SET SYSTEM] with Alternatively, press the cursor [ ]キーで[4:SET SYSTEM]を...
  • Page 65 Barcode Handy Terminal Setting Value Selection  Operation example Use the following procedure to select setting values. Press the numerical key corresponding to the item to be selected. Alternatively, press the cursor keys ([▲] [▼]) to select the item. The selected item will be highlighted. Select the setting value with the cursor keys ([◄] [►]).
  • Page 66: System Menu Configuration

    BHT-1300B series 4.4.3 SYSTEM MENU Configuration Menu Configuration for Items Displayed at the SYSTEM MENU Screen Select the item with the numerical keys or cursor keys ([▲] [▼]) and press the ENT key. SYSTEM MENU Setup Menu Refer to Chapter “4.5.1 Excuting Setup”. 0 and ENT keys Executing Programs Refer to Chapter “4.5.2 Executing User Programs”.
  • Page 67 Barcode Handy Terminal Uploading Refer to Chapter “4.5.4 Uploading Files”. 3 and ENT keys System Environment Setting Refer to Chapter “4.5.6 System Environment Setting”. 4 and ENT keys BS/C Testing Refer to Chapter “4.5.7 BHT Operation Test”. 5 and ENT keys System Information Display Refer to Chapter “4.5.8 System Information”.
  • Page 68 BHT-1300B series DEVICE MENU Refer to Chapter “4.5.10 Wireless Communication Settings”. BS/C 8 and ENT keys...
  • Page 69 Barcode Handy Terminal Menu Configuration for Items Not Displayed at the SYSTEM MENU Screen Press the corresponding numerical key while holding down the SF key. SYSTEM MENU Deleting Program/Data Files Refer to Chapter “4.5.13 Deleting Program/Data Files”. 0 with SF held down BS/C Deleting Font Files...
  • Page 70 BHT-1300B series Setting Remote Wake-up Refer to Chapter “4.5.16 Setting the Remote Wake-up”. 4 with SF held down BS/C 5 with SF File Copy menu held down Refer to Chapter “4.5.17 Copying the File”. Downloading/Uploading the System Message File Refer to Chapter “4.5.18 Downloading/Uploading the System Message File”.
  • Page 71: Executing Setup (Setup Menu)

    Barcode Handy Terminal 4.5 SYSTEM MENU 4.5.1 Executing Setup (SETUP Menu) The BHT setup can be effectively executed using the BHT Setting and clone functions. The following explains setup using two BHTs with the clone function. Use the procedure below for BHT setup.
  • Page 72 BHT-1300B series [1] CLONE A cloning feature that is similar to the conventional HT-HT copying but is different as follows is available. Function Clone HT-HT Copy OS Copy Available Not Available Overwrite copy Available Available (The file in the receiving device is overwritten by the file from the transmitting device.) File Copy Clone...
  • Page 73 Barcode Handy Terminal Perform the settings for the master-side clone using “1: CLONE” and “3:OPTION” from the SETUP menu. Use the “OPTION” menu to perform settings such as the clone number, and authentication key. “OPTION” menu content is as per the table below. Item Setting Content Default...
  • Page 74 BHT-1300B series Align the BHTs as shown below, and then press ENT on the transmitting device. Data 15 cm or less Master Side Slave Side (Test Use) The data transmission progress status is shown as per the screens below.  “”: Data transmission complete. ...
  • Page 75 Barcode Handy Terminal When communication is complete, the screen will return to the CLONE MENU (the previous screen.) In the event of a communication error, “Screen 2” below will appear. Screen 1: Error occurrence Screen 2: Error/correctly completed List of possible errors when cloning Processing Outline Displayed Message...
  • Page 76 BHT-1300B series [2] BHT Setting For details, refer to the BHT Setting User’s Manual. [3] BACKUP Select “3: BACKUP” at the SETUP menu and press the ENT key. BACKUP MENU The following BACKUP menu is displayed. (SD Memory) “1: BACKUP”: 1:BACKUP Backs up the BHT information to the microSD card.
  • Page 77 Barcode Handy Terminal 1: BACKUP: Backing up the data Select “1: BACKUP” at the BACKUP menu and press the ENT key. BACKUP The screen on the right is displayed and backup of the BHT information to the ** Working ** microSD card is started.
  • Page 78 BHT-1300B series 2: RESTORE: Restoring the data RESTORE Select “2: RESTORE” at the BACKUP menu and press the ENT key. 1:EXECUTE The following RESTORE menu is displayed. 2:BACKUP FOLDER “1: EXECUTE”: XXXXXXXXXXXXXXXX Restores the information specified by “2: BACKUP FOLDER” “2: BACKUP FOLDER”: Selects the information to be restored.
  • Page 79 Barcode Handy Terminal 3: CLONE: Cloning the backed up data CLONE Select “3: CLONE” at the BACKUP menu and press the ENT key. 1:EXECUTE The following CLONE menu is displayed. 2:BACKUP FOLDER “1: EXECUTE”: XXXXXXXXXXXXXXXX Clones the information specified by “2: BACKUP FOLDER”. “2: BACKUP FOLDER”: 3:SW TO RESTORE Selects the backed up information to be cloned.
  • Page 80 BHT-1300B series 4: DELETE BACKUP: Deleting the backed up data DELETE BACKUP Select “4: DELETE BACKUP” at the BACKUP menu and press the ENT key. 1:EXECUTE 2:BACKUP FOLDER The following DELETE BACKUP menu is displayed. XXXXXXXXXXXXXXXX “1: EXECUTE”: Deletes the information specified by “2: BACKUP FOLDER”. “2: BACKUP FOLDER”: Deletes the backed up information.
  • Page 81 Barcode Handy Terminal List of errors that may occur in the backup/restore operations Message displayed Meaning Out of memory Available memory in the BHT or microSD card is insufficient. Too many files. The number of files in the BHT exceeded the limit and operation becomes impossible. File error Some files are broken and cannot be backed up or restored.
  • Page 82: Executing User Programs (Execute Program Menu)

    BHT-1300B series 4.5.2 Executing User Programs (EXECUTE PROGRAM Menu) Individually select and execute user programs downloaded to the BHT. Use the following procedure to execute user programs. Select “1: EXECUTE PROGRAM” at the SYSTEM menu and then press the ENT key. The screen on the right is displayed.
  • Page 83: Downloading Files (Download Menu)

    Barcode Handy Terminal 4.5.3 Downloading Files (DOWNLOAD Menu) Download files to the BHT user area from other devices such as the host computer.  If a file with the same name as one already used in the user area of the target memory in - Point - the BHT is downloaded, the newly downloaded file replaces the old one.
  • Page 84 BHT-1300B series Select either “1: FILE” or ”2: HT<-->HT COPY” and press the ENT key. The screen on the right is displayed indicating that the BHT is waiting for the file to be downloaded. The screen on the right is displayed only when “1: FILE” is selected. If “2: HT<-->HT COPY”...
  • Page 85 Barcode Handy Terminal When downloading is complete, the Buzzer sounds once and the screen on the right is displayed. When the number of received records equals the total number of records, downloading is complete. (When using the Ymodem protocol, the received file size equals the total file size.) Press the BS/C key to return to the DOWNLOAD menu.
  • Page 86: Uploading Files (Upload Menu)

    BHT-1300B series 4.5.4 Uploading Files (UPLOAD Menu) Upload files stored in the BHT user area to another device. Use the following procedure to upload files. A file can also be uploaded via the USB communication  - MTP - - Note - port with the MTP.
  • Page 87 Barcode Handy Terminal Select “1: FILE”, ”2: ALL FILES” or ”3: HT<-->HT COPY” and press the ENT key. When “1: FILE” is selected: The screen on the right is displayed. Select the file to be uploaded and press the ENT key. Next, proceed to step 3.
  • Page 88 BHT-1300B series By executing the BHT-BASIC 4.0 Transfer Utility or similar program, the screen on the right is displayed and file uploading is commenced. (Refer to the “BHT-BASIC4.0 Transfer Utility User’s Guide.”) The screen on the right is displayed during uploading. The screen on the right indicating the file name and the number of sent records/the total number of records is displayed.
  • Page 89: Copying Files Between 2 Bht Units

    Barcode Handy Terminal 4.5.5 Copying Files between 2 BHT Units Copy “all files (excluding font files)”, “setting data”, and the “date and time” stored in the BHT user area to another BHT. Use the following procedure to copy files between 2 BHT units. Set the same interface at both BHT units.
  • Page 90 BHT-1300B series The following setting data can be copied between the BHT units. - Note - LCD contrast level Volume Switching between Buzzer and vibrator Program to be executed automatically when the BHT is turned ON Message version (English or Japanese) Backlight brightness of the LCD display Backlight brightness of the LCD display during power save mode Display font size...
  • Page 91 Barcode Handy Terminal IP address of host computer for ping-test Data size of echo request Echo request intervals Timeout period for echo request No. of echo requests to be sent Echo request send timing TCP/IP operation device TCP/IP link layer Transmission speed between BHT and CU No.
  • Page 92: System Environment Settings (Set System Menu)

    BHT-1300B series 4.5.6 System Environment Settings (SET SYSTEM Menu) Use the following procedure to set the system environment. Select “4: SET SYSTEM” at the SYSTEM MENU and then press the ENT key. The SET SYSTEM menu screen on the right is displayed. SYSTEM MENU 1/2 “1: EXECUTE PROGRAM”: Sets the auto-start execution program to be executed when the power is...
  • Page 93 Barcode Handy Terminal [1] Setting the auto-start execution program Use the following procedure to set the auto-start execution program. Select “1: EXECUTE PROGRAM” at the SET SYSTEM menu and then press the ENT key. The SET EXECUTE PROGRAM menu screen on the right is displayed. The highlighted program will be the program currently set as the auto-start execution program.
  • Page 94 BHT-1300B series [2] Setting the message version, system status indication and screen display compatible mode Use the following procedure to set the display language, system status indication and screen display compatible mode. SET DISPLAY Select “2: DISPLAY” at the SET DISPLAY menu and press the ENT key.
  • Page 95 Barcode Handy Terminal Simultaneously press the SF key and “1: MESSAGE” at the SET SET DISPLAY DISPLAY menu. 1:MENU The SET DISPLAY menu on the right is displayed. 2:COMPATIBLE MODE The highlighted settings will be the current settings. None BHT-300 BHT-7500 BHT-100 Use the cursor keys ([▲] [▼]) or numerical keys ([1] [2]) to highlight...
  • Page 96 BHT-1300B series BHT-1306Q series BHT-100 BHT-300 BHT-7500 BHT-8000 BHT-900 Normal Mode Mode Mode Mode Mode Mode Standard 20 x 20 21 x 8 font 16 x 25 26 x 20 20 x 12 char. 22 x 9 char. char. char. char.
  • Page 97 Barcode Handy Terminal  System Status Indication Turning ON the system status indication displays the following icons at the bottom of the screen. Indication Icon Description Key Shift status Displays when the keys on the keypad are in Shift mode. Alphabet Displays when the BHT is set to alphabet entry mode.
  • Page 98 BHT-1300B series [3] Setting the calendar clock When resetting the date and time, refer to Chapter 2 “BHT Preparation” - 2.4 “Initial Setup.” Select “3: DATE/TIME” at the SET SYSTEM menu and press the ENT key to display the SET DATE/TIME menu screen on the right.
  • Page 99 Barcode Handy Terminal [4] Setting the code scanning parameters Use the following procedure to set the code scanning conditions. Select “4: BARCODE” at the SET SYSTEM menu and then press the ENT key. The SET BARCODE screen on the right is displayed. The highlighted display and displayed values will be the current settings.
  • Page 100  “6: CODEMARK”: Setting the types of Code mark Set the types of Code mark. “ORIGINAL”: CODE MARK Type1 CODE MARK system is defined by DENSO Corporation. “AIM”: CODE MARK Type2 CODE MARK system is compliant with “Guidelines on Symbology Identifiers” by AIM USA.
  • Page 101 Barcode Handy Terminal “2: OPEN BAR SEETTINGS”: Setting “The FUNCTION TO ASSIGN SCAN SETTINGS WITH THE SYSTEM SETTINGS” Select “3: OPEN BAR SEETTINGS” at SET QRCODE and then press the ENT key. The OPEN BAR SETTING screen is displayed. 1: READ MODE: Read mode The READ MODE screen is displayed 2: BUZZER/LED: Buzzer/LED control The BUZZER/LED screen is displayed...
  • Page 102 BHT-1300B series Use the cursor keys ([▲] [▼]) or numerical keys ([1] [2] [3] [4]) to select the item to be set and press the ENT key. Press the ENT key or BS/C key to make the settings value valid and then return to the OPEN BAR SETTING screen.
  • Page 103 Barcode Handy Terminal [3] Read code Select “3: READ CODE” at OPEN BAR SETTING and then press the ENT key. The SET BARCODE screen is displayed. the SET BARCODE screen, allowing code reading to be set to enable (ON) or disable (OFF). The highlighted settings are the current settings.
  • Page 104 BHT-1300B series “1: EAN/UPC”: Detailed settings for EAN/UPC Select “1: EAN/UPC” at the SET BARCODE menu and then press the ENT key. The SET EAN/UPC screen is displayed. EAN/UPC 1/3 (EAN-13/UPC-A set) “1: READING”: Enable/Disable EAN-13/UPC-A “2: 1ST CHARACTER”: “3: 2ND CHARACTER”: Allocate “?, 0–9”...
  • Page 105 Barcode Handy Terminal EAN/UPC 3/3 (UPC-E set) “1: READING”: Enable/Disable UPC-E. “2: 1ST CHARACTER”: “3: 2ND CHARACTER”: Allocate “?, 0–9” to the first and second characters of UPC-E (country flags). If “0–9” is allocated at the menu, limitation is set for the BHT to read only when the allocated numeric characters match the first and second numeric characters of UPC-E.
  • Page 106 BHT-1300B series “2: ITF”: Detailed settings for Interleaved 2 of 5 (ITF) Select “2: ITF” at the SET BARCODE menu and then press the ENT key. The SET ITF screen is displayed. “1: MIN”: Set minimum number of digits of ITF Setting range: 2–99 “2: MAX”:...
  • Page 107 Barcode Handy Terminal “3: CODABAR”: Detailed settings for Codabar (NW-7) Select “3: CODABAR” at the SET BARCODE menu and then press the ENT key. The SET CODABAR screen is displayed. “1: MIN”: Set minimum number of digits of Codabar Setting range: 3–99 “2: MAX”: Set maximum number of digits of Codabar...
  • Page 108 BHT-1300B series “4: CODE39”: Detailed settings for Code 39 Select “4: CODE39” at the SET BARCODE menu and then press the ENT key. The SET CODE39 screen is displayed. “1: MIN”: Set minimum number of digits of Code 39 Setting range: 1–99 “2: MAX”: Set maximum number of digits of Code 39...
  • Page 109 Barcode Handy Terminal Use the cursor keys ([▲] [▼]) or numerical keys ([1] [2]) to select the item to be set. Use the cursor keys ([◄] [►]) to select settings value. Press the ENT key or BS/C key for the settings value to be valid and then return to the SET BARCODE screen.
  • Page 110 BHT-1300B series “7: RSS”: Detailed settings for RSS (GS1 Databar) Select “7: RSS” at the SET BARCODE menu and then press the ENT key. The SET RSS screen is displayed. (RSS-14, RSS-14 Truncated set) “1: READING”: Enable/Disable RSS-14 (GS1 Databar Omnidirectional), RSS-14 Truncated (GS1 Databar Truncated) “2: Stacked”: Enable/disable RSS-14 Stacked (GS1 Databar Stacked), RSS-14...
  • Page 111 Barcode Handy Terminal “8: STF”: Detailed settings for Standard 2 of 5 (STF) Select “8: STF” at the SET BARCODE menu and then press the ENT key. The SET STF screen is displayed. “1: MIN”: Set minimum number of digits of STF. Setting range: 1–99 “2: MAX”:...
  • Page 112 BHT-1300B series [5] Setting the communication environment The communication environment settings following system initialization are follows. Do not change these settings unless necessary. Item Default Interface to be used COM1 (Communication with the CU) Communication protocol Ymodem protocol Infrared interface port TRANSMIT SPEED Baud rate 115200 bps...
  • Page 113 Barcode Handy Terminal  “1: COM1”: Setting the Cradle (CU) or IrDA communication SET SERIAL PORT parameters < COM1 > 1:PARAMETER Select “1: COM1” at the SET COMMUNICATION menu and then press 2:PROTOCOL the ENT key. 3:DEVICE The SET SERIAL PORT <COM1> menu screen on the right is displayed. Use the cursor keys ([▲] [▼]) or numerical keys ([1] [2] [3]) to highlight “1: PARAMETER”, “2: PROTOCOL”...
  • Page 114 BHT-1300B series Setting the communication device SET DEVICE Select “3: DEVICE” to display the screen on the right. < COM1 > The highlighted setting is the current setting. 1:DEVICE Cradle IrDA  “2: COM2”: Setting the USB communication environments SET SERIAL PORT Select “2: COM2”...
  • Page 115 Barcode Handy Terminal  “3: COM PORT”: Setting the communication port Select “3: COM3” at the SET COMMUNICATION menu and then press DEFAULT SERIAL PORT the ENT key. 1:BASIC The DEFAULT SERIAL PORT menu screen on the right is displayed. COM1 COM2 2:SYSTEM MODE...
  • Page 116 BHT-1300B series  “4: PROTOCOL TYPE”: Setting the communication protocol type Select “2: PROTOCOL TYPE” at the SET COMMUNICATION menu and then press the ENT key. The PROTOCOL TYPE menu screen on the right is displayed. The highlighted setting is the current setting. “1: Ymodem”: Selects Ymodem when uploading/downloading in System Mode or for the execution of the XFILE statement in BHT-BASIC.
  • Page 117 Barcode Handy Terminal To make changes, use the cursor keys ([▲] [▼]) or numerical keys ([1] [2] [3] [4]) to highlight the item to be set, highlight the setting value using the cursor keys ([◄] [►]), and then press the ENT key. For “4: INTERVAL”, press the ENT key to change to entry mode.
  • Page 118 BHT-1300B series “5: OPEN “COM:” DETAIL”: Setting the OPEN “COM:” communication conditions The system mode settings can be used for the communication conditions of the user program (OPEN “COM:”) developed with BHT-BASIC. This eliminates the need to change the user program and thus to rewrite the communication conditions in changing the communication speed.
  • Page 119 Barcode Handy Terminal [6] Defining the functions of the Shift key and Magic keys Use the following procedure to change the key settings. Select “6: KEY” at the SET SYSTEM menu and then press the ENT SET KEY key. 1:SHIFT KEY 2:M1 KEY The SET KEY menu screen on the right is displayed.
  • Page 120 BHT-1300B series  “2: M1 KEY” to “6: M5 KEY”: Defining the Mx key functions Select “2: M1 KEY” to “6: M5 KEY” at the SET KEY menu and then press the ENT key. The SET M1 KEY menu screen on the right is displayed. (In the example on the right, “2: M1 KEY”...
  • Page 121 Barcode Handy Terminal  Defining the backspace/clear key (BS/C key) function The BS/C key deletes the last entered character (backspace), and when pressed and held, cancels entry and returns the LCD display to the previous screen (clear). This menu sets the key hold time for “clear”.
  • Page 122 BHT-1300B series [7] Setting the TCP/IP, FTP, DHCP and DNS Use the following procedure to change the TCP/IP, FTP, DHCP and DNS settings. SET TCP/IP Select “7: TCP/IP” at the SET SYSTEM menu and then press the ENT key. 1:SET TCP/IP The SET TCP/IP menu screen on the right is displayed.
  • Page 123 Barcode Handy Terminal “2: IP ADDRESS”: Setting the IP address Select “2: IP ADDRESS” at the SET TCP/IP menu to display the screen on the right where the current settings are displayed. To change the setting: (1) Use the cursor keys ([▲] [▼]) or numerical keys ([1] [2] [3]) to highlight the item to be set and press the ENT key.
  • Page 124 BHT-1300B series  Setting the FTP Select “2: SET FTP” at the SET FTP menu and then press the ENT key. The SET FTP menu screen on the right is displayed. Use the cursor keys ([▲] [▼]) or numerical keys ([1] [2]) to highlight the item to be set, and then press the ENT key.
  • Page 125 Barcode Handy Terminal “2: OPTION”: Setting the FTP options Select “2: OPTION” at the SET TCP/IP menu to display the screen on the right where the current settings are displayed. “1: CR/LF”: Specifies line delimiters that should match ones used in the server OS. “2: CR/LF CODE”: Specifies the treatment of line delimiters in records when data files are downloaded.
  • Page 126 BHT-1300B series  Setting the DHCP Select “3: SET DHCP” at the SET TCP/IP menu and then press the SET DHCP ENT key. 1:TIMEOUT The SET DHCP screen on the right is displayed. 2:LEASED IP The highlighted setting is the current setting. Release Reuse Press and hold the BS/C key to return to the SET TCP/IP, FTP, DHCP or...
  • Page 127 Barcode Handy Terminal Setting the DNS Select “4: SET DNS” at the SET TCP/IP menu and then press the SET DNS ENT key. 1:PRIMARY The SET DNS screen on the right is displayed. The highlighted setting is the current setting. 2:SECONDARY Press and hold the BS/C key to return to the SET TCP/IP, FTP, DHCP or 3:DEF DOMAIN NAME...
  • Page 128 BHT-1300B series [8] Setting the RPC The BHT-1300 series is compliant with the BHT Manager software (host-side tool). The RPC screen displays the settings used to communicate with the BHT Manager software. For details, refer to the “BHT Manager User’s Manual”. The following explains only the operation of this menu and an outline of the settings.
  • Page 129 Barcode Handy Terminal [9] Setting the user program execution option SET SYSTEM Use the following procedure to set the user program execution option. 1:EXEC PROG OPT Select “1: EXEC PROG OPTION” at the SET SYSTEM 2/2 menu 2:DRIVE TOOL 3:OPERATION LOG and then press the ENT key.
  • Page 130 BHT-1300B series [10] Drive related operation Use the following procedure to perform drive related operations. [Defragging the drive] Select “2: DRIVE TOOL” from the SET SYSTEM Menu 2/2 and then press the ENT key to display the screen on the right. Select “1: DEFRAG”...
  • Page 131 Barcode Handy Terminal [11] Setting the operation log The BHT-1300 series is compliant with the BHT Manager software (host-side tool). The OPERATION LOG sets wheter of not create log data that the BHT Manager collects. For details, refer to the “BHT Manager User’s Manual”. The following explains only the operation of this menu and an outline of the settings.
  • Page 132: Bht Operation Test (Test Menu)

    BHT-1300B series 4.5.7 BHT Operation Test (TEST Menu) Use the following procedure to perform a BHT operation test. Select “5: TEST” at the SYSTEM MENU and then press the ENT key. The TEST menu screen on the right is displayed. “1: BARCODE”: Selects the code scanning test.
  • Page 133 Barcode Handy Terminal [1] Code scanning test Use the following procedure to perform a barcode scanning test. Select “1: BARCODE” at the TEST menu and then press the ENT key. The screen on the right is displayed. Scan a barcode with the BHT Upon completion of barcode or 2D scanning, the speaker beeps once, and the indicator LED turns blue.
  • Page 134 BHT-1300B series Code Type and Corresponding Characters Didplayed on the Screen Displayed characters Code type Code mark Code mark Type1 Type2 EAN-13 Without add-on With 2 digits add-on With 5 digits add -on UPC-A Without add-on With 2 digits add-on2 With 5 digits add -on EAN-13 (JAN-13) COMPOSITE Without add-on...
  • Page 135 Barcode Handy Terminal *1: The codes with more than 4 digits are read for ITF. *2: CODE MARK Type 2 is the Code Mark system that is compliant with “Guidelines on Symbology Identifiers” by AIM USA . Suffix “m” differs from the data format of bar code system, as shown in the table below.
  • Page 136 BHT-1300B series  Setting the Code Scanning Test Options When performing the code scanning test, press the F1 key to display the screen on the right, allowing code scanning test options to be set. The highlighted setting will be the current settting. To make changes, use the cursor keys ([◄] [►]) to highlight the setting values.
  • Page 137 Barcode Handy Terminal [2] Memory test Use the following procedure to perform a memory test. Select “2: MEMORY” at the TEST menu and then press the ENT key. The screen on the right is displayed, and the BHT reads and writes data to and from all areas of the RAM and performs an address check.
  • Page 138 BHT-1300B series [3] Scale test Use the following procedure to perform a scale test. Select “3: BEEPER” at the TEST menu and then press the ENT key. The screen on the right is displayed, and the beeper sounds at the three octaves listed below.
  • Page 139 Barcode Handy Terminal [5] LCD and indicator LED tests Use the following procedure to perform an LCD and indicator LED test. Select “5: LCD” at the TEST menu and then press the ENT key. The TEST BEEPER screen on the right is displayed. The indicator LED is OFF at this time.
  • Page 140 BHT-1300B series Press the ENT key. The entire screen turns a lighter shade of gray. Press and hold the BS/C key to return to the previous screen. Press and hold the BS/C key, or press the SF key and BS/C key simultaneously to return to the TEST menu.
  • Page 141 Barcode Handy Terminal Press the ENT key. The entire screen turns red, and at the same time, the indicator LED turns red. Press and hold the BS/C key to return to the previous screen. Press and hold the BS/C key, or press the SF key and BS/C key simultaneously to return to the TEST menu.
  • Page 142 BHT-1300B series Press the ENT key. A 1-dot thick frame is displayed around the screen. Press and hold the BS/C key to return to the previous screen. Press and hold the BS/C key, or press the SF key and BS/C key simultaneously to return to the TEST menu.
  • Page 143 Barcode Handy Terminal [6] File test The file test allows detailed information on program files, data files, audio files (*.WAV), and image files(*.JPG) to be checked. In addition, pressing the M1 key sorts the files. Select “6: FILE” at the TEST menu and then press the ENT key. The right screen is displayed.
  • Page 144 BHT-1300B series ◆ Media files (*.WAV) Use the cursor keys ([▲] [▼]) to select a *.WAV file, and then press the ENT key. The screen on the right will appear, displaying the file size and creation date. Press the F1 key to play the file. Press the F1 key while the file is playing to stop the file, and return to the previous screen.
  • Page 145 Barcode Handy Terminal ◆ Media files (*.JPG) Use the cursor keys ([▲] [▼]) to select a *.JPG file, and then press the ENT key. The screen on the right will appear, displaying the file size, creation date, and a preview image. Press the F1 key to display the image in full screen.
  • Page 146 BHT-1300B series ◆ Font files (*.FN3/FN4) Use the cursor keys ([▲] [▼]) to select a *.FNT file, and then press the ENT key. Press and hold the BS/C key to return to the previous screen. ◆ BASIC User Program (*.PD3/PD4) Use the cursor keys ([▲] [▼]) to select a *.PD3/PD4 file, and then press the ENT key.
  • Page 147 Barcode Handy Terminal ◆ Other files (*.DAT, *.TXT, etc.) Use the cursor keys ([▲] [▼]) to select a file, and then press the ENT key. If field information is available, press the F1 key to display the next screen. To return to the previous screen, press the F1 key again, or press the BS/C key.
  • Page 148 BHT-1300B series [7] Communication test Use the following procedure to perform a communication test. Select “7: COMMUNICATION” at the TEST menu and then press the TEST COMMUNICATION ENT key. 1:COM1 2:COM2 The TEST COMMUNICATION screen shown on the right is displayed. “1: OPTICAL”: Performs an infrared communication test.
  • Page 149 Barcode Handy Terminal At the slave BHT to be tested, select “1: SLAVE”, and at the master BHT, select “2: MASTER”. Then press the ENT key. The screen on the right is displayed during the test, and an infrared communication test is performed. If an error occurs, the tested slave BHT speaker beeps three times and displays the screen on the right.
  • Page 150 BHT-1300B series Cradle (CU) Connection Test Connect the CU-1321 to the host computer and set the BHT on the CU-1321. TEST COMMUNICATION Select “1: COM1” at the TEST menu and press the ENT key. < C r a d l e > Then, Select “2: Cradle”...
  • Page 151 Barcode Handy Terminal USB Connection Test Connect the BHT to the host computer via the USB cable. TEST COMMUNICATION Select “2: COM2” at the TEST menu and press the ENT key. < U S B > Then, Select “1: USB” at the TEST menu and press the ENT key. * * C o n n e c t I n g * * The TEST COMMUNICATION screen on the right is displayed during the test on the USB connection.
  • Page 152 BHT-1300B series [8] Key-entry, speaker and vibrator test Use the following procedure to perform a key entry, speaker and vibrator test. Select “8: KEY & VIBRATION” at the TEST menu and then press the ENT key. The screen on the right is displayed, and the BHT waits for key entry. Press the ENT key.
  • Page 153 Barcode Handy Terminal [9] PING test Use the following procedure to perform a PING test. Select “9: PING” at the TEST menu and then press the ENT key. The TEST PING screen on the right is displayed. “1: RUN PING”: Runs the PING test.
  • Page 154 BHT-1300B series Upon completion of the PING test, the screen on the right is displayed. The PING result may include the following: Displays the number of echo replies. [XXXXX]: Echo reply time in milliseconds Displays the number of errors found during the PING test. TIMEOUT: Displays the number of timeouts (for echo replies) that took place during the PING test.
  • Page 155 Barcode Handy Terminal  “2: SET PING” (PING Options Setting Screen) Select “2: SET PING” at the TEST PING menu and then press the ENT key. The current settings are displayed. [1: DESTINATION IP]: Specifies the IP address of the host computer to be pinged. [2:DATA SIZE]: Specifies the data size of the echo request.
  • Page 156 BHT-1300B series PING Echo Request Transmission Timing (SEND TYPE) Two types of echo request send timings are available: TYPE 1 and TYPE 2.  TYPE1 After sending an echo request, PING waits for the period specified at INTERVAL and then sends an echo request again.
  • Page 157: System Information (System Information Menu)

    Barcode Handy Terminal 4.5.8 System Information (SYSTEM INFORMATION Menu) [1] Displaying the BHT system information Use the following procedure to display the BHT system information. Select “6: VERSION” at the SYSTEM MENU and then press the ENT key. The SYSTEM INFORMATION screen on the right is displayed. [SYSTEM Ver.]: System program version [ROM SIZE]:...
  • Page 158 BHT-1300B series [1] Functions for which licenses have been registered () Use the cursor keys ([▲] [▼]) to highlight the name of a function that has been registered, and then press the ENT key to display a screen similar to that shown on the right containing the license registration details.
  • Page 159 Barcode Handy Terminal [2] CU-1311 System Information Display Use the following procedure to display CU-1311 system information. Place the BHT on the CU-1311. Select “6: VERSION” at the SYSTEM MENU and then press the ENT key. The SYSTEM INFORMATION screen on the right is displayed. Press the M2 key.
  • Page 160: Downloading/Uploading Files By Ftp (Ftp Menu)

    BHT-1300B series 4.5.9 Downloading/Uploading Files by FTP (FTP MENU) Use the following procedure to download and upload files by FTP. Select “7: FTP” at the SYSTEM MENU and then press FTP MENU the ENT key. 1:DOWNLOAD 2:UPLOAD The FTP MENU screen on the right is displayed. “1: DOWNLOAD”: Downloads a file by FTP.
  • Page 161 Barcode Handy Terminal Use the cursor keys ([▲] [▼]) to highlight the item to be set, and then press the ENT key. The mode changes to entry mode and the cursor is displayed. Enter a setting value with the numerical keys and dot key. Press the SF and the BS/C key to change the entry mode (numerical entry (no guidance display) and alphabet entry).
  • Page 162 BHT-1300B series [2] Uploading by FTP Select “2: UPLOAD” at the FTP MENU and then press the ENT key. The screen on the right is displayed if uploadable files exist. [1: DIR/FILE]: Entry box for the directory and/or file name [2: FIELDS]: File name currently selected (Nothing is displayed at the FTP client initial status.)
  • Page 163 Barcode Handy Terminal Enter the directory and file name, or select a file, and then press the ENT key. Press and hold the BS/C key to return to the FTP MENU screen. DIR/FILE entry box: The FTP client will interpret a character string entered into this box as a directory name at first, and will therefore send a Change Directory request to the FTP server.
  • Page 164 BHT-1300B series FTP Download/Upload Messages When the BHT is uploading or downloading files by FTP, the following messages will appear at the bottom of the screen: Aborted. Uploading or downloading has been interrupted. Connection error The communication pathway is disconnected. Device error Failed to open a device.
  • Page 165 Barcode Handy Terminal Response Messages from the FTP server The messages that FTP servers send during and after FTP operations vary, but servers all use the same reply codes as listed below. 110 : Restart marker reply 120 : Service ready in approx. nnn minutes. 125 : Data connection has been established.
  • Page 166: Wireless Communcation Settings (Device Menu)

    BHT-1300B series 4.5.10 Wireless Communcation Settings (DEVICE DEVICE MENU MENU) Use the following procedure to set up wireless communication. 1:WLAN 2:BLUETOOTH Select “8: DEVICE” at the SYSTEM MENU and then press the ENT 3:USB key. The DEVICE MENU screen on the right is displayed. Select “WLAN”...
  • Page 167 Barcode Handy Terminal Press and hold the BS/C key to return to the SET RF PARAMETER screen.  Wireless Network Parameter Settings Select “1: NETWORK PARAMETER” at the SET RF NETWORK menu and then press the ENT key. The screen on the right is displayed. [1: SSID]: Displays the current Service Set ID.
  • Page 168 BHT-1300B series Refer to Chapter 5 “Communication” – 5.2 “Wireless Communication” for details of the above setting items.  Wireless Security Settings Select “2: SECURITY” at the SET RF PARAMETER menu and then press the ENT key. The screen on the right is displayed. [1:SECURITY MODE]: Sets up the wireless security mode.
  • Page 169 Barcode Handy Terminal Wireless Security None Mode  WEP can be used with the Wireless security None mode. To enable WEP, WEP and WEP KEY settings are required. The first WEP KEY setting is the encryption key, which can be set from WEP KEY 1 to 4. After setting the encryption key, the encryption key used is specified by setting the TRANSMIT KEY.
  • Page 170 BHT-1300B series Use the cursor keys ([▲] [▼]) or numerical keys ([2] [3] [4] [5]) to highlight a WEP KEY from 1 to 4, and then press the ENT key. The screen on the right is displayed. [1: KEY SIZE]: Select 40 (40 bits) or 128 (128 bit).
  • Page 171 Barcode Handy Terminal Press and hold the BS/C key to return to the SECURITY CONFIG menu. It is not possible to read a written WEP key, and therefore the WEP key setting must always - Point - be stored in a safe location. When not setting a WEP key, the WEP key will be the same as the previous setting.
  • Page 172 BHT-1300B series Wireless Security 1x Supplicant Mode  EAP authentication can be used with wireless security 1x Supplicant mode. Select “2: CONFIGURATION” at the SET SECURITY menu and then press the ENT key. The screen on the right is displayed. [1: AUTH PARAM (EAP)]: EAP authentication parameter setting Press and hold the BS/C key to return to the SET SECURITY menu.
  • Page 173 Barcode Handy Terminal Use the numerical keys to enter an ID and press the ENT key. Press the SF and the BS/C key to change the entry mode (numerical entry (no guidance display) and alphabet entry). To delete a single character, press the BS/C key. To delete the entire entry, press and hold the BS/C key, or press the SF key and BS/C key simultaneously.
  • Page 174 BHT-1300B series Wireless Security WPA-1x Mode  EAP authentication and an encryption system can be used with wireless security WPA-1x mode. Select “2: CONFIGURATION” at the SET SECURITY menu and then press the ENT key. The screen on the right is displayed. [1: AUTH PARAM (EAP)]: EAP authentication parameter setting [2: WPA CIPHER]: Encryption system setting...
  • Page 175 Barcode Handy Terminal Use the numerical keys to enter an ID and press the ENT key. Press the SF key to change the entry mode (numerical entry (no guidance display) and alphabet entry). To delete a single character, press the BS/C key. To delete the entire entry, press and hold the BS/C key, or press the SF key and BS/C key simultaneously.
  • Page 176 BHT-1300B series Use the cursor keys ([▲] [▼]) or numerical key ([2]) to highlight [2: WPA CIPHER] and then press the ENT key. The screen on the right is displayed. [1: CIPHER MODE]: Selects TKIP or AES. Ensure that [1: CIPHER MODE] is highlighted and then select TKIP or AES.
  • Page 177 Barcode Handy Terminal Ensure that [1: PRE SHARED KEY] is highlighted and then press the ENT key. The mode changes to entry mode and the cursor is displayed. Use the numerical keys to enter a shared key and press the ENT key. Press the SF key to change the entry mode (numerical entry (no guidance display) and alphabet entry).
  • Page 178 BHT-1300B series Wireless Security WPA2-1x Mode  EAP authentication and an encryption system can be used with wireless security WPA2-1x mode. Select “2: CONFIGURATION” at the SET SECURITY menu and then press the ENT key. The screen on the right is displayed. [1: AUTH PARAM (EAP)]: EAP authentication parameter setting [2: WPA CIPHER]:...
  • Page 179 Barcode Handy Terminal Use the numerical keys to enter an ID and press the ENT key. Press the SF key to change the entry mode (numerical entry (no guidance display) and alphabet entry). To delete a single character, press the BS/C key. To delete the entire entry, press and hold the BS/C key, or press the SF key and BS/C key simultaneously.
  • Page 180 BHT-1300B series  Wireless Security WPA2-PSK Mode PSK authentication and an encryption system can be used with wireless security WPA2-PSK mode. Select “2: CONFIGURATION” at the SET SECURITY menu and then press the ENT key. The screen on the right is displayed. [1: AUTH PARAM (PSK)]: PSK authentication parameter setting [2: WPA CIPHER]: Encryption system setting...
  • Page 181 Barcode Handy Terminal  Wireless Parameter Initialization Select “3: INITIALIZE” at the SET RF PARAMETER menu and then press the ENT key. The screen on the right is displayed. To initialize wireless parameters: Use the cursor keys ([▲] [▼]) or numerical key ([1]) to highlight [1: Yes] and then press the ENT key.
  • Page 182 BHT-1300B series [2] Site Survey Menu Select “2: SITE SURVEY” at the RF MENU and then press the ENT key. The SITE SURVEY screen on the right is displayed. Press and hold the BS/C key to return to the RF MENU screen. Press the ENT key.
  • Page 183: Bluetooth Communication Settings (Device Menu)

    Barcode Handy Terminal 4.5.11 Bluetooth Communication Settings (DEVICE MENU) Use the following procedure to set up Bluetooth communication. Select “BLUETOOTH” at the DEVICE MENU and then press the ENT key. The BLUETOOTH MENU screen on the right is displayed. [1: INFORMATION]: Displays Bluetooth interface information.
  • Page 184 ® The Bluetooth device name can be up to 16 characters long. The default setting is DENSO-BHT. To switch the entry mode (between numeric and alphabet entries), press the SF key. ® ® Refer to Chapter 5 “Communication” – 5.3 “Bluetooth wireless communications”...
  • Page 185 Barcode Handy Terminal Setting up the device detection parameters  Select “2: INQUIRY” at the SET BLUETOOTH menu and then press the ENT key. The current settings are displayed. [1: INQUIRY TIME]: Sets up the duration of device detection in seconds. [2: NUM RESPONSES]: Sets up the number of devices to be detected.
  • Page 186 BHT-1300B series  Setting up the master station Select “3: MASTER” at the SET BLUETOOTH menu and then press the ENT key. The current settings are displayed. [1: PEER BD_ADDR]: Sets up the remote device address of the connection target. ®...
  • Page 187 Barcode Handy Terminal Setting up the serial port profile (SPP) service for the connection target  Press numeric key [7] and the SF key simultaneously at the SET MASTER menu to display the screen on the right. [1: SPP SERVICE]: Sets up the serial port service name of the connection destination.
  • Page 188 BHT-1300B series  Setting up the slave station Select “4: SLAVE” at the SET BLUETOOTH menu and then press the ENT key. The current settings are displayed. ® [1: PASSKEY]: Sets up the Bluetooth passkey for the slave station. [2: TIMEOUT]: Sets up the timeout limit in seconds.
  • Page 189 Barcode Handy Terminal  Setting up the file transfer protocol options Select “5: SPP PARAMETER” at the SET BLUETOOTH menu and then press the ENT key. The current settings are displayed. “1: SERIAL No.”: “ON”: Adds serial numbers to data blocks. “OFF”: Does not add serial numbers to data blocks “2: H.PARITY”:...
  • Page 190 BHT-1300B series [3] Detecting remote devices Select “3: BROWSE DEVICE” at the BLUETOOTH MENU and then press the ENT key. The screen on the right is displayed. [1: INQUIRY]: Sets up the device detection. [2: BROWSE SERVICE]: Searches the Bluetooth services. [3: AUTH BD_ADDR]: Displays a list of authenticated remote device addresses.
  • Page 191 Barcode Handy Terminal Use the cursor keys ([▲] [▼]) or numeric key ([3]) to highlight [3: NUM RESPONSES] and then press the ENT key. Entry mode is activated and the cursor is displayed. Use the numeric keys to enter the desired value. Set up the number of devices to detect.
  • Page 192 BHT-1300B series The confirmation screen on the right is displayed. To set the selected address as a remote device address, select “1: Yes” and press the ENT key. To cancel the new setting, select the “2: No” and press the ENT key. The screen returns to the BROWSE DEVICE menu.
  • Page 193 Barcode Handy Terminal  Searching for services Select “2: BROWSE SERVICE” at the BROWSE DEVICE menu and then press the ENT key. The screen on the right is displayed. [1: DO IT]: Starts service inquiry. [2: TIMEOUT]: Sets up the services inquiry time. Press and hold the BS/C key to return to the BROWSE DEVICE menu.
  • Page 194 BHT-1300B series When the service inquiry is completed or the service inquiry time has ® elapsed, the Bluetooth device address of the destination remote device and the provided service names are displayed as shown on the screen on the right. Press and hold the BS/C key to return to the BROWSE DEVICE menu.
  • Page 195 Barcode Handy Terminal  Displaying the authenticated remote device addresses Select “3: AUTH BD_ADDR” at the BROWSE DEVICE menu and then press the ENT key. A list of the authorized remote device addresses is displayed. A maximum of three authorized remote device addresses is displayed. Press and hold the BS/C key to return to the BROWSE DEVICE menu.
  • Page 196 BHT-1300B series [4] File transfer with serial port profile Select “4: SERIAL PORT” at the BLUETOOTH MENU and then press the ENT key. The screen on the right is displayed. [1: DO IT]: Connects via the serial port profile for transferring files. [2: MODE]: Sets up the connection mode.
  • Page 197 Barcode Handy Terminal Use the cursor keys ([▲] [▼]) or numeric key ([1]) to highlight [1: DO IT] and then press the ENT key. A serial port connection is started. Press and hold the BS/C key to return to the SERIAL PORT MENU. When the connection is established, the screen on the right is displayed.
  • Page 198: Usb Communication Settings (Device Menu)

    BHT-1300B series 4.5.12 USB Communication Settings (DEVICE MENU) Use the following procedure to set up USB communication. [1] Setting up the USB Parameters Select “3: USB” at the DEVICE MENU and then press the ENT USB MENU key. 1:SET CONNECT MODE The USB MENU screen on the right is displayed.
  • Page 199 Barcode Handy Terminal [3] Setting up the MTP Restrictions Parameters Select “1: MTP RESTRICTIONS” at the MTP PARAMETER MENU MTP RESTRICTIONS and then press the ENT key. 1:RECEIVE 2:DELETE The MTP RESTRICTIONS screen on the right is displayed. 3:RENAME Use the cursor keys ([▲] [▼]) or numeric keys ([1][2][3]) to select the menu and then press the ENT key.
  • Page 200 BHT-1300B series [5] Setting up the MTP File Filer Parameters MTP DISP FILTER 1/2 Select “3: MTP DISP FILTER” at the MTP PARAMETER MENU FILE ATTRIBUTE and then press the ENT key. 1:ATTR DAT 2:ATTR APL The MTP DISP FILTER 1/2 screen (FILE ATTRIBUTE) on the right is 3:ATTR FNT 3:ATTR AN0 displayed.
  • Page 201: Deleting Program/Data Files (Deleete File Menu)

    Barcode Handy Terminal 4.5.13 Deleting Program/Data Files (DELEETE FILE Menu) DELETE FILE Delete program files or data files stored in the FLASH ROM(1:Internal 1:Internal Memory Memory) or microSD(2:SD Memory). 2:SD Memory Use the following procedure to delete files. Press the 0 key while holding down the SF key at the SYSTEM MENU.
  • Page 202 BHT-1300B series To delete files: Use the cursor keys ([▲] [▼]) or numerical key ([1]) to highlight [1: Yes] and then press the ENT key. The selected file is deleted and the screen on the right is displayed. Press and hold the BS/C key to return to the DELETE FILE menu. To cancel: Use the cursor keys ([▲] [▼]) or numerical key ([2]) to highlight [2: No] and then press the ENT key.
  • Page 203: Deleting Font Files (Delete File Menu)

    Barcode Handy Terminal 4.5.14 Deleting Font Files (DELETE FILE Menu) Delete font files stored in the FLASH ROM. If there is insufficient user area, by deleting font files, a user area equal to the size of the deleted font files can be secured.
  • Page 204 BHT-1300B series To delete font files: Use the cursor keys ([▲] [▼]) or numerical key ([1]) to highlight [1: Yes] and then press the ENT key. The selected file is deleted and the screen on the right is displayed. Press and hold the BS/C key to return to the DELETE FILE menu. To cancel: Use the cursor keys ([▲] [▼]) or numerical key ([2]) to highlight [2: No] and then press the ENT key.
  • Page 205 Barcode Handy Terminal 4.5.15 Downloading/Uploading the BHT System Parameter File (SYSTEM PARAMETER Menu) The system parameter file (file name: ”_BHT.SYS”) is a file containing settings such as values, LCD contrast and speaker volume set at Chapter 4.5.6 “Setting Environment Settings”. The same settings can be set at another BHT by copying the system parameter file to that BHT.
  • Page 206 BHT-1300B series [1] Downloading the BHT system parameter file Use the cursor keys ([▲] [▼]) or numerical key ([1]) to highlight [1: DOWNLOAD] and then press the ENT key. The screen on the right indicating that the BHT is waiting for the system parameter file to be downloaded is displayed.
  • Page 207 Barcode Handy Terminal [2] Uploading the BHT system parameter file Use the cursor keys ([▲] [▼]) or numerical key ([2]) to highlight [2: UPLOAD] and then press the ENT key. The screen on the right indicating that the BHT is waiting for the system parameter file to be uploaded is displayed.
  • Page 208: Setting The Remote Wake-Up (Set Remote Wakeup Menu)

    BHT-1300B series 4.5.16 Setting the Remote Wake-up (SET REMOTE WAKEUP Menu) Use the following procedure to perform remote wake-up settings. Press the 4 key while holding down the SF key at the SYSTEM MENU. The SET REMOTE WAKEUP menu on the right is displayed. [1: REMOTE WAKEUP]: Enables or disables remote wake-up.
  • Page 209: Copying Files (File Copy Menu)

    Barcode Handy Terminal 4.5.17 Copying Files (FILE COPY Menu) Copy the files from the flash ROM (internal memory) to the microSD card (SD) or vice versa according to the following procedure. FILE COPY Press the 5 key while holding down the SF key at the SYSTEM MENU. 1:Internal -->...
  • Page 210 BHT-1300B series To copy files: FILE COPY Use the cursor keys ([▲] [▼]) or numerical key ([1]) to highlight [1: Yes] and then press the ENT key. ** Completed ** The selected file is copied and the screen on the right is displayed. Press and hold the BS/C key to return to the FILE COPY menu.
  • Page 211 Barcode Handy Terminal 4.5.18 Downloading/Uploading the System Message File (SYSTEM MESSAGE Menu) The system message file is a file (file name: “_B80MSG.FN3”) used by the system to display messages such as “Shutdown in progress. Do not remove the battery.” or “Charge the battery!”. Downloading/Uploading the System Message File (1) Upload the system message file to the host computer and so on.
  • Page 212 BHT-1300B series [1] Downloading the system message file Use the cursor keys ([▲] [▼]) or numerical key ([1]) to highlight [1: DOWNLOAD] and then press the ENT key. The screen on the right indicating that the BHT is waiting for the system message file to be downloaded is displayed.
  • Page 213 Barcode Handy Terminal [2] Uploading the system message file Use the cursor keys ([▲] [▼]) or numerical key ([2]) to highlight [2: UPLOAD] and then press the ENT key. The screen on the right indicating that the BHT is waiting for the system message file to be uploaded is displayed.
  • Page 214: Updating The System (Modify Menu)

    BHT-1300B series 4.5.19 Updating the System (MODIFY MENU) Use the following procedure to update the system. Press the dot key while holding down the SF key at the SYSTEM MENU. The MODIFY MENU screen on the right is displayed. [1: SYSTEM MODIFY]: Updates the BHT system. [2: CU-F/W MODIFY]: Updates the CU-1311 system.
  • Page 215 Barcode Handy Terminal  When the Displayed File Name Differs from the BHT System Update File If the name of the file displayed at [2: FILENAME] differs from the name of the BHT system update file to be used for updating the system, enter the correct file name. Use the cursor keys ([▲] [▼]) or numerical key ([2]) to highlight [2: FILENAME] and then press the ENT key.
  • Page 216 BHT-1300B series [2] Updating the CU-1311 system Update the CU-1311 system after downloading the CU-1311 system update file. (Refer to Chapter 4.2.2 “CU-1311 System Update” for details.) Use the cursor keys ([▲] [▼]) or numerical key ([2]) to highlight [2: CU-F/W MODIFY] and then press the ENT key. The CU-F/W MODIFY menu screen on the right is displayed.
  • Page 217 Barcode Handy Terminal  If the System Update File Does not Exist when Updating the CU-1311 System The screen on the right is displayed if the CU-1311 system update file does not exist when updating the CU-1311 system. Download the CU-1311 system update file and update the CU-1311 system again.
  • Page 218 BHT-1300B series...
  • Page 219 BHT-1300B series Chapter 5 Communication This chapter describes technical information relating to the infrared communication, wireless communication, Bluetooth wireless communication functions with which the BHT is equipped. Infrared Communication ····························································· 208 5.1.1 Infrared Communication Port Transmission Speed ······························· 209 5.1.2 BHT Hardware (Physical Layer) and Communication Protocols ·············· 209 Wireless Communication ····························································...
  • Page 220 BHT-1300B Series 5.1 Infrared Communication The BHT has a built-in infrared communication device that enables wireless transfer of programs and data both between the BHT and the host computer, and between BHTs without the need for a cable. Infrared communication offers the following benefits over other forms of communication. ...
  • Page 221 Barcode Handy Terminal 5.1.1 Infrared Communication Port Transmission Speed Communicating Device Transmission Speed BHT-1300 Series 9600, 19200, 38400, 57600, 115200, 460800 bps CU-1301 9600, 19200, 38400, 57600, 115200 bps CU-1311 460800 bps 5.1.2 BHT Hardware (Physical Layer) and Communication Protocols ...
  • Page 222 3. If other problems arise due to reasons such as electromagnetic interference from this device to a specified low-power wireless station being used for mobile identification, please contact DENSO WAVE through QBdirect.
  • Page 223 Barcode Handy Terminal 5.2.2 Setting Parameters Programs written in BHT-BASIC control wireless communication with commands between the BHT and access points which are connected each other by a wireless LAN. For the setting procedure of RF-related parameters, refer to Chapter 4 "System Operation” – “Wireless Communication Settings (RF MENU).”...
  • Page 224 BHT-1300B Series  EAP TYPE This is the EAP authentication method setting used for 802.1x authentication. Select PEAP or EAP-TLS. This is valid only when the Security mode is 1x Supplicant, WPA-1x or WPA2-1x.  IDENTITY This is the user ID used for 802.1x authentication. A format that includes the domain name (<domain name>\<user name>) may be specified for the identity.
  • Page 225 Barcode Handy Terminal ® 5.3 Bluetooth Wireless Communication 5.3.1 Usage Precautions  It may be possible to avoid the easy occurrence of communication errors by pointing the right side of the BHT (equipped with built-in antenna) toward the access point. This is because the radio waves of the 2.4 GHz waveband on which the BHT operates are emitted straight ahead and do not easily pass through the human body and so on.
  • Page 226 BHT-1300B Series 5.3.2 Setting Parameters  Bluetooth ® Device Address ® ® Remote devices return these addresses, uniquely assigned to each Bluetooth device by the Bluetooth SIG, during device detection.  Bluetooth ® Device Name ® Bluetooth devices can distinguish themselves using user-friendly names--Robert or Sandra, for example. ...
  • Page 227 Barcode Handy Terminal 5.4 USB Communication The BHT can exchange data with the host computer via the USB communication port using a COM or MTP connection. Files are transmitted to the host computer over a serial communication in the COM connection while they are transmitted without a dedicated device driver in the MTP connection.
  • Page 228 BHT-1300B Series 5.4.2 Communication via MTP Connection Set the USB connection mode of the BHT to the MTP. Refer to Chapter 4.5.12 “USB Communication Settings” for details. Set the MTP communication protocol options of the BHT. Refer to Chapter 4.5.12 “USB Communication Settings”...
  • Page 229 Barcode Handy Terminal ━ Important ━ Receiving the BHT-BASIC data files (specifying the field information) A data file received in MTP is a file that has no filed information and so cannot be used for the BHT-BASIC applications. To receive this file as a data file having field information, convert it in the following procedure.
  • Page 230 BHT-1300B Series 5.5 Basic Communication Specifications and Parameters 5.5.1 Basic Communication Specifications The table below lists the basic infrared communication specifications for the BHT-1300 Series. IrDA Interface Synchronization Start-stop (Note) Transmission speed 9600, 19200, 38400, 57600, 115200, 460800 Transmission code ASCII 8-bit code Transmission bit order LSB (Least significant bit) first...
  • Page 231 Barcode Handy Terminal  Transmission Code and Bit Order  All characters should be coded to 7 or 8-bit code for data transmission.  The standard code at the BHT is ASCII 7-bit or 8-bit code.  The transmission bit order is LSB (Least significant bit) first. The example below is for the transmission of an ASCII 8-bit code A (41h or 01000001b, b: binary) with even vertical parity and a single bit each for the start and stop bits.
  • Page 232: Communications Parameters

    BHT-1300B Series 5.5.2 Communications Parameters In System Mode and user programs written in BHT-BASIC, you can set the communications parameters listed below. Port IrDA Interface 9600, 19200, 38400, 57600, 115200, Transmission speed (Note) 460800 Character length 8 bits Vertical parity None Stop bit length 1 bit...
  • Page 233 BHT-1300B Series Chapter 6 Maintenance This chapter describes battery cartridge and daily procedures for taking care of the BHT, CU and CH. Replacing the Battery Cartridge···················································· 222 6.1.1 Battery Cartridge Service Life ·························································· 222 6.1.2 Battery Cartridge Replacement Method ············································· 222 Using the BHT after Long Periods·················································...
  • Page 234 Terminals by the arrow. (Refer to Chapter “2 BHT Preparation” – 2.2 “Loading and Charging the Battery Cartridge”.)  Point  Do not use battery cartridges other than that specified by DENSO WAVE.
  • Page 235 Barcode Handy Terminal Insert the battery cartridge cover tab (1), and then close the battery cartridge cover (2) to lock the cover in position. Press the battery cover into place until a click is heard.  Battery Cartridge Recycling Request ・...
  • Page 236 BHT-1300B Series 6.2 Using the BHT after Long Periods Data stored in the BHT may be lost and the calendar clock may stop if the BHT is left unused for long periods of time. Take appropriate measures in accordance with the procedure below. Insert a fully charged battery cartridge.
  • Page 237 Barcode Handy Terminal 6.3 Daily Maintenance 6.3.1 Proper Care of the BHT Wipe any dirt from the BHT housing, charge terminals, and BHT or battery cartridge terminals with a dry, soft cloth. Ensure to turn OFF the BHT before cleaning. ...
  • Page 238 BHT-1300B Series...
  • Page 239 BHT-1300B series Chapter 7 Error Messages This chapter describes causes and countermeasures for error messages that display during BHT use. System Errors ·········································································· 228 System Mode Errors ·································································· 233...
  • Page 240 BHT-1300B Series 7.1 System Errors The error messages that display on the screen and the causes and countermeasures to be taken if an error occurs when the power is turned ON or while running a program are shown below. Message BHT Response Cause Countermeasure...
  • Page 241 Barode Handy Terminal Message BHT Response Cause Countermeasure The date and time settings calendar clock Set the current date and screen displays, awaiting integrated in the BHT has time. (Refer to Chapter 2 entry. stopped because: “BHT Preparation” – 2.4 - the battery cartridge had “Initial Setup”) been removed for a...
  • Page 242 BHT-1300B Series Message BHT Response Cause Countermeasure If this error occurs, the During execution of Unload reload warning tone beeps five System Program, the battery cartridge, then turn times. System Program has the BHT on. received an invalid If this error occurs command code.
  • Page 243 Barode Handy Terminal Message BHT Response Cause Countermeasure After displaying this error Your settings made in Contact your system message, the BHT may start System Mode contain an administrator. a user program other than error. (If this error occurs, the preset auto-start System Mode settings revert...
  • Page 244 BHT-1300B Series The message is continuously No user programs are Contact your system displayed. found when the BHT is administrator. turned on. code scanning demo without user programs. Pressing “2: Code scanning demo” runs code scanning demo. Press the trigger switch to start the code scanning demo.
  • Page 245 Barode Handy Terminal 7.2 System Mode Errors When error messages display while running System Mode, refer to the following table and take appropriate measures. Message BHT Response Countermeasure You attempted to execute a user Press and hold the BS/C key to return to the program in the EXECUTE PROGRAM SYSTEM MENU, then download user menu, but no user program files had...
  • Page 246 BHT-1300B Series Message BHT Response Countermeasure The current download will exceed the Press the 2 key to return to the SYSTEM maximum allowable number of files (420 MENU, then delete unnecessary files in the files) in the memory. memory (or decrease the number of files to downloaded attempted download more than one file in the...
  • Page 247 Barode Handy Terminal Message BHT Response Countermeasure The memory is insufficient for setting up Press the BS/C key to return to the the BHT system parameter file or system SYSTEM MENU and delete unnecessary message file to be uploaded. files. The memory already contains 420 files, Press the BS/C key to return to the so the BHT system parameter file or...
  • Page 248 BHT-1300B Series...
  • Page 249 BHT-1300B series Chapter 8 Specifications This chapter describes the BHT-1300Q Series specifications. BHT-1300B Series Specifications ················································· 238 8.1.1 Hardware Specifications ································································· 238 8.1.2 Code Specifications ······································································· 239 8.1.3 Scanning Performance··································································· 240 8.1.4 Interface Specifications ·································································· 242...
  • Page 250: Hardware Specifications

    BHT-1300B Series 8.1 BHT-1300B Series Specifications 8.1.1 Hardware Specifications Power supply (main power): Rechargeable lithium-ion battery cartridge (3.7 V DC) Dimensions (W) x (L) x (H): 53 x 158 x 29 mm (including a standard battery cartridge) 53 x 158 x 24 mm (including a slim-type battery cartridge) Weight: Approx.
  • Page 251 Barcode Handy Terminal 8.1.2 Code Specifications Barcode Type Bar Dimensions Scan Magnification Universal product codes JAN-13 (EAN-13) JAN-8 (EAN-8) UPC-A UPC-E JAN-13 (EAN-13) with add-on Min. 0.26 mm Min. 0.8 JAN-8 (EAN-8) with add-on UPC-A with add-on UPC-E with add-on 2-dgit add-on 5-dgit add-on Min.
  • Page 252 BHT-1300B Series 8.1.3 Scanning Performance Scanning Reference Position As illustrated at left, align the reading window with the center of the label (code) to be Label scanned. Reading Distance and Area 44mm 360mm 490mm 640mm 0.12mm 0.15mm 0.33mm (Note) 0.50mm (Note)...
  • Page 253 Barcode Handy Terminal *1 Under the following conditions: *2 Under the following conditions: - Ambient brightness: 500 lx. (Xenon arc lamp) - Ambient brightness: 500 lx. (Xenon arc lamp) - Code 39, 19-digits - Code 39, 15-digits Narrow bar: Wide bar = 1 : 2.2 Narrow bar: Wide bar = 1 : 2.2 - Reflection intensity of white bars: min.
  • Page 254: Interface Specifications

    OFDM (65/58.5/52/39/26/19.5/12/6.5) Mbps and Transmission speed: (54/48/36/24/18/12/9/6) Mbps DSSS (11/5.5/2/1) Mbps Channels: 11b/g/n: 1 – 13 (14 ch. not supported) ® Bluetooth Interface (BHT-1306BWB / BHT-1306BB) ® Compatible specification: Bluetooth Specification Ver. 2.1+EDR Output class: Class 2 (Max. 2.5 mW) Compliant profile:...
  • Page 256 Barcode Handy Terminal BHT-1306B BHT-1306BB BHT-1306BWB User’s Manual First Edition November 2013...
