1. Download the CALIBRATION
2. Extract the files to your computer's hard drive.
3. Navigate to the file location and copy the appropriate Nozzle Offset Calibration file to your USB mass storage device.
NOTE: The Nozzle Offset Calibration files are specific for the model printer (CubePro
Duo or CubePro Trio) and for the material type (ABS or PLA) currently installed in the
printer.

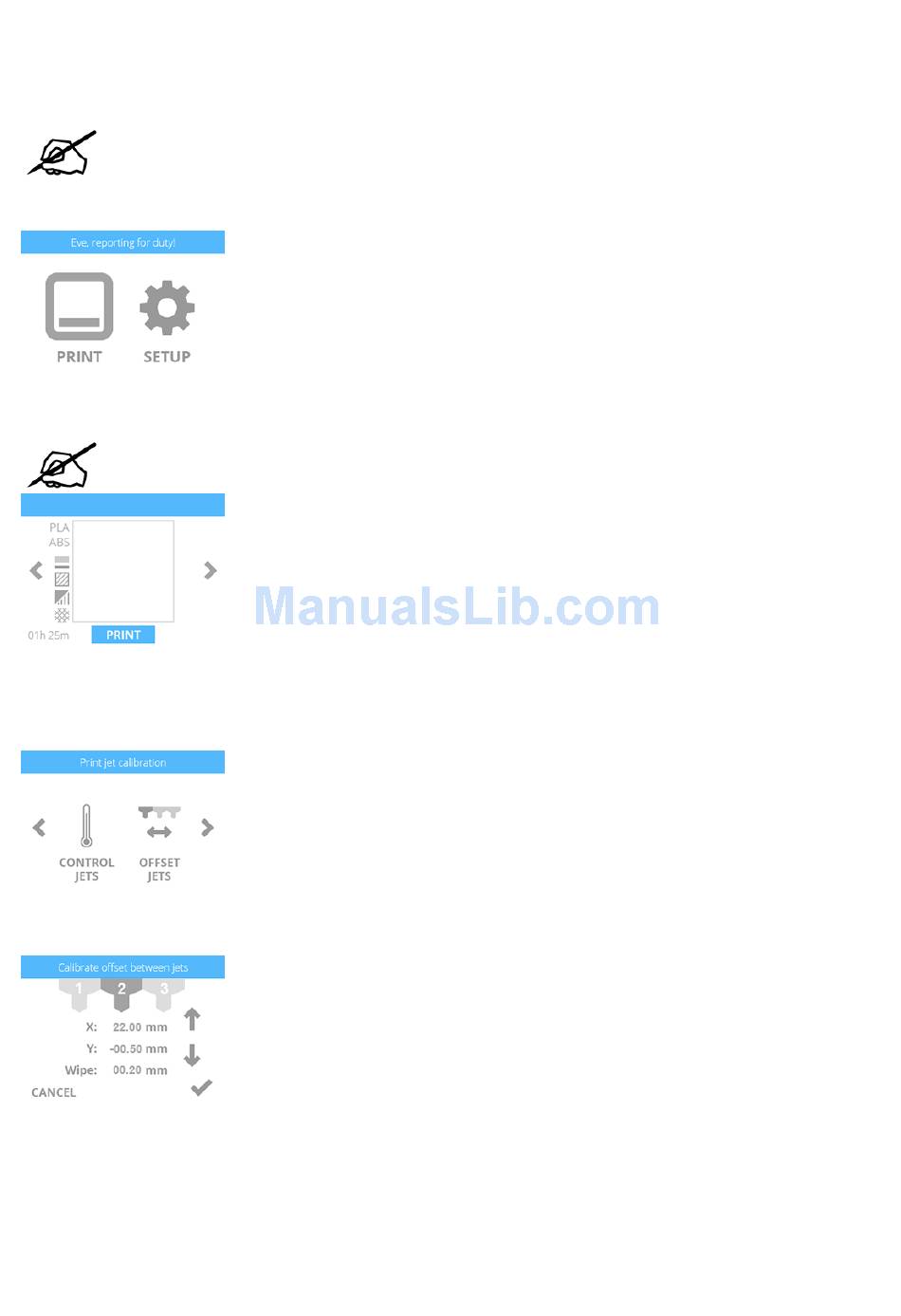

4. Insert the mass storage device into the CubePro USB inlet port and select PRINT.
5. Navigate to the calibration file and select PRINT.
NOTE: The printer may require you to install additional cartridges or replace a
cartridge. Follow the instructions on the screen and refer to the section titled
Replacing A Material
6. Once the printer has finished printing, remove the print pad from the printer and inspect the scales. If adjustments are required, proceed to the next step.
If the scales are aligned properly, no further action is required.
7. Navigate to the Print Jet Calibration screen and select
8. When adjusting print jet 2, select B.
9. Referring to the illustration at the beginning of this procedure, print jet 2 needs to be increased by .3 mm. Select the value until the first digit (A) to the
right of the decimal point is highlighted.
FILES.
Cartridge.
OFFSET JETS.
