8.

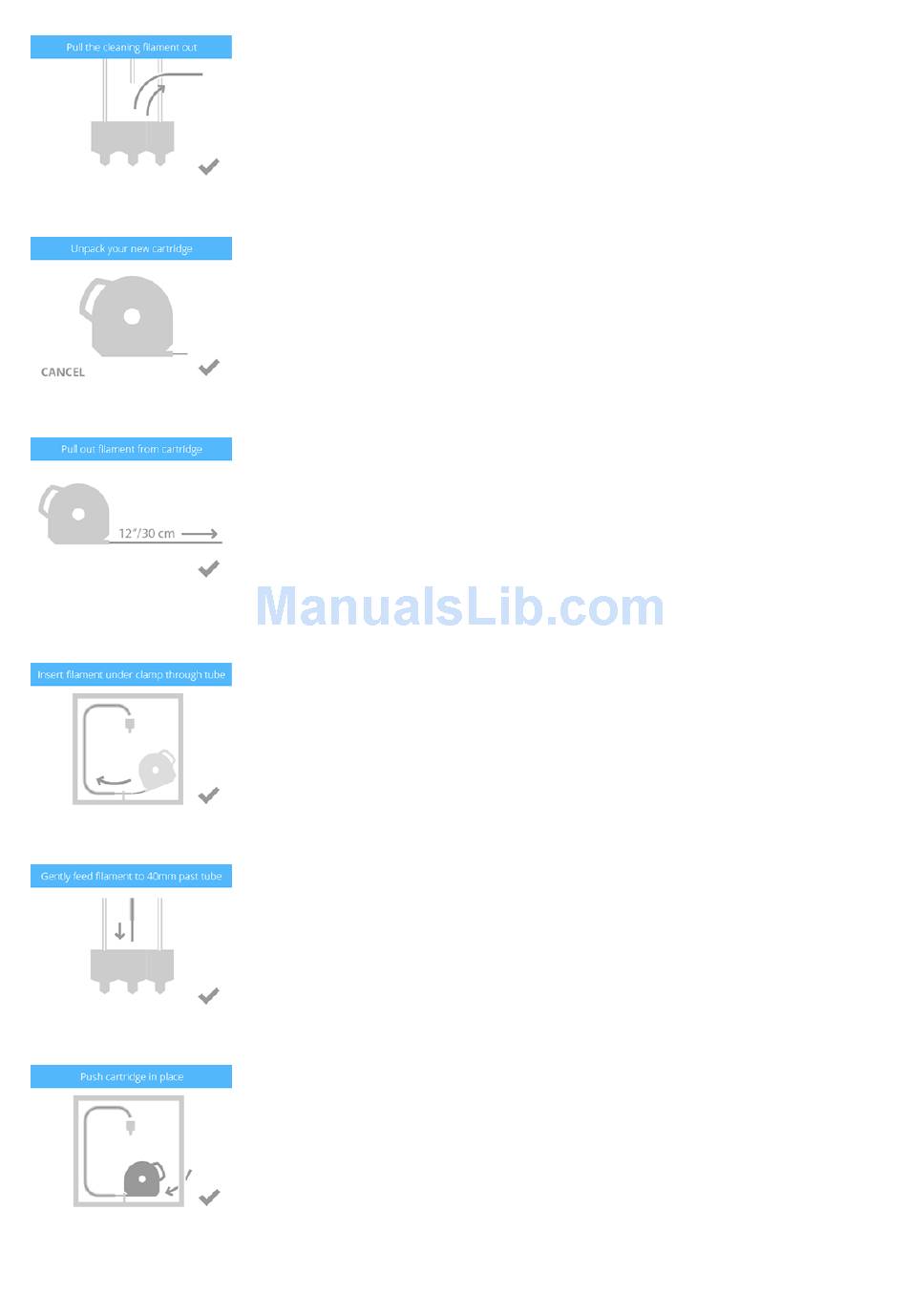

Open the packaging and remove the transit plug from the upper right side of the new cartridge. Select the
9.
Pull out 12"/30 cm of material from the cartridge. Select the
10.
Insert the filament under the cartridge clamp, through the eyelet and into the feed tube. Continue to feed the filament through the tube until it comes out
of the eyelet near the extruder block. Select the
11.
Feed the filament until it protrudes 40 mm out of the eyelet near the extruder block. Select the
12.
Push the cartridge into position in cartridge bay 2. Select the
13.
Gently insert the filament into the extruder. Select the
checkmark
to continue.
checkmark
to continue.
checkmark
to continue.
checkmark
to continue.
checkmark
to continue.
checkmark
to continue.
