NOTE: Tighten the screws until the posts are secure.
CAUTION: Do not over-tighten the screws. The jet wiper assembly can break if the
screws are over-tightened.
13.

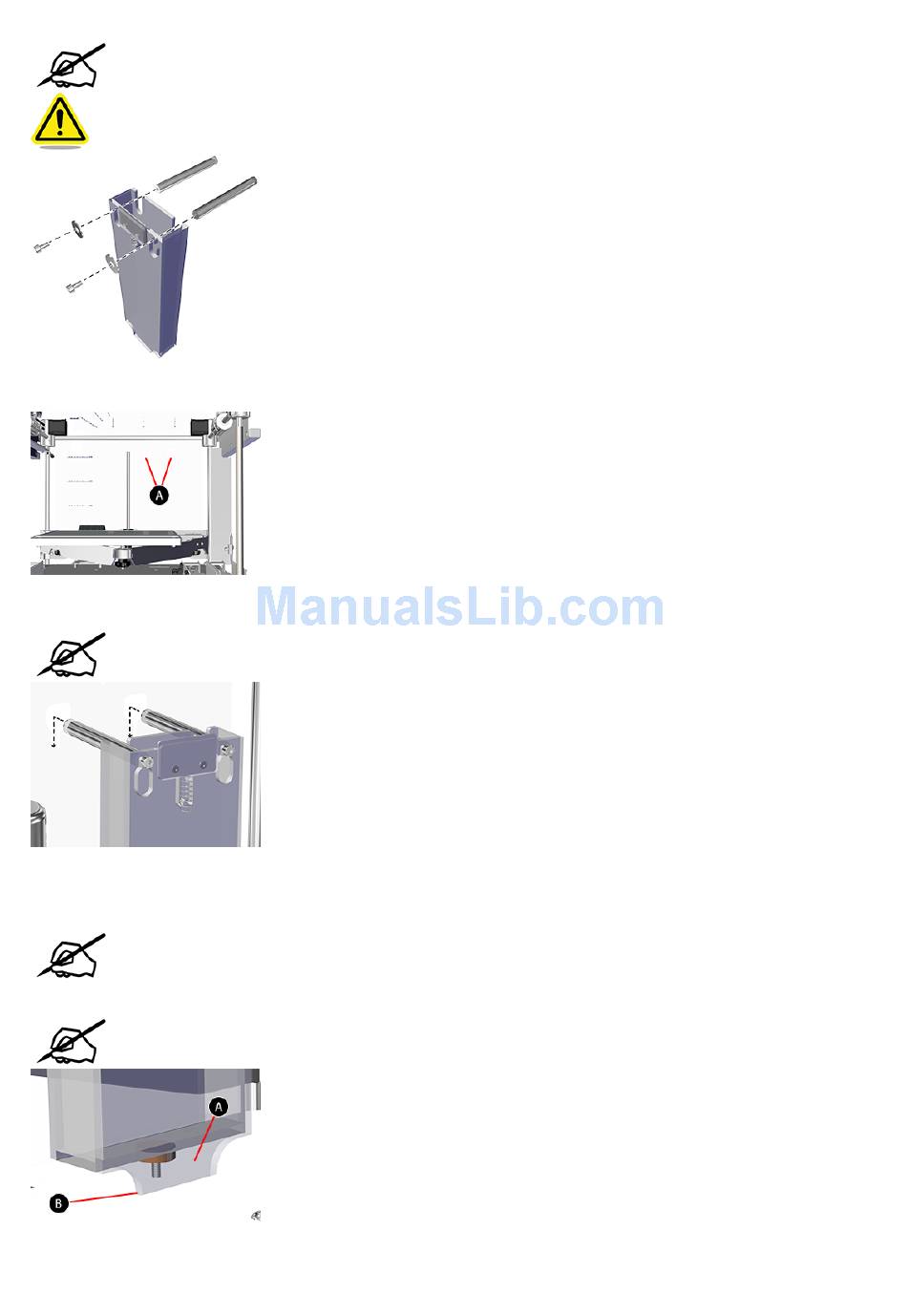

Move the jet wiper assembly to the back of the printer and locate the keyhole slots (A).
14.
Mount the jet wiper mounting posts to the back panel of the printer through the keyhole slots.
NOTE: Slide the mounting pins downward.
15.
Align the jet wiper assembly bottom tab (A) with the slot in the floor (B) and slide the jet wiper assembly downward.
NOTE: If the jet wiper assembly is fully seated into the keyhole slots but the bottom
does not rest on the thumbscrew head, remove the jet wiper and turn the
thumbscrew counter-clockwise until the jet wiper bottom rests on the thumbscrew
head and the keyhole slots are fully seated. This may require repeated removals and
re-installations of the jet wiper. If the keyhole slots will not seat, the thumbscrew
may need to be adjusted downward by turning clockwise.
NOTE: Refer to the section titled
adjusting the jet wiper scraper height.
16.
Remove the print pad from the box and place it onto the print platform with the round magnet on the bottom of the pad inserted into the triangular
