27 DeepMind 12 User Manual

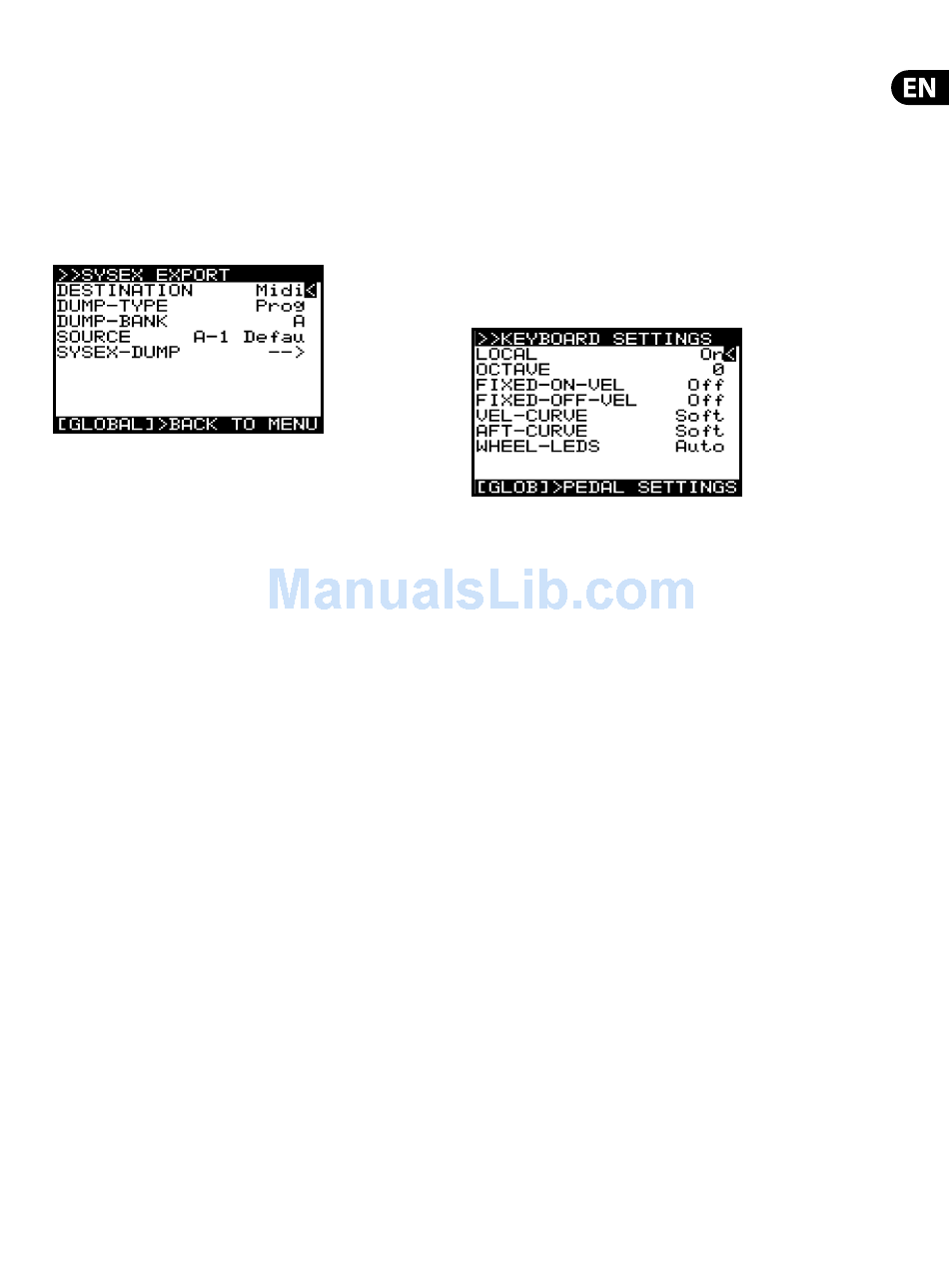

SYSEX EXPORT MENU- This menu contains settings for the EXPORT menu of the
DeepMind 12.
Note: Backing up your data is an important factor when working with the
DeepMind 12. It allows you to keep a safe copy of your programming, manage
settings depending on your use, and share your work with others.
To access the SYSEX EXPORT menu, press the GLOBAL switch until the
CONNECTIVITY menu appears. Make sure that the ' < ' symbol on the EXPORT line
is highlighted. Then press the +/YES switch, you will now see the
SYSEX EXPORT menu.
• • DESTINATION - This option sets the communication mode for the DeepMind
12 SYSTEM EXCLUSIVE (SysEx) messages.
Midi - SysEx messages will be transmitted from the MIDI sockets on the rear
of the synthesizer).
USB - SysEx messages will be transmitted to the USB host.
WiFi - SysEx messages will be transmitted to the WiFi connection.
• • DUMP TYPE - This option sets the type of data which be exported. You can
choose from the following:
Prog - A single PROGRAM.
Bank - An entire BANK of 128 PROGRAMs.
EditProg -The PROGRAM in the EDIT BUFFER, i.e. the program you are
currently working on.
Glob - The GLOBAL settings, useful if you need diff erent settings depending
on your location/activity/requirements).
UserPat - Any one of the 32 USER PATTERNs from the Arpeggiator.
EditPat -The current PATTERN stored in the EDIT BUFFER, i.e. the PATTERN
which is assigned in the program you are currently working on.
AllPat - All user PATTERNs.
All - All Banks, Programs, Patterns, and Global Settings.
CalData - The data from the calibration routine.
DUMP BANK - You can select the appropriate BANK here, from one of the 8
• •
available (A-H). This option is only available when exporting.
• • SOURCE - You can select the appropriate PROGRAM or PATTERN here. This
option is only available when exporting.
• • SYSEX DUMP (EXPORTING) - Pressing the +/YES switch while this option is
selected will initiate the EXPORT based on the selected options.
To exit this menu press the GLOBAL switch to return to the CONNECTIVITY menu.
To exit the CONNECTIVITY menu press the PROG switch to return to the main
programming screen, or press GLOBAL to cycle to the KEYBOARD SETTINGS menu.

7.2.12 KEYBOARD SETTINGS

Note: To access successive GLOBAL pages just press the GLOBAL switch again to
cycle through the pages.
In this menu there are all the settings relating to keyboard.
To navigate the options in the KEYBOARD SETTINGS menu, use the UP and DOWN,
switches.
In order to change any of the parameters make sure that the ' < ' symbol on the
respective line is highlighted.
Selected parameters are adjusted using the -NO/+YES switches, the rotary knob
or the fader. The rotary knob has a click which allows very accurate control. The
fader allows rapid adjustment across the full range.
LOCAL - This option turns LOCAL CONTROL for the DeepMind 12 keyboard ,
aftertouch, pitch wheel and modulation wheel On and Off . It is sometimes
useful to turn LOCAL CONTROL off when using the DeepMind 12 to control other
hardware/software synthesizers, eff ects and/or applications.
OCTAVE - This option allow you to adjust the OCTAVE setting for the keyboard.
The OCTAVE setting aff ects the whole keyboard.
The default setting is 0, which means if you play the lowest note it will be a C2.
The OCTAVE can be adjusted from -2 to +2, allowing you to use the 49 keys to
access the full eight octaves (98 keys).
Please refer to Appendix 1 - Octave Shifting at the end of this document for a
diagram.
FIXED-ON-VEL - This option fi xes the NOTE ON VELOCITY at a set value, so that
regardless of how hard you strike the note, the value will always be the same. The
higher the value, the higher the volume of the note. The value can range from
0-127. When this option is set to Off , the NOTE ON VELOCITY will be dependant
upon how hard you strike the note.
Note: The NOTE ON VELOCITY sensitivity can be adjusted in the VCA edit page.
Please refer to the VCA section later in this document for more details.
FIXED-OFF-VEL - This option fi xes the NOTE OFF VELOCITY at a set value, so
that regardless of how fast you release the note, the value will always be the
same. The higher the value, the higher the volume of the note. The value can
range from 0-127. When this option is set to Off , the NOTE OFF VELOCITY will be
dependant upon how fast you release the note.
Note: The NOTE OFF VELOCITY is only available within the MOD MATRIX as a
MODULATION SOURCE. It is not used elsewhere in the synthesizer. Please refer to
the MOD MATRIX section later in this document for more details.
