2. PASSIVE
ACCESSORIES
Accessories that do not interact with the instrument's software are named passive
accessories. Their installation is described below:

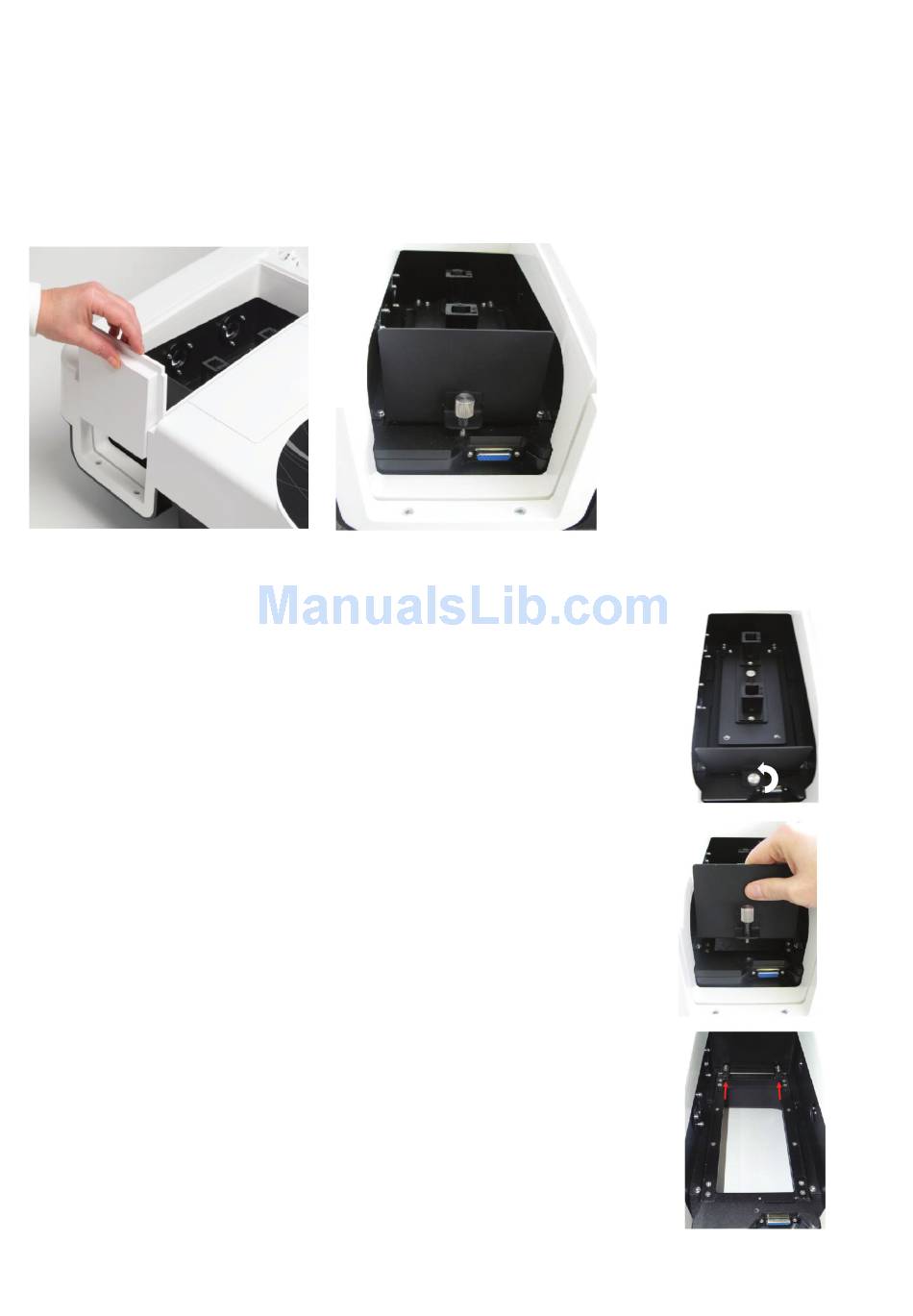

To allow easy access to the thumbscrew at the front of the accessory open the cell
chamber lid and lift out the front panel (below left).
With the front panel removed the accessory is removed and replaced as outlined
below:
1. Loosen the front thumb screw by turning anti-clockwise.
2. With the thumb screw fully unscrewed, lift the accessory and gently pull
forward.
3. To insert the desired accessory, lift the front end, slide into the brackets at
the back of the cell chamber (indicated by the two arrows) and tighten the
thumb screw by turning clockwise.
With the accessory inserted simply replace front panel, switch on the instrument and
it will be ready to use.
