14. SAVING METHODS

The Ultrospec 7000/8000/9000 allow users to store methods to both instruments
internal memory and to USB memory sticks. The procedure for saving methods is
described below:

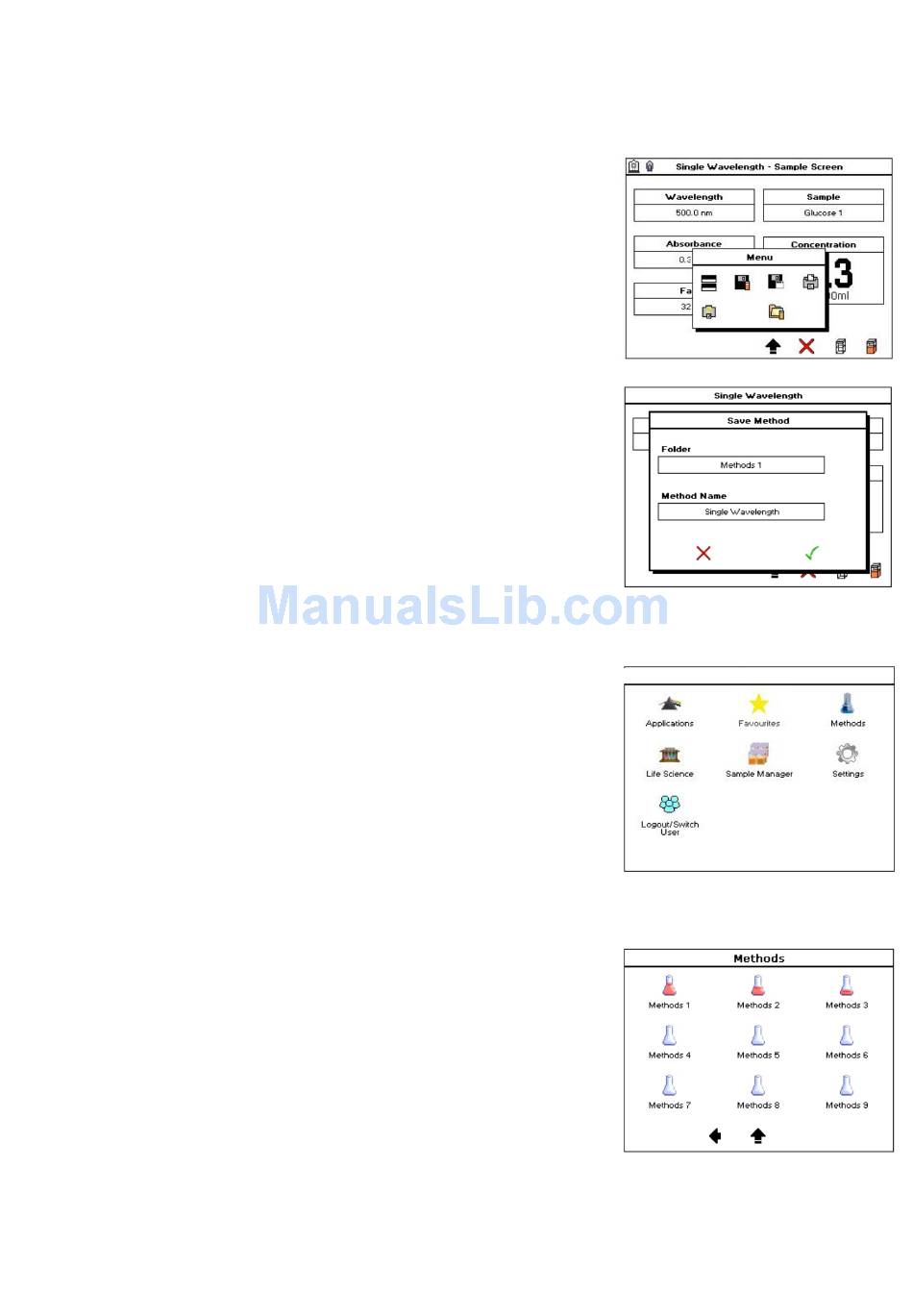

After selecting the desired application and setting the required method parameters
select the Save Method icon from the options menu on the sample measurement
screen. Set the desired file name and save location using the dialogue box shown
below.
Pressing the Folder box produces a list of available save locations. USB will only
appear on the list if a USB memory stick is inserted.
Pressing the Method Name box allows the user to set the desired method name
using alpha numeric text entry.
Press the tick to save and exit or the cross to exit without saving.

14.1. Methods Saved To The Internal Memory

Methods saved to the instrument's internal memory are stored in either the
Methods or Favorites folders, both of which are accessed via the main screen.
The Biochrom Ultrospec are capable of storing up to 90 methods on the
instrument's internal memory.

14.2. Methods Folder

The Methods folder is made up of 9 folders each capable of storing up to 9
methods. The method folder icons have been designed to give the user an
indication of the number of methods that are stored in that folder.
