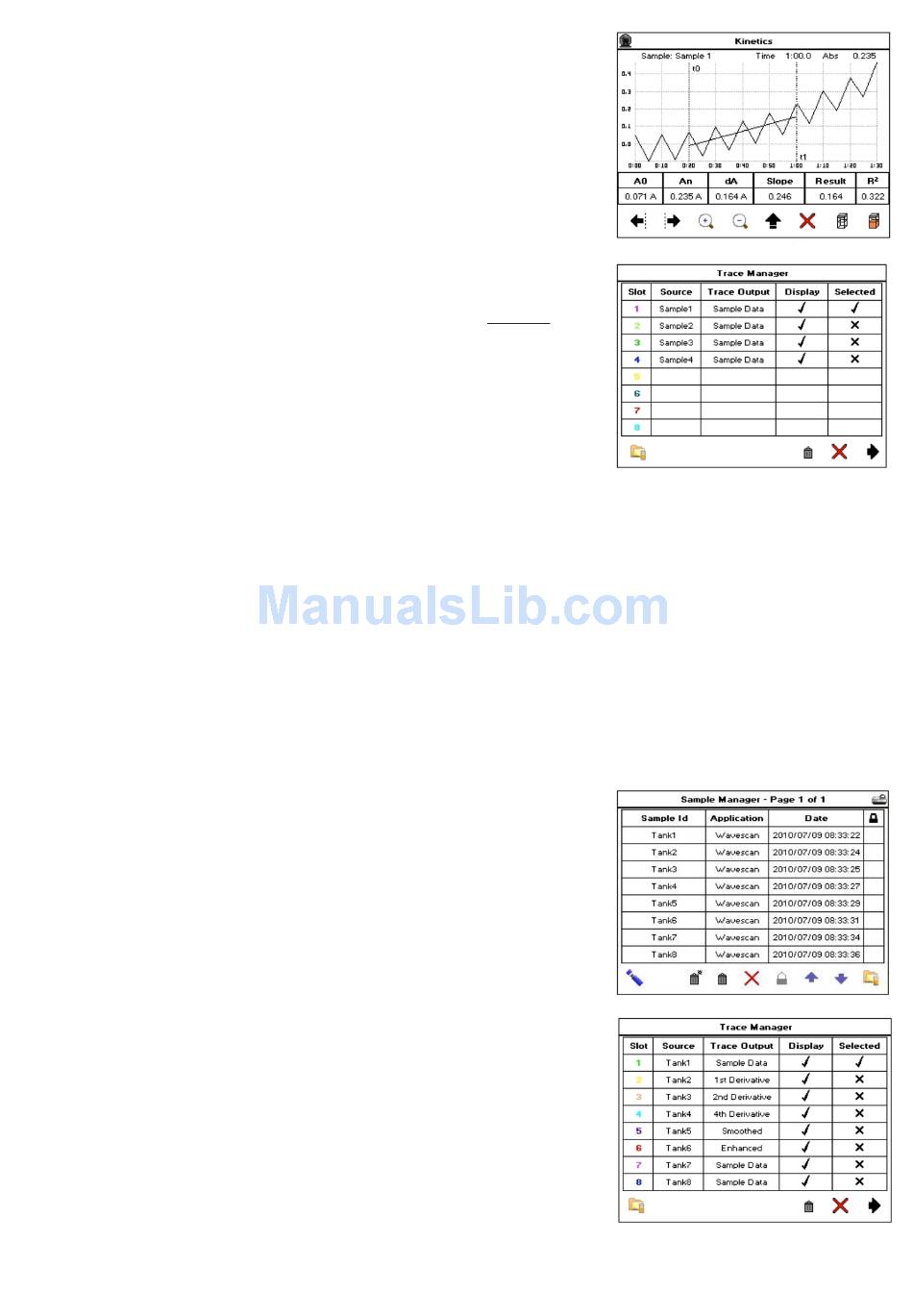

With sections defined, the data displayed in the table below the scan is determined
by the position of the cursor. Only when the cursor is positioned in the section
of interest will this data be displayed. This refers to the selected scan only and is
indicated by the color of the column headers in the table.
A line of best fit can be added to any section by positioning the cursor in the
desired section and selecting the add line of best fit button from the options menu.
To allow post scan data manipulation all samples measured are automatically
included in Trace Manager (see below for full details of Trace Manager).
Note: The data displayed in the table below the scan refers to the Selected sample
only.
Saving & Printing
For details of manual saving and printing see the Saving and Printing section.
10.5. Trace Manager – Overlaying &
Manipulating Wavescan & Kinetics Files
Trace Manager is the application used by the Ultrospec 7000/8000/9000 to overlay
and manipulate wavescan and kinetics files. Samples are loaded into Trace Manager
as described below:
Using Sample Manager
Wavescan and kinetics files can be loaded directly into Trace Manager by selecting
the required files from Sample Manager on the main screen. This procedure is
outlined below:
Highlight the required files by pressing on the appropriate row and load these into
Trace Manager by pressing the Sample Manager icon (bottom right corner). If
the files you require are not displayed on the screen you can scroll through the
pages using the up and down arrows. Pressing on the Sample ID and Date column
headers will sort the files alphabetically and chronologically, respectively.
Note: If a USB memory stick is inserted, it is possible to toggle between files stored
on the internal and USB memories using the icon in the left hand corner. The icon in
the top right corner of the screen will display the memory that is currently in use.
All recalled files will be displayed on the Trace Manager screen (up to 8). The color
of the Slot number will be the color of the trace when it is displayed on screen.
To toggle which files are displayed on the measurement screen press in the
appropriate Display box (up to 8 files can be displayed). To select which files data
will be displayed on the measurement screen press in the appropriate Selected box
(only one file may be selected). Press the forward arrow to view the overlaid data.
