Functions
2.2 Overcurrent Protection 50, 51, 50N, 51N

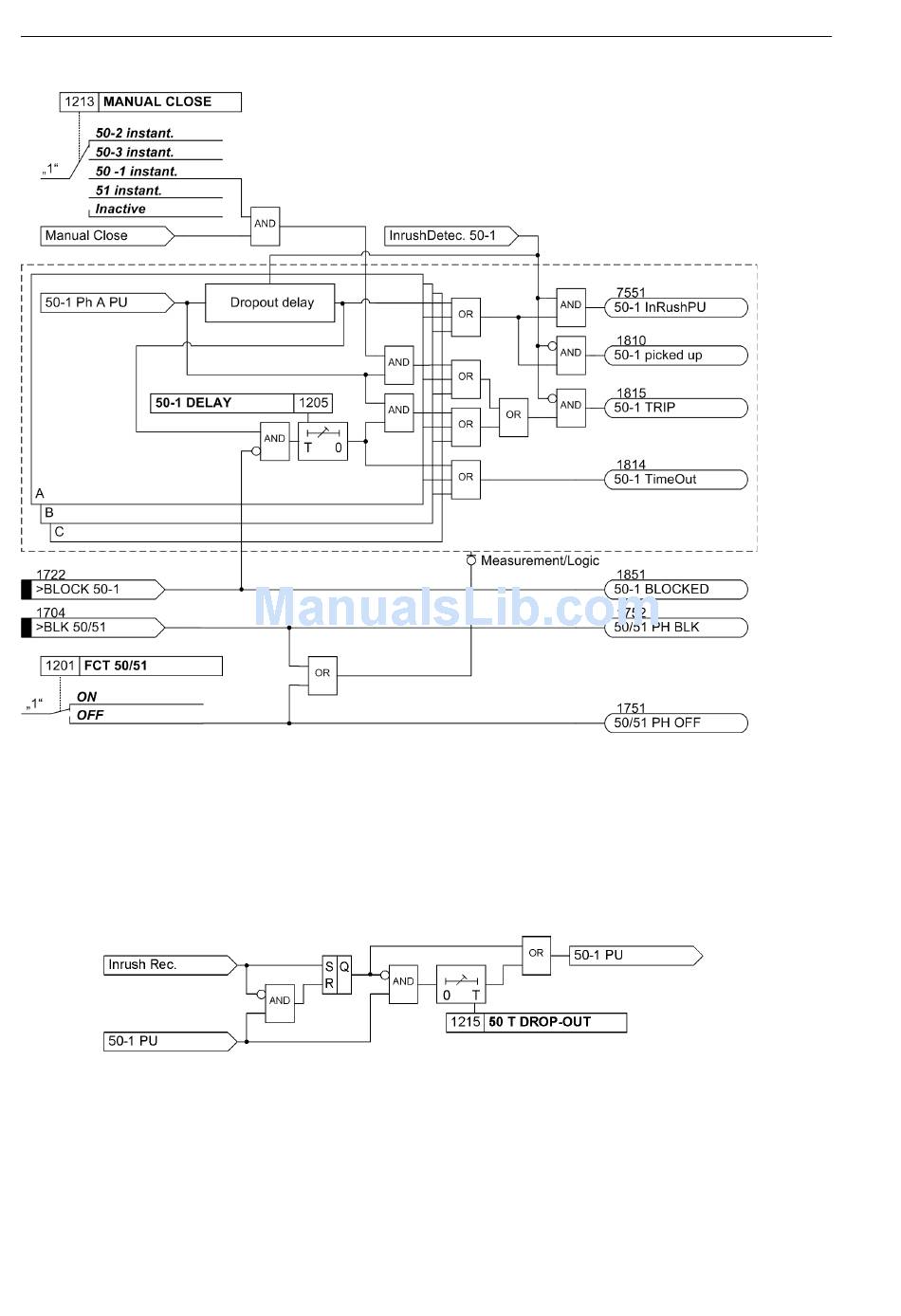

Figure 2-8 Logic diagram of the 50-1 element for phases
If parameter 1213 MANUAL CLOSE is set to 50 -1 instant. and manual close detection is used, a pickup
causes instantaneous tripping even if theElement is blocked via a binary input.
The dropout delay only operates if no inrush was detected. An incoming inrush will reset a running dropout
delay time.
Figure 2-9
64
Logic diagram of the dropout delay for 50-1
