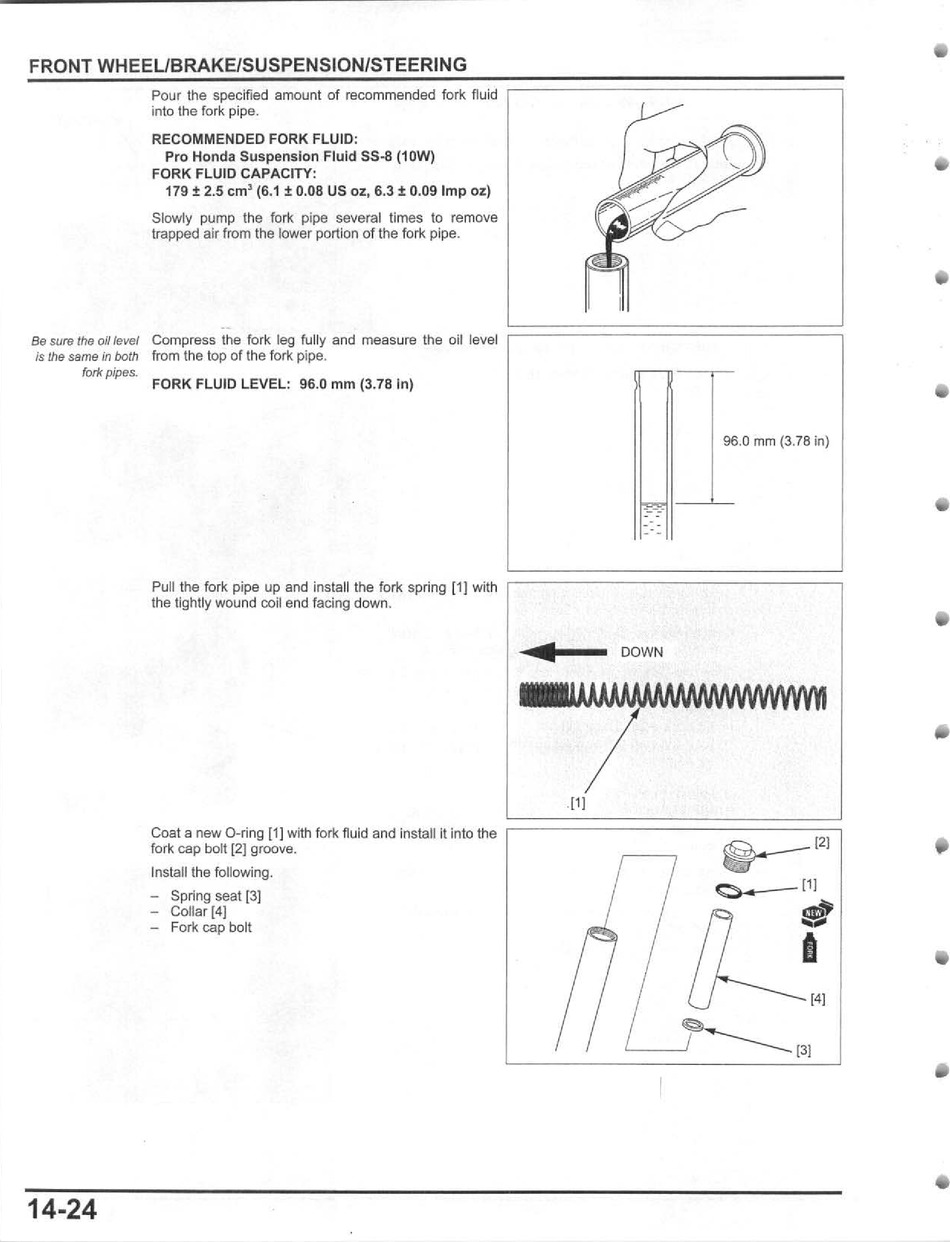

FRONT WHEEUBRAKE/SUSPENSION/STEERING
Pour the specified amount of recommended fork fluid
into Ihe fork pipe.
RECOMMENDED FORK FLUID:
Pro Honda Suspension Fluid SS-8 (10W)
FORK FLUID CAPACITY:
179:1: 2.5
em'
(6.1 :I: 0.08 US OZ, 6.3:1: 0.09 Imp oz)
Slowly pump the fork pipe several times to remove
trapped air from the lower portion of the fork pipe.
Be
sure the oil level
Compress the fork leg fuUy and measure Ihe oil level
~================i
Is the same in both
from the top of the fork pipe.
fork
pipes.
14-24
FORK FLUID lEVEL: 96.0 mm (3.78 in)
96.0
mm
(3.78
in)
Pull the fork pipe up and inslaUthe fork spring (11 with
~================:;
Ihe lightly
wound coil end facing down.
DOWN
Coat a new O-ring [1 ) with fork fluid and install it into the
~===============::::;
fork cap
bolt [2)
groove.
~
12)
Install Ihe following.
~
_ Spring seat [31
c---
[1]
- CoUar (41
~~
- Fork cap bolt IIIIiiJII
a
141
'f----
131
•
•
