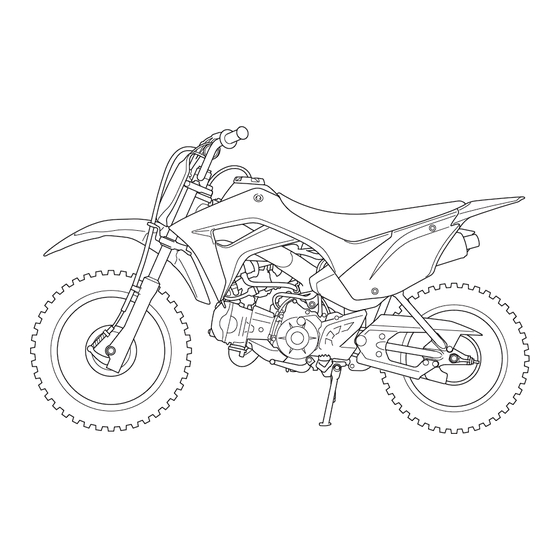

2025 CRF110F

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CRF110F 2025 and is the answer not in the manual?

Questions and answers

Related Manuals for Honda CRF110F 2025

Summary of Contents for Honda CRF110F 2025

  • Page 1 Models sold in and used in California: The removal or modification of evaporative emission-related parts on this OHRV is illegal. Violators may be subject to civil and/or criminal penalties as provided under California and federal law. OW N E R’S M A N UA L 2025 CRF110F...
  • Page 2 This publication includes the latest production information available before printing. Honda Motor Co., Ltd. reserves the right to make changes at any time without notice and without incurring any obligation. No part of this publication may be reproduced without written permission.
  • Page 3 2025 Honda CRF110F OWNER’S MANUAL FOR OFF-ROAD USE ONLY This vehicle is designed and manufactured for off-road use only. USA only: It conforms to US EPA Noise Emission regulations, but does not conform to Federal Motor Vehicle Safety Standards or US EPA On Highway Exhaust Emission regulations, and operation on public streets, roads, or highways is illegal.

  • Page 4: A Few Words About Safety

    A Few Words About Safety Your safety, and the safety of others, is very important. And operating this motorcycle safely is an important responsibility. To help you make informed decisions about safety, we have provided operating procedures and other information on labels and in this manual. This information alerts you to potential hazards that could hurt you or others.
  • Page 5 A Few Words About Safety These signal words mean: You WILL be KILLED or SERIOUSLY HURT if you don't follow instructions. You CAN be KILLED or SERIOUSLY HURT if you don't follow instructions. You CAN be HURT if you don't follow instructions. •...

  • Page 6: Table Of Contents

    Servicing Your Honda .........39 Introduction Why your motorcycle needs regular maintenance, what you need to know before Motorcycle Safety ......... 1 servicing your Honda, a maintenance Important safety information, a special schedule, and instructions for specific message for parents, precautions about maintenance items.
  • Page 7 What to do if you have a flat tire, your engine won’t start, etc. Technical Information......141 ID numbers, technical specifications, and other technical facts. Consumer Information (USA and Canada only)......157 Information on warranties and how to get Honda service manuals. Index ..............165 Contents...

  • Page 8: Introduction

    It’s full of facts, instructions, safety information, and helpful When you own a Honda, you’re part of a tips. To make it easy to use, the manual worldwide family of satisfied customers – contains a detailed list of topics at the people who appreciate Honda’s reputation for...
  • Page 9 If you have any questions, or if you ever need a special service or repairs, remember that your Honda dealer knows your motorcycle best and is dedicated to your complete satisfaction. Please report any change of address or...

  • Page 10: Motorcycle Safety

    Motorcycle Safety This section presents some of the most Important Safety Information ......2 important information and recommendations to Important Message to Parents ......5 help you ride your motorcycle safely. Please Loading, Accessories & Modifications...8 take a few moments to read these pages. This Loading ............8 section also includes a special message for Accessories &...

  • Page 11: Important Safety Information, A Special

    Important Safety Information Your motorcycle can provide many years of Always Wear a Helmet It’s a proven fact: helmets significantly reduce service and pleasure–if you take responsibility the number and severity of head injuries. So for your own safety and understand the always wear an approved motorcycle helmet.
  • Page 12 Important Safety Information Ride Off-road Only Be Alert for Off-road Hazards Your motorcycle is designed and manufactured for The terrain can present a variety of challenges off-road use only. The tires are not made for when you ride off-road. Continually ‘‘read’’ the pavement, and the motorcycle does not have turn terrain for unexpected turns, drop-offs, rocks, signals and other features required for use on public...
  • Page 13 The same is true for drug use. Don’t drink or use and ride, and don’t let your friends do it either. Keep Your Honda in Safe Condition It’s important to keep your motorcycle properly maintained and in safe riding condition. Having a breakdown can be difficult, especially if you are stranded off-road far from your base.

  • Page 14: Important Message To Parents

    Important Message to Parents Your child’s safety is very important to Honda. PHYSICAL ABILITY is an important That’s why we urge you to read this message consideration. For example, riders must be big before you let any young person ride this enough to hold the motorcycle up, get on, and motorcycle.
  • Page 15 To help your youngster build confidence as If you decide that your youngster is ready to they’re learning to ride, this Honda was safely operate this motorcycle, make sure both delivered with a throttle limiter that limits of you carefully read and understand the maximum engine speed.
  • Page 16 Important Message to Parents SUPERVISION is another important obligation of parents. Even after youngsters have become skilled off-road riders, they should always ride with adult supervision. It helps to regularly remind young riders of basic safety rules and precautions. And remember, it’s your responsibility to see that the motorcycle is properly maintained and kept in safe operating condition.

  • Page 17: Loading, Accessories & Modifications

    Loading, Accessories & Modifications Your Honda was designed as a rider-only More specific information on load limits, motorcycle. It was not designed to carry a accessories, and modifications follows. passenger or cargo. A passenger or cargo could interfere with your ability to move around to...
  • Page 18 Loading, Accessories & Modifications Load Limits • Place weight as close to the center of the Following are the load limits for your motorcycle as possible. motorcycle: • Do not attach large or heavy items (such as a sleeping bag or tent) to the handlebar, fork, Maximum weight capacity or front fender.

  • Page 19: Accessories & Modifications

    Before you consider making any modifications and use of non-Honda accessories. Check with or adding an accessory, be sure to read the your dealer for assistance and always follow following information.
  • Page 20 Loading, Accessories & Modifications Modifications We strongly advise you not to remove any original equipment or modify your motorcycle in any way that would change its design or operation. Such changes could seriously impair your motorcycle’s handling, stability, and braking, making it unsafe to ride. We also advise you not to make any modifications or remove any equipment (such as the USDA qualified spark arrester or...

  • Page 21: Safety Labels

    Safety Labels This page shows the locations of safety labels on your motorcycle. Some labels warn you of potential hazards that could cause serious injury. Others provide important safety information. Read these labels carefully and don’t remove them. If a label comes off or becomes hard to read, contact your dealer for a replacement. (Except Canada) (For Canada) Motorcycle Safety...

  • Page 22: Operating Controls

    Operating Controls When you ride off-road, you need to operate Operation Component Locations ....14 the throttle, brakes, and other controls without Operating Controls ........17 stopping to look at them. Read this section Ignition Switch..........17 carefully before you ride. It describes the Start Button ..........18 location, function, and operation of all the basic Engine Stop Switch........18...

  • Page 23: Operation Component Locations

    Operation Component Locations ignition switch fuel reserve indicator PGM-FI malfunction indicator lamp (MIL) front brake lever throttle grip start button engine stop switch ignition indicator Operating Controls...
  • Page 24 Operation Component Locations kickstarter rear brake pedal Operating Controls...
  • Page 25 Operation Component Locations shift pedal Operating Controls...

  • Page 26: Operating Controls

    Operating Controls FRONT Ignition Switch The ignition switch (1) is used to prevent unauthorized use of the motorcycle. Before riding, insert the key and turn it to the right for the (ON) position. Function Key Removal Position (1) ignition switch The engine cannot be The key can be (OFF)

  • Page 27: Start Button

    Operating Controls Front Brake Lever Start Button The front brake lever is used to slow or stop The start button is used for starting the engine. your motorcycle. To operate, pull the lever. For Pushing the button in starts the engine. See information on braking techniques, see page Starting Procedure, page 31.

  • Page 28: Shift Pedal

    Operating Controls Shift Pedal Kickstarter The shift pedal is used to select the next higher The kickstarter is used to start the engine. To or lower gear in the transmission. To operate, operate, swing the kickstarter out from its raise the shift pedal (after closing the throttle) stored position and depress it through its entire to engage the next higher gear or depress the stroke.

  • Page 29: Pgm-Fi Malfunction Indicator Lamp (Mil)

    Operating Controls PGM-FI Malfunction Indicator Fuel Reserve Indicator Lamp (MIL) When this indicator comes on while riding, fuel Lights when there is any abnormality in the reserved in the tank is about: 0.2 US gal (0.7 ) PGM-FI (Programmed Fuel Injection) system. The indicator should also light for a few The indicator should also light for a few seconds and then go off when the ignition...

  • Page 30: Before Riding

    Before Riding Before each ride, you need to make sure you Are You Ready to Ride? .......22 and your Honda are both ready to ride. To help Protective Apparel ........22 get you prepared, this section discusses how to Is Your Motorcycle Ready to Ride? .....24 evaluate your riding readiness, and how to Pre-ride Inspection ........25...

  • Page 31: Are You Ready To Ride

    Are You Ready to Ride? Before you ride your motorcycle for the first Protective Apparel time, we strongly recommend that you: • read this owner’s manual For your safety, we strongly recommend that • make sure you understand all the safety you always wear an approved motorcycle messages helmet, eye protection, boots, gloves, long...
  • Page 32 Are You Ready to Ride? of the style, look for a DOT (Department of Transportation) sticker on any helmet you buy (USA only). Always wear a face shield or Not wearing a helmet increases the goggles to protect your eyes and help your chance of serious injury or death in a vision.

  • Page 33: Is Your Motorcycle Ready To Ride

    Is Your Motorcycle Ready to Ride? Before each ride, it’s important to inspect your Note to Parents: motorcycle and make sure any problem you If a youngster will be performing any of the find is corrected. A pre-ride inspection is a following pre-ride inspection procedures, it’s must because off-road riding can be tough on a your responsibility to provide careful...

  • Page 34: Pre-Ride Inspection

    Is Your Motorcycle Ready to Ride? Fuel Check the level and add fuel Pre-ride Inspection (page 59) if needed. Also make sure the fuel fill cap is securely Check the following items before you get on fastened. the motorcycle: Drive Chain Check the condition and slack.
  • Page 35 Is Your Motorcycle Ready to Ride? Check these items after you get on the Indicators Turn the ignition on and check motorcycle: for normal operation of the indi- cators (page 20). Throttle Check the freeplay and adjust if needed. Rotate the throttle to Remember, be sure to take care of any problem make sure it moves smoothly you find or have your dealer correct it before...

  • Page 36: Basic Operation & Riding

    Tips & Practice Guide Shifting Gears ..........34 for the Off -Highway Motorcyclist booklet that Braking............36 came with your Honda (USA only). Parking ............37 Post-ride Inspection........38 To protect your new engine and enjoy optimum performance and service life, refer to Break-in Guidelines (page 148).

  • Page 37: Safe Riding Precautions

    Basic Operation & Riding Safe Riding Precautions Running the engine of your vehicle Before riding your motorcycle for the first while in an enclosed or even partially time, please review the Important Safety enclosed area can cause a rapid Information beginning on page 2 and the buildup of toxic carbon monoxide gas.
  • Page 38 Basic Operation & Riding Throttle Limiter for New Riders Your motorcycle came with an optional throttle stopper screw that can be installed to restrict the maximum engine speed for new riders. See page 73 for instructions on how to install this screw.

  • Page 39: Starting & Stopping The Engine

    Starting & Stopping the Engine Always follow the proper starting procedure Preparation described below. Before starting, insert the key and turn the ignition switch (ON). Make sure that the transmission is in neutral, the engine stop switch is at (RUN) and the PGM-FI malfunction indicator lamp (MIL) is off.

  • Page 40: Starting Procedure

    Starting & Stopping the Engine 2. If you cannot start the engine, open the Starting Procedure throttle slightly (about 0.1 in (3 mm), without freeplay). This motorcycle has a fuel-injected engine. about 0.1 in (3 mm), Follow the procedure indicated below. without freeplay Any Air Temperature 1.

  • Page 41: Flooded Engine

    Starting & Stopping the Engine Using The Kickstarter Flooded Engine 1. Turn the engine stop switch to (STOP). 2. Open the throttle fully. 3. Crank the engine several times with the If the engine fails to start after repeated kickstarter. attempts, it may be flooded with excess fuel.

  • Page 42: How To Stop The Engine

    Starting & Stopping the Engine How to Stop the Engine To stop the engine, shift into neutral, and turn the ignition switch to the (OFF) position. Basic Operation & Riding...

  • Page 43: Shifting Gears

    Shifting Gears 3. Release the front brake. Gradually open the throttle. 4. When you attain a moderate speed, close the throttle and raise the shift pedal. After shifting, apply the throttle. 5. To continue shifting up to each higher gear, repeat step 4.
  • Page 44 Shifting Gears Learning when to shift gears comes with experience. Upshift to a higher gear or reduce throttle before engine rpm (speed) gets too high. Downshift to a lower gear before you feel the engine laboring (lugging) at low rpm. Downshifting can help slow your motorcycle, especially on downhills.

  • Page 45: Braking

    Braking To slow or stop, apply the front brake and rear Generally, reduce your speed or complete brake pedal smoothly, while downshifting to braking before beginning a turn. Avoid braking match your speed. Gradually increase braking or closing the throttle quickly while turning. as you feel the brakes slowing your speed.

  • Page 46: Parking

    Parking Lower the side stand to support your motorcycle. Turn the ignition switch (OFF) and remove the key. Always choose a level place to park. Basic Operation & Riding...

  • Page 47: Post-Ride Inspection

    Post-ride Inspection When you return home after riding, thoroughly clean your motorcycle and remove any dirt, mud, brush, rocks or other objects you may have picked up along the way. After cleaning, carefully inspect your motorcycle for leaks or damage. Be sure to lubricate the drive chain (page 107) to prevent rusting.

  • Page 48: Servicing Your Honda

    You’ll also find important safety precautions, are ‘‘certified’’ to EPA standards. information on oils, and tips for keeping your Honda looking good. Before You Service Your Honda The Importance of Maintenance ....41 For information about the exhaust emission and Maintenance Safety........43 noise emission requirements of the U.S.
  • Page 49 Servicing Your Honda Service Preparations Chassis Maintenance Component Locations ..... 50 Suspension ............84 Tools ............. 53 Brakes............87 Left Side Cover Removal ......54 Wheels............93 Left Fuel Tank Shroud Removal ....55 Tires & Tubes..........98 Right Side Cover Removal......56 Side Stand ...........102 Clip Removal ..........

  • Page 50: The Importance Of Maintenance

    More frequent service is needed if you subject Always follow the inspection and your motorcycle to severe use (such as maintenance recommendations and competition) or ride in unusually wet or dusty schedules in this owner’s manual. areas. (cont’d) Servicing Your Honda...
  • Page 51 However, if you allow a youngster to perform or assist in any maintenance task, such as filling the tank with gasoline, you should provide close supervision to make sure that it is performed safely. Servicing Your Honda...

  • Page 52: Maintenance Safety

    Always follow the procedures and precautions in this owner’s manual. Injury from moving parts. Do not run the engine unless instructed to do so. (cont’d) Servicing Your Honda...
  • Page 53 To ensure the best • To help prevent the motorcycle from falling quality and reliability, use only new Honda over, park it on a firm, level surface, using Genuine Parts or their equivalents for repair the side stand or a maintenance stand to and replacement.

  • Page 54: Maintenance Schedule

    If you do not feel capable of performing a given task or need assistance, remember that your The Maintenance Schedule also includes items Honda dealer knows your motorcycle best and that involve more extensive procedures and is fully equipped to maintain and repair it. If...
  • Page 55 C: clean owner has the proper tools and service data and is mechanically qualified. Refer to the A: adjust official Honda Service Manual (page 158). L: lubricate **In the interest of safety, we recommend these R: replace items be serviced only by your dealer.
  • Page 56 * Should be serviced by your dealer, unless the owner has the proper tools and service data and is mechanically qualified. Refer to the official Honda Service Manual (page 158). ** In the interest of safety, we recommend these items be serviced only by your dealer.
  • Page 57 * Should be serviced by your dealer, unless the owner has the proper tools and service data and is mechanically qualified. Refer to the official Honda Service Manual (page 158). ** In the interest of safety, we recommend these items be serviced only by your dealer.

  • Page 58: Maintenance Record

    Notes 600 (1,000) or 6 1,200 (2,000) or 12 1,800 (3,000) or 18 2,400 (4,000) or 24 3,000 (5,000) or 30 3,600 (6,000) or 36 4,200 (7,000) or 42 4,800 (8,000) or 48 5,400 (9,000) or 54 Servicing Your Honda...

  • Page 59: Maintenance Component Locations

    Maintenance Component Locations front brake lever fuel fill cap throttle grip Servicing Your Honda...
  • Page 60 Maintenance Component Locations clutch adjuster engine oil fill cap/dipstick spark arrester rear brake engine oil spark plug pedal drain bolt Servicing Your Honda...
  • Page 61 Maintenance Component Locations main fuse sub fuse crankcase air cleaner drive chain breather tube battery Servicing Your Honda...

  • Page 62: Tools

    Refer to Safety Precautions on page 43. A spoke wrench is provided with your motorcycle (Except Canada). You will need to provide your own tools to perform any owner maintenance other than tightening or loosening the spokes. (1) spoke wrench Servicing Your Honda...

  • Page 63: Left Side Cover Removal

    3. Install the bolt A, bolt B and collar, and tighten them. (1) bolt A (4) side cover (7) tab (2) collar (5) prongs (8) rid (3) bolt B (6) grommets (9) groove Servicing Your Honda...

  • Page 64: Left Fuel Tank Shroud Removal

    3. Remove the left fuel tank shroud (2) by removing the bolt (3) and pulling the prong (4) from the grommet (5). Installation Installation is in the reverse order of removal. (1) clip (4) prong (2) left fuel tank shroud (5) grommet (3) bolt Servicing Your Honda...

  • Page 65: Right Side Cover Removal

    2. Align the side cover prongs with the rubber grommets. Press the side cover into position. 3. Install the bolt and collar, and tighten them. (1) bolt (4) prongs (2) collar (5) grommets (3) side cover (6) tab Servicing Your Honda...

  • Page 66: Clip Removal

    1. Insert the clip into the hole. Removal 2. Press down the center pin securely to lock 1. Pull up the center pin to release the lock. the clip. 2. Pull out the clip of the hole. Servicing Your Honda...

  • Page 67: Fuel

    86 (USA & Canada) / research octane number of Use only unleaded fuel in your Honda. If you 91 (Except USA & Canada) or higher. ride your Honda in a country where leaded fuel might be available, take precautions to use only USA &...

  • Page 68: Refueling Procedure

    • Stop the engine and keep heat, sparks and flames away. • Handle fuel only outdoors. (1) fuel fill cap (3) steering stem nut • Wipe up spills immediately. (2) breather tube (4) lower edge of filler neck (cont’d) Servicing Your Honda...
  • Page 69 3. After refueling, turn the fuel fill cap clockwise until it clicks. 4. Insert the breather tube in the steering stem nut. If you replace the fuel fill cap, use a Honda Genuine replacement part or equivalent. Servicing Your Honda...

  • Page 70: Oil Recommendation

    Running the engine with insufficient oil can viscosity (weight) SAE 10W-30 cause serious damage to the engine and JASO T 903 standard transmission. suggested oil Pro Honda GN4 4-stroke oil (USA & Canada), or Honda 4-stroke oil, or an equivalent motorcycle (cont’d) Servicing Your Honda...
  • Page 71 • Do not use API SJ or higher oils displaying a circular API ‘‘energy conserving’’ or “resource conserving” service label on the container. They may affect lubrication and clutch performance. NOT RECOMMENDED RECOMMENDED • Do not use non-detergent, vegetable, or castor based racing oils. Servicing Your Honda...
  • Page 72 4-stroke motorcycle engines. There are two classes: MA and MB. Oil conforming to the standard is labeled on the oil container. For example, the following label shows the MA classification. (1) oil code (2) oil classification Servicing Your Honda...

  • Page 73: Checking & Adding Oil

    8. Insert the oil fill cap/dipstick and screw it in (2) upper level mark tightly. 9. Check for oil leaks. 1. Park your motorcycle on a firm, level surface. 2. Clean around the oil fill cap/dipstick (1) and nearby surfaces. Servicing Your Honda...

  • Page 74: Changing Engine Oil

    Improper disposal of drained fluids is harmful 1. If the engine is cold, start it and let it idle for to the environment. 3-5 minutes. Turn the engine off. Wait 2-3 minutes for the oil to settle. (cont’d) Servicing Your Honda...
  • Page 75 18 lbf·ft (24 N·m , 2.4 kgf·m) 10.Pour the recommended oil into the crankcase, approximately: 1.1 US qt (1.0 ) 11. Install the oil fill cap/dipstick securely. 12.Start the engine. Let it idle 3-5 minutes, then turn it off. Servicing Your Honda...

  • Page 76: Air Cleaner

    Your motorcycle’s air cleaner has very specific premature engine wear. performance requirements. Use a new Honda Genuine air cleaner specified for your model or an air cleaner of equal quality. Servicing Your Honda...
  • Page 77 5. Allow the air cleaner to dry thoroughly before applying oil. A wet air cleaner will not fully absorb the oil. (1) bolts (4) hole (2) air cleaner housing cover (5) boss (3) air cleaner Servicing Your Honda...
  • Page 78 Air Cleaner 6. Pour clean Pro Honda Foam Filter Oil or equivalent (Except USA: Honda Foam Filter Oil or equivalent) over the entire surface of the air cleaner. Use both hands to evenly spread the oil into the air cleaner. Gently squeeze out any excess oil.

  • Page 79: Crankcase Breather

    • Drain the deposits into a suitable container by pinching the crankcase breather tube (1). Service more frequently if your motorcycle is ridden in the rain or often at full throttle. LEFT SIDE (1) crankcase breather tube Servicing Your Honda...

  • Page 80: Throttle Freeplay

    If you can’t get the freeplay within the (–) specified range, contact your dealer. (2) rubber dust cover (+) increase freeplay (3) lock nut (–) decrease freeplay (4) adjuster Servicing Your Honda...

  • Page 81: Throttle Inspection

    5. Lubricate the cable with a commercially available cable lubricant to prevent premature rust and corrosion. (1) throttle (2) throttle cables 1. Check that the throttle assembly is positioned properly and the securing bolts are tight. Servicing Your Honda...
  • Page 82 Never operate the motorcycle without either the M6 × 6 screw or throttle stopper screw installed (1) M6 × 6 screw as debris can enter the housing and cause the (2) throttle stopper screw throttle to bind. Servicing Your Honda...

  • Page 83: Clutch System

    (1) adjuster lock nut (2) clutch adjuster 1. Loosen the adjuster lock nut (1). 2. Turn the clutch adjuster (2) clockwise one turn; do not turn excessively. Servicing Your Honda...
  • Page 84 1/8 turn, and tighten the lock nut. 5. After adjustment, test ride the motorcycle to be certain the clutch operates properly. If you can’t get proper adjustment, or the clutch does not work properly, see your dealer. Servicing Your Honda...

  • Page 85: Valve Clearance

    3. Remove the crankshaft hole cap (5), timing (1) cylinder head cover (5) crankshaft hole cap hole cap (6) and O-rings (7). (2) bolts (6) timing hole cap (3) mount rubbers (7) O-rings (4) cylinder head cover gasket Servicing Your Honda...
  • Page 86 Exhaust: 0.006 ± 0.001 in flywheel lines up with the index mark (9) on (0.15 ± 0.02 mm) the left crankcase cover. In this position, the piston may either be on the compression or exhaust stroke. (cont’d) Servicing Your Honda...
  • Page 87 ‘‘UP’’ mark Finally, recheck the clearance to make sure outward. Install a new gasket onto cylinder that the adjustment has not been disturbed. head cover. Install the cylinder head cover. Install and tighten the cylinder head cover bolts. Servicing Your Honda...

  • Page 88: Spark Plug Recommendation

    Using spark plugs with an improper heat range can cause engine damage. The recommended standard spark plug is satisfactory for most riding conditions. CPR6EA-9S (NGK) Standard (1) center electrode (2) side electrode (3) spark plug gap (cont’d) Servicing Your Honda...
  • Page 89 6. With the plug washer attached, thread the 8. Reinstall the spark plug cap. Take care to spark plug in by hand (to prevent cross- avoid pinching any cables or wires. threading). Servicing Your Honda...

  • Page 90: Spark Arrester

    (2) collar (10) tabs (3) muffler protector 1. Allow the engine and muffler to cool. 2. Remove the right side cover (page 56). 3. Remove the muffler protector screw (1), collar (2) and muffler protector (3). (cont’d) Servicing Your Honda...
  • Page 91 The spark arrester must be free of breaks and holes. Replace, if necessary. (4) bolts (6) gasket (5) spark arrester (7) muffler 4. Remove the bolts (4), the spark arrester (5), and the gasket (6) from the muffler (7). (8) spark arrester screen Servicing Your Honda...
  • Page 92 (9) with the tabs (10) on the muffler. Install the muffler protector screw and collar and tighten the screw to the specified torque: 6.6 lbf·ft (9 N·m , 0.9 kgf·m) 8. Install the right side cover (page 56). Servicing Your Honda...

  • Page 93: Suspension

    (1) mounting bolts 1. Check fork operation. Pull the front brake lever in, to lock the brake. Then, pump up and down on the fork legs several times. The suspension should function smoothly. There should be no oil leakage. Servicing Your Honda...
  • Page 94 1. Place the motorcycle on a maintenance stand. Push hard against the side of the rear wheel and feel for any freeplay which indicates worn swingarm bushings (1). (1) swingarm bushing (2) shock absorber attachment points (cont’d) Servicing Your Honda...
  • Page 95 2. Check that the fasteners for the shock absorber attachment points (2) are secure. 3. Check for oil leaks in the shock absorber. If any rear suspension components appear worn or damaged, see your dealer for further inspection. Servicing Your Honda...

  • Page 96: Front Brake Lever Free Play

    4. Apply the brake, release it, then spin the wheel and check that it rotates freely. Repeat this procedure several times. (2) rubber dust cover (+) increase freeplay (3) lock nut (–) decrease freeplay (cont’d) (4) front brake cable adjuster Servicing Your Honda...
  • Page 97 (6). Turn the lower adjusting nut (7) to obtain the specified freeplay. Tighten the lower lock nut. LEFT FRONT (–) (–) (+) increase freeplay (6) lower lock nut (5) cable guide bolt (–) decrease freeplay (7) lower adjusting nut Servicing Your Honda...
  • Page 98 2. Check freeplay by slowly depressing the brake pedal (1) until the brake starts to engage. Freeplay: 3/8–13/16 in (10–20 mm) (8) brake arm If necessary, adjust to the specified range. After adjustment, confirm the freeplay of the brake lever. (cont’d) Servicing Your Honda...
  • Page 99 (3) brake arm pin arm pin (3). 2. Apply the brake, release it, and then spin the After adjustment, confirm the freeplay of the wheel and check that it rotates freely. Repeat this procedure several times. brake pedal. Servicing Your Honda...
  • Page 100 (2). Replace the brake shoes if the arrow aligns with the reference mark (3) on the brake panel (4) upon full application of (1) arrow (3) reference mark the brake. If replacement is necessary, see (2) brake arm (4) brake panel your dealer. Servicing Your Honda...
  • Page 101 • Front: Make sure the brake arm, spring, and fasteners are in good condition. • Rear: Make sure the brake rod, brake arm, spring, and fasteners are in good condition. Servicing Your Honda...

  • Page 102: Wheels

    (1) wheel rim Maintenance Schedule. However, information (2) spoke for wheel removal is provided for emergency situations. 1. Inspect the wheel rims (1) and spokes (2) for damage. 2. Tighten any loose spokes. (cont’d) Servicing Your Honda...
  • Page 103 This can cause poor brake performance or rapid brake shoe wear after reassembly. (4) front axle nut (1) cable guide bolt (5) lug (2) front brake cable (6) slot (3) brake arm Servicing Your Honda...
  • Page 104 3. Check front brake adjustment (page 87). If a torque wrench was not used to install the wheel, see your dealer as soon as possible to verify proper assembly. Improper assembly may lead to loss of braking capacity. Servicing Your Honda...
  • Page 105 This can cause poor brake performance or rapid brake shoe wear after reassembly. (5) adjusting nut (1) adjuster (6) rear axle nut (2) brake rod (7) rear axle shaft (3) brake arm (4) lock nut Servicing Your Honda...
  • Page 106 If a torque wrench was not used to install the wheel, see your dealer as soon as possible to verify proper assembly. Improper assembly may lead to loss of braking capacity. (8) lug (9) slot (10) brake panel Servicing Your Honda...

  • Page 107: Tires & Tubes

    Make sure the valve stem caps are secure. If necessary, install new caps. The following pages give detailed information on how and when to check your air pressure, how to inspect your tires for wear and damage, Servicing Your Honda...
  • Page 108 15 psi (100 kPa , 1.00 kgf/cm Front Rear 15 psi (100 kPa , 1.00 kgf/cm If you decide to adjust tire pressures for a particular riding condition, make changes a little at a time. (1) tire tread depth (cont’d) Servicing Your Honda...
  • Page 109 Replacing a tube requires removing and inside the tire or the tire is slipping on the reinstalling the wheel. Any time a tube is rim. See your dealer. replaced, carefully inspect the tire as described on page 99. Servicing Your Honda...
  • Page 110 This can cause a crash in installed. which you can be seriously hurt or • We recommend that tires be replaced by your killed. dealer. Always use the size and type of tires recommended in this owner’s manual. Servicing Your Honda...

  • Page 111: Side Stand

    2. Check the side stand assembly for freedom LEFT SIDE of movement. If the side stand is stiff or squeaky, clean the pivot area and lubricate the pivot bolt with clean engine oil. (1) side stand spring Servicing Your Honda...

  • Page 112: Drive Chain

    1. Check slack in the lower drive chain (1) run drive chain to perform the recommended midway between the sprockets. Drive chain service in the Maintenance Schedule. slack should allow the following vertical movement by hand: 3/8–13/16 in (10–20 mm) (cont’d) Servicing Your Honda...
  • Page 113 Replace the drive chain (page 108) if it has damaged rollers, loose pins, or kinks that cannot be freed. Lubricate the drive chain (3) ridge (2) chain slider (page 107) if it appears dry or shows signs of rust. Lubricate any kinked or binding links Servicing Your Honda...
  • Page 114 86 pins, from pin center to pin center. If the distance 42.5 in (1,080 mm) New Chain: exceeds the service limit, the drive chain is 43.3 in (1,101 mm) Service Limit: worn out and should be replaced. (cont’d) Servicing Your Honda...
  • Page 115 (5) graduated scale (3) adjusting nut 1. Loosen the rear axle nut (1). Use of a new chain with worn sprockets will 2. Loosen the lock nuts (2) on both sides of the cause rapid chain wear. swingarm. Servicing Your Honda...
  • Page 116 7. Recheck drive chain slack. USA & Canada 8. Check rear brake pedal freeplay and adjust as necessary (page 89). Freeplay is affected Pro Honda HP Chain Lube or equivalent when repositioning the rear wheel to adjust Except USA & Canada drive chain slack.
  • Page 117 3. Inspect the drive chain for possible wear or damage. Replace the drive chain if it has damaged rollers, loose fitting links, or otherwise appears unserviceable. Replacement chain: DID 420D-86RB (1) master link retaining clip Servicing Your Honda...

  • Page 118: More About: Drive Chain

    • You may find it easier to install a new chain retaining clip will face the direction of by connecting it to the old chain with a forward wheel rotation. master link and pulling the old chain to position the new chain on the sprockets. Servicing Your Honda...

  • Page 119: Battery

    If you have electrical accessories on compounds. Wash hands after handling. your motorcycle or do not ride frequently, we recommend that you charge the battery frequently (see Battery Charging, page 114). Servicing Your Honda...

  • Page 120: Battery Storage

    Wear protective clothing and a face shield, or have a skilled mechanic do You will get the best storage results from the battery maintenance. removing the battery and slow charging it every 30 days (see Battery Charging, page 114). (cont’d) Servicing Your Honda...
  • Page 121 (+) terminal lead (4). 5. Pull the battery (5) out of the battery compartment. (1) battery holder (2) bolt (3) negative (–) terminal lead (4) positive (+) terminal lead (5) battery Servicing Your Honda...
  • Page 122 8. Clean the battery box after removing the battery for storage. Dry the battery box and, if paint is missing, re-paint the area. 9. Slow charge the battery (see following section) once every 30 days. Servicing Your Honda...

  • Page 123: Battery Charging

    Battery We recommend using a charger (1) designed Battery Charging specifically for your Honda, which can be purchased from your dealer. These units can be Refer to Safety Precautions on page 43. left connected for long periods without risking damage to the battery. However, do not...

  • Page 124: Appearance Care

    Refer to Safety Precautions on page 43. General Recommendations Frequent cleaning and polishing will keep your Honda looking newer longer. Frequent cleaning • To clean your motorcycle, you may use: also identifies you as an owner who values your – water motorcycle.
  • Page 125 • drive chain degreaser to remove the grime. • throttle body 4. After washing, rinse your motorcycle thoroughly with plenty of clean water to remove any residue. High pressure water (or air) can damage certain parts of your motorcycle. Servicing Your Honda...
  • Page 126 This will help exhaust pipe and muffler. If you are not sure if dry the brakes and restore normal braking your exhaust pipe and muffler are painted, performance. contact your dealer. Servicing Your Honda...

  • Page 127: Tips

    Here’s helpful advice on how to prepare for an Preparing for a Ride ........119 off-road adventure, how to transport and store Transporting Your Honda ......121 your Honda, and how to be an environmentally Storing Your Honda ........123 responsible motorcycle owner. You & the Environment ......125...

  • Page 128: Preparing For A Ride

    Preparing for a Ride A safe and enjoyable ride begins with good What to Take to the Riding Area planning and preparation. Always ride with at least one other person in case you have trouble, Along with your motorcycle and riding gear, and let someone know where you’re going and you should take along some tools and supplies when you expect to return.
  • Page 129 Preparing for a Ride For safety, all refueling should be done at a gas If you decide to take some tools, spare parts, or station on the way to the riding area or at your other supplies on the trail, be sure you can carry base camp.

  • Page 130: Transporting Your Honda

    Transporting Your Honda If you use a truck or motorcycle trailer to transport your Honda, we recommend that you follow these guidelines: • Use a loading ramp. • Secure the motorcycle in an upright position, using motorcycle tie-down straps. Avoid using rope, which can loosen and allow the motorcycle to fall over.
  • Page 131 Transporting Your Honda Check that the tie-down straps do not contact any control cables or electrical wiring. Tighten both straps until the front suspension is compressed about half-way. Too much pressure is unnecessary and could damage the fork seals. Use another tie-down strap to keep the rear of the motorcycle from moving.

  • Page 132: Storing Your Honda

    If you won’t be riding for an extended period, For more information about storage, refer to the such as during the winter, thoroughly inspect Honda Winter Storage Guide, available from your motorcycle and correct any problem your dealer (USA only).

  • Page 133: Preparation For Storage

    Storing Your Honda Preparation for Storage Removal from Storage 1. Change the engine oil (page 65). 1. Uncover and clean your motorcycle. 2. Fill the fuel tank. Make sure the fuel fill cap 2. If your motorcycle has been stored for more is properly installed.

  • Page 134: You & The Environment

    You & the Environment Owning and riding a motorcycle can be • Choose Sensible Cleaners. Use a enjoyable, but you must do your part to protect biodegradable detergent when you wash your nature. When you show respect for the land, motorcycle.
  • Page 135 You & the Environment • Recycle Wastes. It’s illegal and thoughtless to put used engine oil in the trash, down a drain, or on the ground. Used oil, gasoline, and cleaning solvents contain poisons that can hurt refuse workers and contaminate our drinking water, lakes, rivers, and oceans.

  • Page 136: Taking Care Of The Unexpected

    Taking Care of the Unexpected With all the challenges you can encounter off- General Guidelines........128 road, there’s a chance that sometime something If Your Engine Quits or Won’t Start...129 may go wrong. This section gives practical If You Have a Flat Tire .......133 advice to help you deal with a wide range of If a Fuse Blows ...........134 problems.

  • Page 137: General Guidelines

    Taking Care of the Unexpected If a problem is relatively minor and you have General Guidelines the tools, supplies, and skills to make a permanent repair, you may be able to fix it on If something goes wrong during a ride, the first the trail and continue riding.

  • Page 138: If Your Engine Quits Or Won't Start

    Taking Care of the Unexpected • If you made temporary repairs, be sure to If you have a problem starting the engine – or have permanent repairs made as soon as experience poor engine performance – the possible. following information may help you. If you •...
  • Page 139 Taking Care of the Unexpected SYMPTOM: Starter motor doesn’t operate. POSSIBLE CAUSE WHAT TO DO ignition switch (OFF) Turn the ignition switch (ON). transmission not in neutral Shift into neutral. blown fuse Replace with a new fuse of the same rating (page 134). battery lead loose Tighten the battery lead.
  • Page 140 Taking Care of the Unexpected SYMPTOM: Starter motor works, but the engine won’t start. POSSIBLE CAUSE WHAT TO DO out of fuel Fill the fuel tank. flooded engine See Flooded Engine (page 32). loose or unconnected Install the spark plug cap securely. If the engine still won’t spark plug cap start, see your dealer.
  • Page 141 Taking Care of the Unexpected SYMPTOM: Engine starts, but runs poorly. (cont’d) POSSIBLE CAUSE WHAT TO DO sooty exhaust (rich fuel See your dealer. mixture) detonates or pings under If applicable, switch to the recommended octane gasoline load (page 58) or change your brand of gasoline. If the problem persists, see your dealer.

  • Page 142: If You Have A Flat Tire

    Taking Care of the Unexpected If the leak is more serious, or a temporary If You Have a Flat Tire repair doesn’t hold, the tube must be replaced. The tire will also need to be replaced if it is How you handle a flat tire on the trail depends damaged (page 101).

  • Page 143: If A Fuse Blows

    Taking Care of the Unexpected If you are unable to repair a flat tire on the trail, If a Fuse Blows you will need to push the motorcycle back to your base or send for help. We strongly All of the electrical circuits on your motorcycle recommend that you do not try to ride with a have fuses to protect them from damage caused flat tire.
  • Page 144 Taking Care of the Unexpected The main fuse and sub fuse are located behind LEFT SIDE the left side cover. Recommended Fuses main fuse 10 A sub fuse 1. To prevent an accidental short circuit, turn the ignition switch (OFF) before checking or replacing the fuse.
  • Page 145 Taking Care of the Unexpected Sub Fuse Access: LEFT SIDE 5. Open the fuse case (6) and pull the sub fuse out. If the sub fuse is blown (7), install the spare sub fuse (8). 6. Close the fuse case. 7.

  • Page 146: If You Crash

    Taking Care of the Unexpected If there is minor damage, or you are unsure If You Crash about possible damage but decide to try riding the motorcycle back to your base, ride slowly Personal safety is your first priority after a and cautiously.

  • Page 147: If You Lose Your Key

    If you don’t know your key number, call • If the drive chain comes off because the the dealer where you purchased your Honda. master link clip gets knocked off, you may be They may have it listed in their records. If they able to put the chain back on with a new don’t, transport your motorcycle to them or the...

  • Page 148: If Your Battery Is Low (Or Dead)

    Taking Care of the Unexpected • If any component of the front brake system is If Your Battery Is Low (or Dead) damaged, you may be able to ride carefully back to your base using the rear brake for Jump starting is not recommended, especially if slowing or stopping.

  • Page 149: Unstable Engine Operation Occurs Intermittently

    Taking Care of the Unexpected Unstable Engine Operation Occurs Intermittently If the fuel pump filter is clogged, unstable engine operation will occur intermittently while riding. Even if this symptom occurs, you can continue to ride your motorcycle. If unstable engine operation occurs even if sufficient fuel is available, have your motorcycle inspected by your dealer as soon as possible.

  • Page 150: Technical Information

    Technical Information This section contains dimensions, capacities, Vehicle Identification........142 and other technical data, plus information on Specifications ..........143 government requirements and how to break-in Break-in Guidelines ........148 your motorcycle. Emission Control Systems (USA and Canada only) ......149 Oxygenated Fuels (USA and Canada only) ......154 Petrol Containing Alcohol (Except USA and Canada) ......156 Technical Information...

  • Page 151: Vehicle Identification

    Vehicle Identification LEFT SIDE Serial Numbers The VIN and engine serial number are required when you register your motorcycle. They may also be required when ordering replacement parts. You may record these numbers in the Quick Reference section at the rear of the manual.

  • Page 152: Specifications

    (Except USA & Canada) 41.9 in (1,065 mm) Wheelbase research octane number of 91 or higher Fuel & Lubricants Pro Honda Foam Filter Air cleaner oil Fuel tank capacity 0.98 US gal (3.7 ) Oil (USA only) including reserve or Honda Foam Filter...
  • Page 153 Drive chain Classification SJ or lubricant: recommendation lubricant higher except oils (USA & Canada) labeled as energy Pro Honda HP Chain conserving or Lube or equivalent resource conserving (Except USA & Canada) on the circular API Drive chain lubricant service label,...
  • Page 154 Specifications Engine Specifications Power Transmission 4.058 Displacement Primary reduction 6.6 cu-in (109 cm 2.615 Gear ratio, 1st 1.97 × 2.19 in Bore & stroke 1.555 (50.0 × 55.6 mm) 1.136 9.0 : 1 Compression ratio 0.916 Intake: Valve clearance 0.004 ± 0.001 in (cold) 2.714 Final reduction...
  • Page 155 Specifications Power Transmission Chassis & Suspension 3/8–13/16 in 24°25’ Drive chain Caster (10–20 mm) freeplay 2.0 in (52 mm) Trail 42.5 in (1,080 mm) New chain length 70/100-14M/C 37J Tire size, front distance between a 80/100-12 50J Tire size, rear span of 86 pins bias-ply, tube Tire type...
  • Page 156 Specifications Electrical Torque Specifications YTZ4V 18 lbf·ft Battery Engine oil drain bolt 12 V–3 Ah (10 HR) (24 N·m, 2.4 kgf·m) MTX4L-RS 1.1 lbf·ft Air cleaner housing 12 V-3 Ah (10 HR) (1.5 N·m, 0.2 kgf·m) cover bolt 0.09 kW/5,000 rpm 7 lbf·ft Generator Spark arrester bolt...

  • Page 157: Break-In Guidelines

    Break-in Guidelines Help assure your motorcycle’s future reliability and performance by paying extra attention to how you ride during the first operating day or 15 miles (25 km). During this period, avoid full-throttle starts and rapid acceleration. Technical Information...

  • Page 158: Emission Control Systems (Usa And Canada Only)

    Emission Control Systems (USA and Canada only) Exhaust Emission Requirements Noise Emission Requirements The U.S. Environmental Protection Agency The EPA also requires that motorcycles built (EPA), the California Air Resources Board after January 1, 1983 comply with applicable (CARB), and Environment and Climate noise emission standards for one year or Change Canada (ECCC) require that your 1,865 miles (3,000 km) after the time of sale to...
  • Page 159 The exhaust emission control system is sunlight. Carbon monoxide does not react in separate from the crankcase emission control the same way, but it is toxic. system. Honda Motor Co., Ltd. utilizes various systems to reduce carbon monoxide, oxides of nitrogen and hydrocarbons. Technical Information...
  • Page 160 Emission Control Systems (USA and Canada only) Evaporative Emission Control System (USA - 50 States (meets California) only) An evaporative emission control system uses pressure proof fuel tank and fuel fill cap which maintains inside of the fuel tank at a high pressure to keep fuel vapor in itself while the engine is off.
  • Page 161 Emission Control Systems (USA and Canada only) Noise Emission Control System AMONG THOSE ACTS PRESUMED TO TAMPERING WITH THE NOISE CONTROL CONSTITUTE TAMPERING ARE THE SYSTEM IS PROHIBITED: U. S. federal law ACTS LISTED BELOW: prohibits, or Canadian provincial laws may •...
  • Page 162 Honda Motorcycle Dealer: vehicle is to be used for competition only. 1. Hard starting or stalling after starting 2.

  • Page 163: Oxygenated Fuels (Usa And Canada Only)

    Oxygenated Fuels (USA and Canada only) Some conventional gasolines are being blended ETHANOL (ethyl or grain alcohol) up to 10% with alcohol or an ether compound. These by volume. gasolines are collectively referred to as You may use gasoline containing up to 10% oxygenated fuels.
  • Page 164 Oxygenated Fuels (USA and Canada only) If you notice any undesirable operating symptoms, try another service station or switch Oxygenated fuels can damage paint and to another brand of gasoline. plastic. Damage caused by spilled fuel is not Fuel system damage or performance problems covered under warranty.

  • Page 165: Petrol Containing Alcohol (Except Usa And Canada)

    The use of petrol containing more than 10 % (gasohol), be sure it’s octane rating is at least as ethanol may: high as that recommended by Honda. Do not • Damage the painting of the fuel tank. use petrol that contains more than 10 % •...

  • Page 166: Consumer Information (Usa And Canada Only)

    Consumer Information (USA and Canada only) This section contains information on your Authorized Manuals warranty and how to get an official Honda (USA and Canada only) ......158 service manual. Warranty Coverage (USA and Canada only) ......160 Warranty Service (USA and Canada only) ......161 Contacting Honda (USA and Canada only) ......162...

  • Page 167: Authorized Manuals (Usa And Canada Only)

    Authorized Manuals (USA and Canada only) The Service Manual used by your authorized dealer is available from your Honda dealer or Helm, Inc. (USA only, Canada: See your dealer to order authorized manuals.) Also available, but not necessary to service your model, is the Honda Common Service Manual, which explains basic service information for various systems on Honda motorcycles, scooters, and ATV.
  • Page 168 Order online: www.helminc.com Order Toll Free: 1-888-CYCLE93 (1-888-292-5393) (NOTE: For Credit Card Orders Only) Monday – Friday 8:00 AM – 6:00 PM EST Consumer Information (USA and Canada only)

  • Page 169: Warranty Coverage (Usa And Canada Only)

    Honda Motorcycle Warranties Booklet qualified. Failures that occur due directly to that was provided to you by your Honda dealer. improper maintenance or lack of maintenance Please read this booklet and be aware of the are not covered.

  • Page 170: Warranty Service (Usa And Canada Only)

    If the problem If you believe you have a problem with your has already been reviewed with the Service Honda, call the service department of your Manager, Parts Manager, Sales Manager, etc., dealer. Make an appointment for an inspection contact the Owner of the dealership or their and diagnosis.

  • Page 171: Contacting Honda (Usa And Canada Only)

    Website: www.powersports.honda.com/contact-us differences at the dealership level. Canada: Honda Canada Inc., Customer If you wish to contact Honda directly to Relations Dept, 180 Honda Boulevard, comment on your experiences with your Honda Markham, Ontario L6C 0H9, telephone: (888) or with your dealer, please send your comments 946-6329, facsimile: (877) 939-0909.
  • Page 172 Contacting Honda (USA and Canada only) Please include the following information in your letter: • name, address, and telephone number • product model, year, and VIN • date of purchase • dealer name and address We will likely ask your dealer to respond, or possibly acknowledge your comments directly.

  • Page 173: Your Honda Dealer (Usa And Canada Only)

    (USA only), and Honda accessories and your Honda. products (Canada only). The same quality that went into your Honda can be found in Honda Genuine replacement parts. You’ll also find comparable quality in the accessories and products available from the parts department.

  • Page 174: Index

    Index Index accessories ............ 10 capacity, fuel ..........59 air cleaner ............. 67 cleaner, air ............ 67 air pressure, tires ........... 98 cleaning, appearance care ......115 altering your motorcycle ......11 clearance, valve ..........76 arrester, spark ..........81 clip removal ..........
  • Page 175 ......125 gasohol ............154 gasoline ............58 gears, shifting ..........34 filter, air ............67 flat tire ............133 flooded engine, starting ........ 32 Honda service manual ........ 158 fork ............... 84 Honda, contacting ........162 Index...
  • Page 176 Index ignition switch ..........17 maintenance, inspection, component locations ......50 post-ride ..........38 record ............. 49 pre-ride ........... 25 safety ............43 schedule ..........45 manual, service ........... 158 modifications ..........11 key, lost ............138 kickstarter ............. 19 oil, engine .............
  • Page 177 Index safety ............2 right side cover removal ....... 56 parking ............37 pedal, rear brake ........... 19 petrol containing alcohol schedule, maintenance ......... 45 (Except USA and Canada) ......156 service, pinging, engine ..........58 customer ..........162 plug, spark ............ 79 manuals ..........
  • Page 178 Index storage ............123 suspension, front ............84 rear ............85 unexpected problems ........127 vehicle identification no. (VIN) ....142 throttle freeplay ..........71 operation ..........18 tires, warranty, air pressure ..........98 coverage ..........160 flat ............133 extended ..........
  • Page 179 Memo...

  • Page 180: Quick Reference

    Frequent causes of costly chassis repair are: collection of information you need to know • Chain -- A loosely adjusted chain or a chain about your Honda. You’ll also find space to stretched because of lack of lubrication may record important notes.
  • Page 181 Quick Reference Record important information here: Engine No. Owner’s: Name Address City/State Phone Dealer’s: Name Address City/State Phone Service Mgr. Quick Reference...
  • Page 182 API Service Classification SJ or higher except oils labeled as energy conserving or resource Capacity conserving on the circular API service label, SAE 10W-30, JASO T 903 standard MA, Pro Honda GN4 4-stroke oil (USA & Canada), or Honda 4-stroke oil, or an equivalent motorcycle oil after draining: 1.1 US qt (1.0 )
  • Page 183 Quick Reference These symbols are used in Operating Controls section: SYMBOL COMPONENT SEE PAGE ON – ignition switch OFF – ignition switch START button STOP – engine stop switch RUN – engine stop switch PGM-FI Malfunction Indicator Lamp (MIL) fuel reserve indicator ignition indicator Quick Reference...
  • Page 184 California Proposition 65 Warning WARNING: Operating, servicing and maintaining a passenger vehicle or off-highway motor vehicle can expose you to chemicals including engine exhaust, carbon monoxide, phthalates, and lead, which are known to the State of California to cause cancer and birth defects or other reproductive harm.
  • Page 185 31KYKD20 © 2024 Honda Motor Co., Ltd. 00X31-KYK-D200 Printed in the U.S.A. All Rights Reserved...

Table of Contents

Save PDF
