Serial RS-232 Menu Options

Serial RS–232
(From page 3–50)

Data Protocol

Data Rate
* *
XON/XOFF 9600 BAUD
ACK/NAK 19200 BAUD
ETX/ACK 150 BAUD
DTR, RC, or RTS 300 BAUD
600 BAUD
1200 BAUD
2400 BAUD
4800 BAUD
Data Term Ready
*
On–Line and BNF
Off–Line or BF
False
True
3–58
Word Length
* *
8 Bits
7 Bits
Request To Send
*
On–Line and BNF
Off–Line or BF
False
True

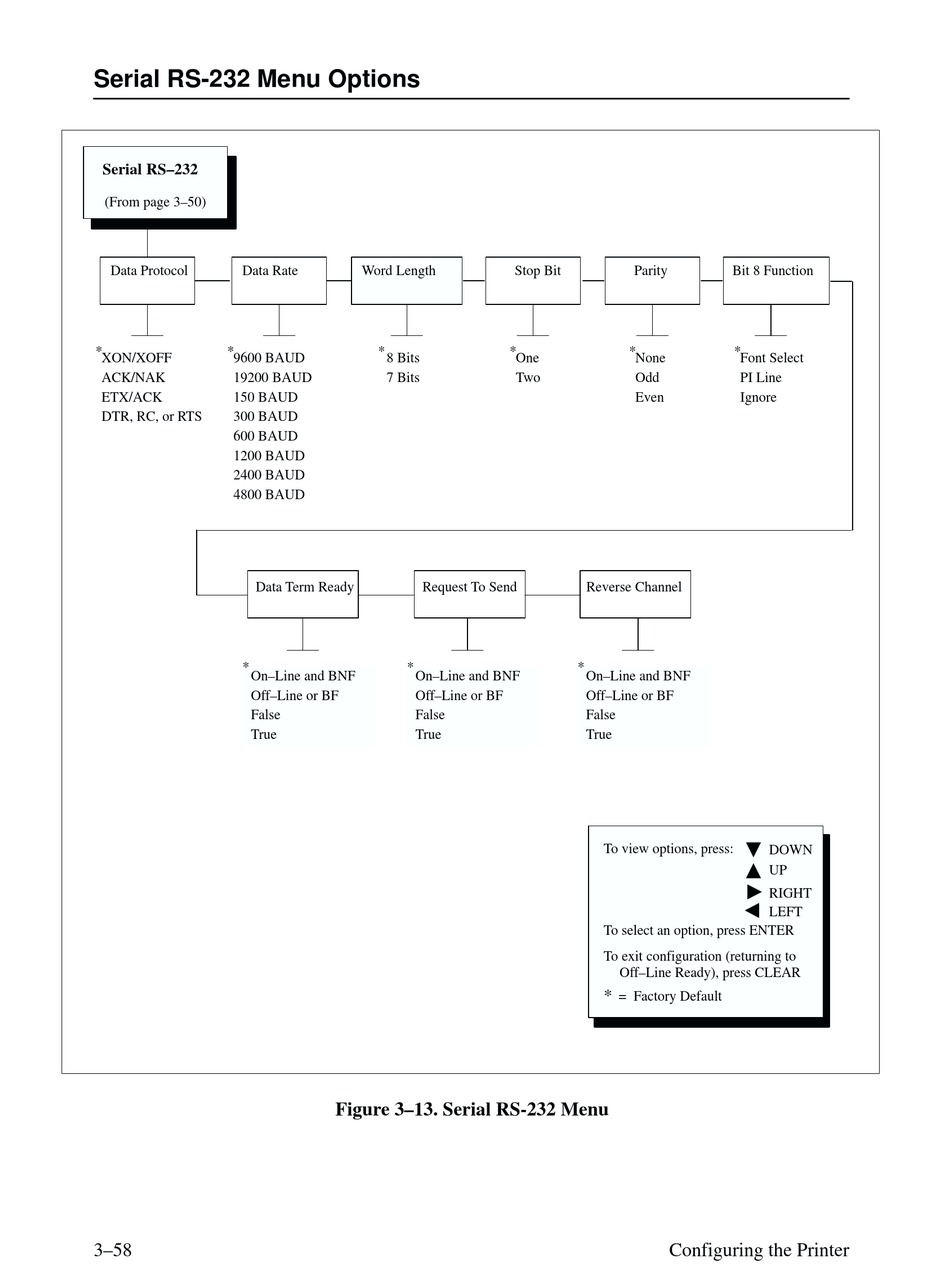

Figure 3–13. Serial RS-232 Menu
Stop Bit Parity
*
One None
Two Odd
Even
Reverse Channel
*
On–Line and BNF
Off–Line or BF
False
True
To view options, press:
To select an option, press ENTER
To exit configuration (returning to
Off–Line Ready), press CLEAR
*
= Factory Default
Configuring the Printer
Bit 8 Function
*
Font Select
PI Line
Ignore
B
DOWN
Y
UP
"
RIGHT
A
LEFT
