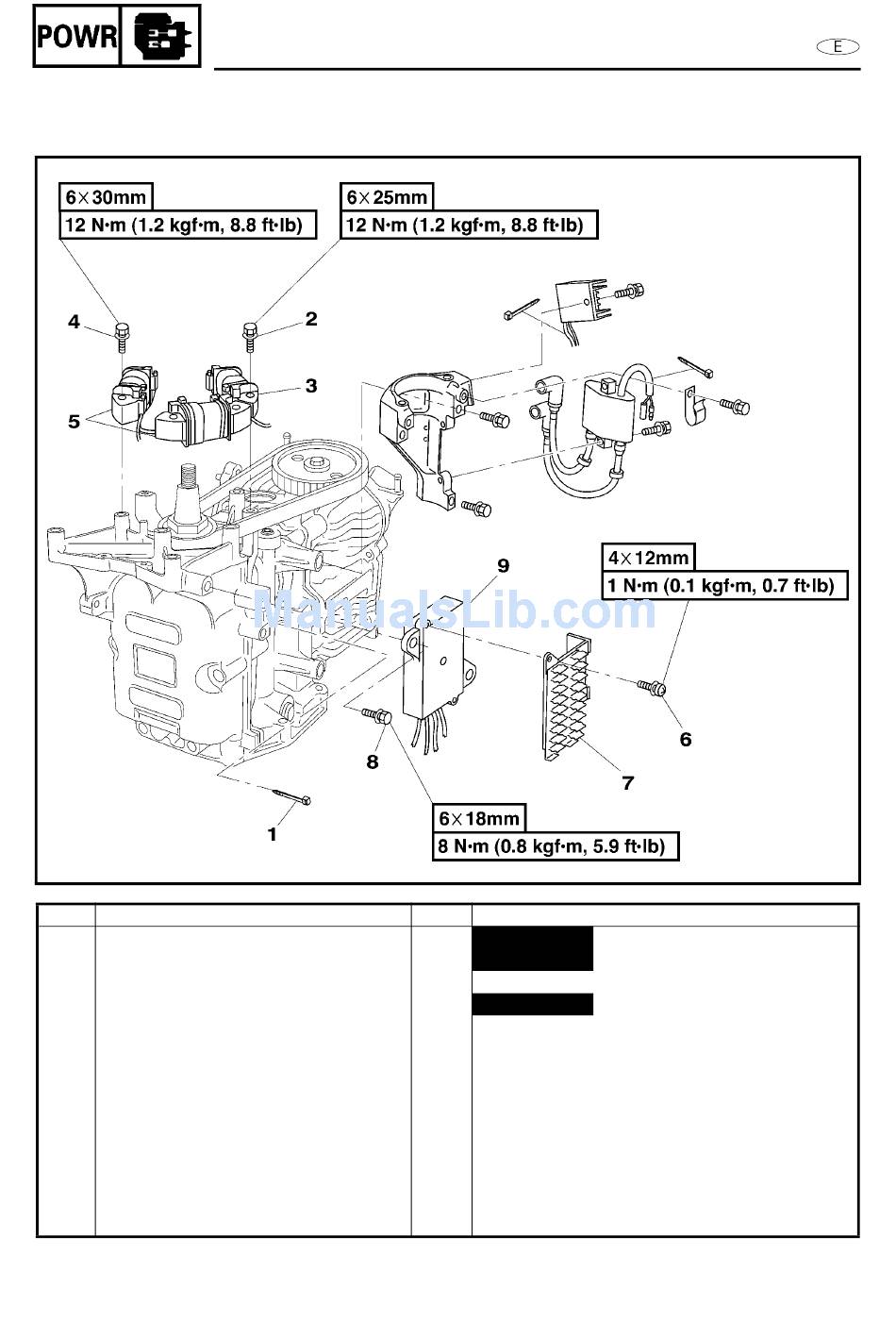

REMOVING/INSTALLING THE LEFT SIDE ELECTRICAL COMPONENTS 2 (TWO
LIGHTING COILS)
Step
1 Clamp
2 Bolt (with washer)
3 Charge coil
4 Bolt (with washer)
5 Lighting coil
6 Screw
7 Coupler clamp
8 Bolt (with washer)
9 CDI unit
POWER UNIT
Job/Part Q'ty
1 Not reusable
2 Not reusable
1 2 leads (Blue, Brown)
4 Not reusable
1 2 leads (Green x 2)
2
1
2
1 13 leads
For installation, reverse the removal
procedure.
