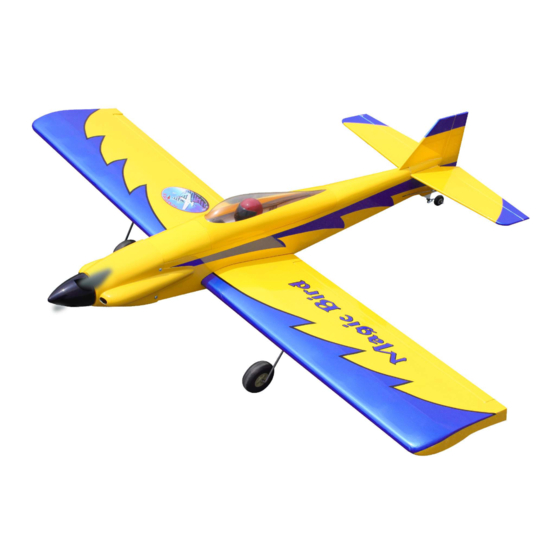

Seagull Models Magic Bird EF1 RACER 40E PNP, 46" Assembly Manual
  1. Manuals
  2. Brands
  3. Seagull Models Manuals
  4. Toy
  5. Magic Bird EF1 RACER 40E PNP, 46"
  6. Assembly manual

Seagull Models Magic Bird EF1 RACER 40E PNP, 46" Assembly Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
Code : SEA380PNP
ASSEMBLY MANUAL
Speciications:
Wingspan--------------- 45.6 in------------------ 116.0 cm.
Wing area--------------- 417.9 sq.in-------------- 27.0 sq.dm.
Weight------------------- 4.0 lbs-------------------- 1.8 kg.
Length------------------- 42 in --------------------- 106.8 cm.
Motor-------------------- power Dualsky 40-size ECO 3520C-V2.
Radio-------------------- 4 channels with 4 servos.
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Magic Bird EF1 RACER 40E PNP, 46" and is the answer not in the manual?

Questions and answers

Related Manuals for Seagull Models Magic Bird EF1 RACER 40E PNP, 46"

Summary of Contents for Seagull Models Magic Bird EF1 RACER 40E PNP, 46"

  • Page 1 Code : SEA380PNP ASSEMBLY MANUAL Speciications: Wingspan--------------- 45.6 in------------------ 116.0 cm. Wing area--------------- 417.9 sq.in-------------- 27.0 sq.dm. Weight------------------- 4.0 lbs-------------------- 1.8 kg. Length------------------- 42 in --------------------- 106.8 cm. Motor-------------------- power Dualsky 40-size ECO 3520C-V2. Radio-------------------- 4 channels with 4 servos.

  • Page 2: Kit Contents

    Instruction Manual. Magic Bird EF1 RACER 40E PNP, 46” INTRODUCTION hank you for choosing the ARTF by SG MODELS Magic Bird EF1 RACER 40E PNP, 46” . he was designed with the intermediate/ Magic Bird EF1 RACER 40E PNP, 46” Magic Bird advanced sport lyer in mind.

  • Page 3: Receiver Installation

    KIT CONTENTS RECEIVER INSTALLATION Make the connections from the rudder Magic Bird EF1 RACER 40E SEA380PNP and elevator servos to the receiver. Also PNP, 46” connect the extensions for the laps and 1. Fuselage ailerons.. 2. Wing set (2) All servo extensions have been provided 3.

  • Page 4: Rudder And Elevator Installation

    Instruction Manual. Magic Bird EF1 RACER 40E PNP, 46” Check that the servo arms for the eleva- tor (1) and rudder (2) are at 90-degrees to the pushrods. Adjust the sub-trim of the radio or reposition the servo arms as necessary.
  • Page 5 ATTACHMENT WING- FUSELAGE Attach the aluminium tube into fuselage. Wing tube Insert two wing panels as pictures below.
  • Page 6 Instruction Manual. Magic Bird EF1 RACER 40E PNP, 46” M3x12mm M3x12mm...

  • Page 7: Installation

    M3x12mm MOTOR BATTERY AND PROPELLER INSTALLATION he photo shows the order of the items as installed on the motor. Use caution around the motor once the propeller has been installed. he propel- ler can cause injury if the motor starts when the battery is connected.
  • Page 8 Instruction Manual. Magic Bird EF1 RACER 40E PNP, 46” Fit the spinner cone in position. Posi- tion the spinner cone so it does not con- tact the propeller, Secure the spinner cone using the provided screw and 1.5mm hex wrench. Fit the propeller on the adapter.

  • Page 9: Apply The Decals

    3) With the model inverted, place your ingers on the masking tape and carefully lit the plane. his is the point at which your model should balance for your irst lights. Later, you may wish to experi- ment by shiting the balance up to 70mm forward or back to change the lying characteristics.

  • Page 10: Control Throws

    Instruction Manual. Magic Bird EF1 RACER 40E PNP, 46” CONTROL THROWS Ailerons: Rudder: High Rate : High Rate : Up : 15 mm Right : 20 mm Down : 15 mm Let : 20 mm Low Rate : Low Rate : Up : 12 mm Right : 15 mm Let : 15 mm...

  • Page 11: Flight Preparation

    FLIGHT PREPARATION PREFLIGHT CHECK 1) Completely charge your trans- Check the operation and direction mitter and receiver batteries before of the elevator, rudder, ailerons and your irst day of lying. throttle. 2) Check every bolt and every glue A) Plug in your radio system per the joint in the Magic Bird EF1 RACER manufacturer’s instructions and turn 40E PNP, 46”...
  • Page 12 Instruction Manual. Magic Bird EF1 RACER 40E PNP, 46” If you have any queries, or are interested in our products, please feel free to contact us Factory : 12/101A - Hamlet 4 - Le Van Khuong Street - Dong hanh Ward - Hoc Mon District - Ho Chi Minh City - Viet Nam.
